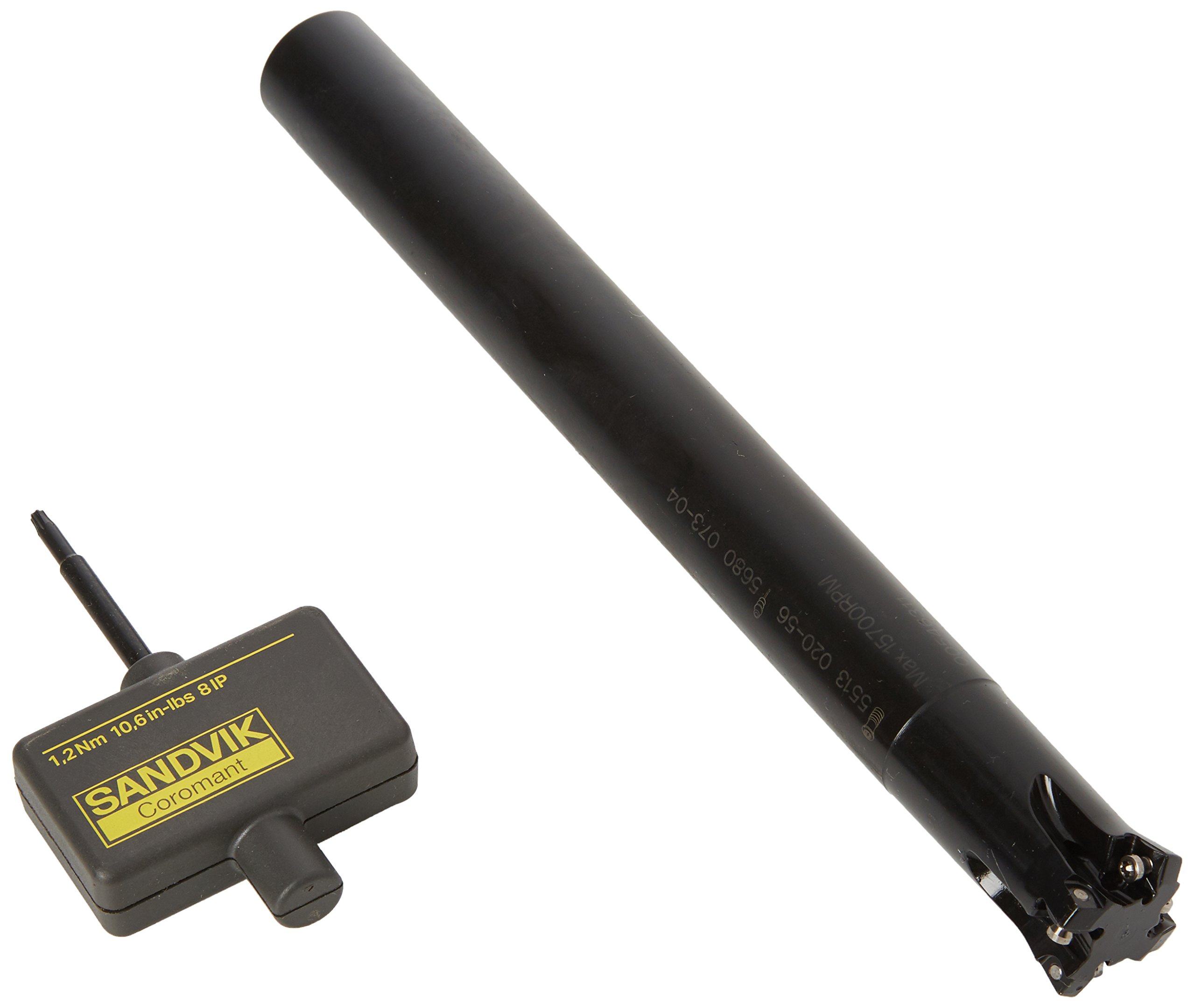

Sandvik Coromant 415-025A20-07H CoroMill 415 face milling cutter

• Benefits of this product family: ​​high metal removal rate and the four-edged inserts. ​
• CoroMill 415 with iLock technology is a reliable and secure solution ​
• Coromant EH provides great tooling flexibility, a smaller tool inventory and less downtime.​​ ​
• ​​​​​​Versatile tool suitable for a wide range of applications ​
• Coolant channels for optimized chip evacuation

Product Description Part of the CoroMill 415 product family. CoroMill 415 is a new small-diameter high feed face milling concept. The high metal removal rate and the four-edged inserts make this a truly cost-efficient and productive solution. The cutter also provides a reliable, secure performance thanks to the unique iLock interface. PRODUCT SPECIFICATION: ADINTMS, Adaptive Interface Machine Direction: Cylindrical shank without clamping features -metric: 20.0 ; APMXEFW, Depth Of Cut Maximum: 4.5 mm ; APMXEFW, Depth Of Cut Maximum: 0.177165 inch ; APMXFFW, Depth Of Cut Maximum: 1.2 mm ; APMXFFW, Depth Of Cut Maximum: 0.047244 inch ; AZ, Maximum Plunge Depth: 0 mm ; AZ, Maximum Plunge Depth: 0 inch ; BD1, Body Diameter: 19 mm ; BD1, Body Diameter: 0.748031 inch ; BMC, Body Material Code: Steel ; CICTP1, Cutting Item Count: 4 ; CNSC, Coolant Entry Style Code: 1: axial concentric entry ; CP, Coolant Pressure: 10 bar ; CP, Coolant Pressure: 145.038 lbf/in2 ; CPDF, Cutting Pitch Differential: 0 ; CUTINT_MASTERP1, Part 2 Of Cutting Item Interface Identifiers: CoroMill 415 -size 0703 (415N-070310M) ; DC, Cutting Diameter: 13.5 mm ; DC, Cutting Diameter: 0.531496 inch ; DCON, Connection Diameter: 20 mm ; DCON, Connection Diameter: 0.787402 inch ; DCX, Maximum Cutting Diameter: 25 mm ; DCX, Maximum Cutting Diameter: 0.984252 inch ; DPC, Damping Property: 0 ; HAND, Hand: R ; KAPR, Tool Cutting Edge Angle: 15 deg ; LB1, Body Length: 15 mm ; LB1, Body Length: 0.590551 inch ; LF, Functional Length: 200 mm ; LF, Functional Length: 7.87402 inch ; RMPX, Maximum Ramping Angle: 0.61 deg ; RPMX, Rotational Speed Maximum: 15700 r/min ; TQP1, Torque: 1.2 Nm ; TQP1, Torque: 0.885075 ft lbs ; WT, Weight Of Item: 0.498 kg ; WT, Weight Of Item: 1.0956 lbs ; ZEFP, Peripheral Effective Cutting Edge Count: 4 Box Contains 415-025A20-07H + incl. in box: 5513 020-56, Insert screw, (pcs. = 4, incl.); 5680 073-04, Key, (pcs. = 1, incl.);
