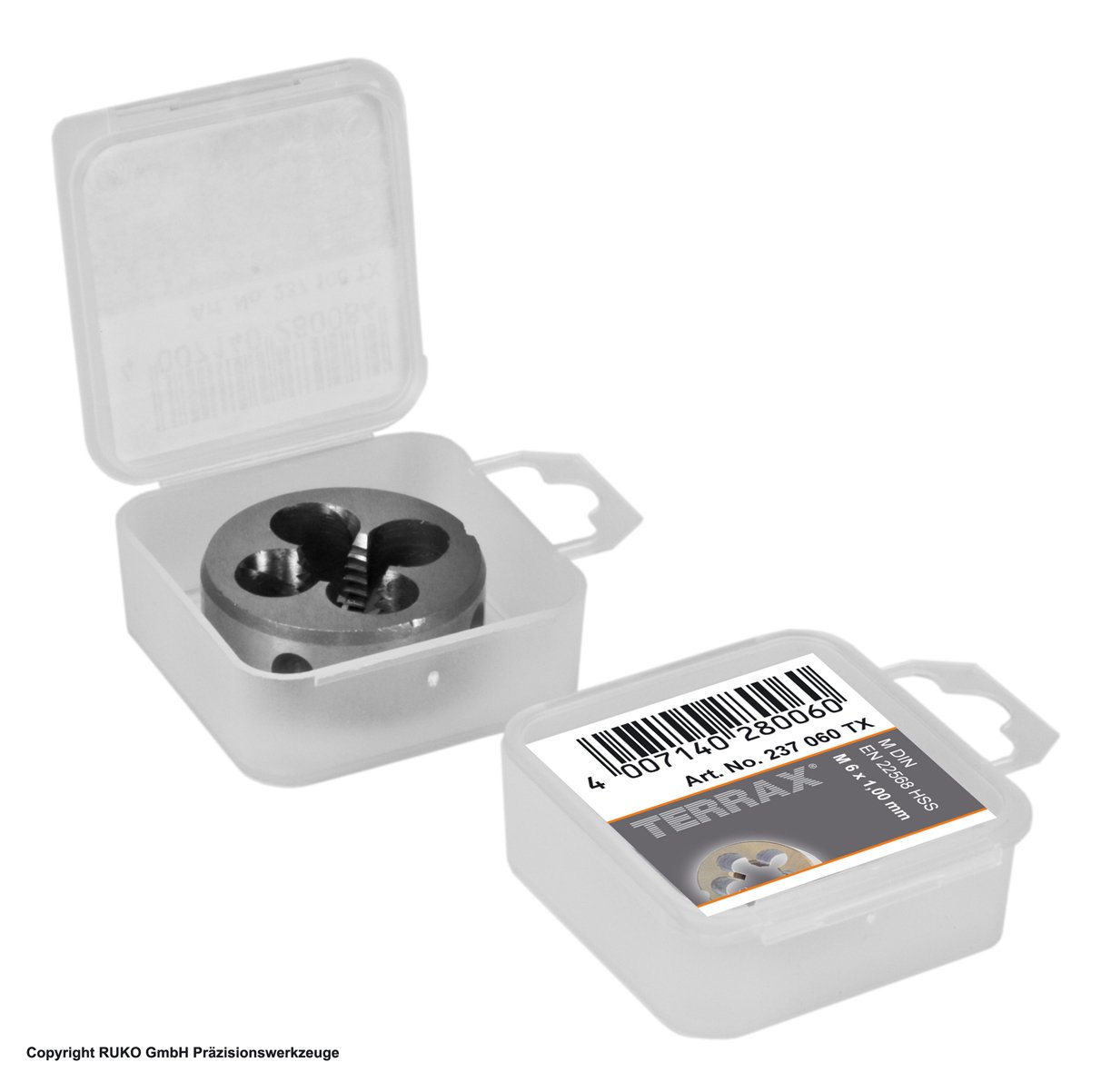

Ruko 22688 Terrax Thread Cutting Die DIN Ground M6

• Set made from 100 % high-alloy, high-speed tool steel (HSS).
• For metric thread M6 x 1,0 mm according to DIN ISO 13
• Single-cut taps.
• To cut an external thread, the material being cut must already have a nominal diameter equal to that of the desired thread.
• Use the thread-cutting die to turn it until the desired thread length is achieved.

Die made of high performance high speed steel. For metric external threads according to DIN ISO 13. This robust tool is suitable for all common industrial materials, such as: Unalloyed and low-alloyed steels up to 800 N/mm² strength, malleable cast iron and non-ferrous metals. Bolt diameter: 5.88 mm. To cut an external thread, the workpiece must already have the nominal diameter of the desired thread. The workpiece is clamped upwards into a vice with the side that is to receive the thread. The die is attached and turned until the desired thread length is reached. It is recommended to turn the die back briefly in between, so that the chips break, fall out and the threads do not clog. Lubrication with cutting oil is recommended. It reduces the effort required and increases the service life (service life) of the die. Features: Type: Form B closed, pre-slotted Thread: M 6 metric DIN ISO 13. Thread pitch: 1.00 mm. Tolerance: ISO 6g. Surface: blank. Right-hand cutting. Outer diameter: 20.0 mm. Thickness: 7.0 mm.
