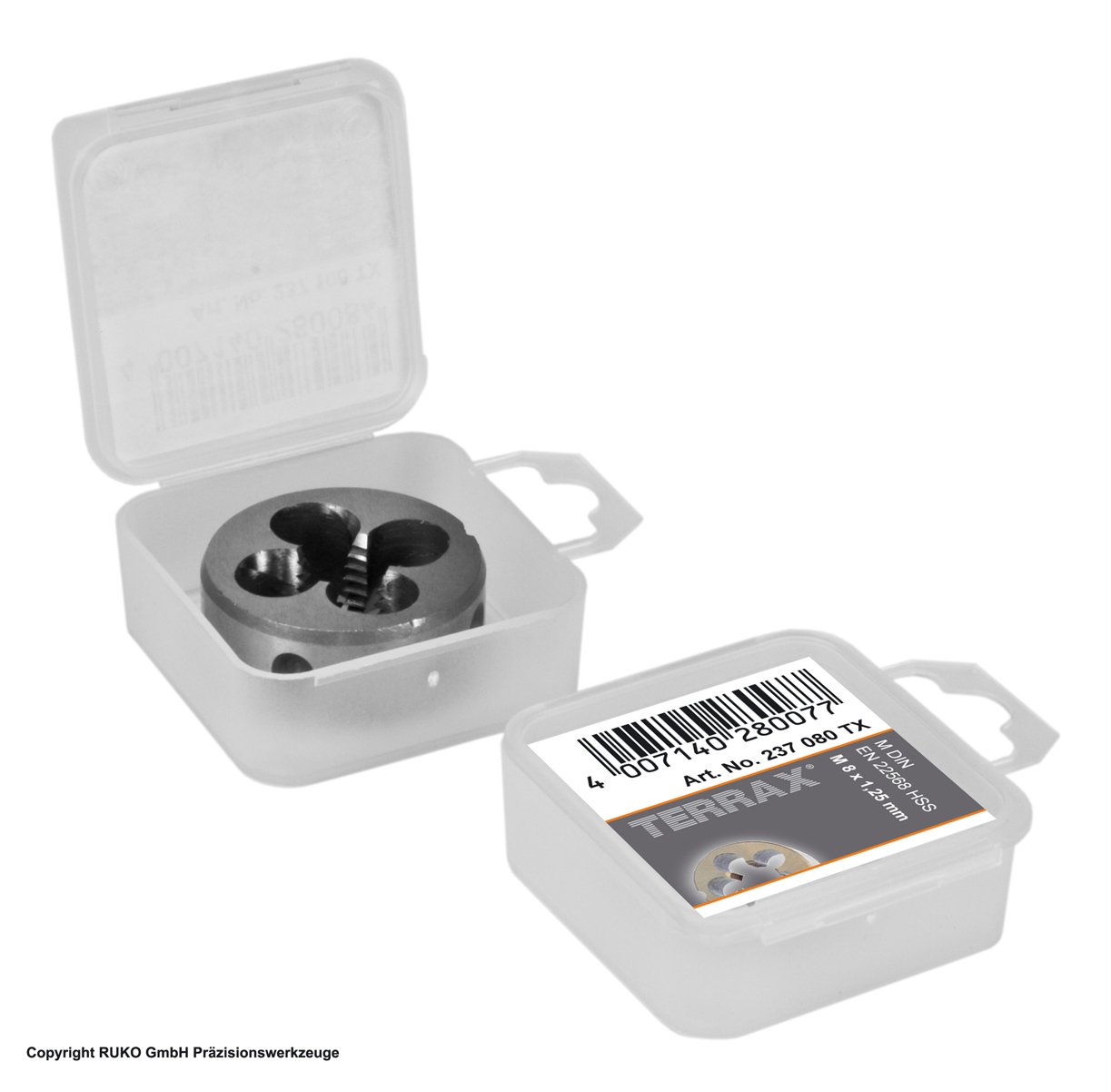

Ruko Terrax Threading Die, DIN 22568, Ground, M8

• Made from high-alloy, high-speed tool steel
• For metric thread M8 x 1.25 mm according to DIN ISO 13
• The thread is cut in one operation
• In order to cut an external thread, the material being cut must already have a nominal diameter equal to that of the desired thread
• Apply the thread-cutting die and turn it until the desired thread length is achieved

High-speed steel threading die. For metric external threads according to DIN ISO 13. The robust tool is suitable for all common industrial materials, such as non-alloyed and low-alloyed steels up to 800 N/mm² strength, malleable cast iron and non-ferrous metals. Bolt diameter: 7.87 mm. In order to cut an external thread, the material being cut must already have a nominal diameter equal to that of the desired thread. The workpiece is clamped upwards into a vice with the side to obtain the thread. Apply the thread-cutting die and turn it until the desired thread length is achieved. It is recommended to turn the die back briefly in between so that the chips break, fall out and the threads do not clog. Lubrication with cutting oil is recommended. It reduces the effort required and increases the service life of the die. Features: Type: Form B closed, pre-slotted. Thread: M 8 metric DIN ISO 13. Thread pitch: 1.25 mm. Tolerance: ISO 6g. Surface: Plain. Right-hand cutting. Outer diameter: 25.0 mm. Thickness: 9.0 mm.
