Rotatable Hall Sensor,0-360 Degrees,0.088° Resolution,12Bit Full Circle

• 【Working Principle】The working principle of this angle sensor is to convert the angle into an electrical signal by detecting the magnetic field strength and phase. When the measured object transmits the rotation angle to the rotation axis of the sensor, the angle sensor will output an electrical signal in direct proportion to the rotation angle.
• 【High-precision Sensitive】High-precision Sensitive Sensor. The shell of the Hall angle sensor is made of hard metal material, which is wear-resistant and has a long service life.
• 【Low power consumption】Hall type contactless technology is adopted, and the angle sensor uses high-quality stainless steel high-speed bearings and other high-quality components, so that the friction resistance during measurement is minimized. Low power consumption, It is a cost-effective angle sensor and can be used in a variety of harsh industrial environments.
• 【No Dead Angle】360 degrees Rotatable Hall Angle Sensor, no dead angle.The measurement accuracy will not decline due to the surface wear of the measuring components, and the service life can be infinitely long theoretically.
• 【Smooth And Low Noise】This high-precision Hall angle sensor has the advantages of compact structure, small size, strong selectivity, high resolution, smooth rotation and low dynamic noise.

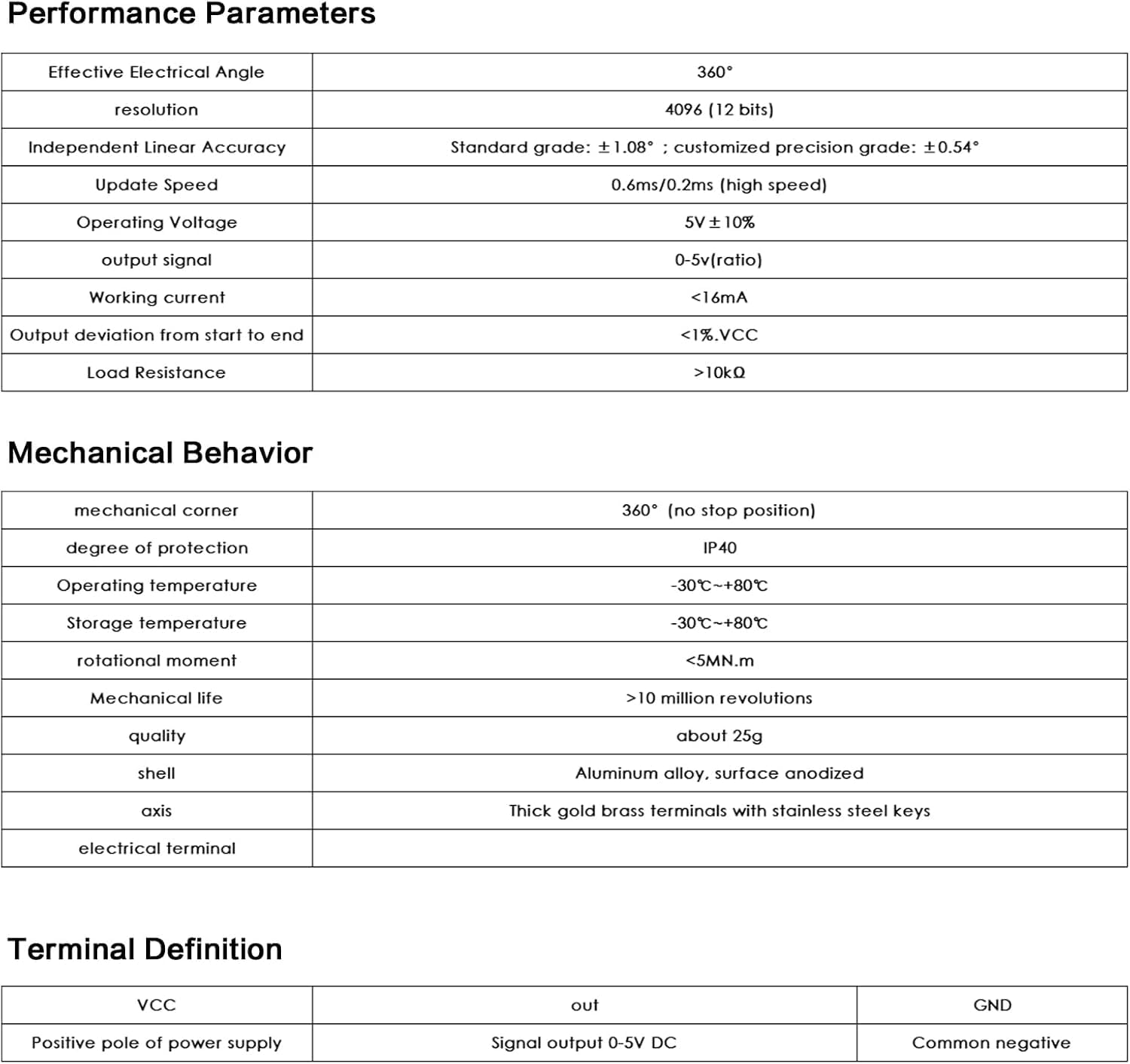

Made of high quality materials. 360 degrees, no dead angle. High-precision. Long service life. Low power consumption. Specification: Supply Voltage: DC 5V Output voltage: DC 0-5V Mechanical range: 0-360° Electrical range: 0-360° Resolution: 0.088° Weight: 53g / 1.9oz Package list: 1 * Hall angle sensor
