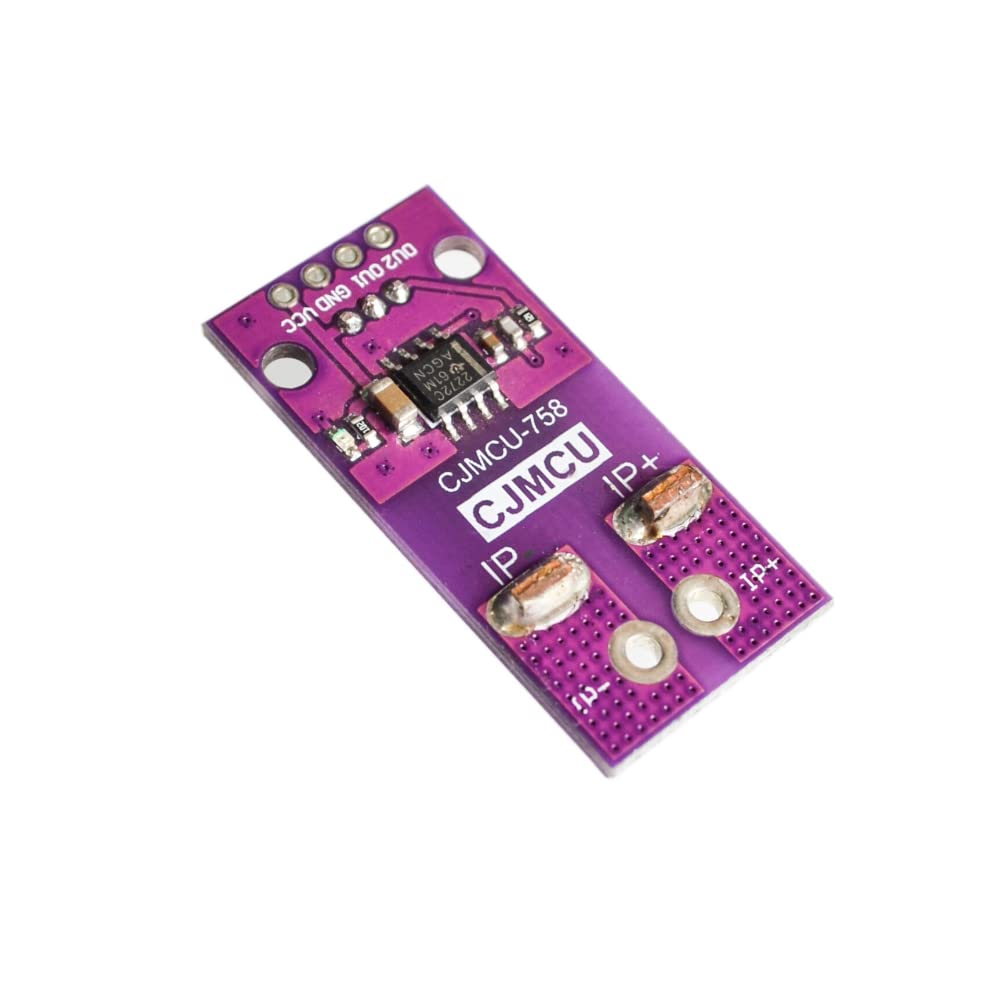

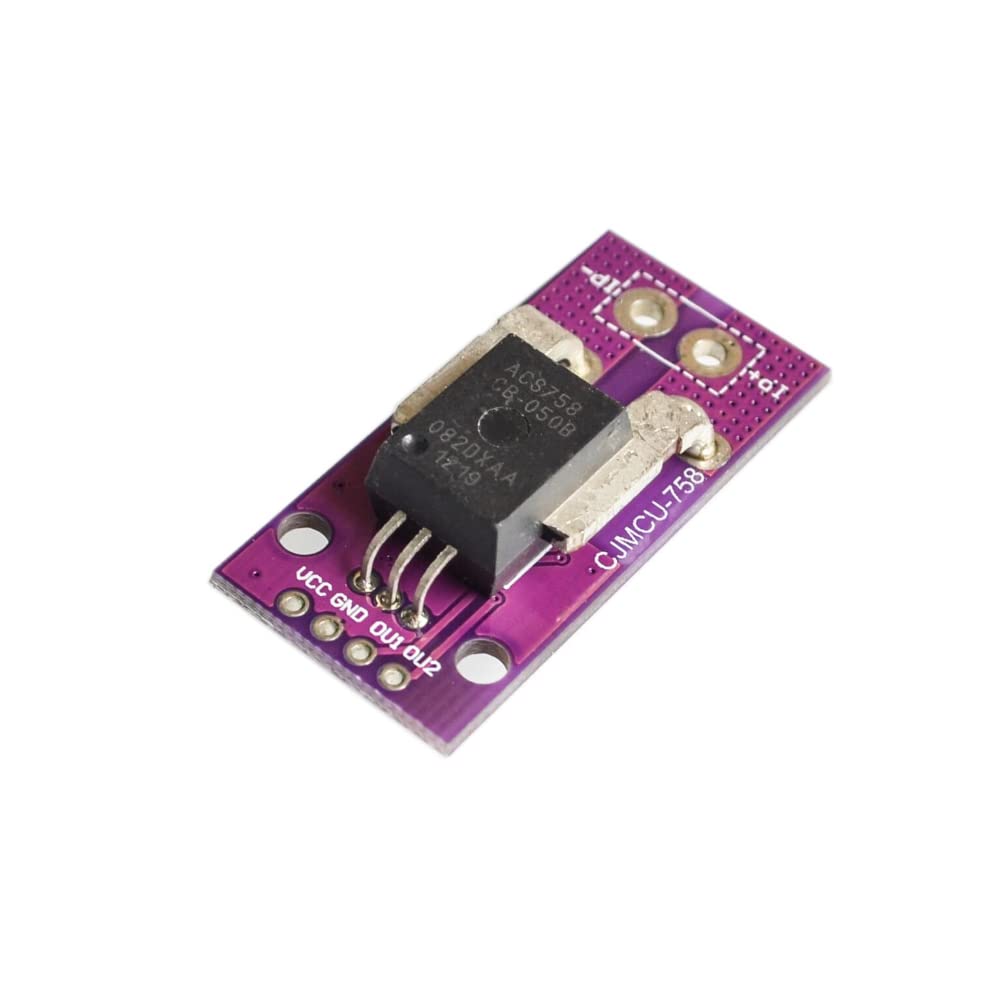

DollaTek 50A Linear Current Sensor Hall Current DIY Module with 120 kHz Bandwidth and 3-5.5V Operating Voltage

• Industry-leading noise performance through proprietary amplifier and filter design techniques.
• Integrated shield greatly reduces capacitive coupling from current conductor to die due to high dV/dt signals, and prevents offset drift in high-side.
• high voltage applications.
• Total output error improvement through gain and offset trim over temperature.
• Small package size, with easy mounting capability.

Features: Industry-leading noise performance through proprietary amplifier and filter design techniques. Integrated shield greatly reduces capacitive coupling from current conductor to die due to high dV/dt signals, and prevents offset drift in high-side. high voltage applications. Total output error improvement through gain and offset trim over temperature. Small package size, with easy mounting capability. Monolithic Hall IC for high reliability. Ultra-low power loss: 100 μΩ internal conductor resistance. Galvanic isolation allows use in economical, high-side current sensing in high voltage systems. 3.0 to 5.5 V, single supply operation. 50A working current, -40℃ ~ +150 ℃ working temperature. 120 kHz typical bandwidth. 3 μs output rise time in response to step input current. Output voltage proportional to AC or DC currents. Factory-trimmed for accuracy. Extremely stable output offset voltage. Nearly zero magnetic hysteresis. Package included: 1 x Linear Current Sensor Hall Current Module
