Quarton Laser Module VLM-520-02 LPA (ADJUSTABLE DIRECT GREEN DOT LASER)

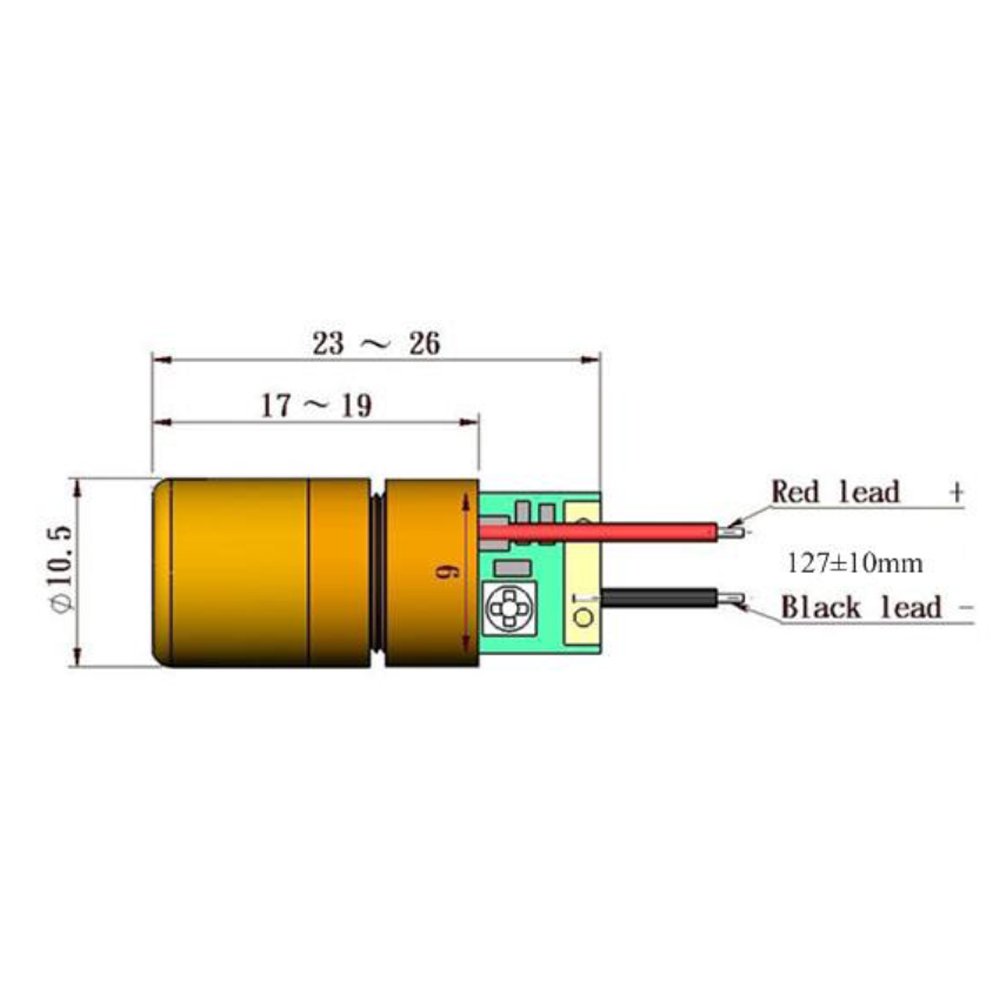

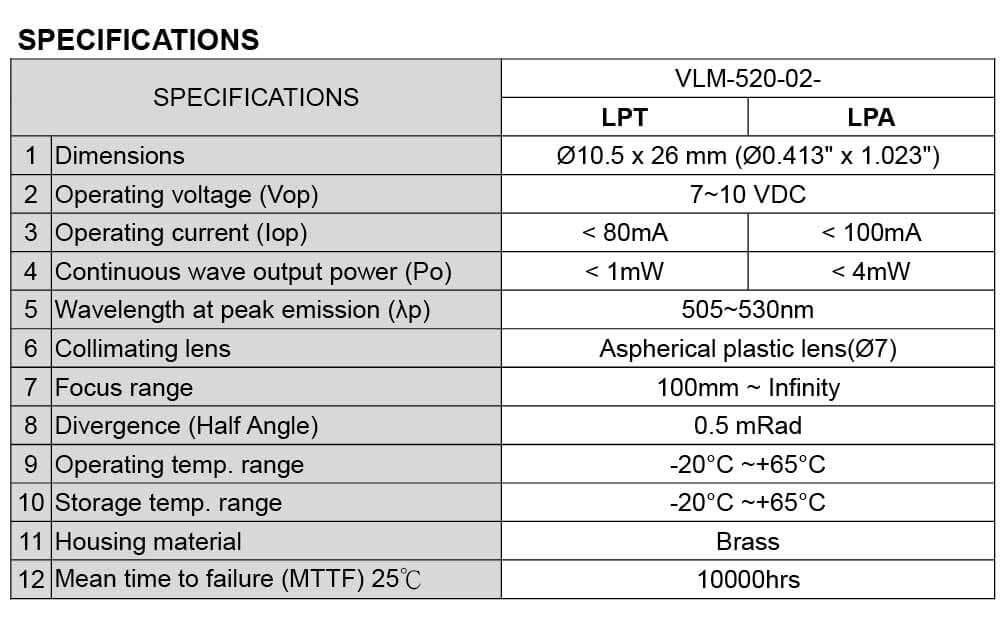

• Wave length: 520nm. Laser output power: Class 3R - less than 5mW. Voltage: 7~10 VDC operation. Dimensions: D10.5 x 26 mm (D0.413 x 1.023 inches). Beam Divergence (Half Angle) : 0.5 mRad
• Direct Green Laser Diode module to provide large temperature operation range for industry application. Adjustable focus (Focus range 100mm ~ Infinity) Laser module with APC Driver Circuit inside, ideal for industrial Laser application.
• This module has an integrated optic, laser diode, and APC driver circuit. APC Driver Circuit enables the Laser output power safe and constant.
• Includes patented solid brass structure for the best shock resistance and better heat transfer consideration.
• Aspherical plastic lens provides tight Dot spot. PCB is outside of housing for power adjustment.

APPLICATIONS: Industrial Green Dot Laser Module - Adjustable focus function. Ideal for Industrial positioning, measuring, pointing which would need an focusable beam at specific distances. Wood processing. Metal processing. Stone processing. Textile industry. Food industry. Automotive industry. Medical science. Why choose direct green laser module? Direct Green Lasers are direct-diode semiconductor lasers. The stability of the laser output is greatly improved. Most green laser modules on the market are DPSS (diode pumped solid state) laser modules. DPSS (Diode-Pumped Solid State) is a conventional laser module that emits an infrared laser diode with a wavelength of 808nm and turns it into green by crystal. This is actually a very inefficient way of producing a laser beam as there is significant power loss. For Direct Green Laser Module, the semiconductor laser itself emits directly. The stability of the laser output is greatly improved since there is no additional crystal. Thanks to their good efficiency, the temperature increase of the lasers during operation is minimized. A long lifetime and high reliability at continuous operation is guaranteed.
