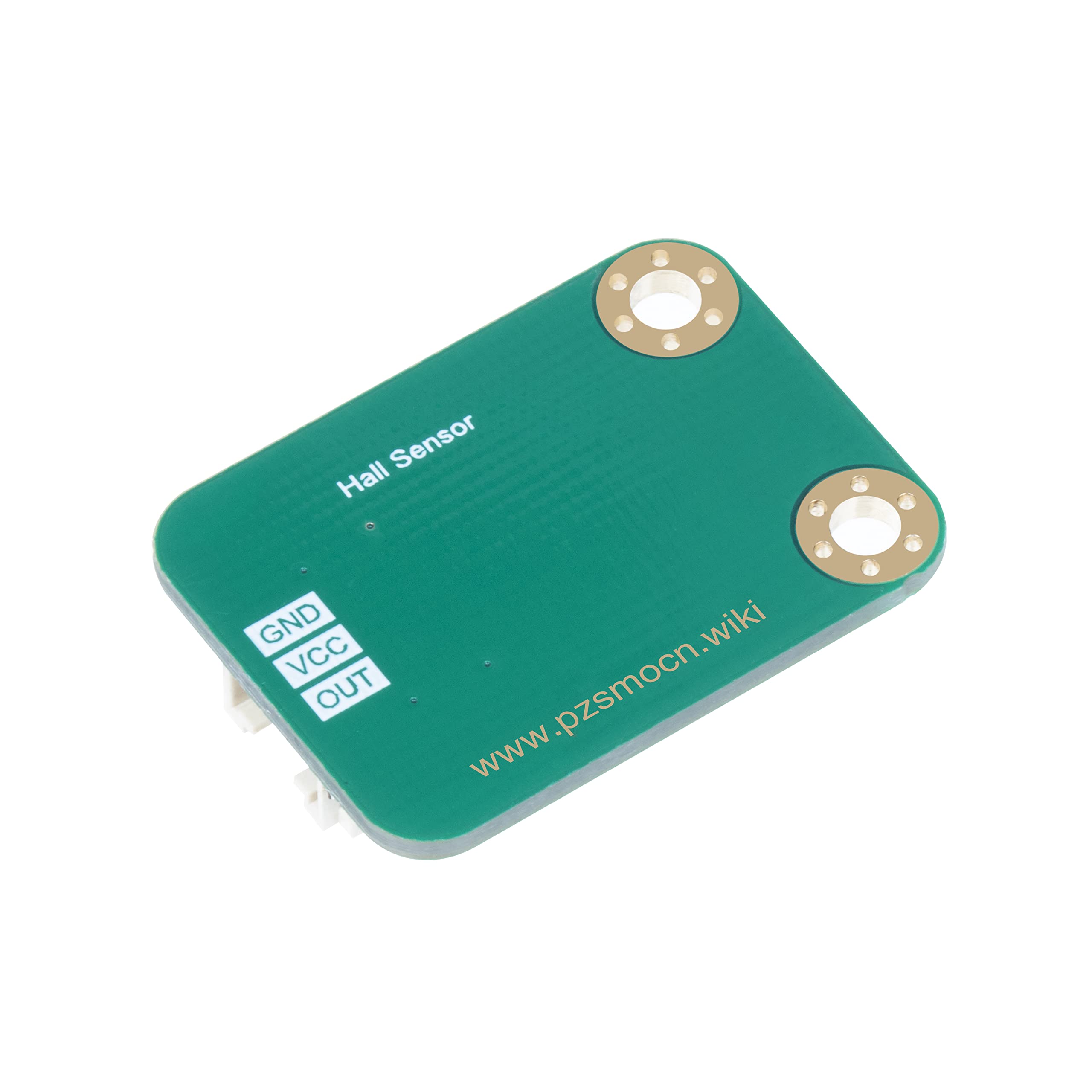

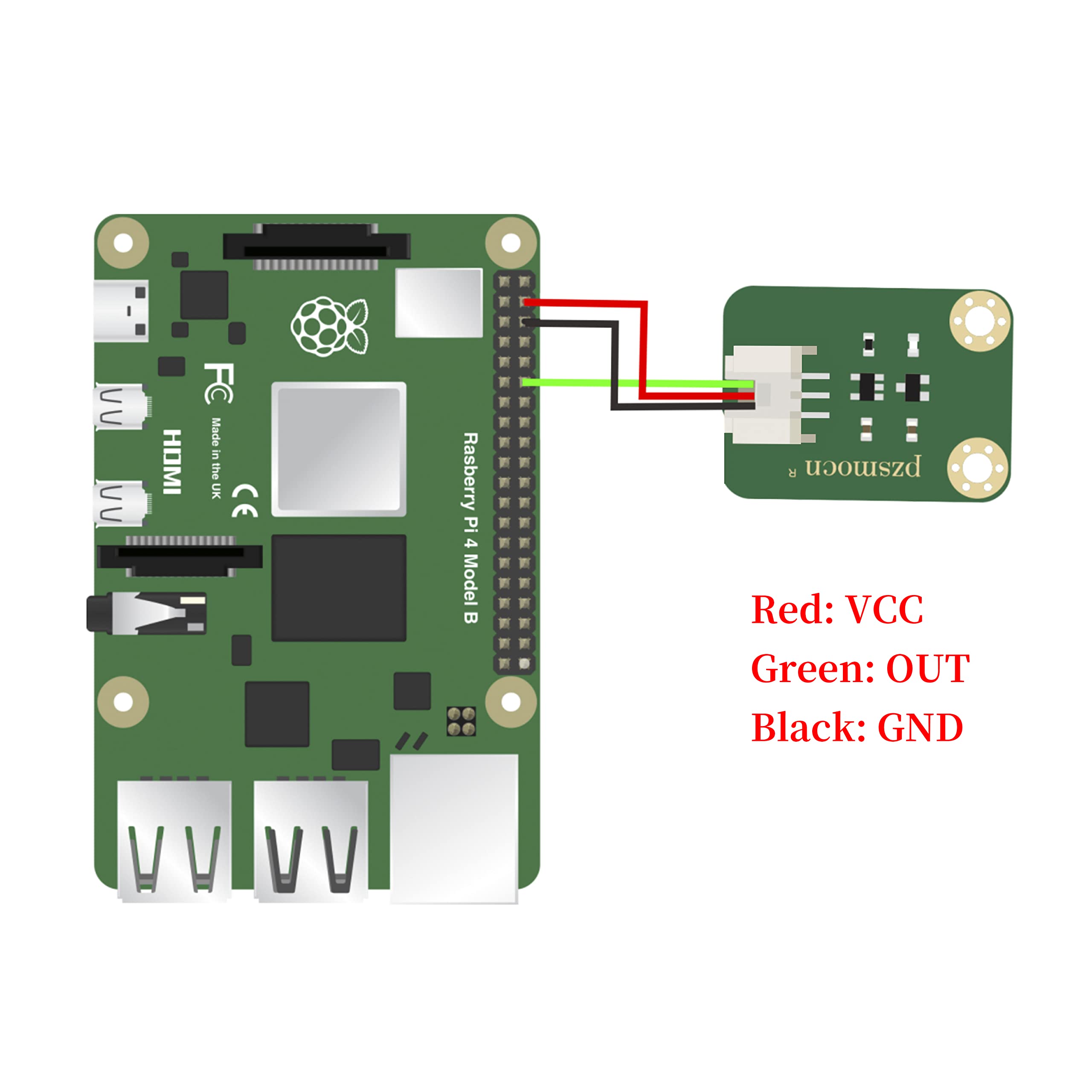

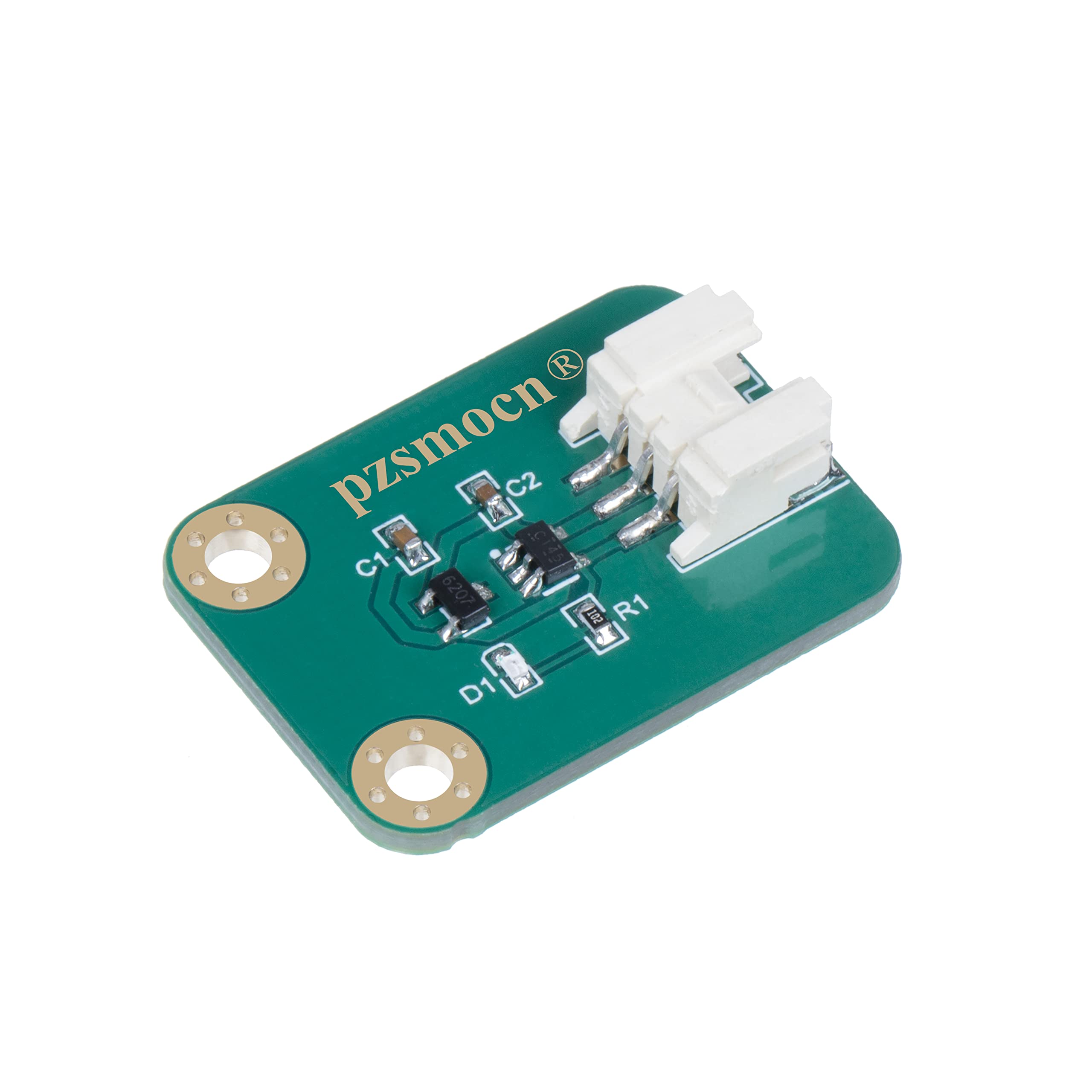

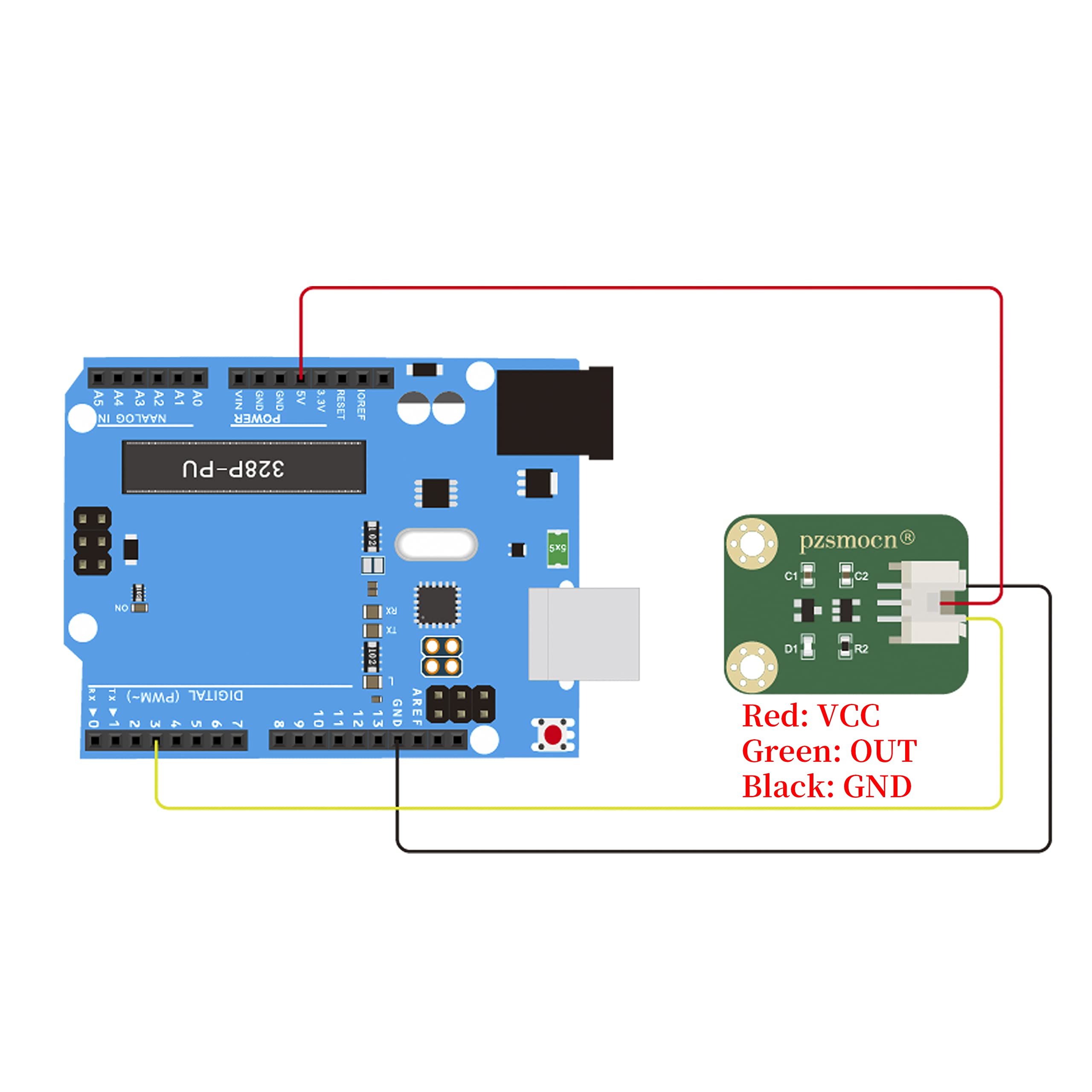

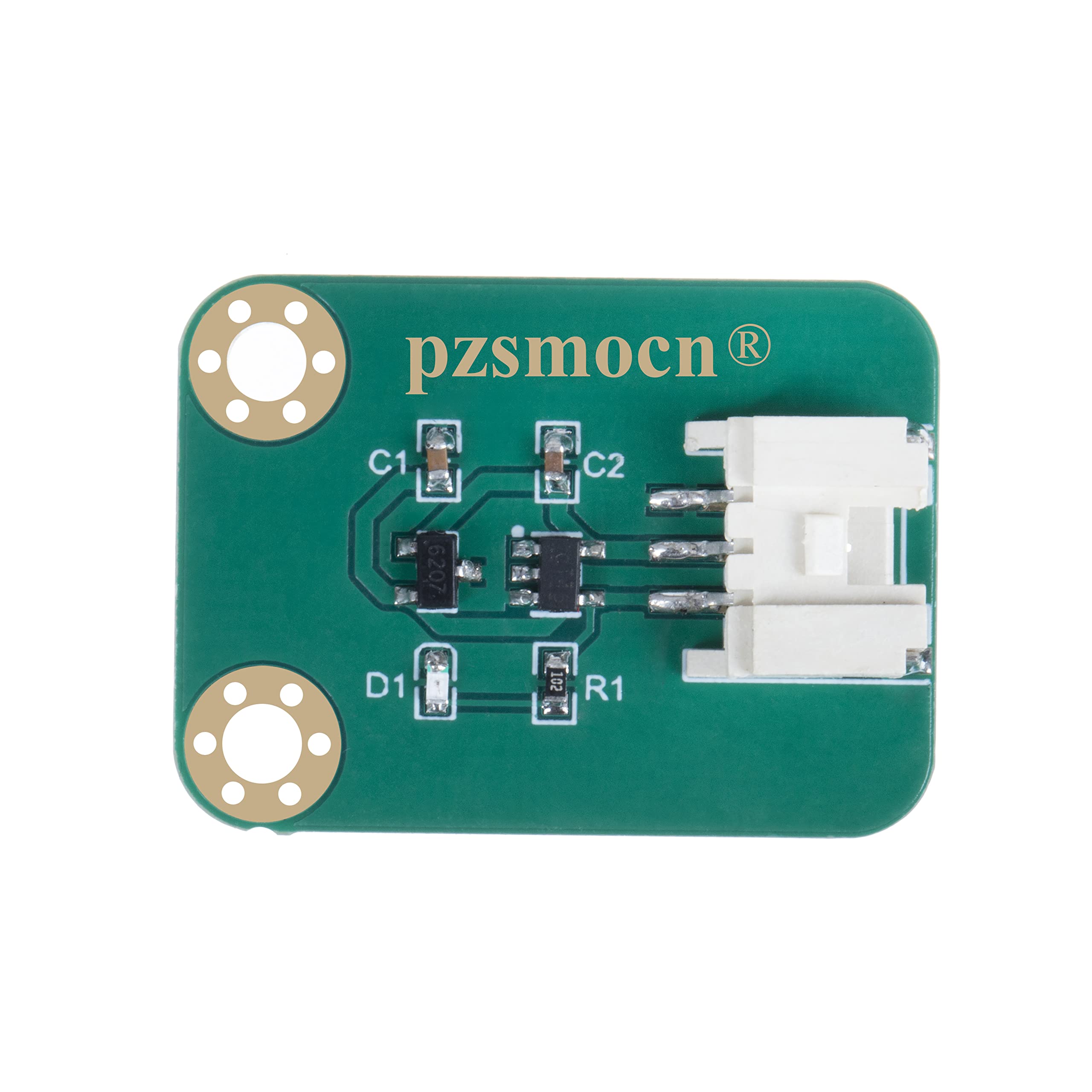

Pzsmocn Hall Sensor Compatible with Arduino and Raspberry Pi. Detection Range About 3cm (Detection Range Related to Strength of Magnetism), for Non-contact Switch and Magnetic Related Project.

• A magnetic sensor based on the Hall induction principle can be used to detect magnetic materials. (Magnet)
• Regardless of polarity, the range can reach about 3cm, and the detection range is related to the strength of magnetism.
• It has the advantages of being sensitive to magnetic field, simple structure, small size, wide frequency response, large output voltage change and long service life.
• Suitable for making interactive works related to magnetic materials (Magnets).
• Note: It's a omnipolar magnet dectector so that it can not tell two polarities apart.

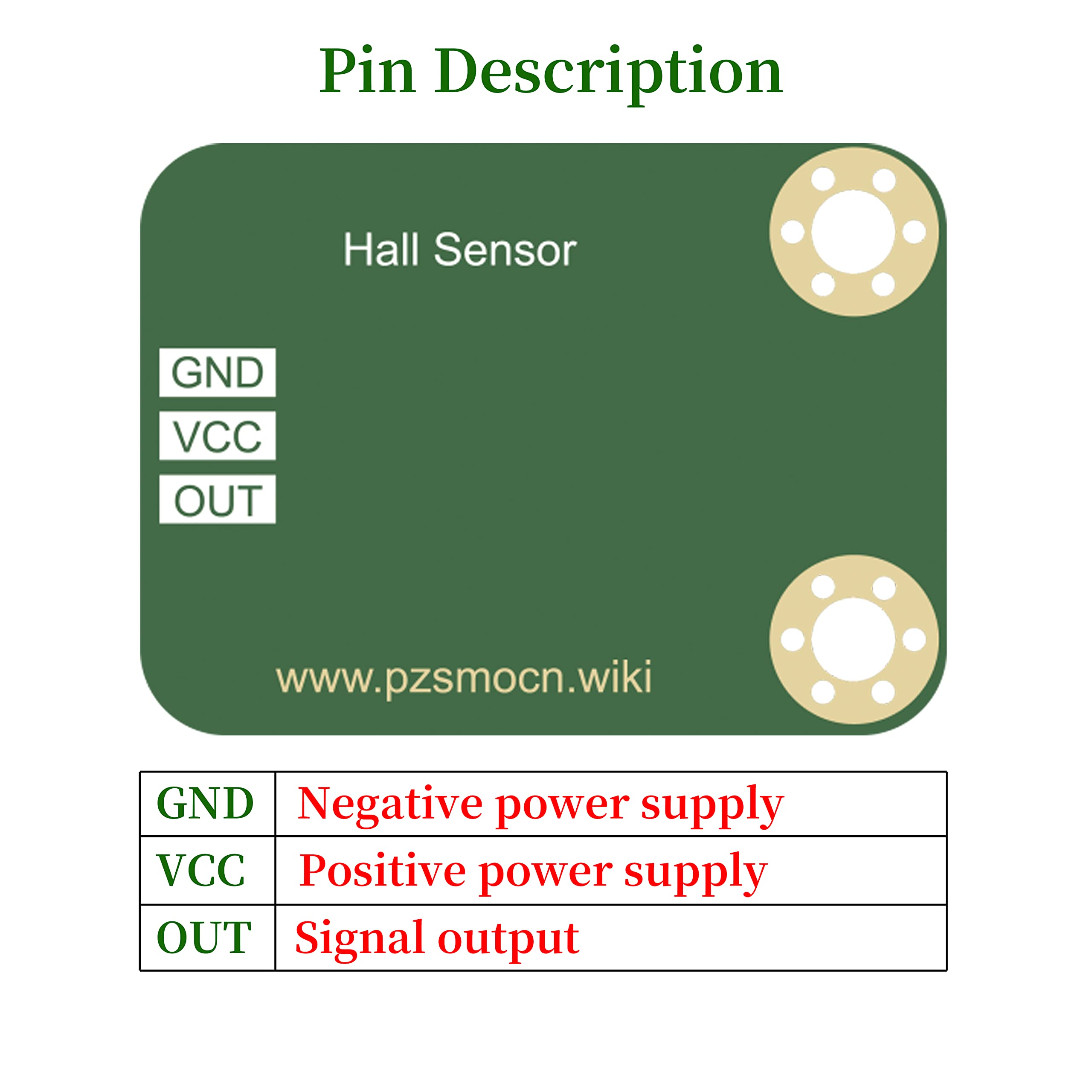

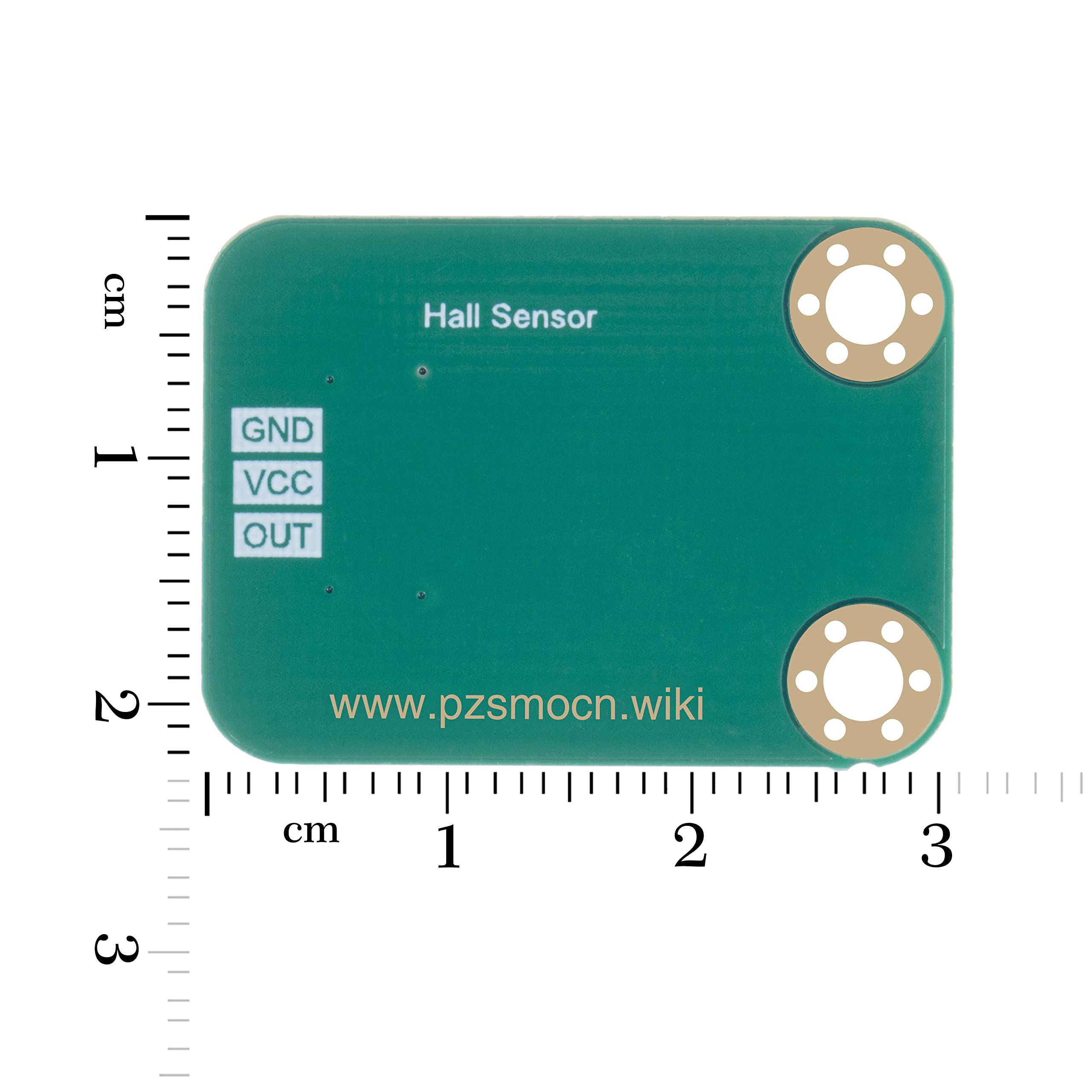

The magnetic sensor based on the Hall induction principle can be used to detect magnetic materials (magnets), regardless of polarity, and the range can reach about 3cm (the detection range is related to the strength of magnetism). It has the advantages of being sensitive to magnetic field, simple structure, small size, wide frequency response, large output voltage change and long service life. Note: It's a omnipolar magnet dectector so that it can not tell two polarities apart. If you need more help, please refer to Pzsmocn Wiki for more help, SKU: PZSHED0001. Standard - Working Voltage: 3.3V to 5V - Output Signal: usually output low level, output high level when magnetism is detected (at the same time the onboard LED is on) - Product Size: 30mm * 22.0mm - Fixing Hole Size: 3mm Delivery List Hall Sensor * 1 JST 3 Pin to 2.54mm DuPont Cable * 1
