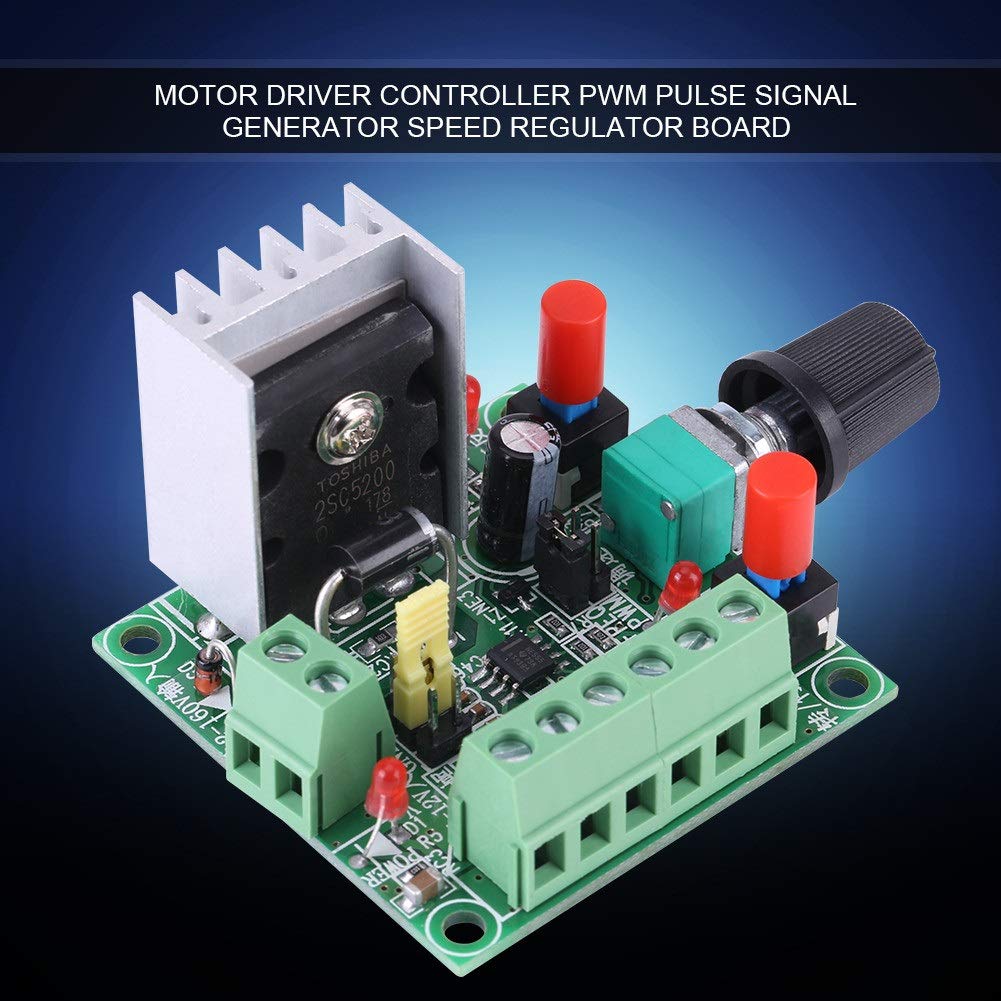

Pulse Generator - DC 15-160V / 5-12V Stepper Motor Control PWM Pulse Signal Generator Speed Controller Board

• 🔍 PWM SIGNAL:This controller has the function of generating a PWM signal, and there is a jumper on the board to set the pulse frequency signal at the default selection.

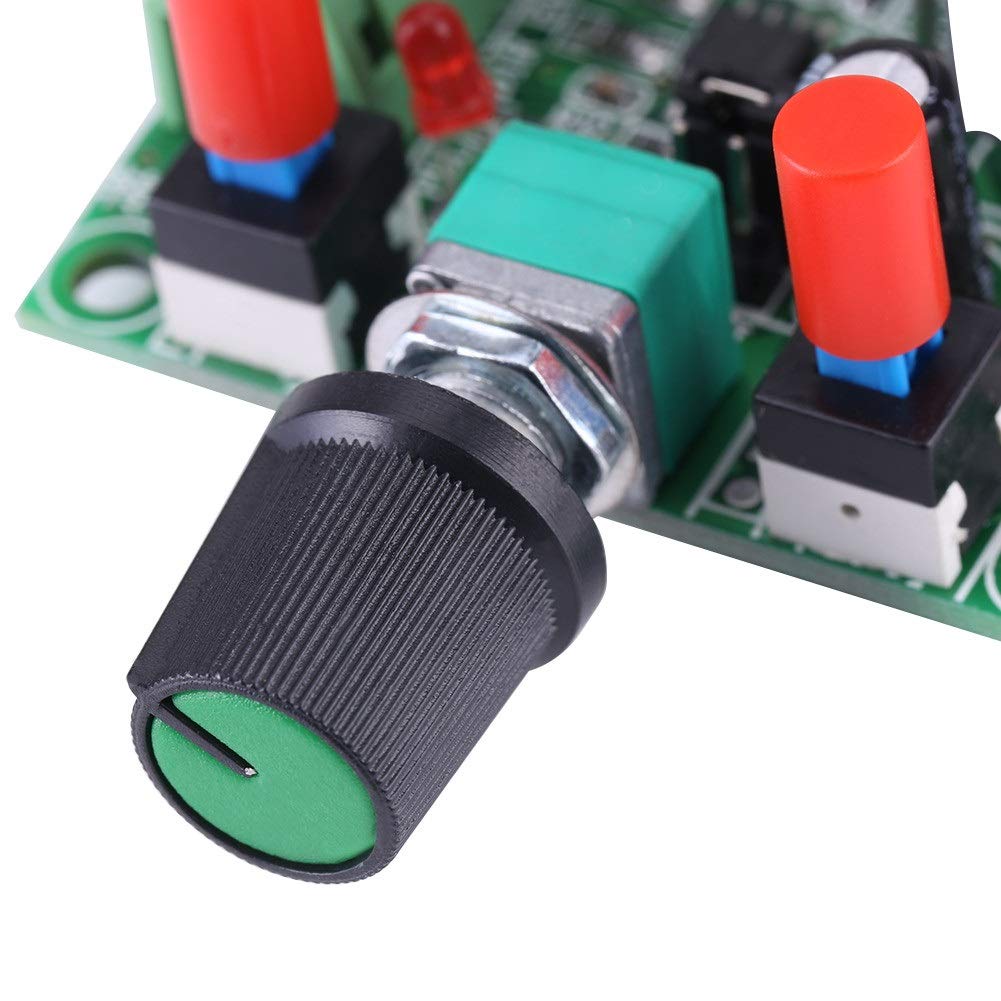

• 🔍 DRIVER REQUIRED:The PWM signal generator provides a stepper motor signal. The speed of the motor can be controlled by adjusting the frequency of the potentiometer. To control the stepper motor, there must also be a driver using it.
• 🔍 3 FREQUENCY SIGNALS:The PWM generator has a total of three frequency signals, which can be selected via jumpers: High, Medium and Low. The frequency can be measured via PUL and common cathode connection (GND).

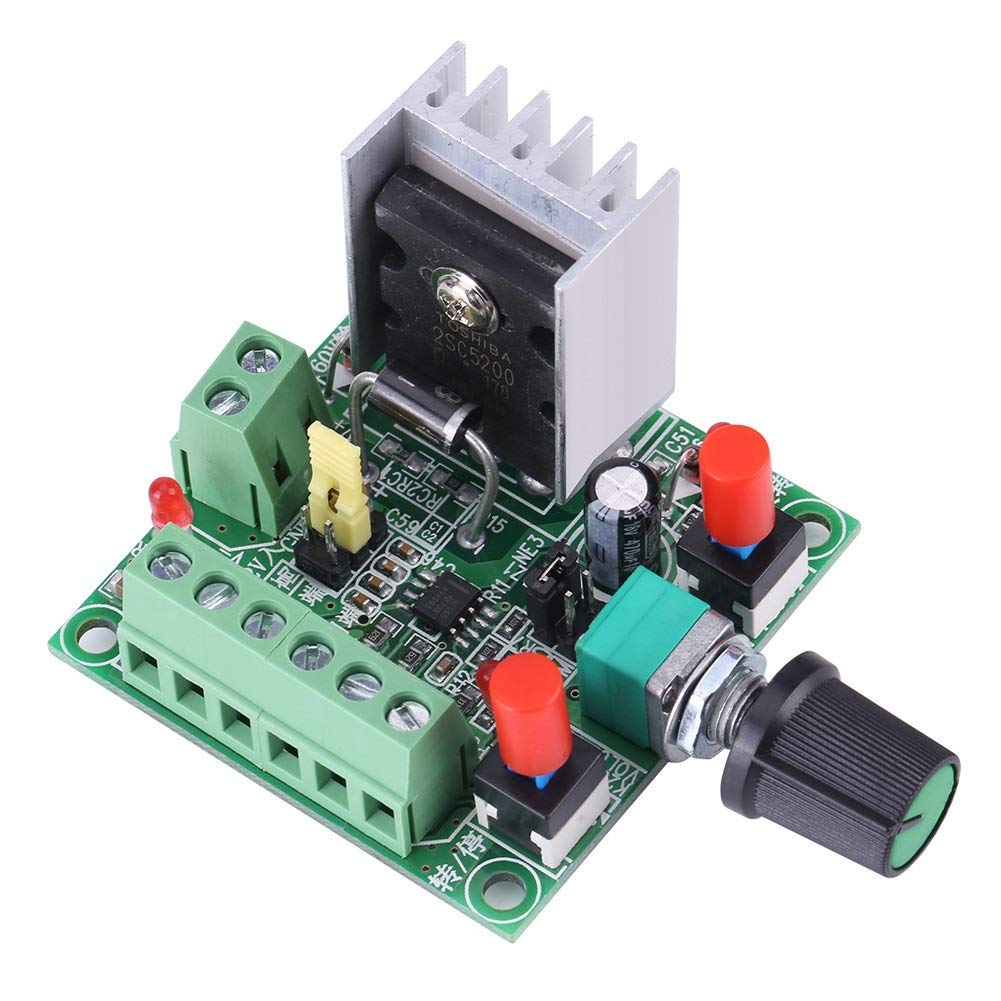

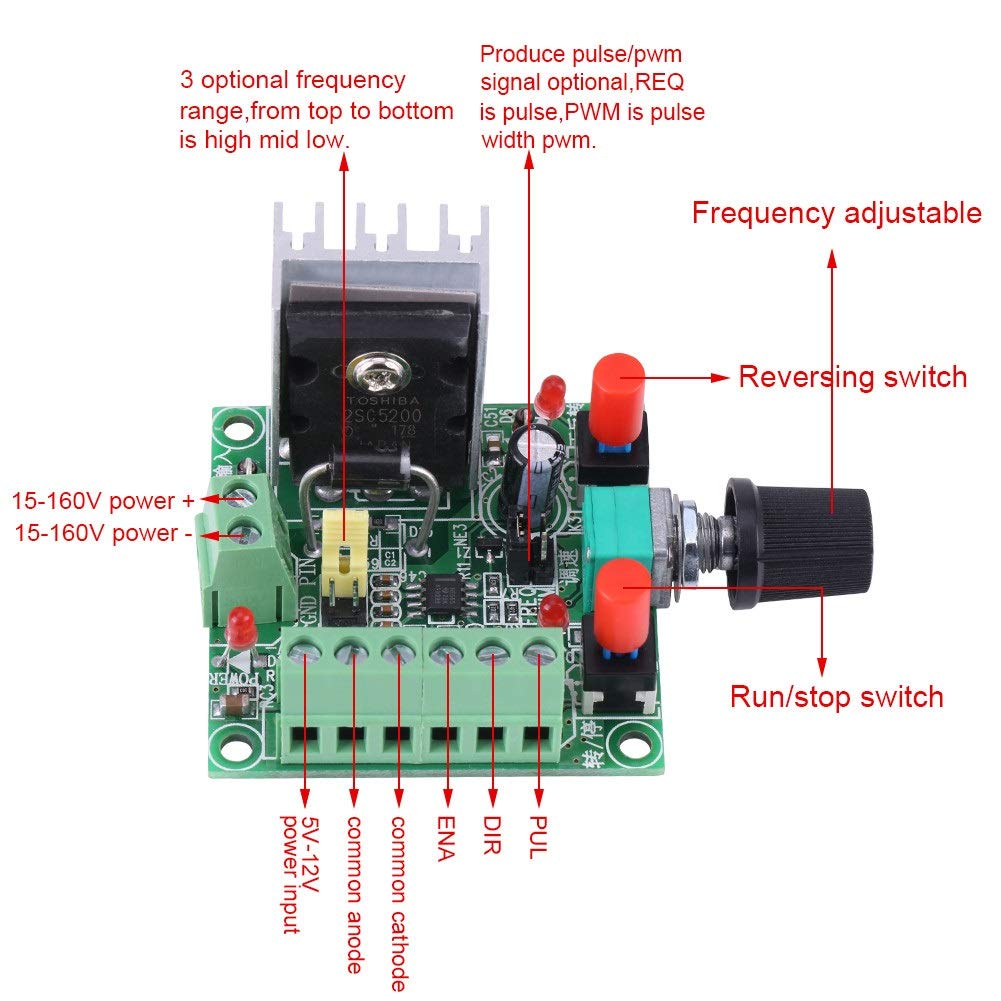

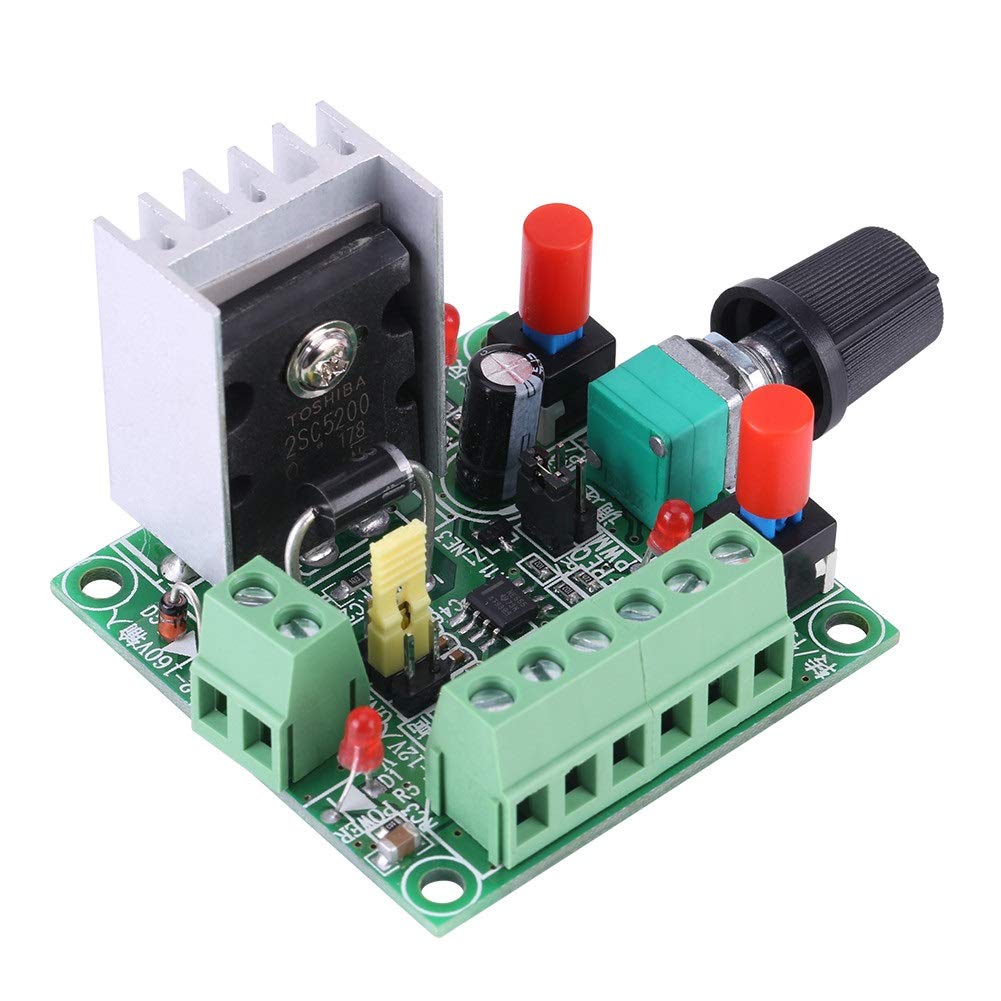

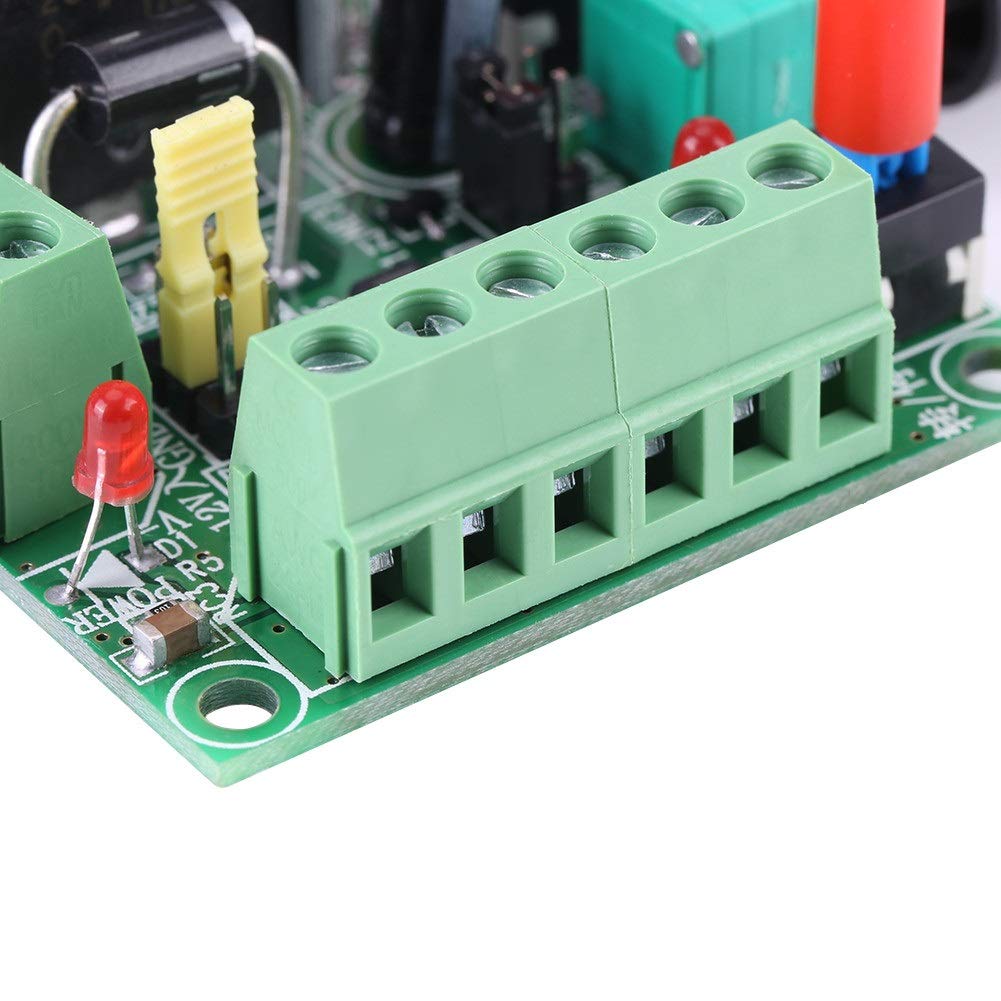

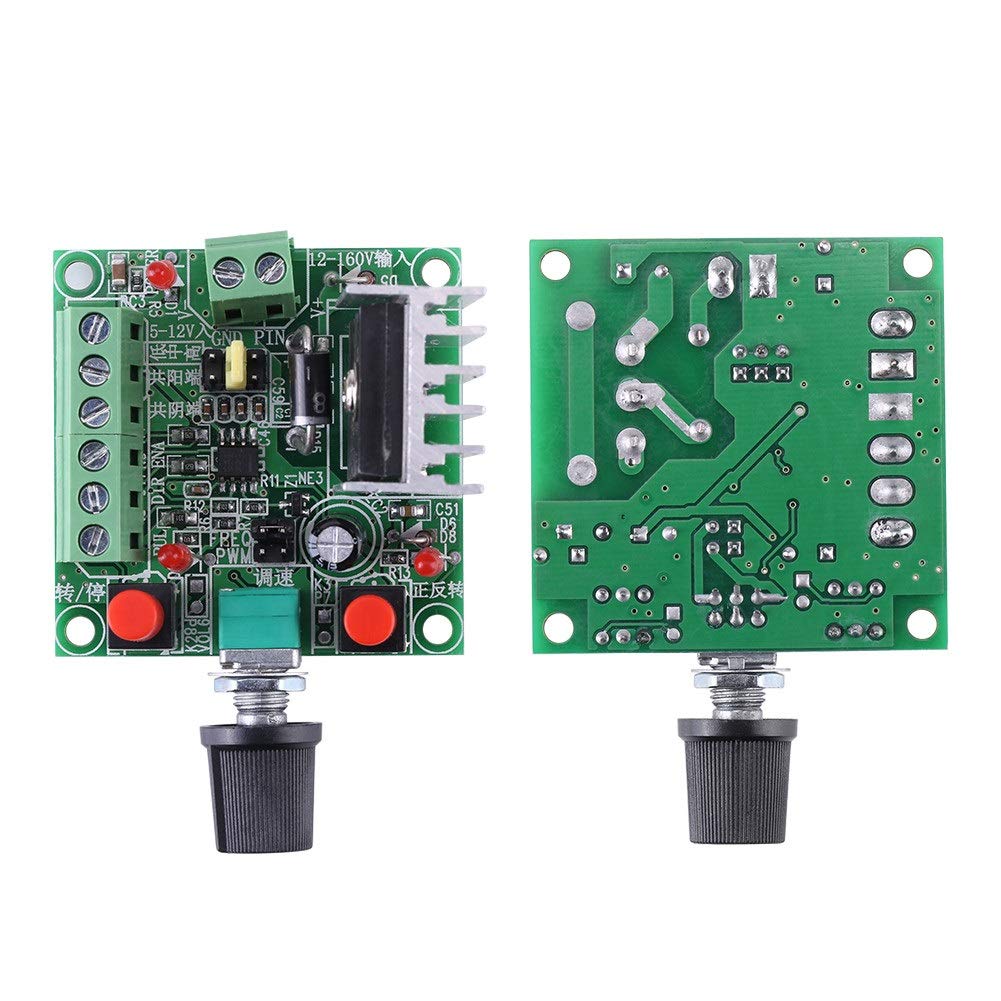

• 🔍 CONNECTIONS:PUL+ and PUL- are positive and negative pulse connections; EN+ and EN- are positive and negative enable connections; DIR+ and DIR- are positive and negative direction connections. These six lines are connected to the corresponding pulses and directions, so there can be six types of connections.
• 🔍PWM CONTROLLER POWER SUPPLY:15-160VDC or 5-12VDC When using a 5-12VDC power supply, the positive terminal is connected to the 5-12VDC input and the negative terminal is connected to the common cathode. Forward and reverse motor rotation can be controlled via the keypad.

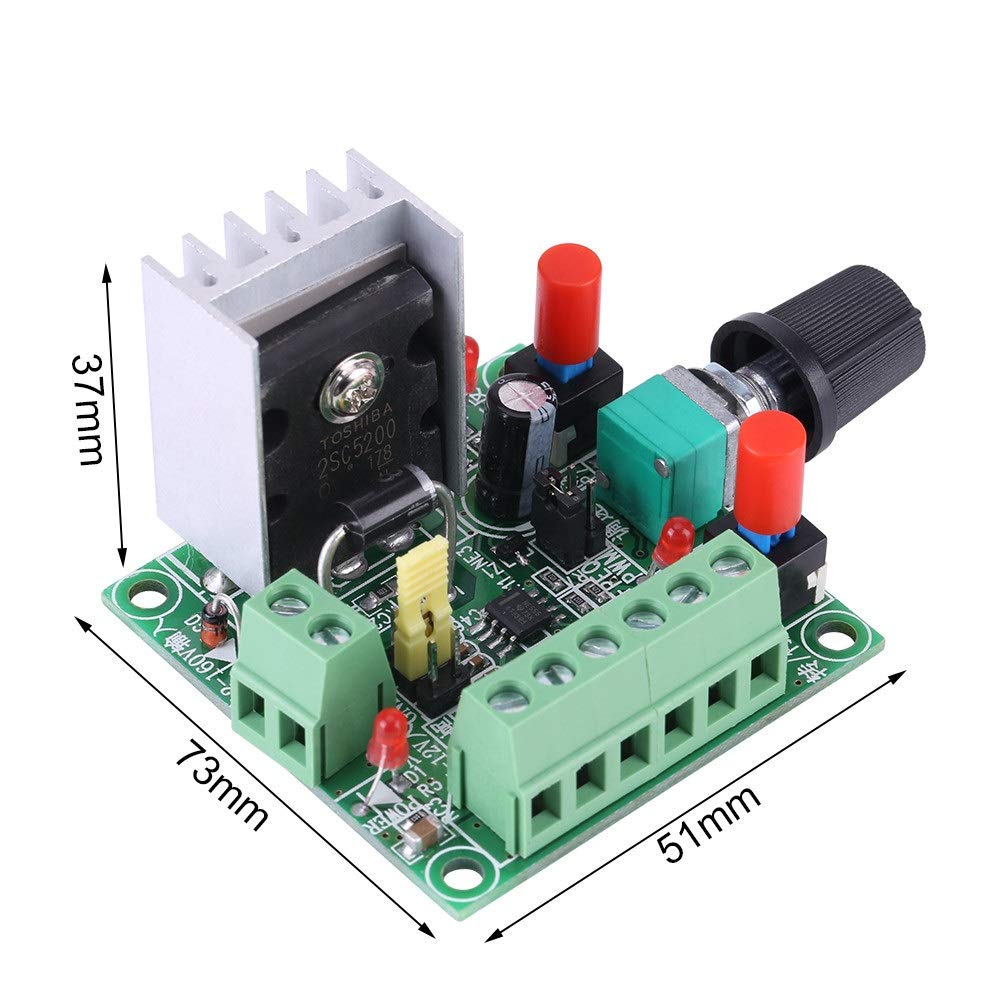

Specifications:Supply voltage: 15-160V / 5-12VFrequency: High: 5.8KH-127KH, Medium: 590H-15.8KH, Low: 82H-2.3KHDimensions: approx. 51 x 51 x 37mm / 2 x 2 x 1.45inchWeight: 50gQuantity: 1pcPacking list:1 x PWM generatorCautionIf you use it to start or stop the function, the enable side of the ENA controller must be connected to the common cathode or common anode drive.
