Pressure Sensor,2pcs 20g~2kg High Precise Resistance-type Thin Film Force Sensor
About this item

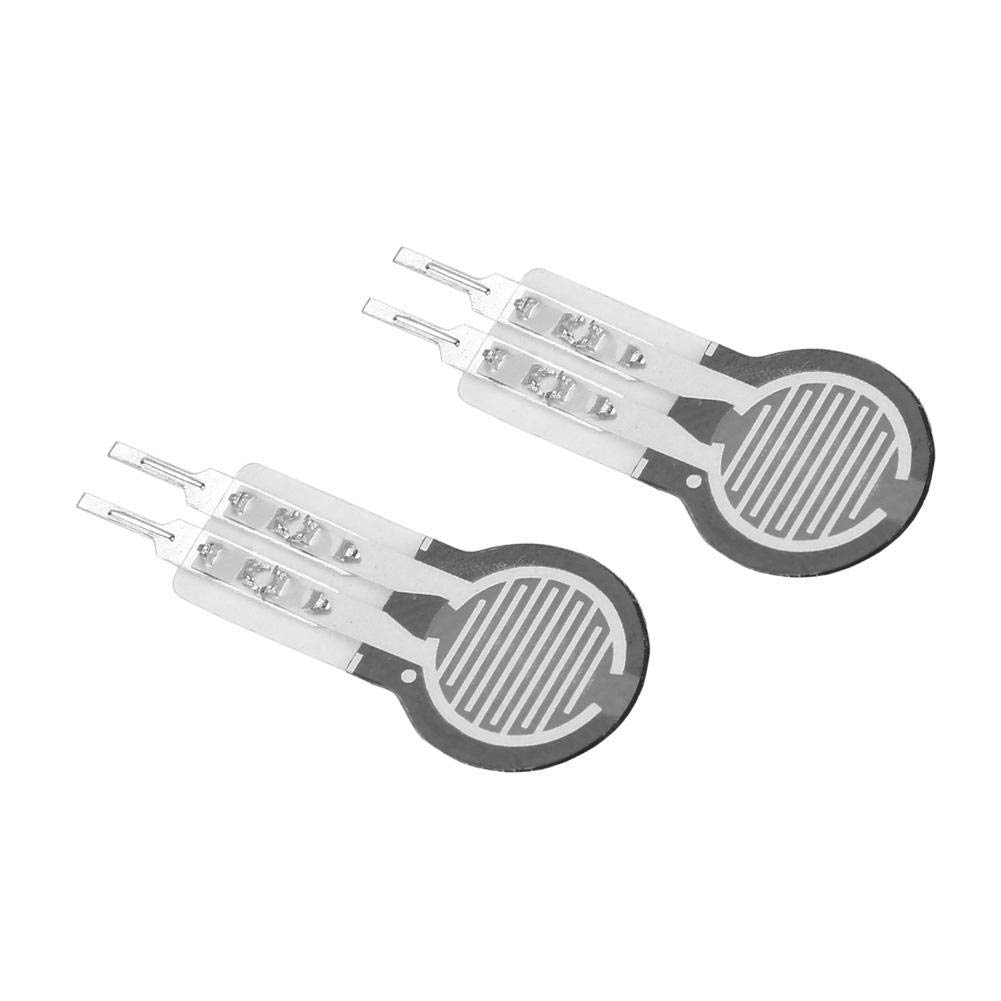

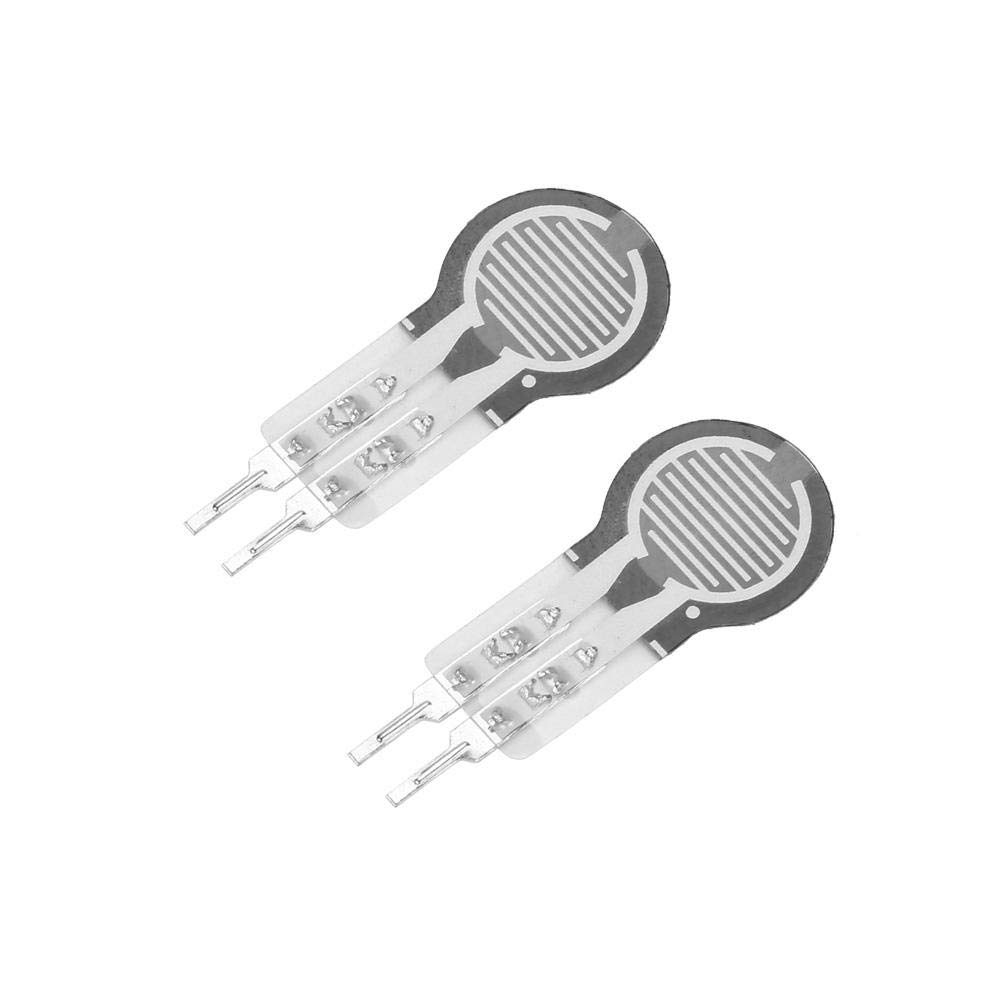

- The RP-C resistance type pressure sensor is a flexible thin film sensor whose resistance decreases along with the pressure increases.

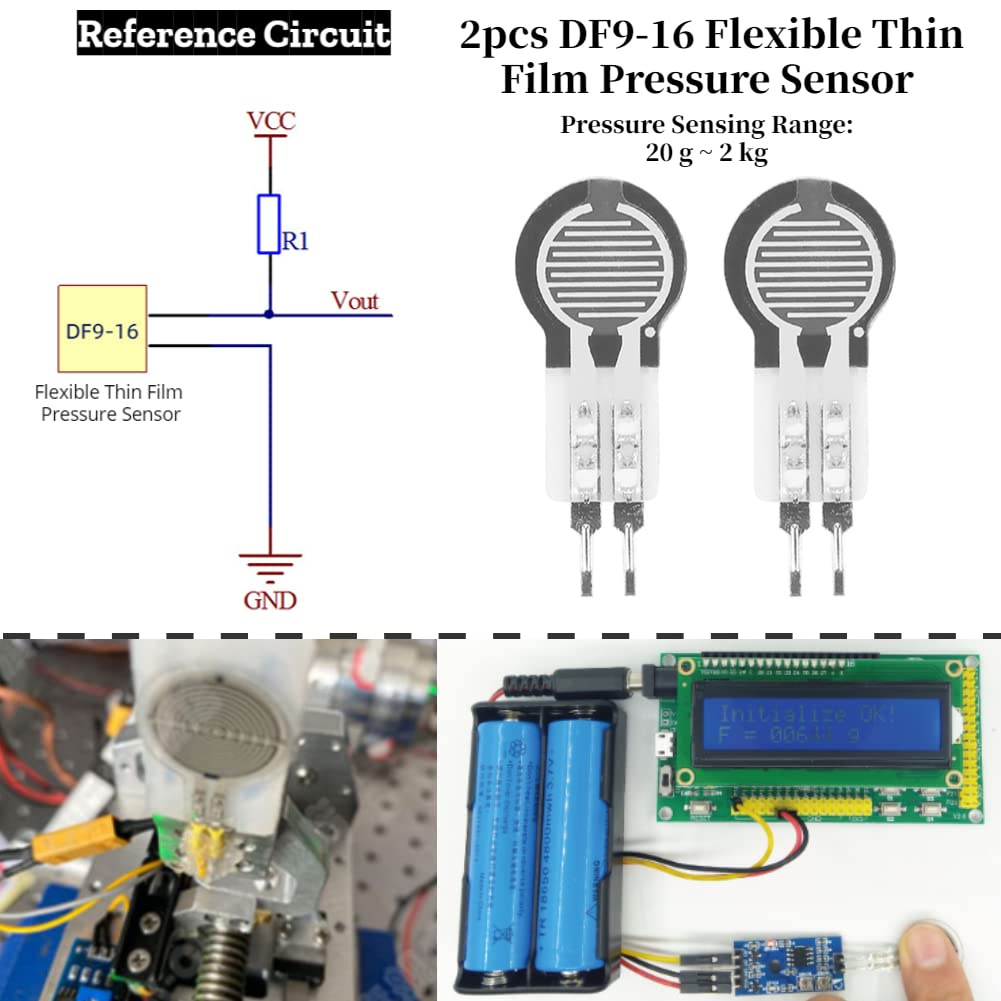

- Single sensitive area pressure sensor is equivalent to a dual port variable resistance whose resistance is controlled by pressure, and to a switch of a certain threshold, the threshold is determined by pressure and equipment parameters setting.

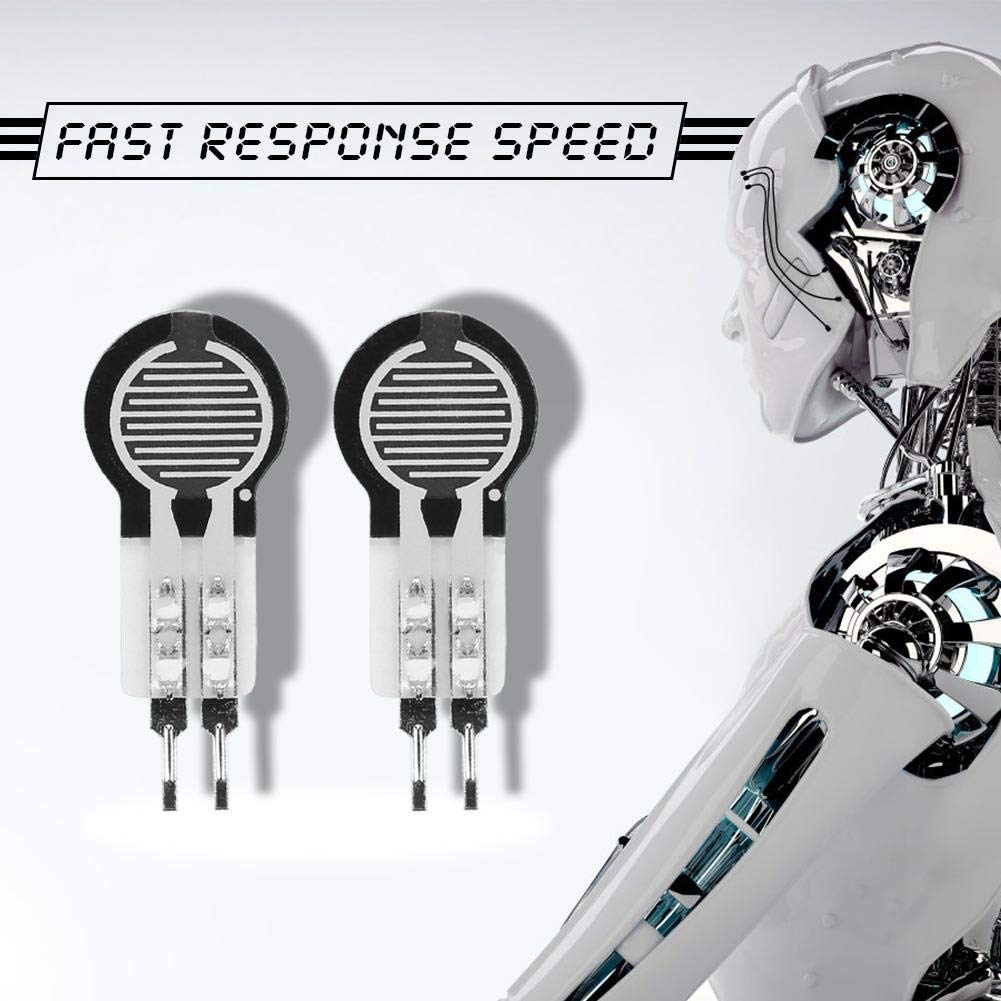

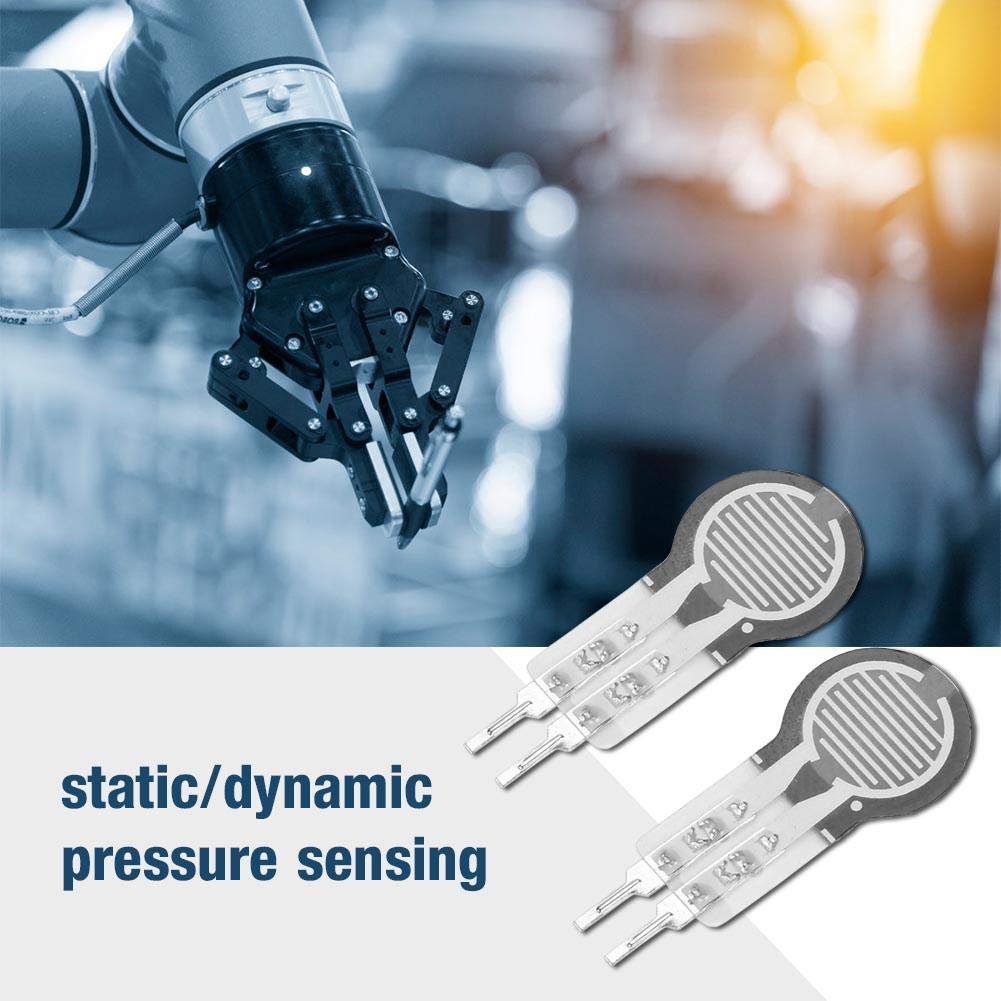

- The pressure sensor supports static/dynamic pressure sensing, and has fast response speed.
- Made of high quality material, the sensor is and has long service life.
- Widely used for bed monitoring, sleep monitoring, smart shoes, smart switches, counters and medical equipment.
Product description

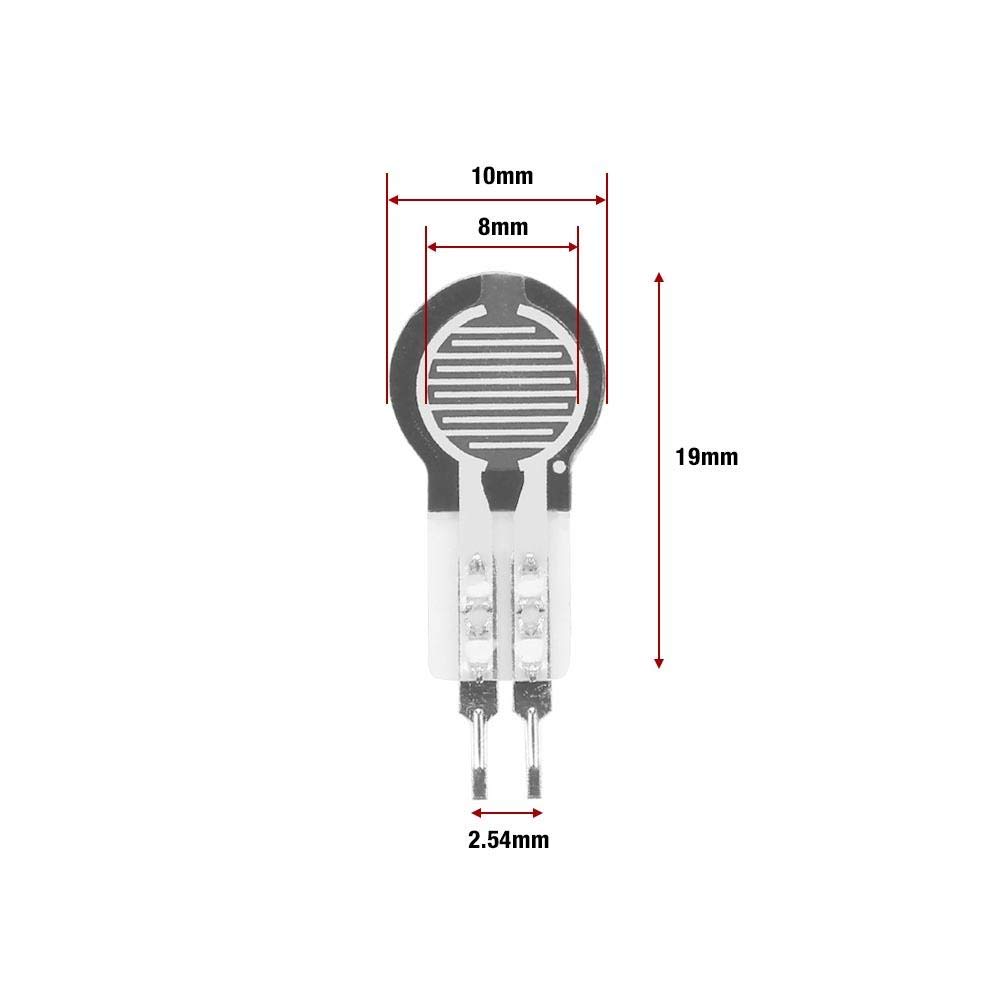

Description Specification: Model: RP-C10-ST Thickness: 0.4 mm Trigger force: 20 g, triggered when resistance is less than 200 kฮฉ by default Pressure sensing range: 20 g ~ 2 kg Pressure action mode: Static or dynamic (frequency within 10 Hz) Non-trigger resistance: More than 10 Mฮฉ Activation time: less than 0.01 S Operating temperature: -40 โ ~ +85 โ Lag: +10%, (RF+ - RF-)/FR+, 1000g force Response time: < 10 ms Drifting: <5%, 1Kg force static load 24H Weight: 1g / 0.04oz (approx.) Package list: 2 * Pressure Sensors Note: Please allow small size error due to manual measurement. Thanks for your understanding.
