PENGLIN DB15 Solderless RS232 D-SUB Serial Adapters, 16mm thinner 15-pin Serial Connector Solderfree Breakout Board with Case Accessories(Male +Female)

• 【Thinner Design】Only 16mm. You can use it in smaller and narrower spaces without worrying won’t fit.

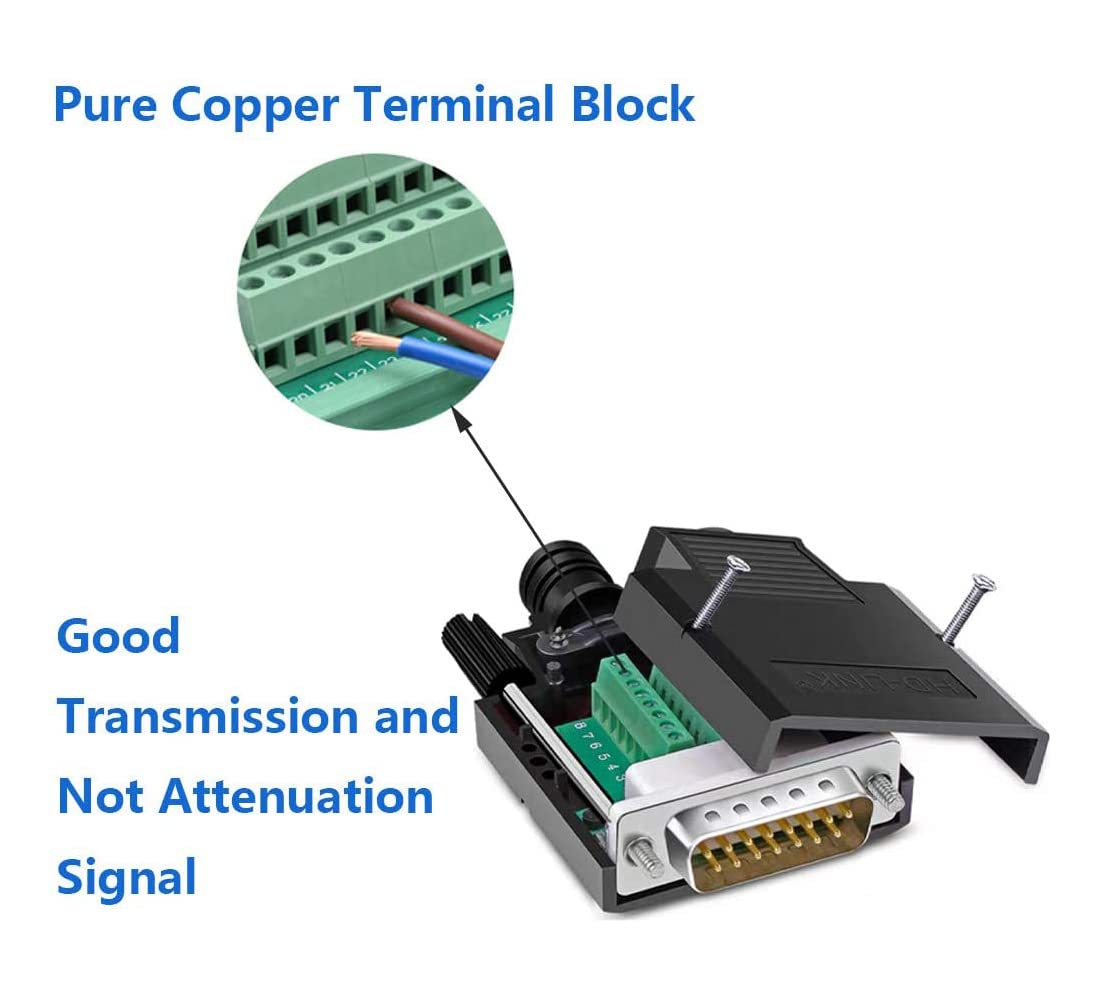

• 【Durable】Copper cored gold-plated joints are used for durability, plugging resistance and good contact. It adopts all-copper environmental protection copper terminal, which has good transmission.

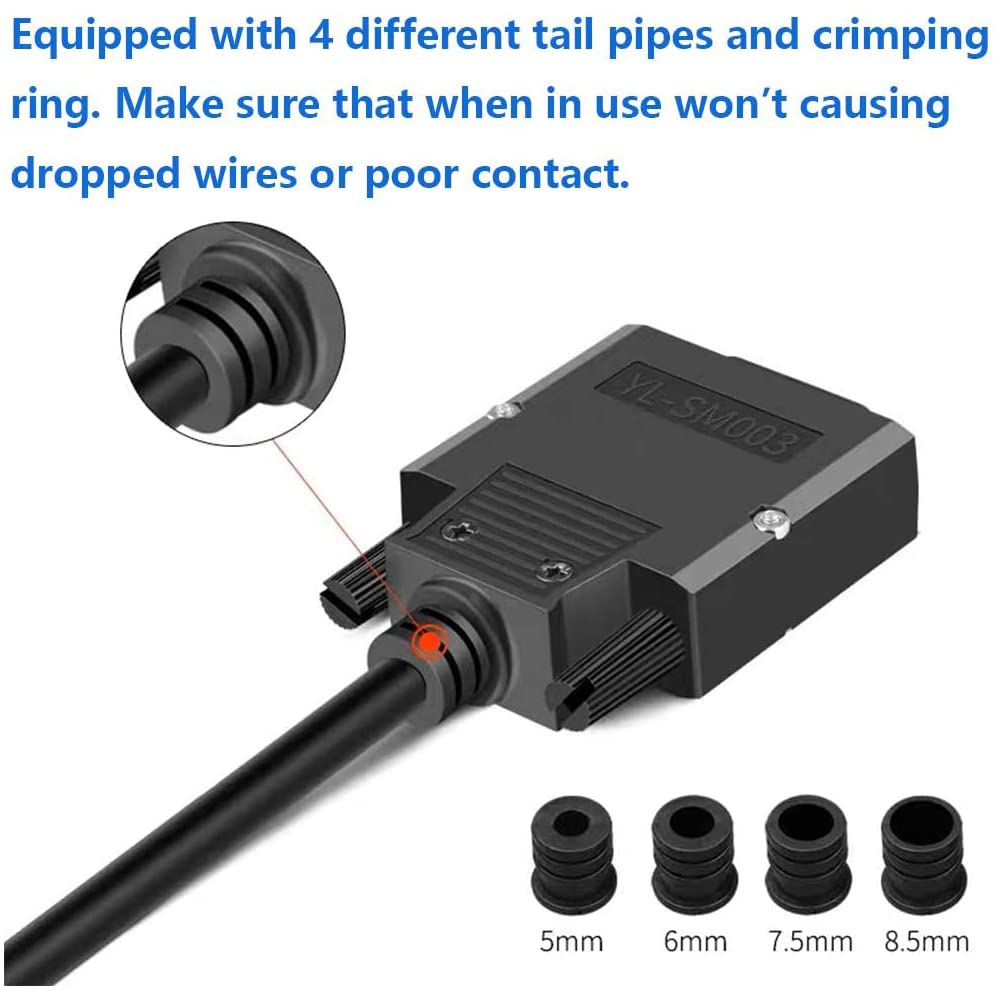

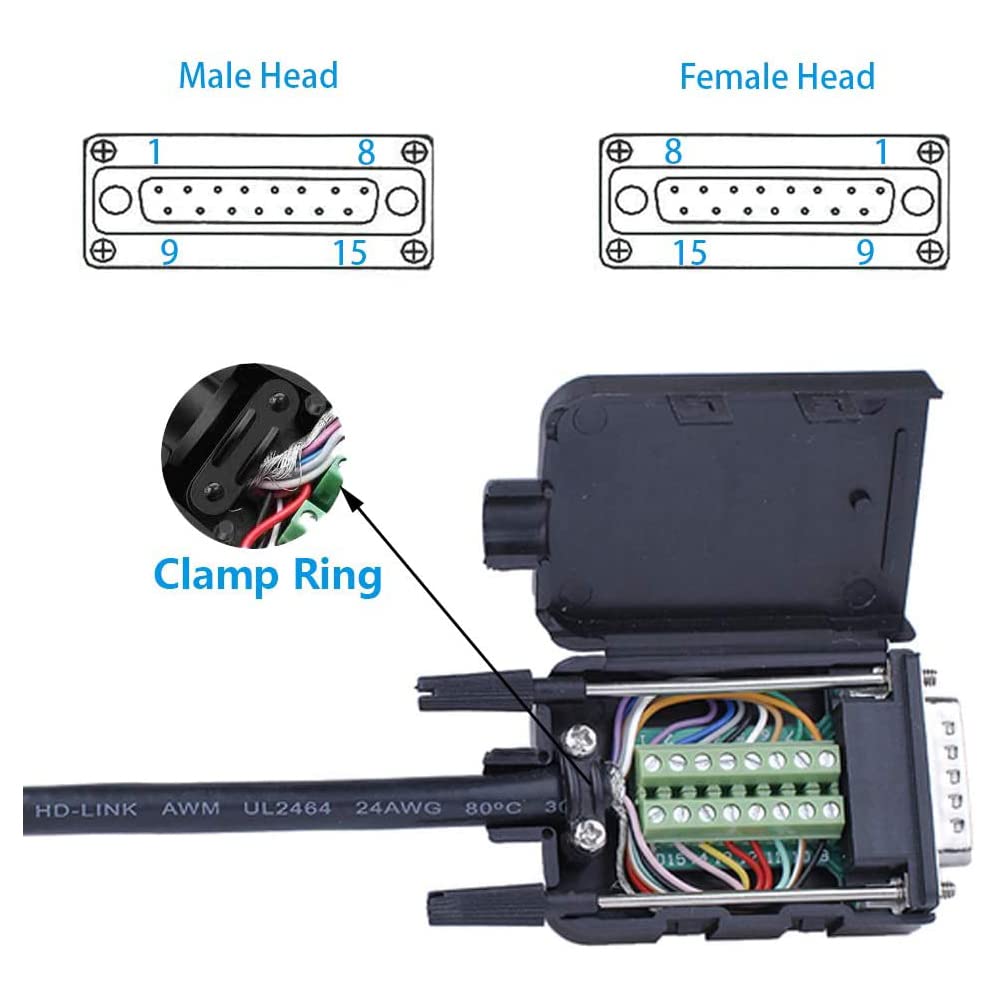

• 【Reliable】Each product is equipped with a crimping ring, 5mm, 6mm, 7.5mm, 8.5mm 4 different sizes of tail pipe. Make sure that the cable is pulled in use without causing dropped wires or poor contact.

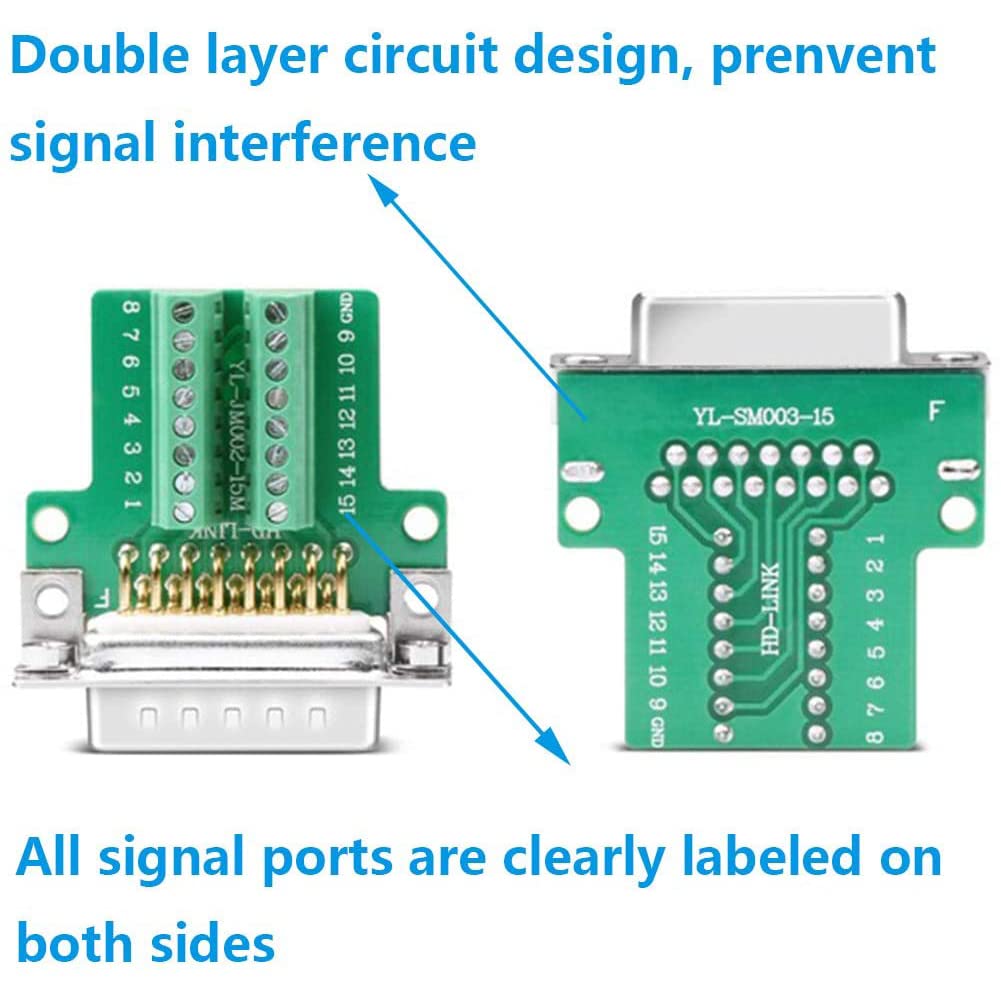

• 【Easy to Use】No soldering required. Only needs a small screwdriver and a wire stripper to install. The signal ports are clearly labeled on both sides of the board for quick wiring.

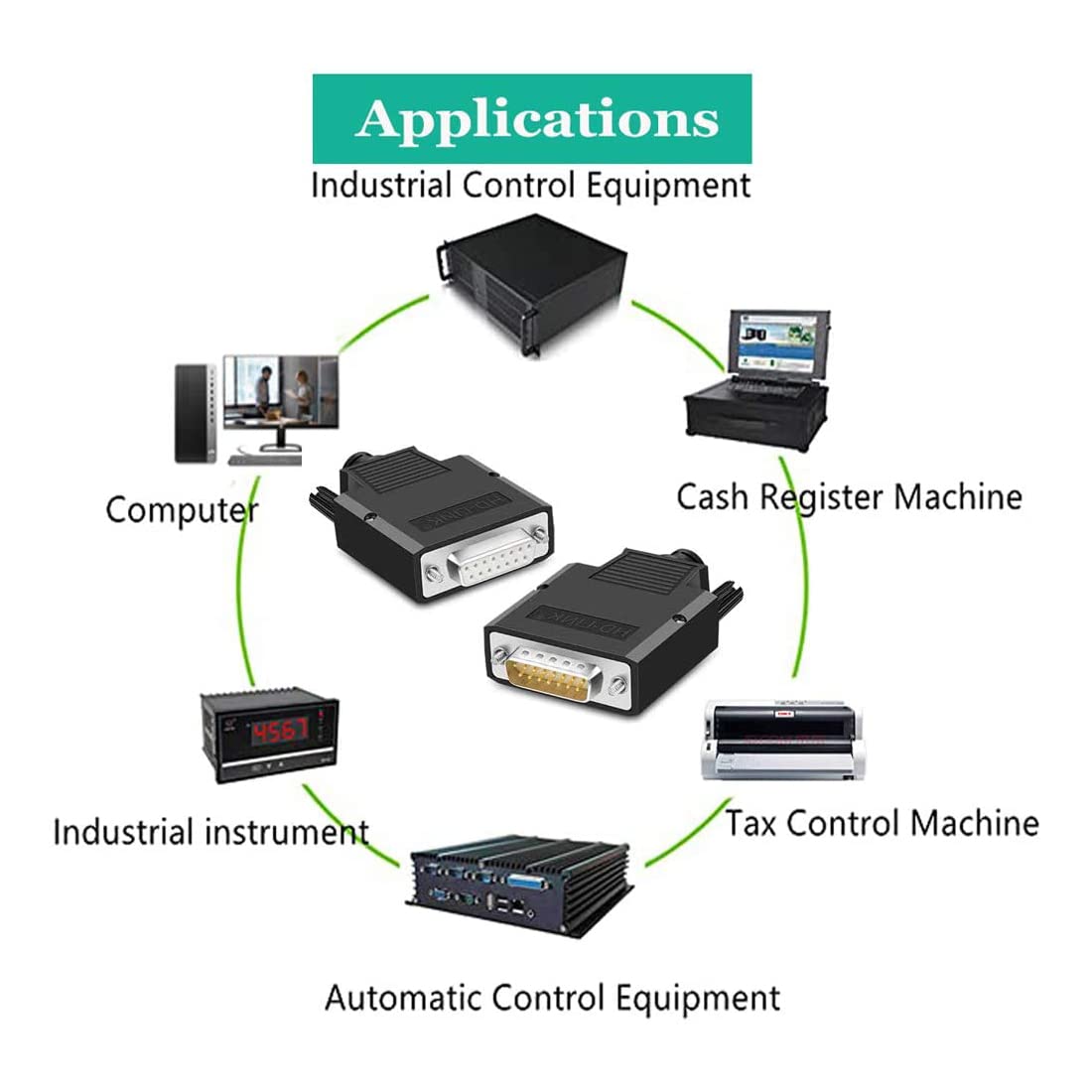

• 【Wildly Applications】The adapter can connect all kinds of serial devices, such as PLC controllers, touch screens, programmers, data converters, servo motors, automatic control equipment, industrial control equipment, cash register, tax control machine, computer, etc.

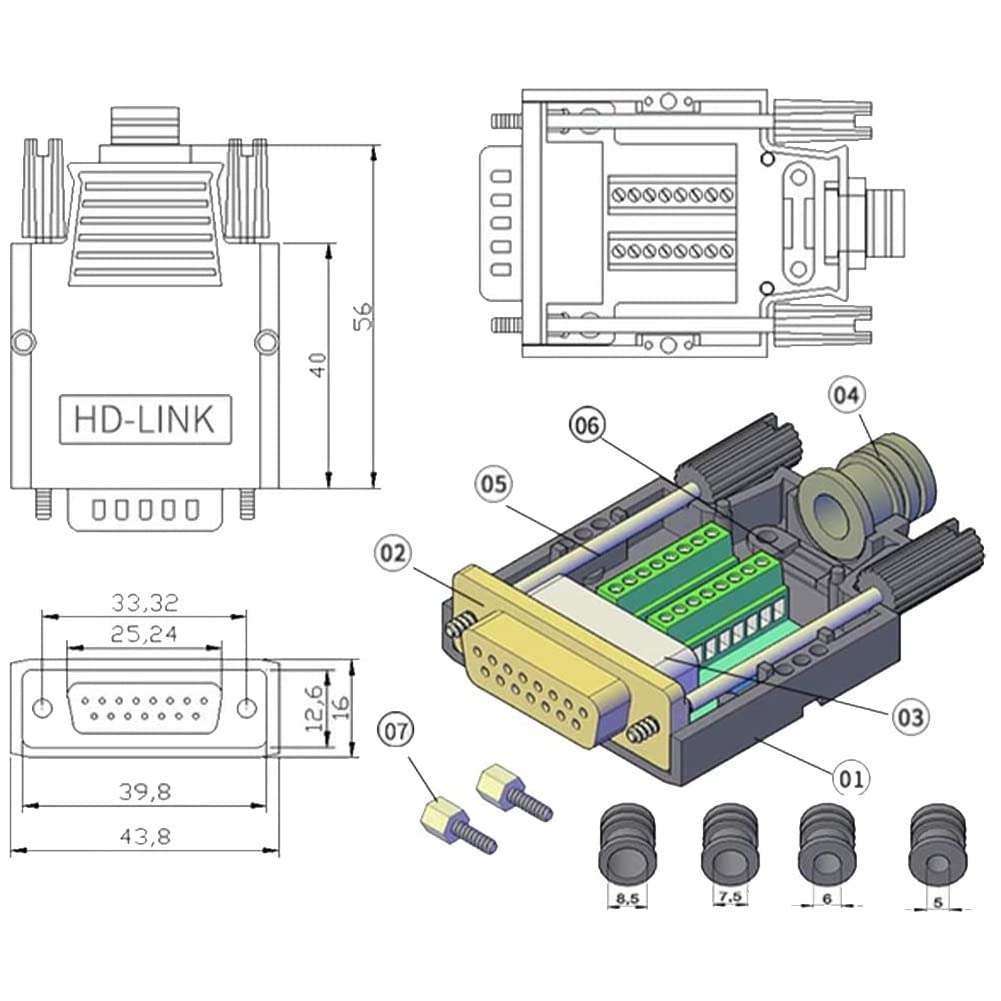

These DB15 adapter connectors make the project easier to start up. The wire range of the 15-position terminal block is 26-16AWG. All DB15 connectors gold-plated, anti-oxidation, contact better. The terminal height is 2.54mm, the screw diameter is 2mm. You can easily connected to a custom length cable as well as create your own pinout, creating a durable and permanent connection for all applications. . Technical specifications: Name: Thinner DB15 soleless module. Connector type: female and male. Number of pins: 15. Connection material: pure gold-plated copper. Contact material: copper. Housing material: Environmentally friendly PP engineering materials. Shell Type: Flap Snap-on. Cable specification: 26-16 AWG. Rated voltage: 24V. Rate: 2A. contact resistance: 30mcombi;. Torque: 0.2Nm (1.7Lb-In.). Opening size (cable connector): 10.5mm/0.41inch. Thickness: 16mm/0.63inch. Size: 55mm deck 215; 43mm congruent;16mm/2.17inch congruent 215; 1.69inch congruent 215; 0.63inch. Package includes:. 1 PACK DB15 Male Solderless Connector. 1 PACK DB15 Female Solderless Connector. 2 PACK 5mm,6mm,7.5mm,8.5mm tail boom. 2x cable press plate. 4x screws. 4x long screws.
