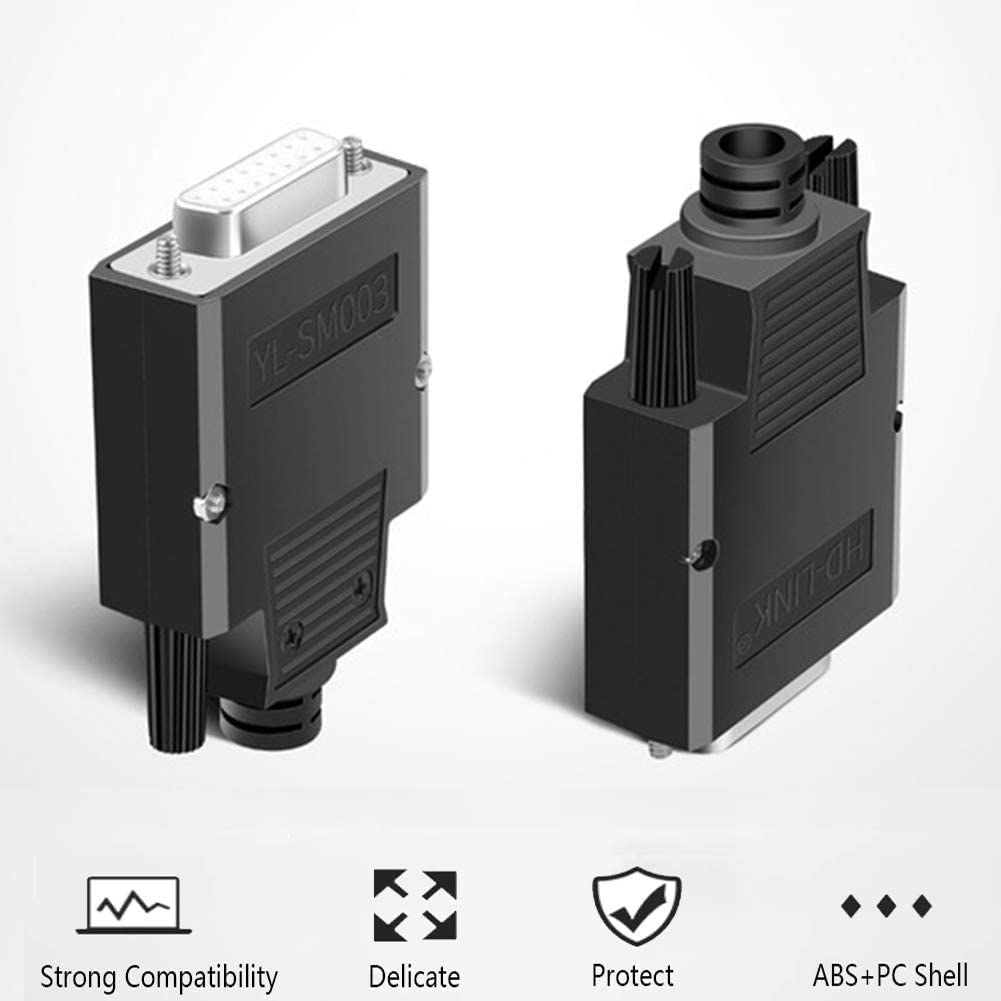

PENGLIN 2PCS DB15 Solderless Female Connector RS232 D-SUB Serial Adapters, 16mm thinner 15 Pins Solderfree Breakout Board Connector with Case Accessories

• 【Thinner Design】Only 16mm. You can use it in smaller and narrower spaces without worrying won’t fit.

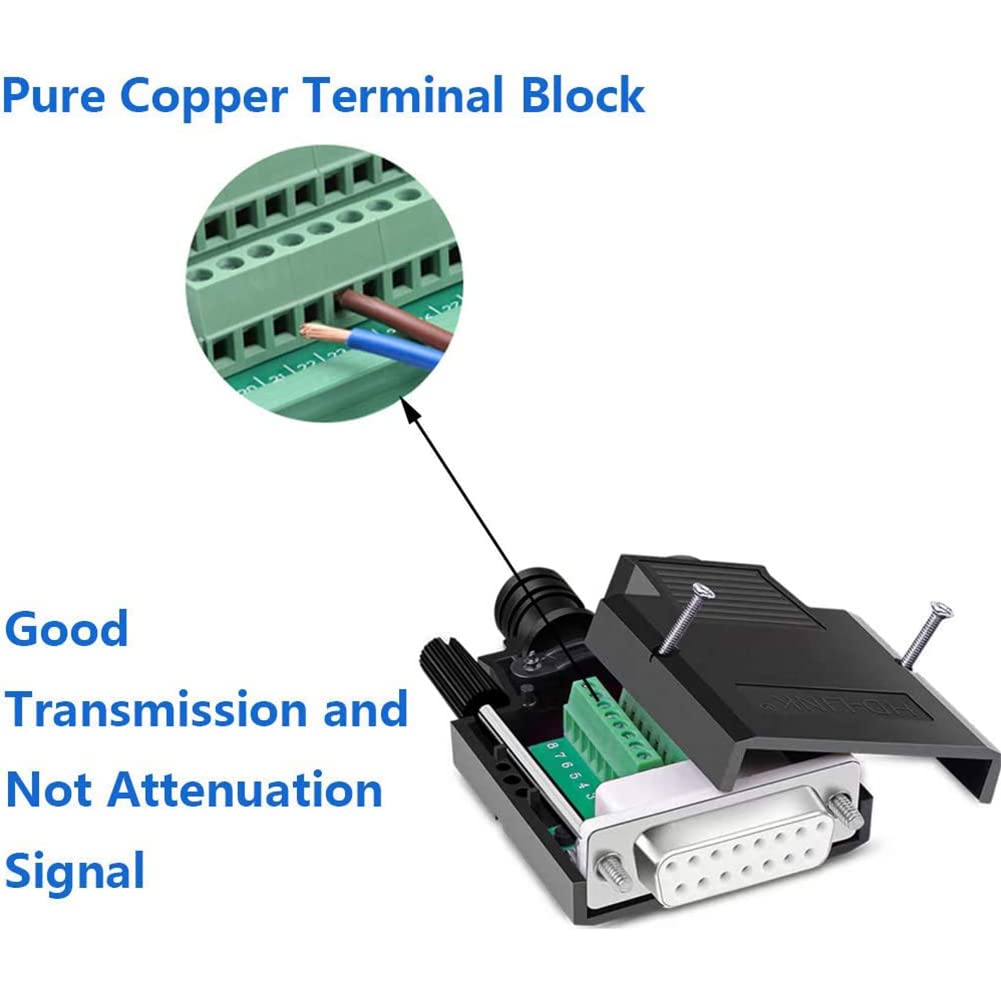

• 【Durable】Copper cored gold-plated joints are used for durability, plugging resistance and good contact. It adopts all-copper environmental protection copper terminal, which has good transmission.

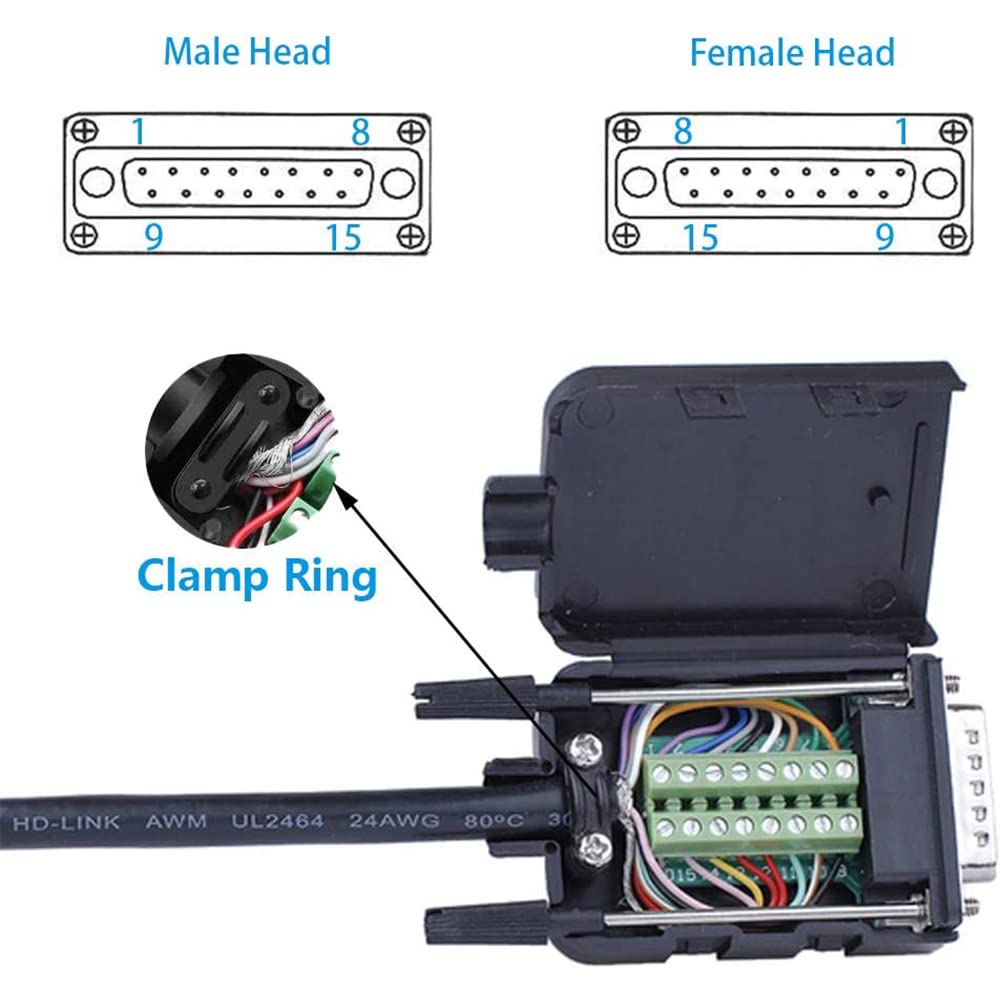

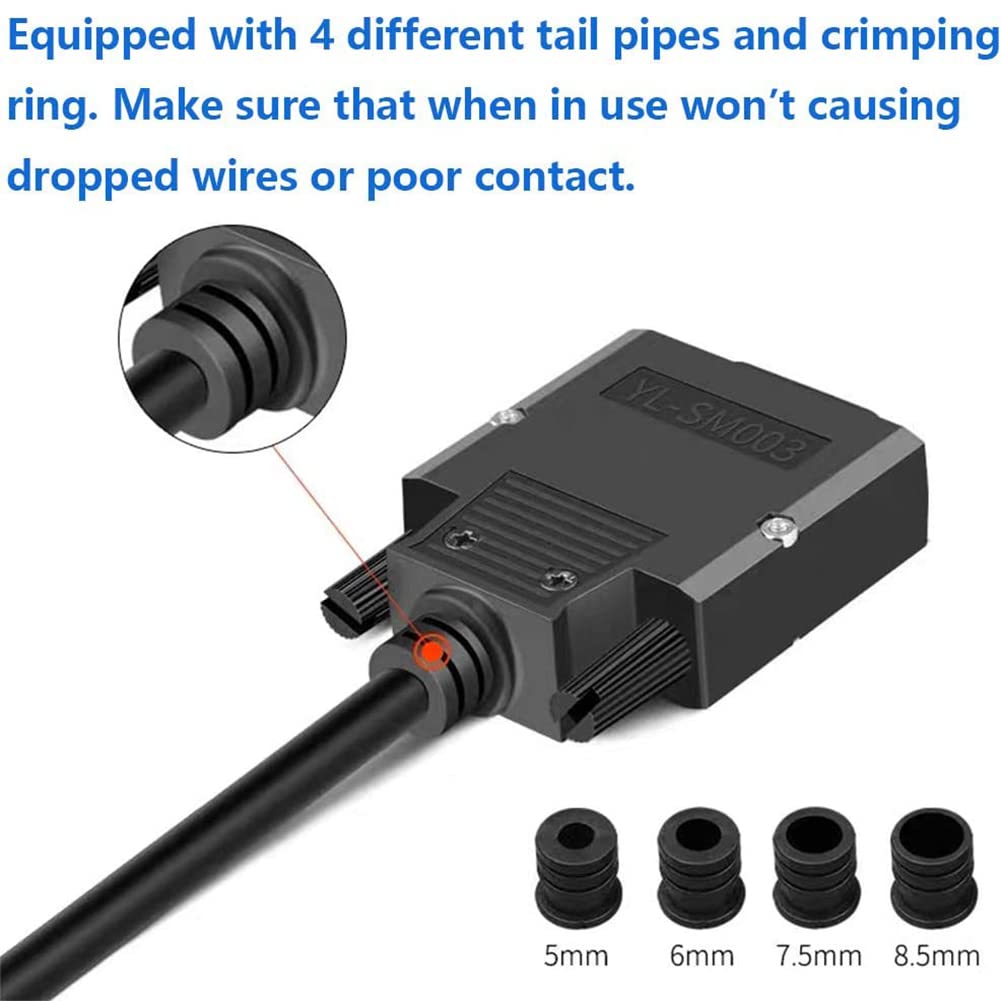

• 【Reliable】Each product is equipped with a crimping ring, 5mm, 6mm, 7.5mm, 8.5mm 4 different sizes of tail pipe. Make sure that the cable is pulled in use without causing dropped wires or poor contact.

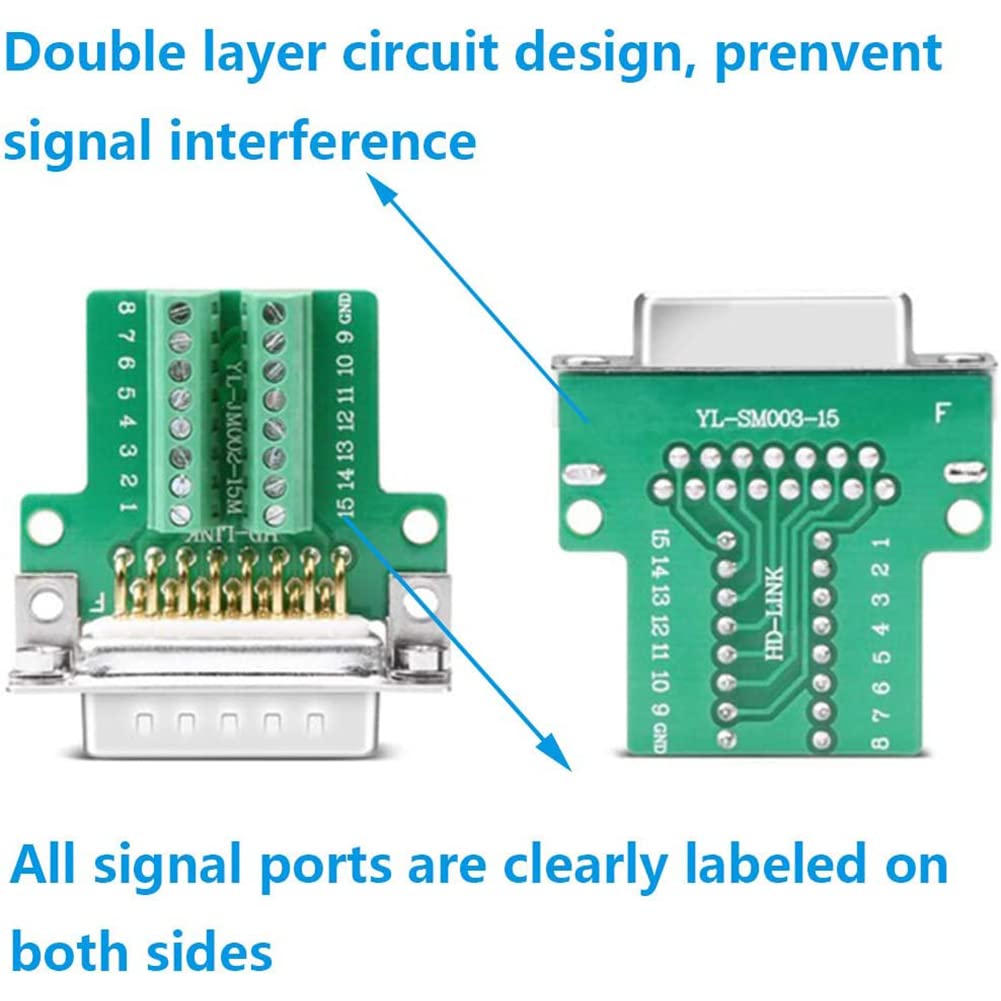

• 【Easy to Use】No soldering required. Only needs a small screwdriver and a wire stripper to install. The signal ports are clearly labeled on both sides of the board for quick wiring.

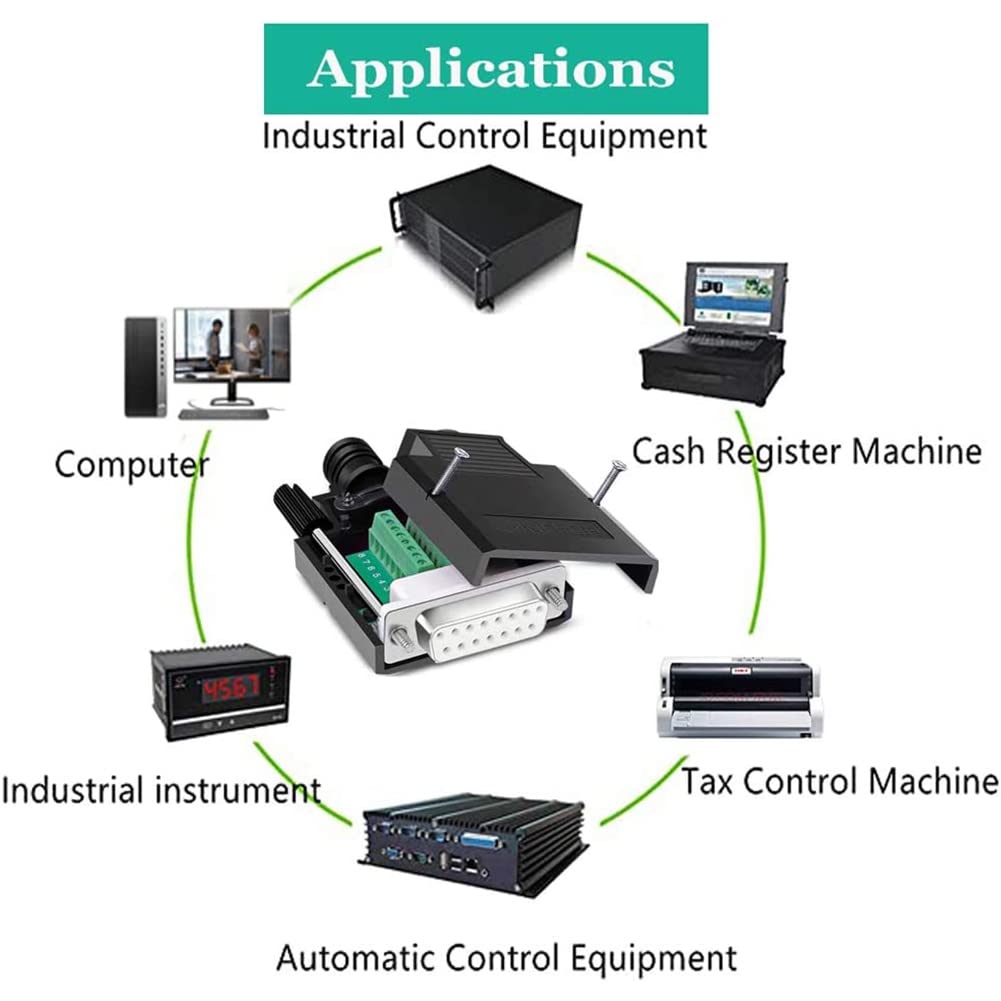

• 【Wildly Applications】The adapter can connect all kinds of serial devices, such as PLC controllers, touch screens, programmers, data converters, servo motors, automatic control equipment, industrial control equipment, cash register, tax control machine, computer, etc.

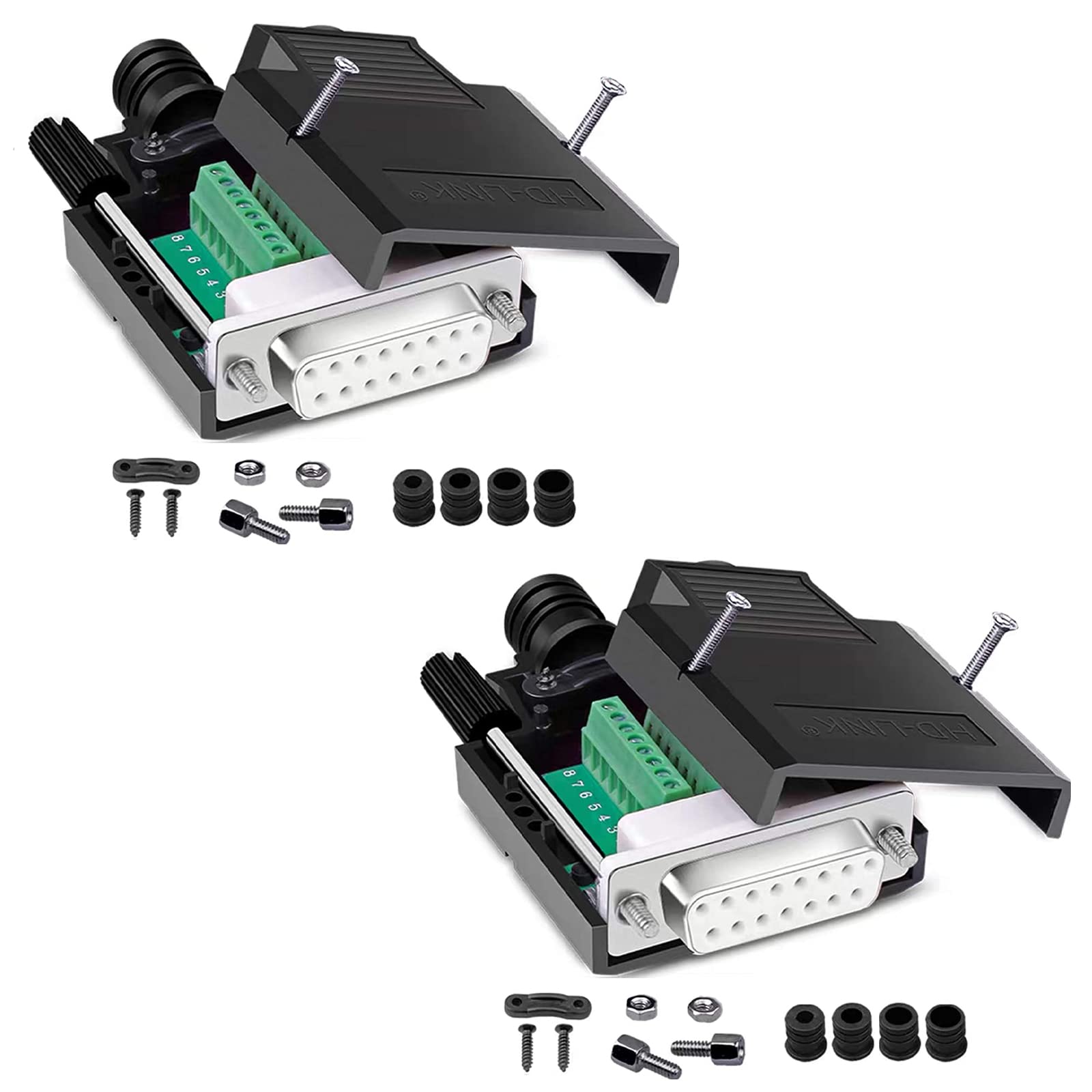

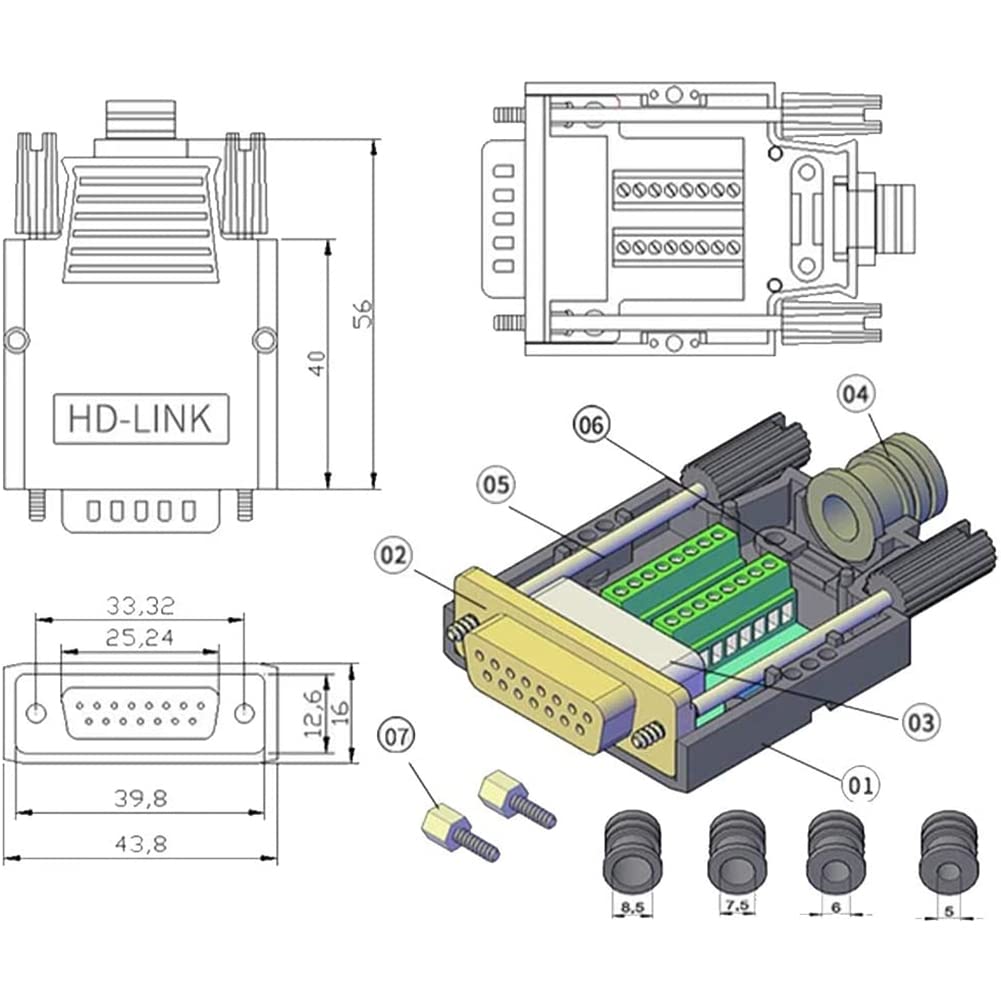

These DB15 adapter connectors make the project easier to start up. The wire range of the 15-position terminal block is 26-16AWG. All DB15 connectors gold-plated, anti-oxidation, contact better. The terminal height is 2.54mm, the screw diameter is 2mm. You can easily connected to a custom length cable as well as create your own pinout, creating a durable and permanent connection for all applications. Specifications: Name：16mm Thinner DB15 Female Solderless Breakout Connector Plug Type: Female Connector Material: Copper Plated Joint Contact Material: Copper Housing Material: PP Engineering Materials Shell Type: Folding Snap-on Cable Specification: 26-16 AWG Torque: 0.2Nm (1.7Lb-In.) Opening Size (cable port): 10.5mm/0.41inch Thickness: 16mm/0.63inch Size: 55 mm×43 mm×16 mm/ 2.17inch×1.69inch×0.63inch Package includes: 2 x DB15 Breakout Board Female Adapter with Case
