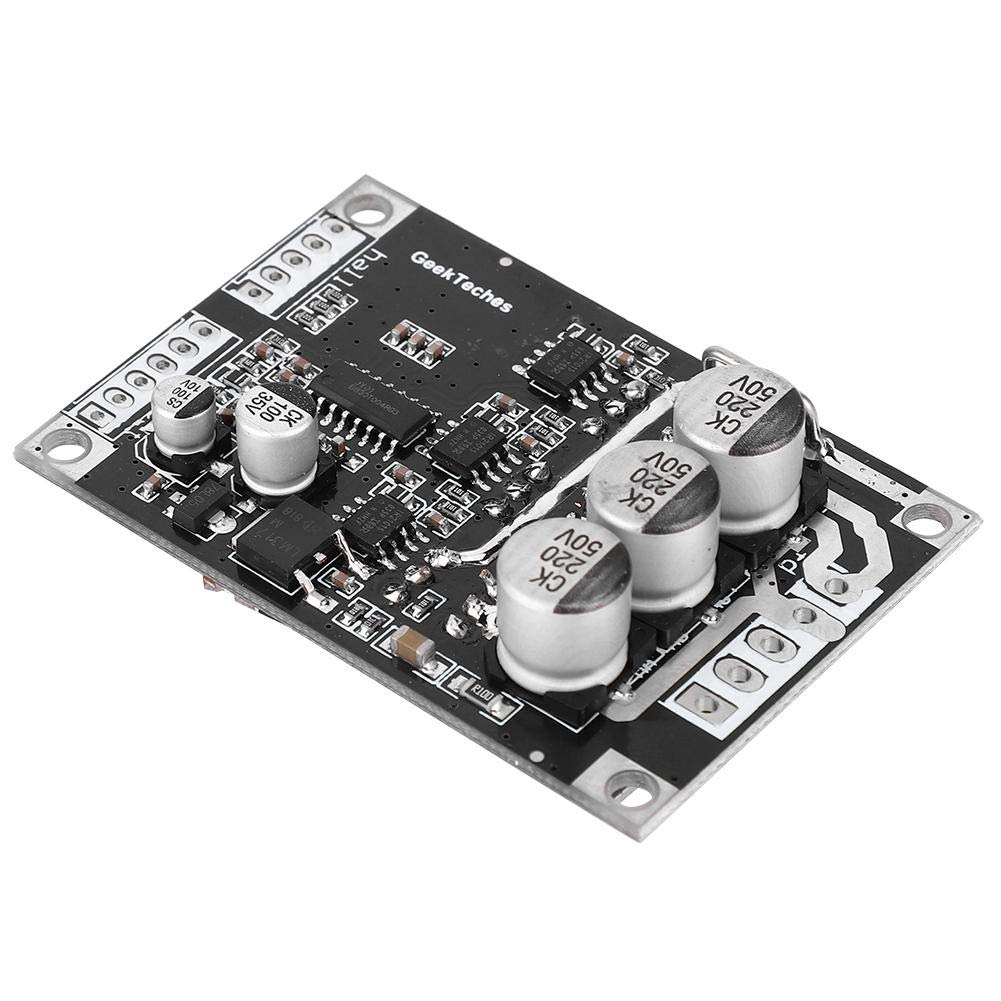

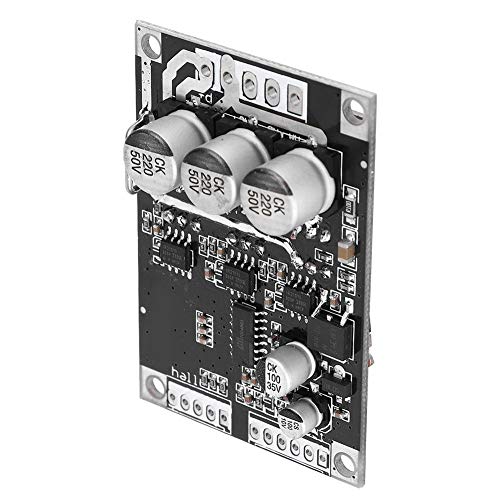

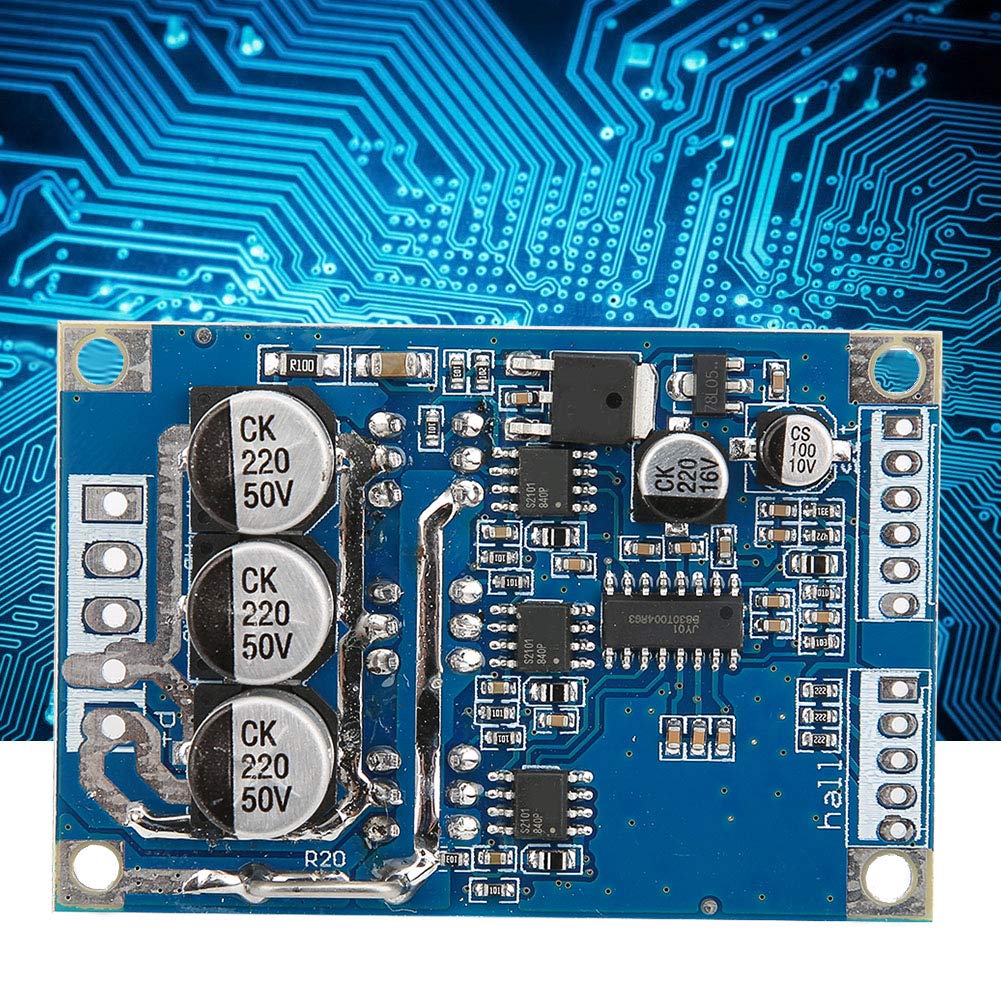

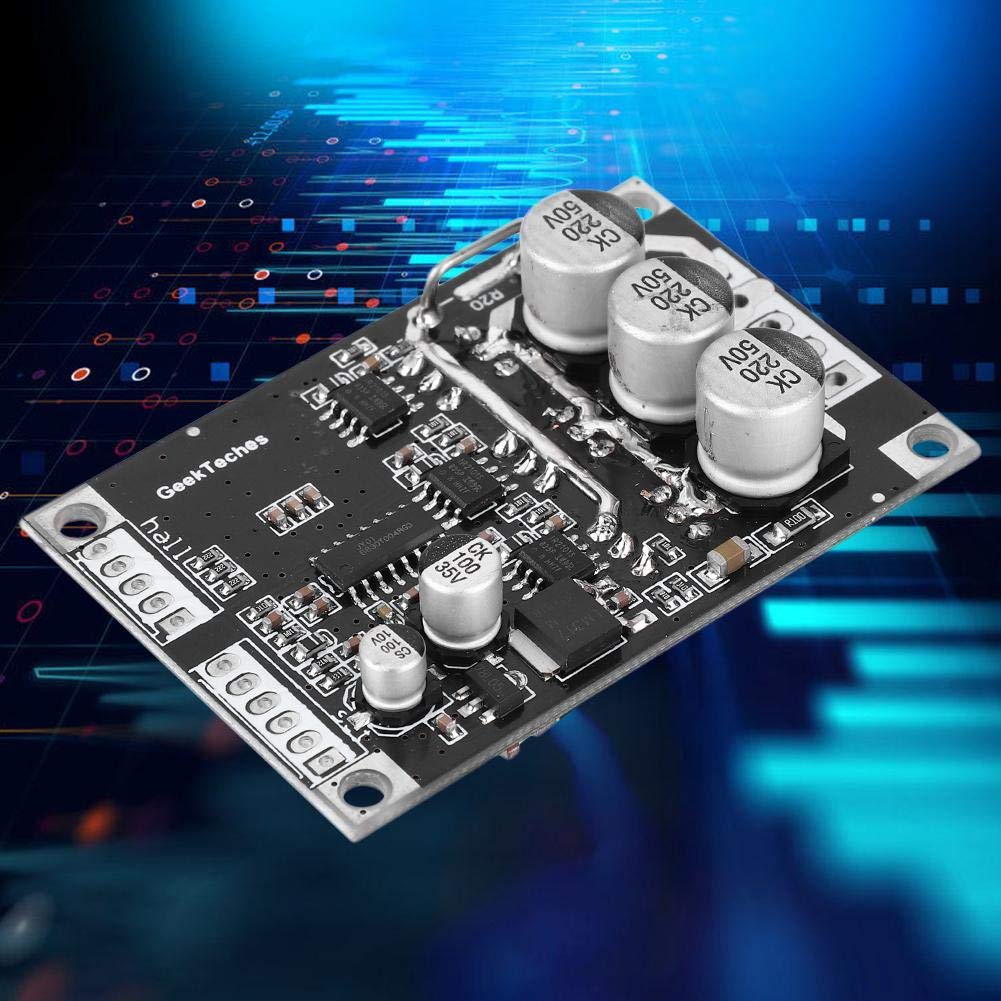

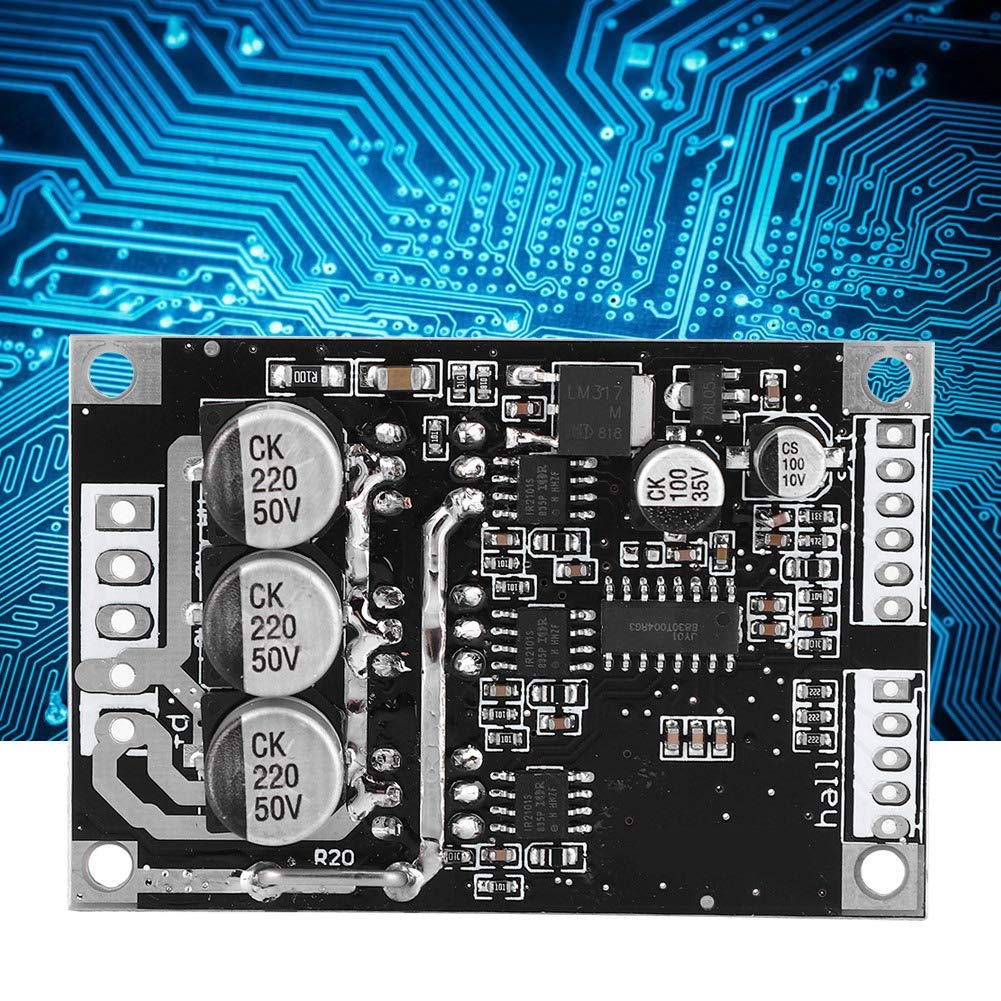

Motor brushless Controller,DC 12V-36V 15A 500W Hall brushless motor Speed Driver Board speed controller for brushless motor

• Operating voltage: DC 12V-36V
• Operating Current: Less than or equal to 15A
• Driver Power: Less than or equal to 500W
• Speed Voltage: 0.1V-5V
• Operating Temperature:-40-85°C

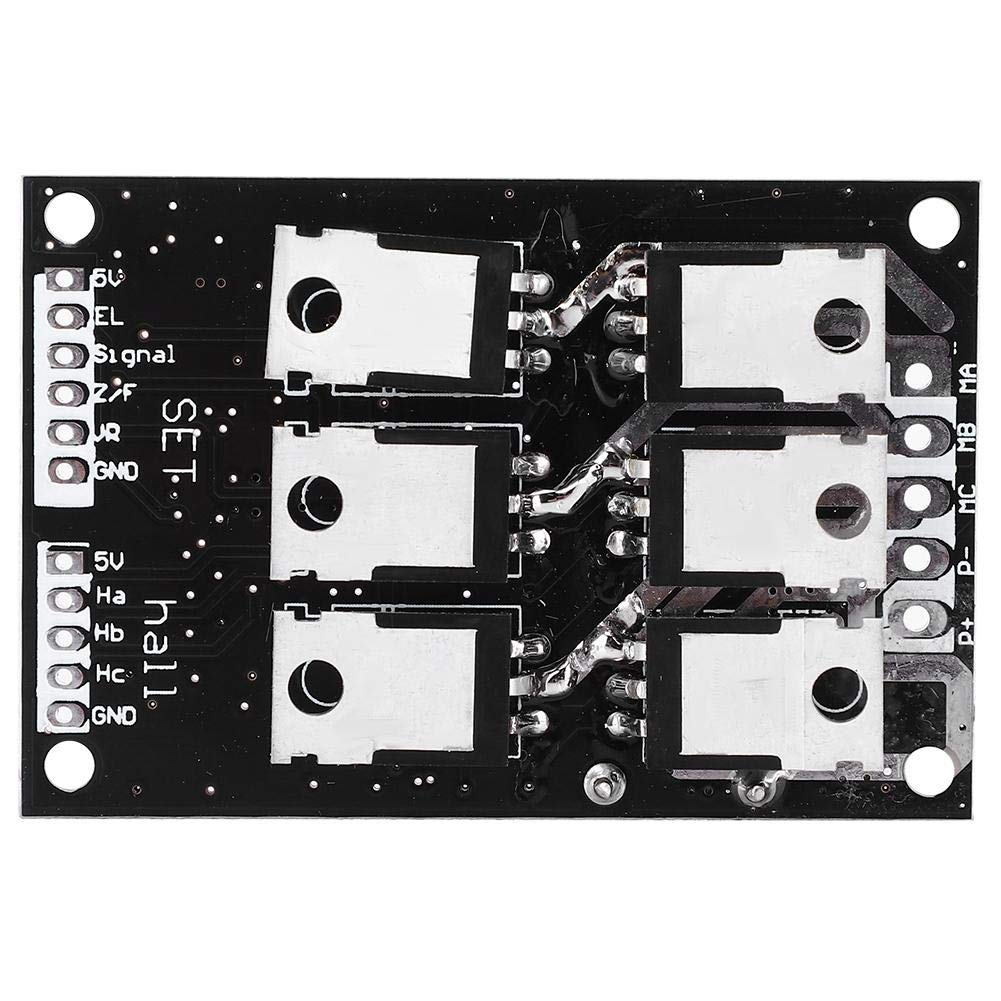

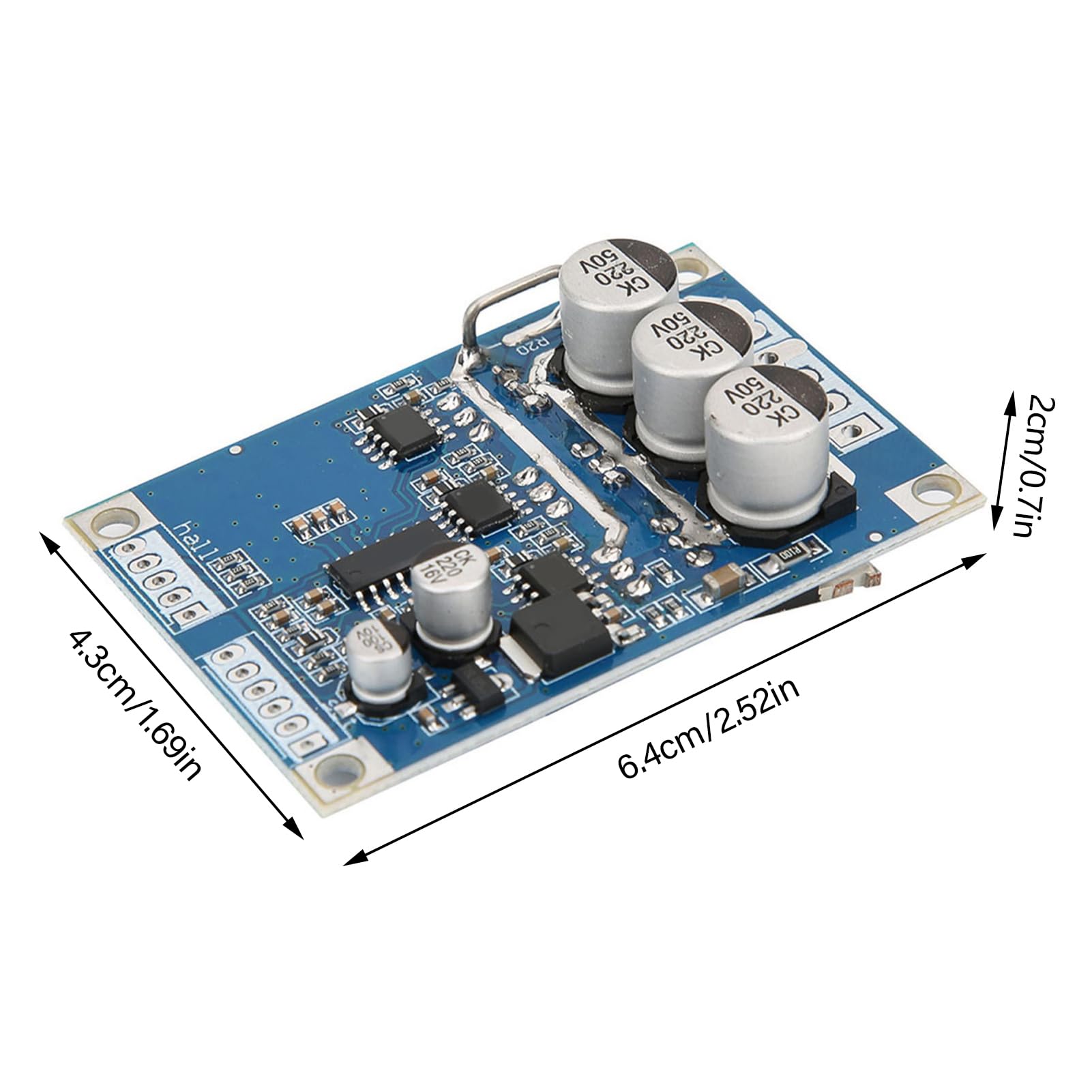

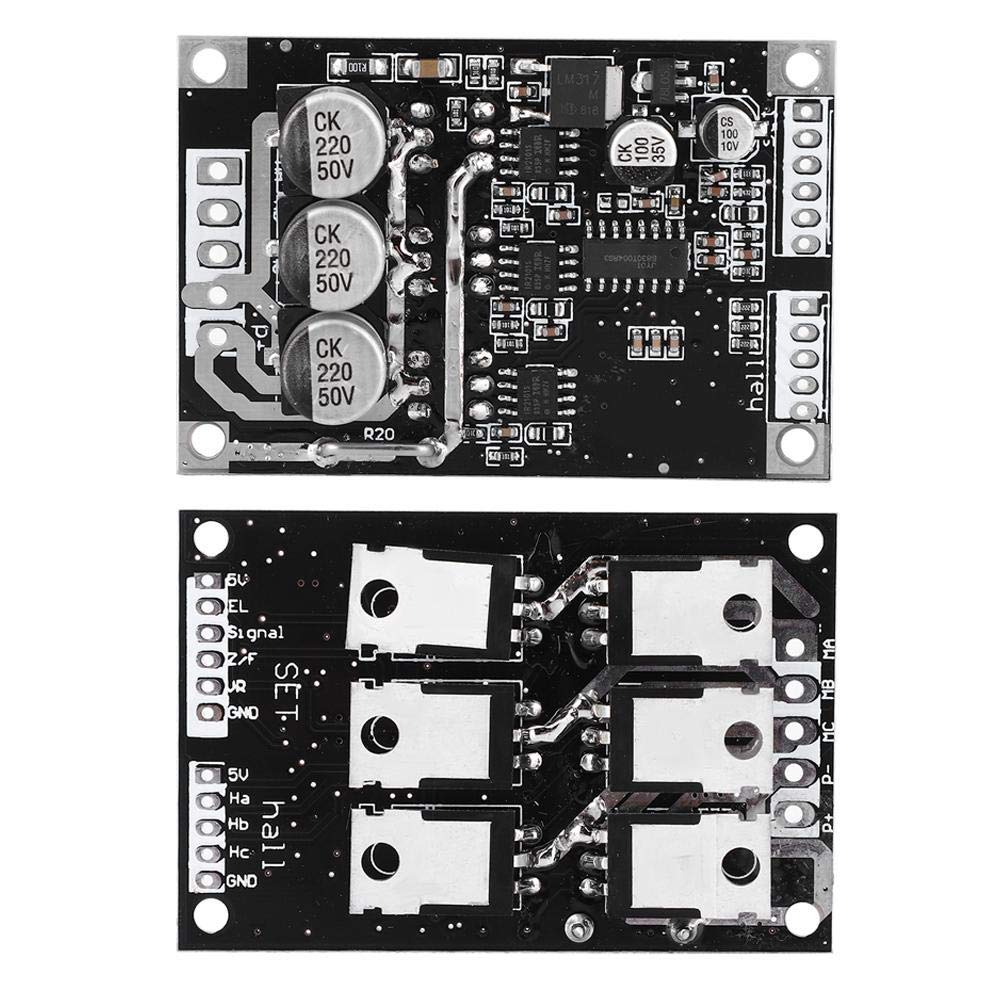

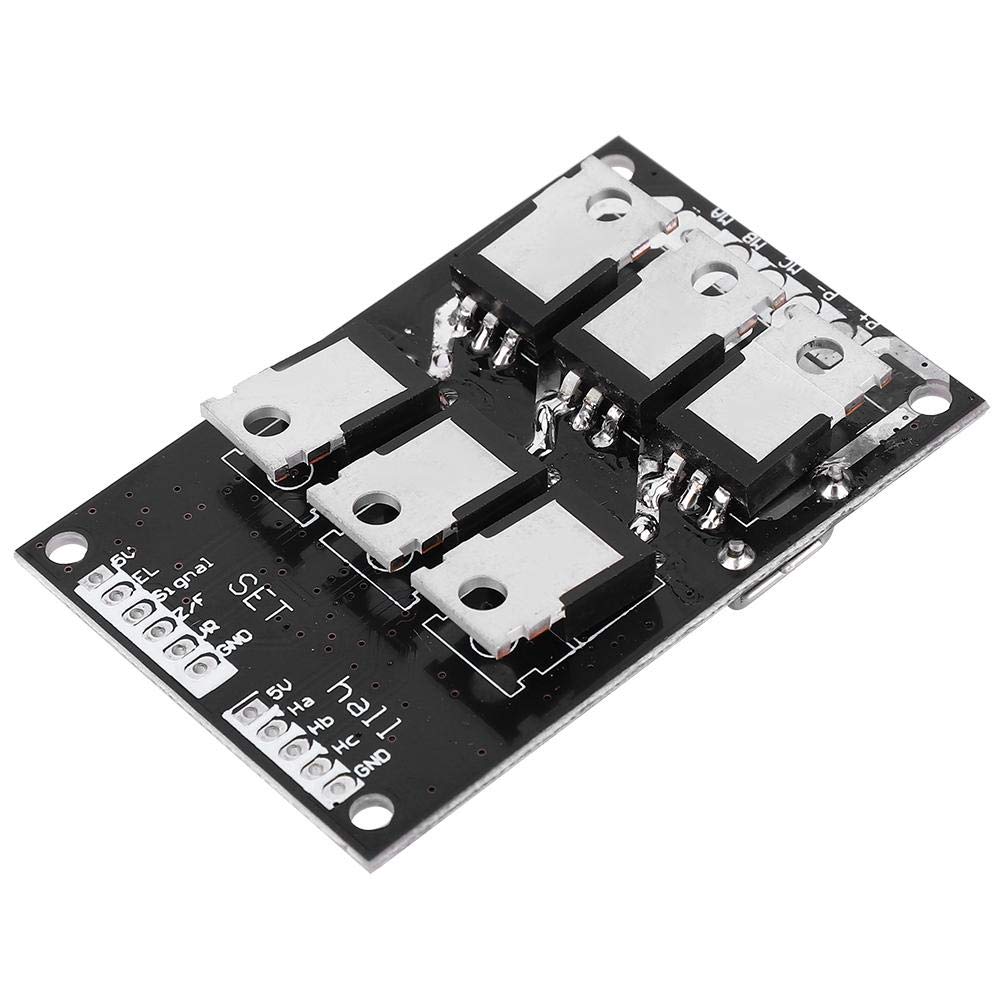

Specification: Operating voltage: DC 12V-36V Operating Current: Less than or equal to 15A Driver Power: Less than or equal to500W Speed Voltage: 0.1V-5V Operating Temperature:-40-85°C Humidity: 90%RH Stall protection:Yes Enable Control: Yes Over-current Yes Steering control: Yes Speed control Yes Size: 63*42*17mm(L*W*H); Probe size 3mm,length: fixing hole center distance 57mm; width:fixed hole center distance 36.5mm Power terminal Out: VCC(positive power supply) GND(negative one) MC(motor phases W) MB(motor phases V) MA(motor phase U) Set for the control side: GND control terminal ground VR the governor end 0-5V(corresponding to 10% of motor speed -100%) ZF reversing control(connected to 5V or ground can the motor rotation direction) M tachometer pulse output(depending on the number of motor poles corresponding to the number of pulse per revolution of the output number) EL enable control terminal(connected to 5V ot ground running then 5V, grounding the motor stops) 5V 5V control terminal Note: Due to different motor manufacturers to make the hall of hall line order does not necessarily follow the line on the board to match the sequence, need to be adjusted, please parents who pay attention! If the line sequence wrong, does not boot properly, current, or start other phenomena not open, forced to use the drive plate will burn!!! Motor driver board 12-36V DC power input, VCC positive power supply,GND power supply is negative. Electrical wiring methods: Brushless DC motor for the three lines, corresponding MA/U,MB/V,MC/W Package Includes: 1 x 12-36V 500W Brushless Motor Controler
