MISOTT HDMI Extender, 60 Meters HDMI Transmitter and Receiver Over Single RJ45 Cat5e/6/7 Ethernet Cable, Supports 1080p, 3D, HDCP, EDID, Up to 196ft(60m)

• Premium Quality HDMI Extender transmitter and receiver, HDMI to RJ45 ethernet cable, using Maxim & Siliconimage chipset solution, extends HDMI signal to at least 196ft(60 meters) via single RJ45 cat6 ethernet cable, which breaks the limitation of HDMI transmission's length, and cost saving for HDMI long distance transmission. Note: cat-5e ethernet cable can only up to 165ft(50meters), pure copper CAT6 or higher level ethernet cables are recommended.
• Support HDCP, 3D and 1080P resolution, EDID Management function for working compatible with some unusual TV/monitor. (Note: To get 3D, all units connected to the extender must support 3D).
• Audio format support: DTS-HD/ Dolby-trueHD/ DTS/ Dolby-AC3/ DSD. Support video input : 1080p@50/ 60Hz, 1080i@50/ 60Hz, 720p@50/ 60Hz, 576p@50Hz, 576i@50Hz, 480p@60Hz, 480i@60Hz.

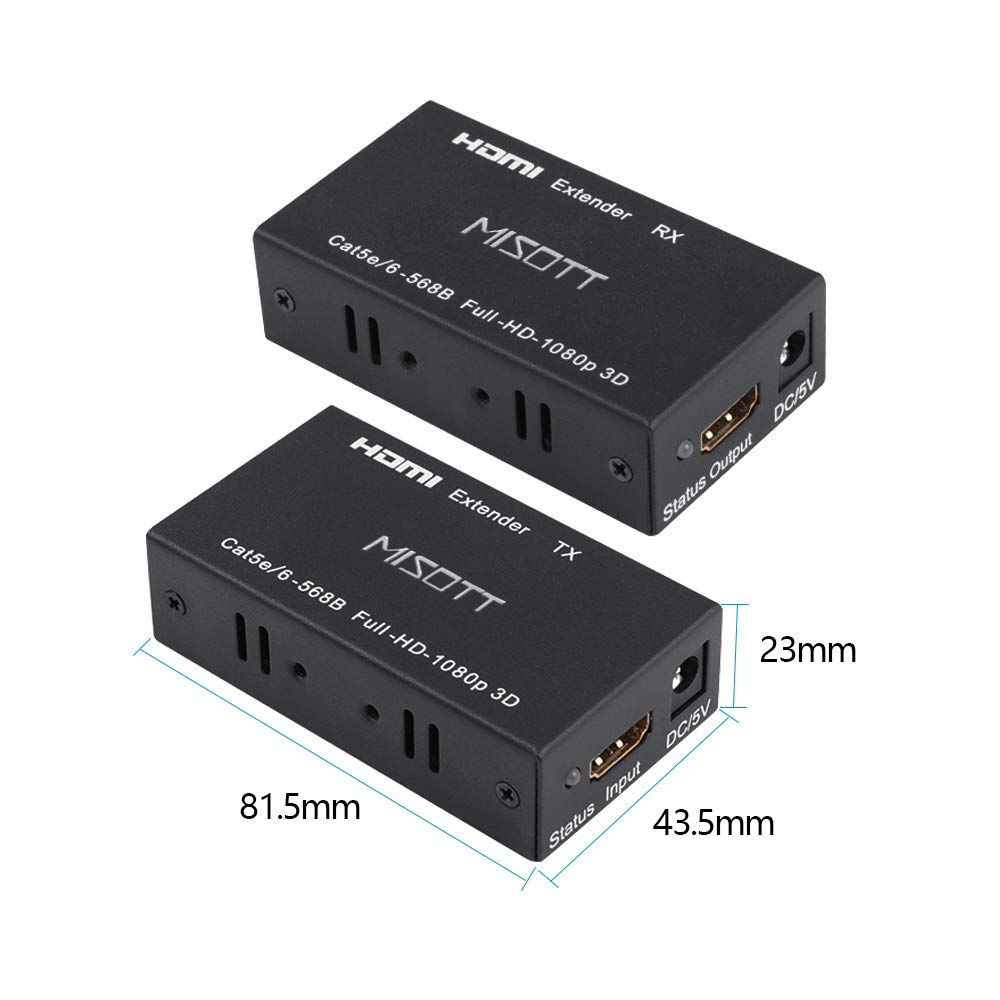

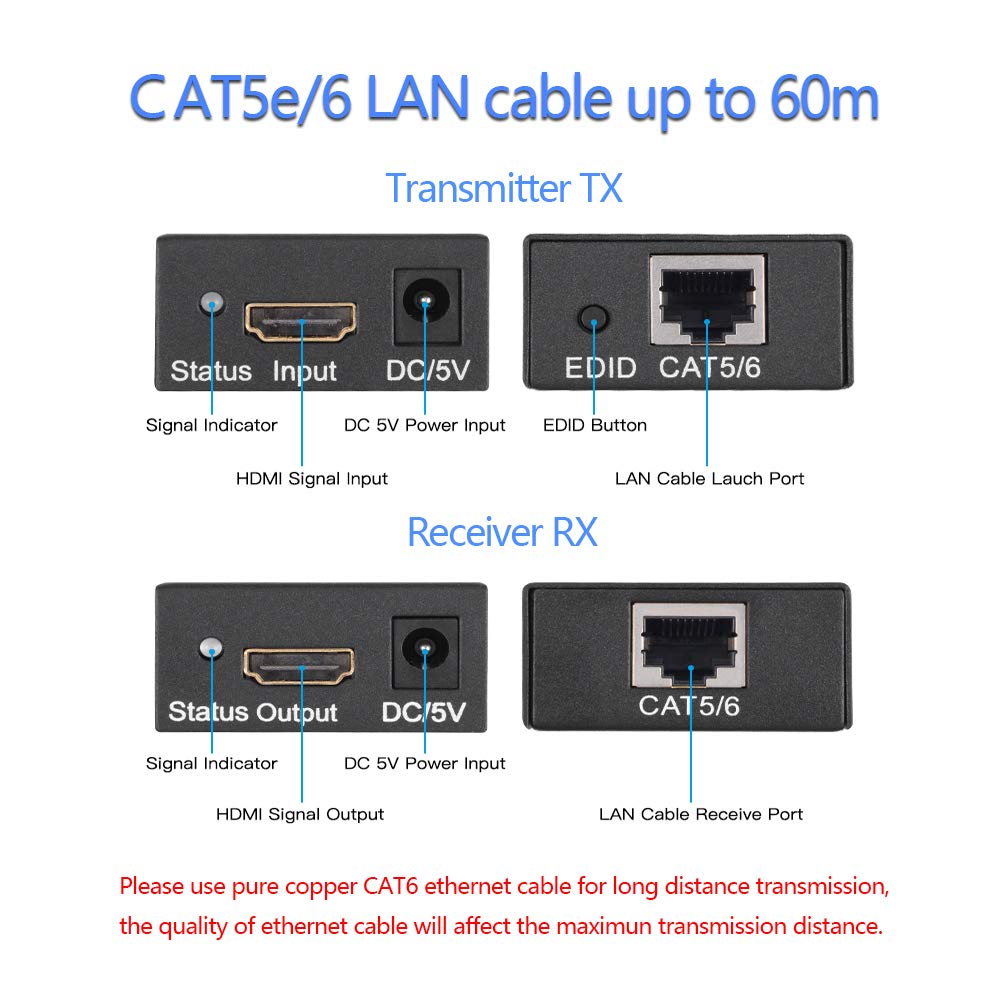

• Transmitter and Receiver are both equipped with a HDMI port. The HDMI input connects to HDMI sources, the HDMI output connects to HDMI displays. Pure copper CAT6 or higher level ethernet cables are recommended between Tx & Rx.
• No loss of quality and easy to install. No driver needed, Widely use for PC, DVD Player, PS3, PS4, HD Box, Satellite Box, Android Box and etc, ideal for digital signage, houses of worship, classrooms, boardrooms, conference room projectors, gaming, video production, ect.

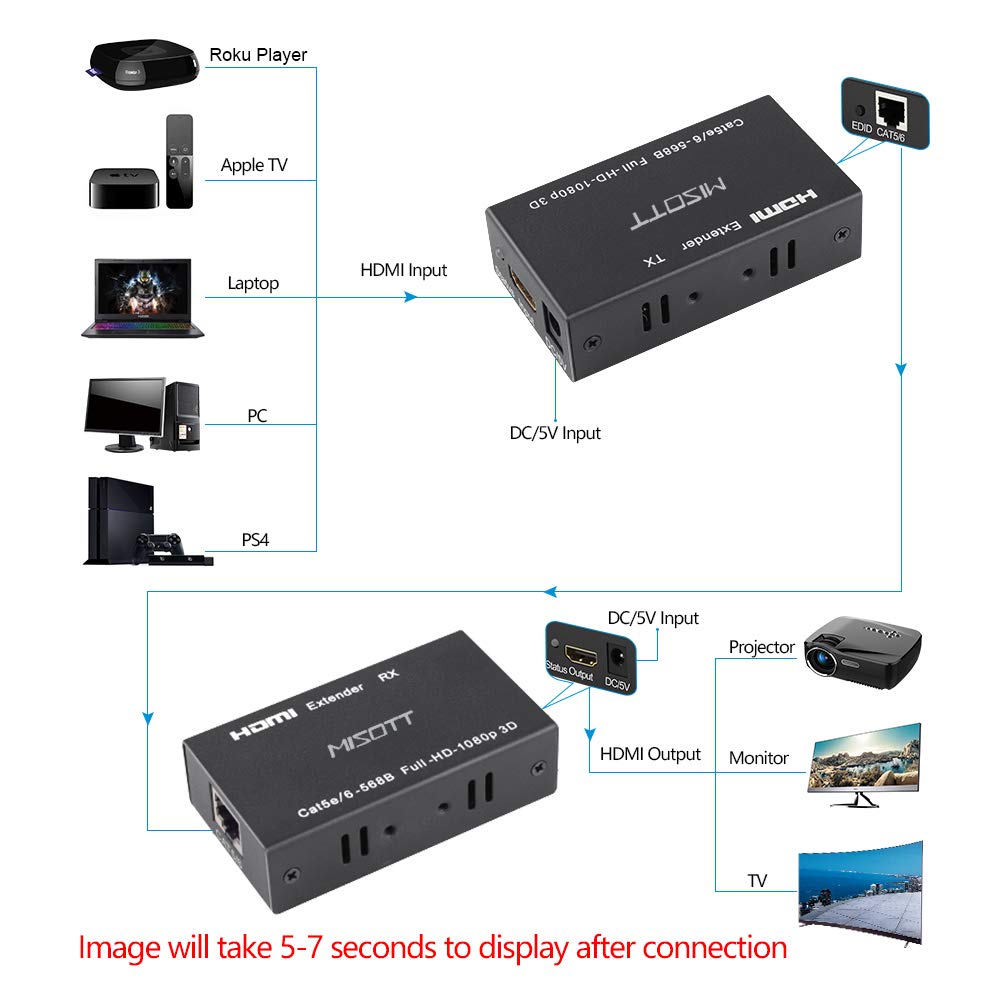

Note: 1. Please note it will take 5-7 seconds for image to display after connection. 2. Maximum transmission distance is 60 meters with standard IEEE-568B CAT5e/ 6 LAN cable. 3. Pure copper CAT6 or higher level ethernet cables are recommended for long distance transmission, quality of ethernet cable will affect the maximun transmission distance. 4. Maximun resolution is 1080P, please make sure your HDMI source and display device are set to 1080P or under. Can not support 4k. 5. No IR funtion in this extender. MISOTT 60 meters HDMI extender with EDID funtion, using TCP/ IP over single cat-5e or cat-6 ethernet cable instead of using expensive HDMI cables, extends HDMI signal up to 60 meters, gives you a great picture, long distance viewing, various applications. Specification: 1. Maximum transmission distance between Tx and Rx: - Cat5e ethernet cable up to 165ft(50m) - Cat6 ethernet cable up to 196ft(60m) Note: Cat6 or higher level cable is recommended. 2. HDMI Resolution Support: 1080p@50/60Hz, 1080i@50/60Hz, 720p@50/60Hz, 576p@50Hz, 576i@50Hz, 480p@60Hz, 480i@60Hz 3. Audio format Support: DTS - HD/ Dolby-true HD/ DTS/ Dolby-AC3/ DSD 4. Max transmission bandwidth: 1.65Gbps 5. Input & output HDMI cable distance: ≤10m AWG26 HDMI standard cable 6. Power Supply: DC 5V/ 1A(2pcs) 7. Case Material: Metal Package Contents: 1 x MISOTT HDMI to RJ45 Tx 1 x MISOTT RJ45 to HDMI Rx 2 x 5V/1A power supply 1 x User Manual Warranty: MISOTT 60M HDMI Extender, one-year warranty.
