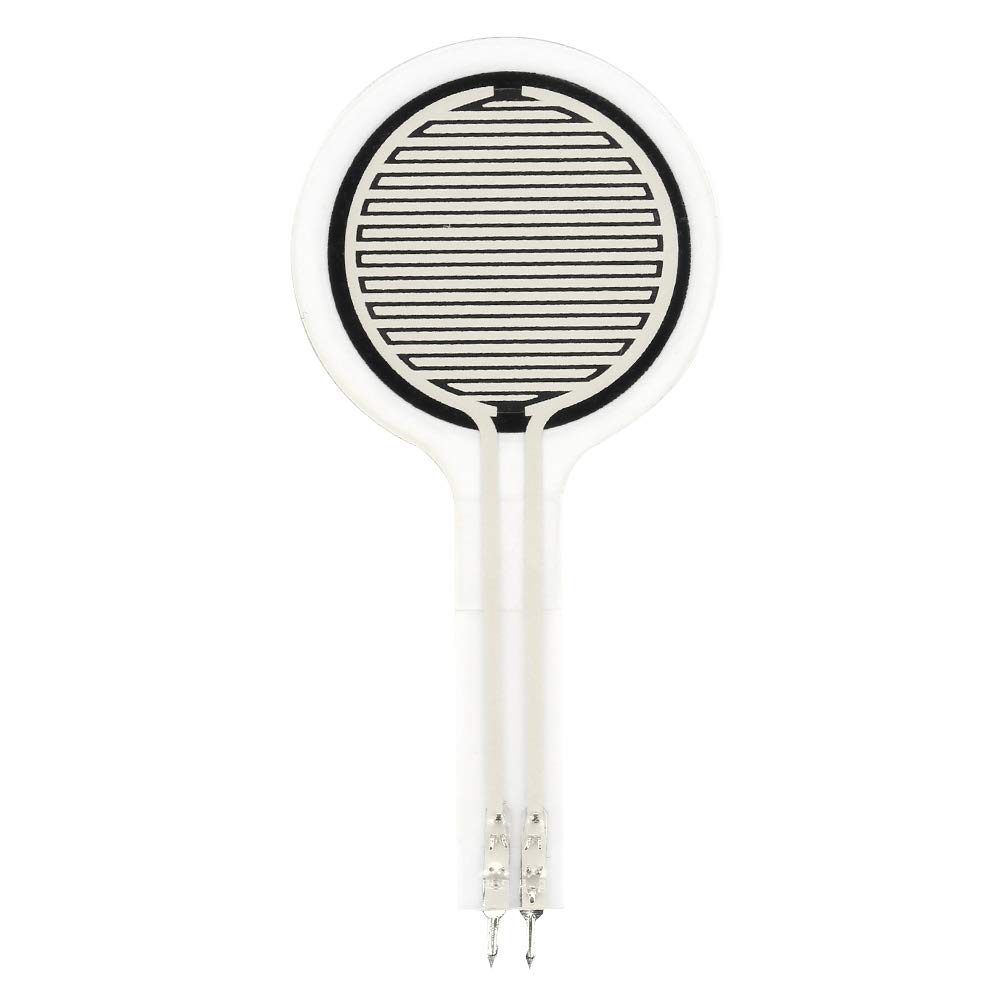

Pressure Sensor, Force Sensitive Resistor Thin Film MD30-60 0~30KG Diameter 30mm Resistance-Type Thin Film Pressure Sensor Force Sensing Resistor

• Specs-- Length: 60 mm/2.4in, Width: 5.8 mm/0.2in, Range: 0 ~ 30 kg, Thickness:less than 0.60mm, Response point: less than 200g, Test voltage: typical dc3.3v, Initial resistance: more than 10mΩ
• High Sensitivity-- Highly sensitive and flexible nanomaterials can realize highly sensitive detection of pressure. Flexible sensor has the characteristics of flexible, ultra-thin, extremely fast response, etc.
• Dual Function-- The thin film pressure sensor has the dual functions of pressure sensitive and waterproof. When the sensor detects external pressure, the resistance of the sensor will change, and the pressure signal can be converted into a corresponding electrical signal output by the circuit
• Nano-pressure-sensitive Material-- This 30kg flexible pressure sensor is based on a new type of nano-pressure-sensitive material, supplemented by an ultra-thin film substrate. The highly sensitive and flexible nano-material can realize highly sensitive pressure detection
• Wide Use-- This flexible pressure sensor is widely used in bed monitoring, sleep monitoring, smart shoes, smart switches, counters and equipment, smart homes, automotive electronics, new energy

Specification: Model: MD30-60 Length: 60 mm/2.4in Width: 5.8 mm/0.2in Range: 0 ~ 30 kg Thickness:less than 0.60mm Response point: less than 200g Test voltage: typical dc3.3v Durability: more than 1 million times Response time: less than 1ms Recovery time: less than 15ms Working temperature:- 20℃~ 60 EMI: no ESD: Not sensitive Initial resistance: more than 10mΩ Weight:1g Package list: 1 x Pressure Sensor
