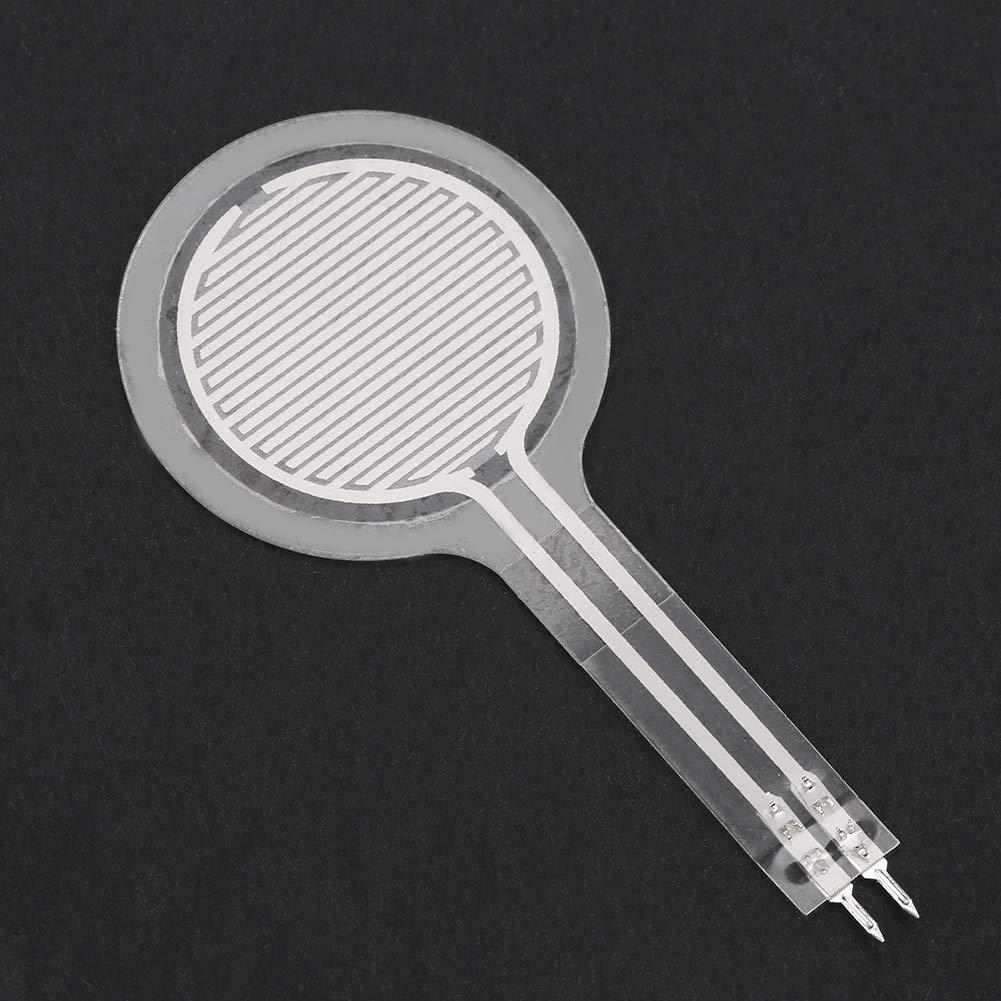

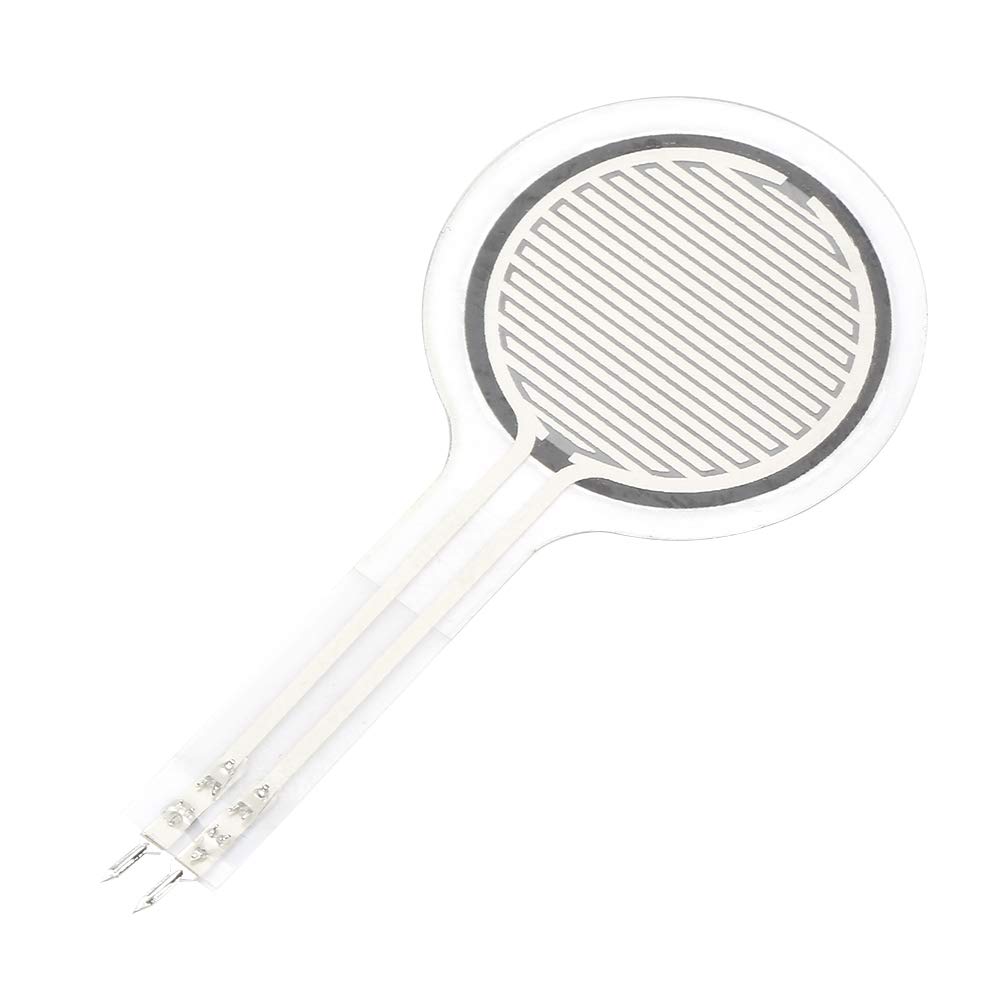

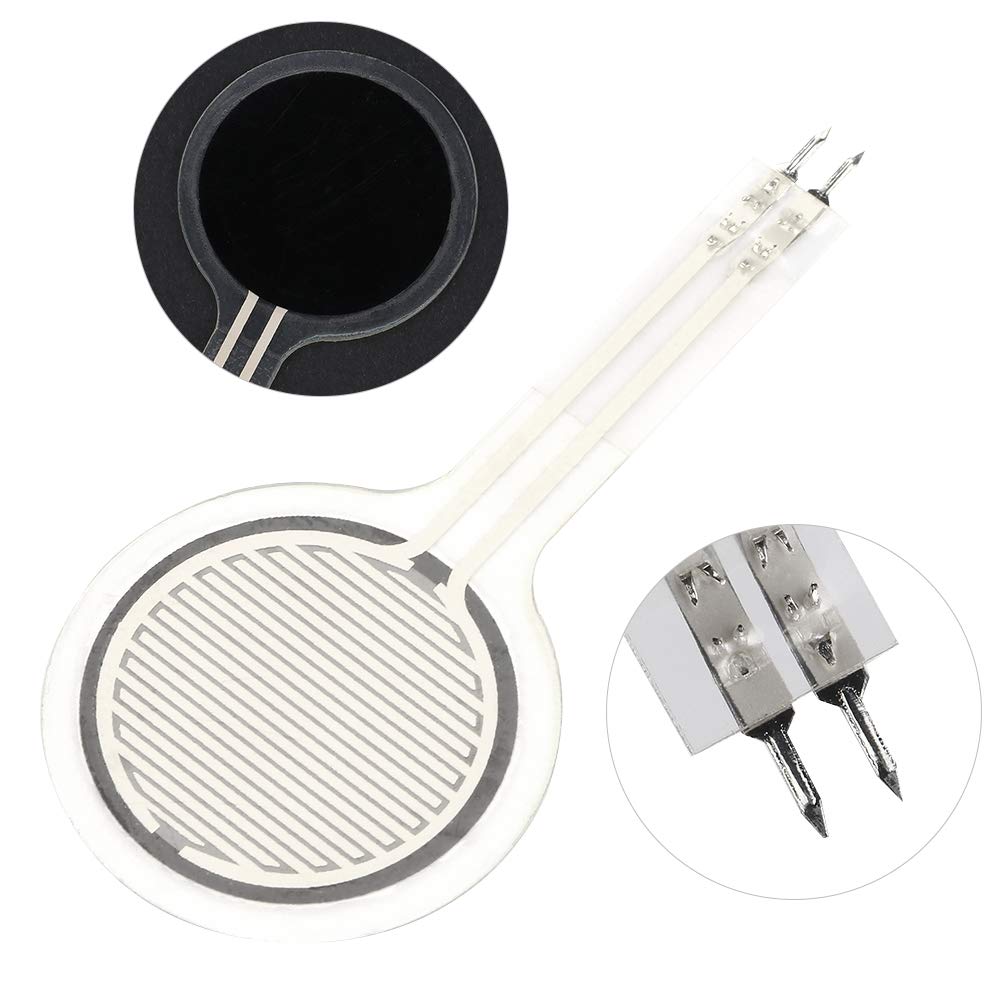

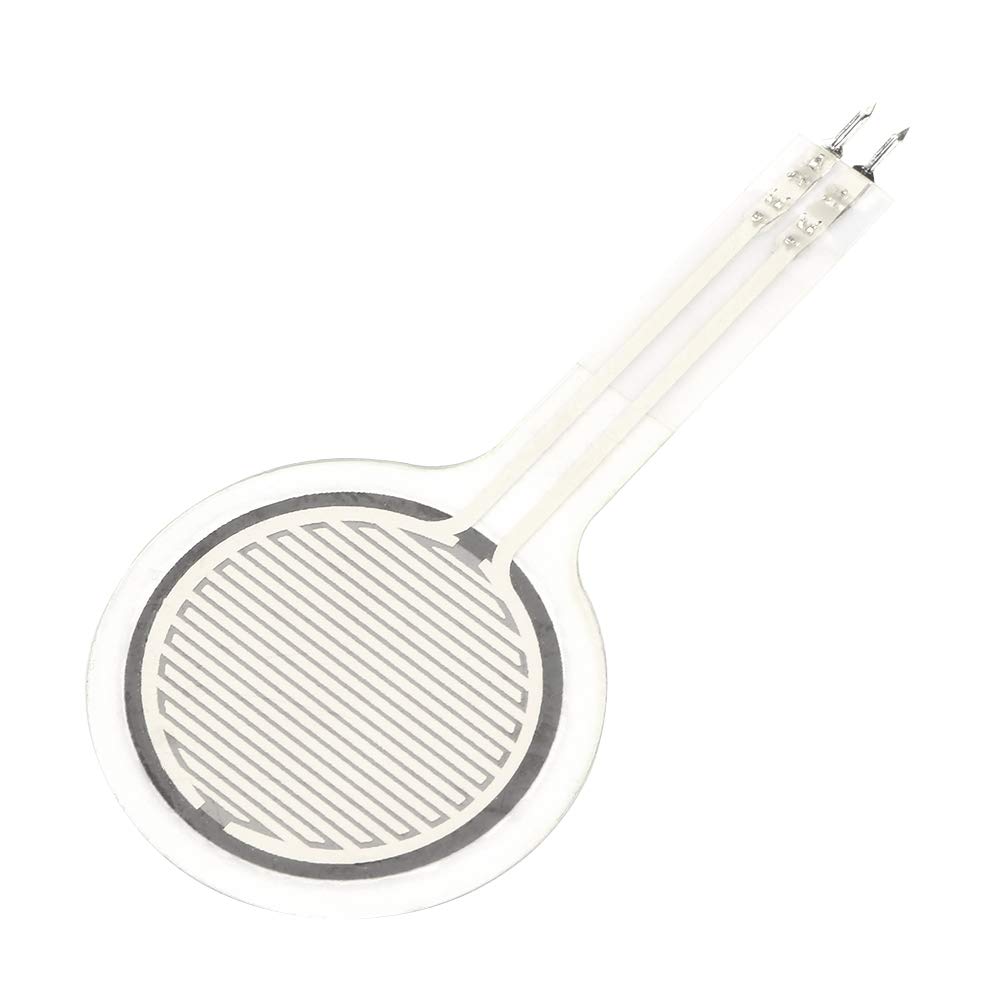

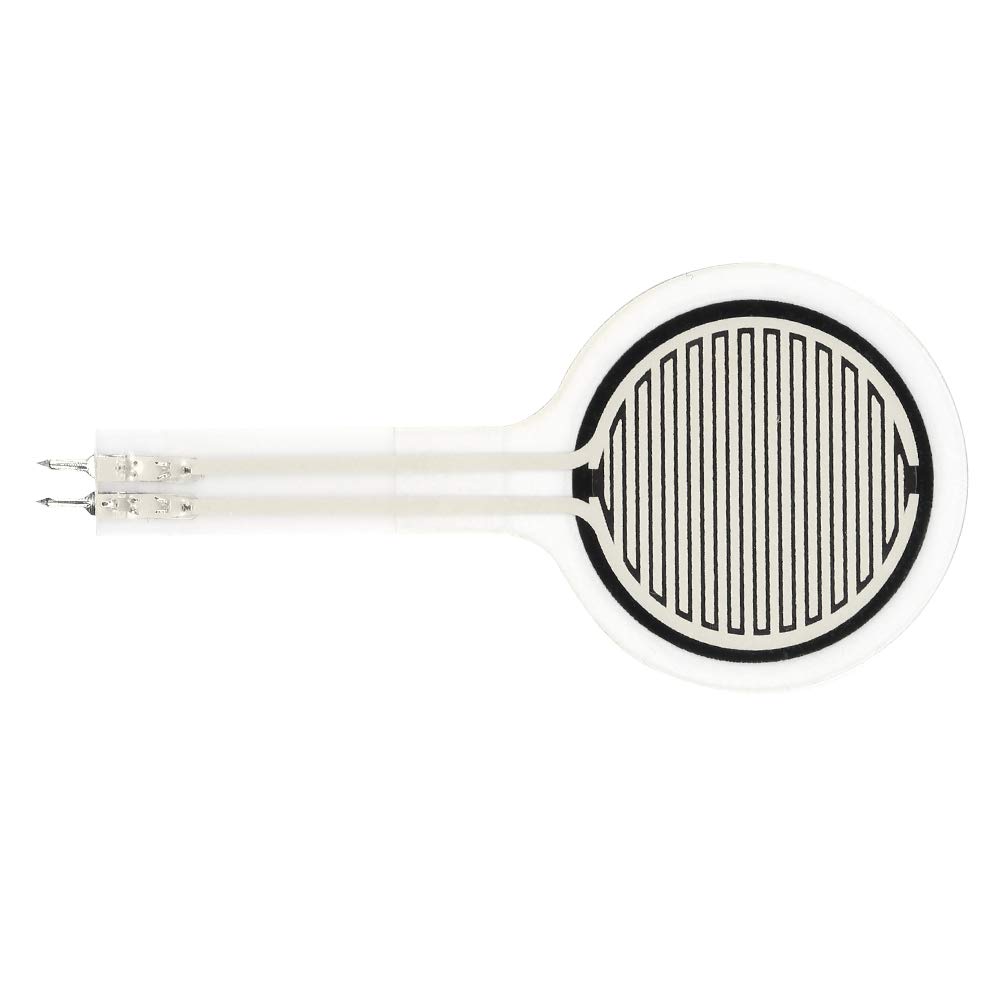

MD30-60 Force Sensitive Resistor Pressure Sensor Thin Film Pressure Sensor Force Sensor 0~30KG Diameter 30mm, for Smart Home, Automotive Electronics

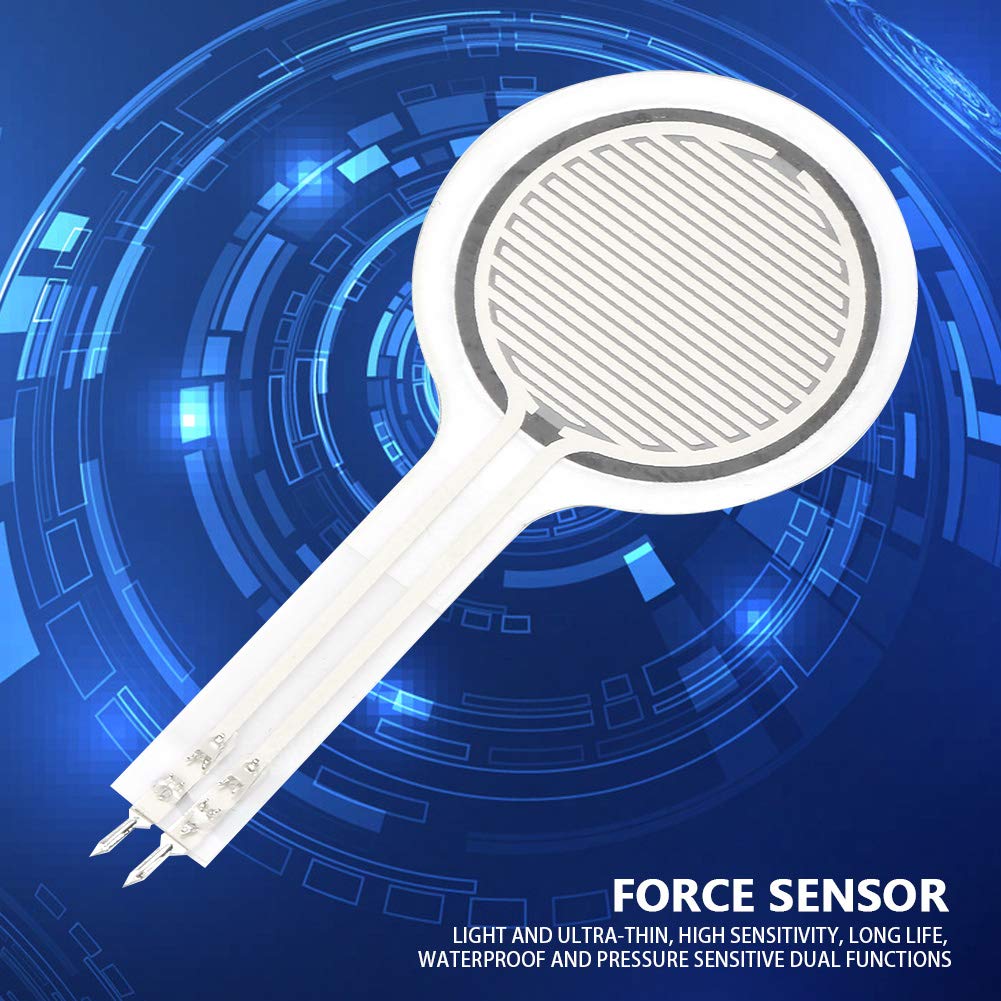

• 【ULTRA THIN FORCE SENSOR ENSURES GOOD FLEXIBLE AND HIGH SPEED RESPONSE】The flexible sensor has the characteristics of flexible ultra-thin, and extreme speed response, etc
• 【WATER-PROOF AND HIGH PRESSURE SENSITIVE】Waterproof and pressure sensitive dual function
• 【GOOD DURABILITY AND STABLE PERFORMANCE SENSITIVE FORCE SENSOR】This pressure sensor has the characteristic of high stability, and long service life
• 【DESIGNED WITH FLEXIBLE NANOMETER OFFERS HIGHLY SENSITIVE DETCTION】Highly sensitive flexible nanometer materials can realize highly sensitive detection of pressure

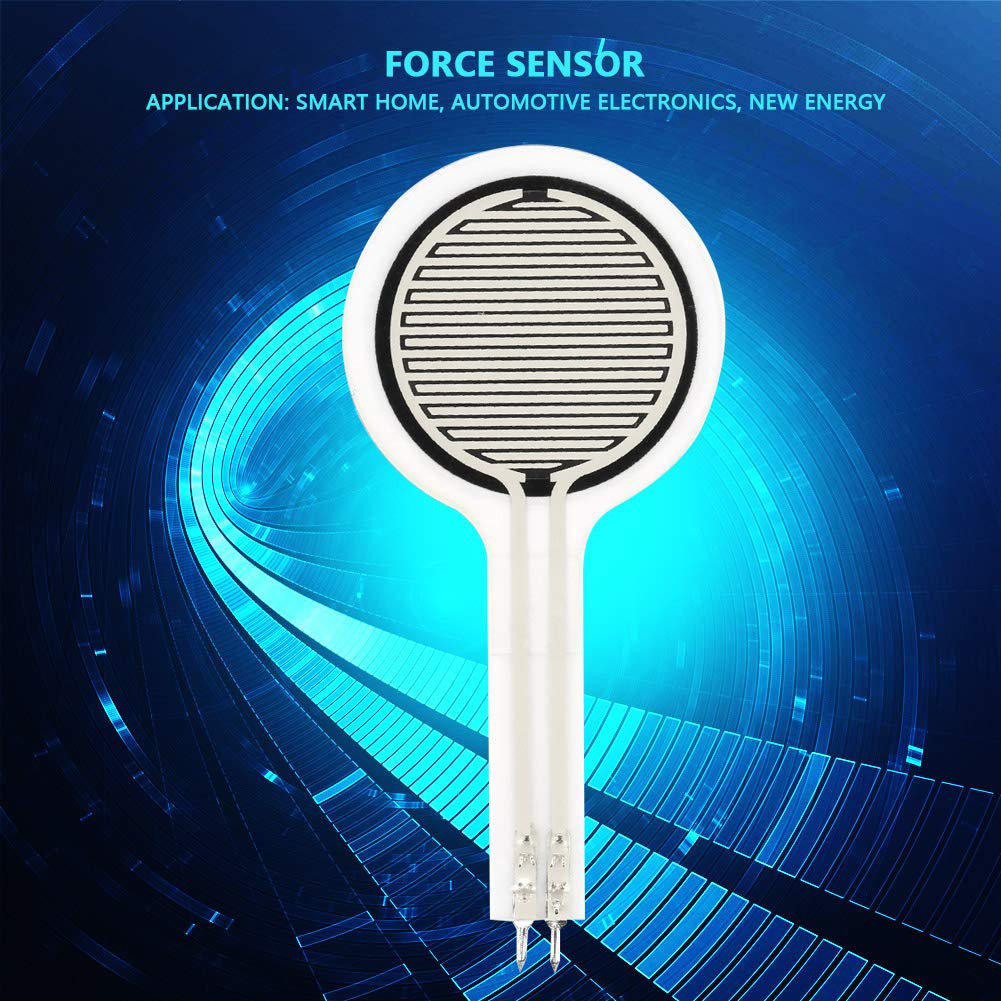

• 【WIDELY APPLICATIONS DURING DAILY LIFE】Application: smart home, automotive electronics, new energy

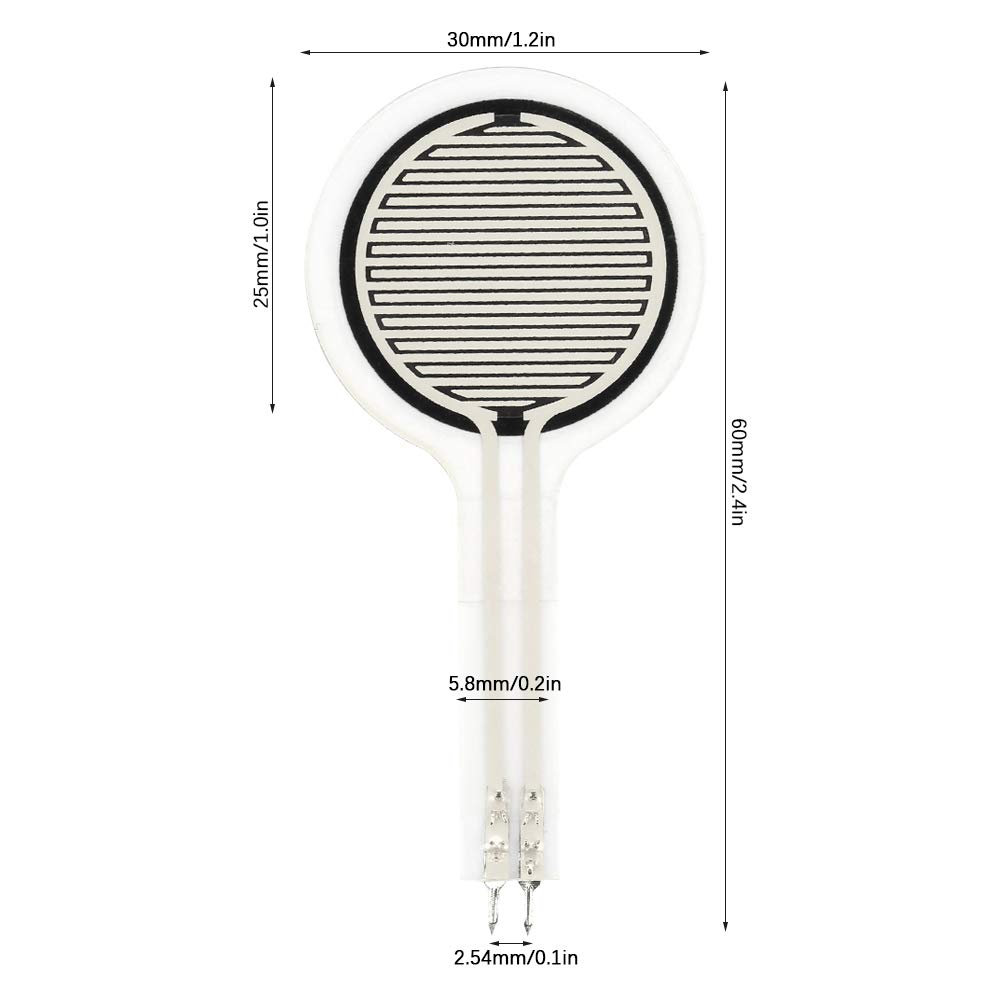

Features: 1.The flexible sensor has the characteristics of flexible ultra-thin, and extreme speed response, etc. 2.Waterproof and pressure sensitive dual function 3.This pressure sensor has the characteristic of high stability, and long service life 4.Highly sensitive flexible nanometer materials can realize highly sensitive detection of pressure. 5.Application: smart home, automotive electronics, new energy 6.When sensor detects outside pressure, the resistance of sensor will change. 7.Pressure can be converted into a corresponding electrical output using simple circuit. Specification: Model: MD30-60 Length: 60 mm/2.4in Width: 5.8 mm/0.2in Range: 0 ~ 30 kg Thickness:less than 0.60mm Response point: less than 200g Test voltage: typical dc3.3v Durability: more than 1 million times Response time: less than 1ms Recovery time: less than 15ms Working temperature:- 20~ 60 EMI: no ESD: Not sensitive Initial resistance: more than 10mΩ Weight:1g Package list: 1 x Pressure Sensor
