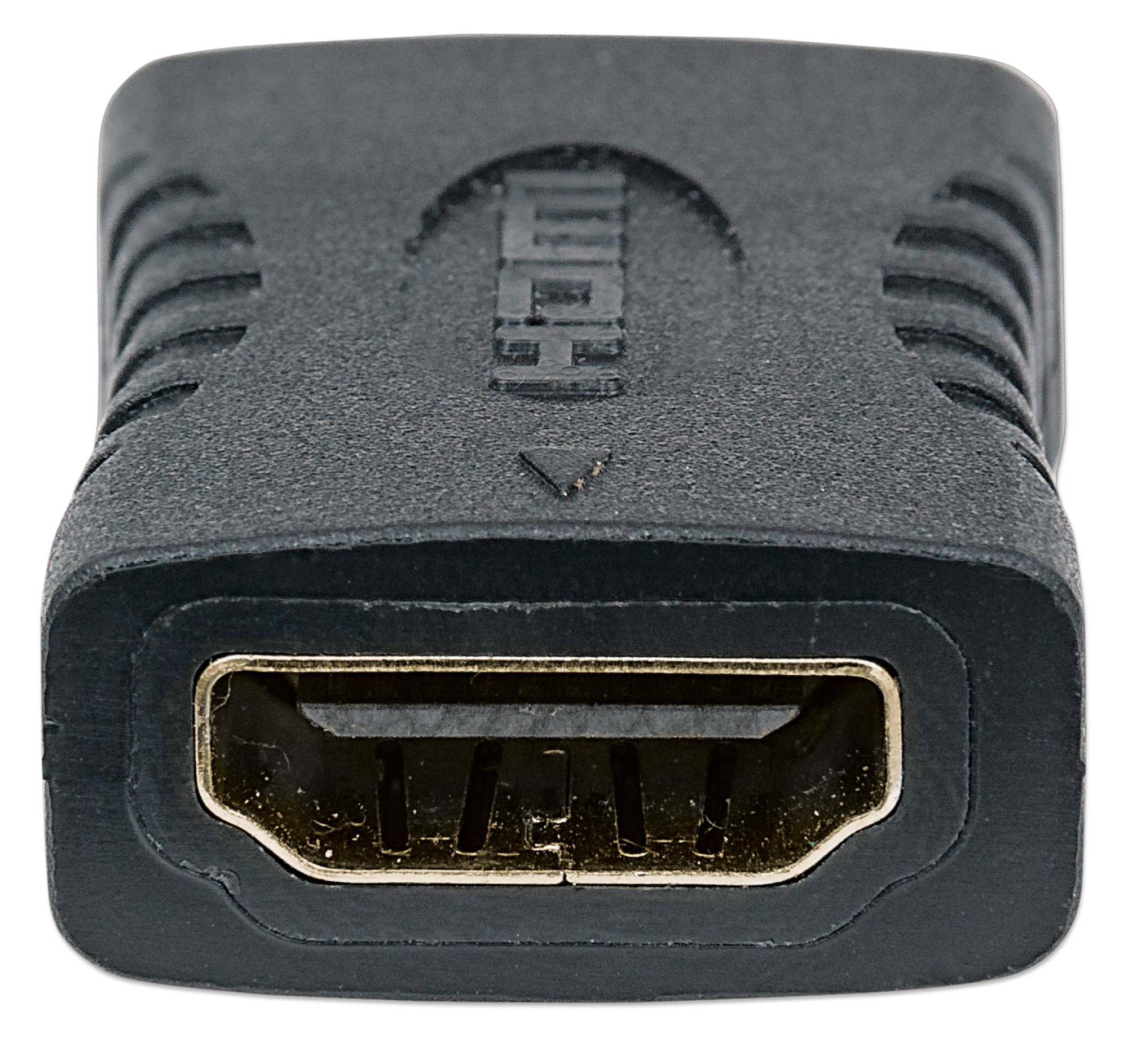

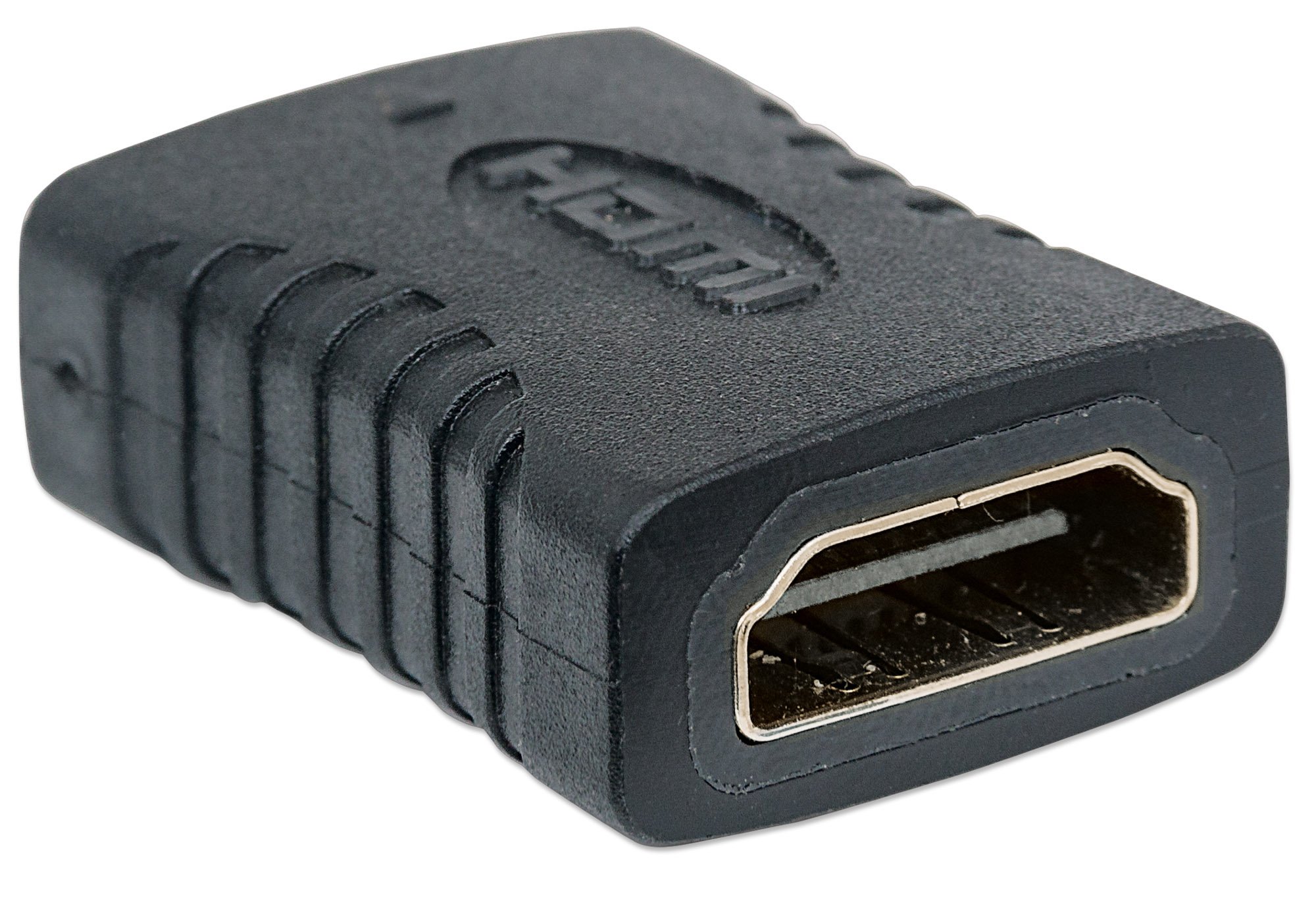

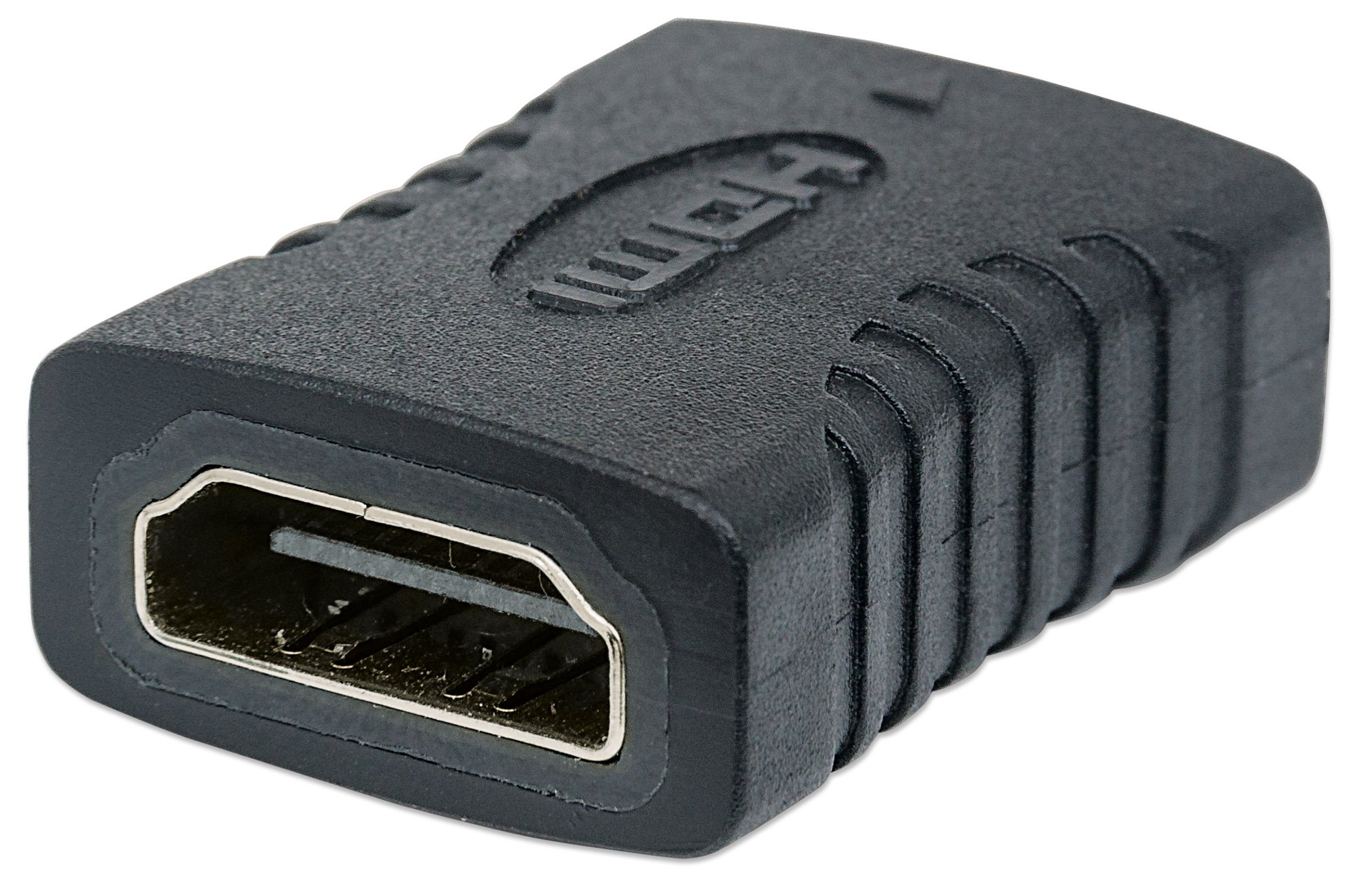

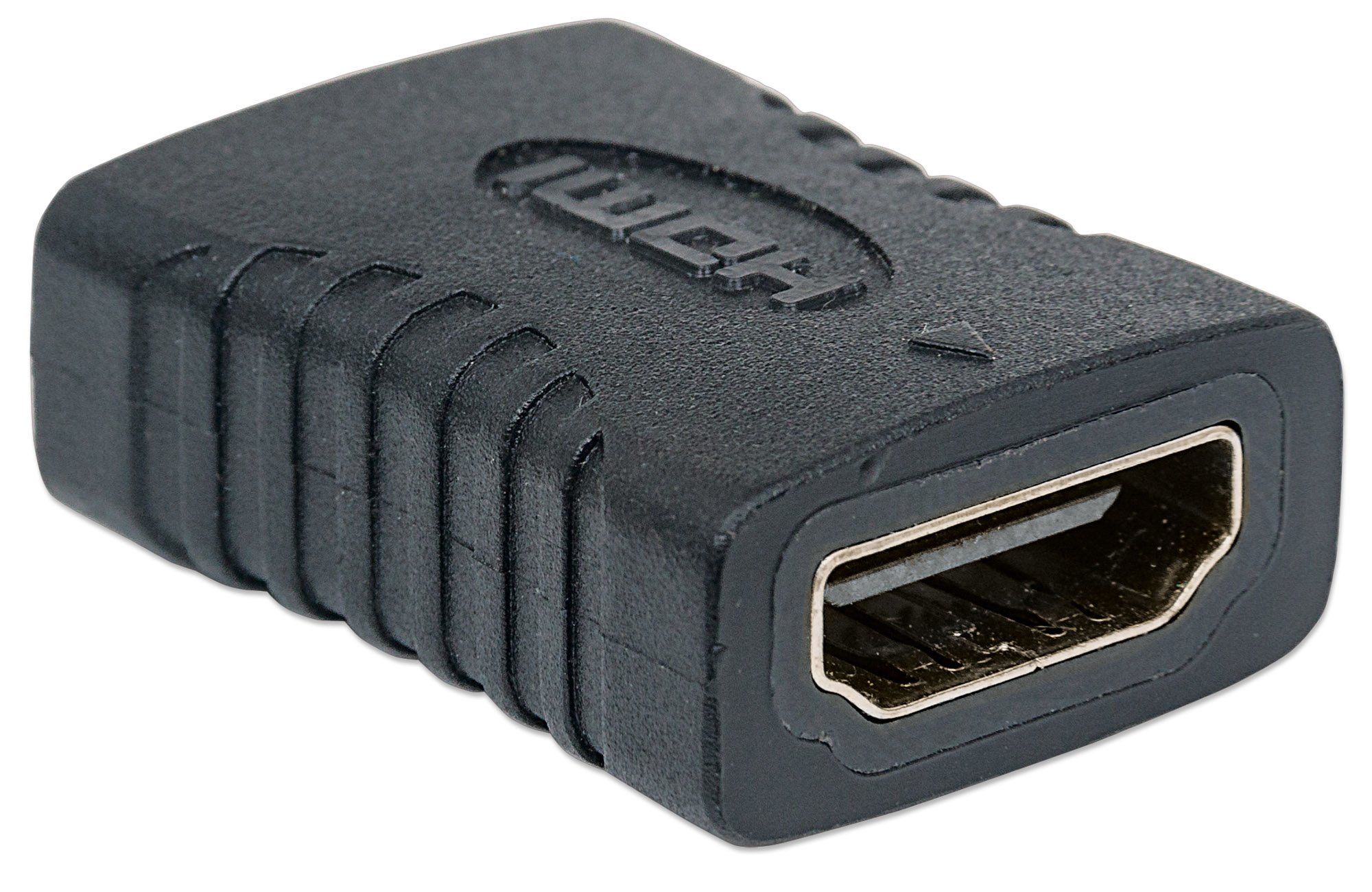

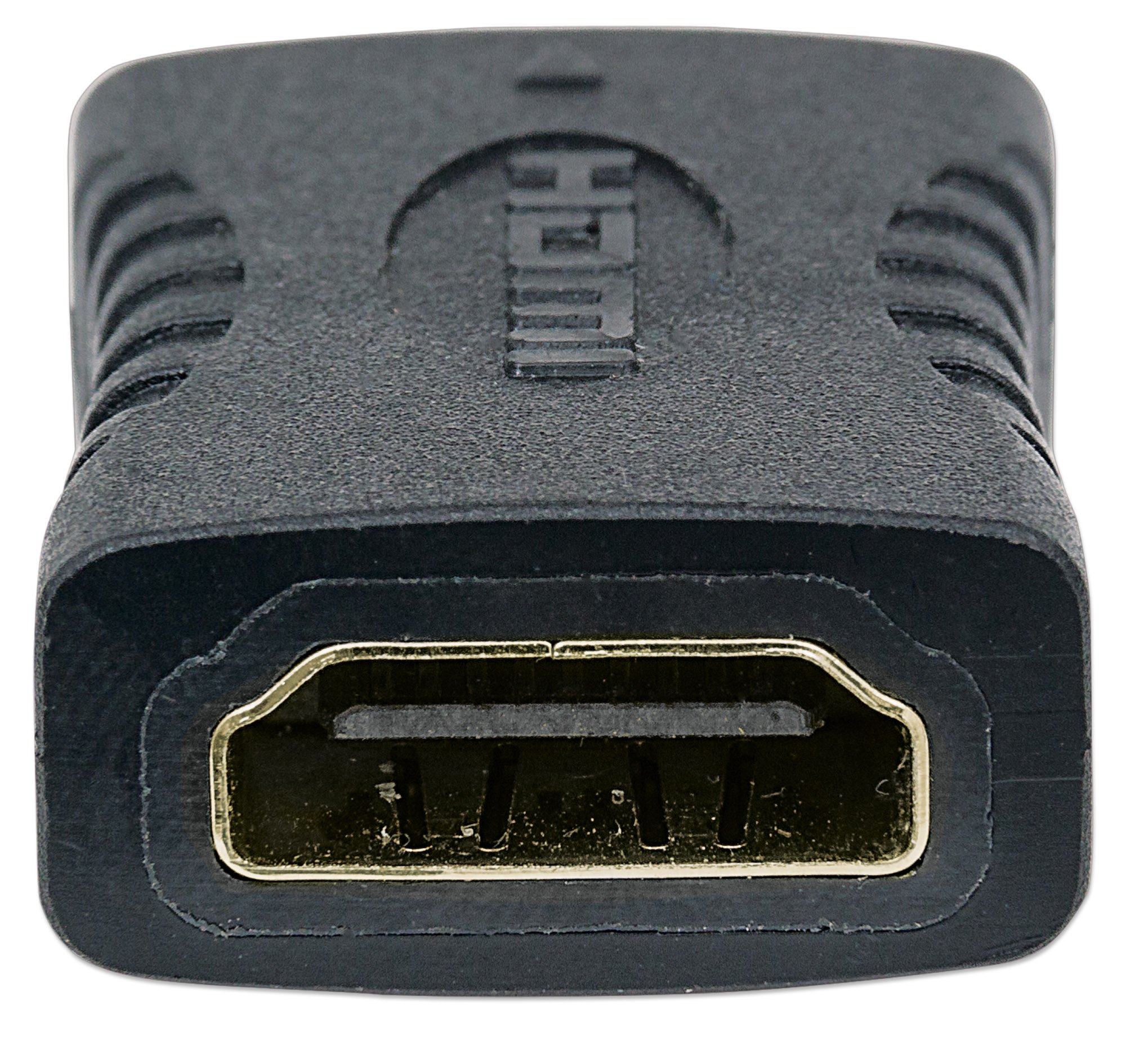

Manhattan HDMI Coupler, 4K@60Hz (Premium High Speed), Female to Female, Straight Connection, Black, Ultra HD 4k x 2k, Fully Shielded, Gold Plated Contacts, Lifetime Warranty, Polybag

• Provides Mini DisplayPort 20-pin male to DisplayPort 20-pin female connections
• Delivers high-bandwidth, digital audio/visual signals from Mini DisplayPort and DisplayPort(DP, DP++) enabled displays and devices – up to 1080p@60Hz resolution
• Supports HDMI and DVI signal passthrough
• Fully shielded to reduce EMI and other interference sources
• Lifetime Warranty

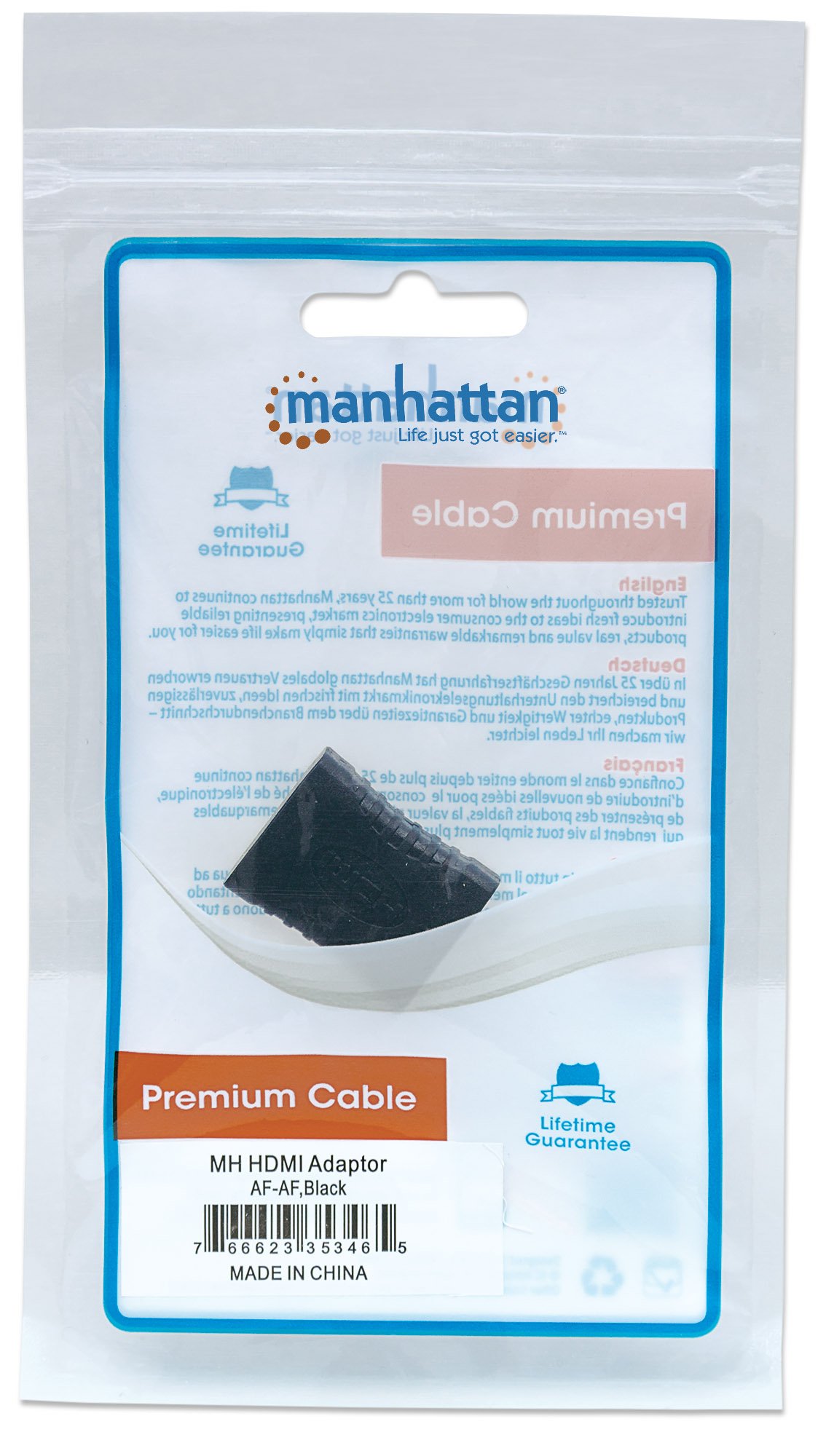

• Connects 2 HDMI cables • Supports 4K@60Hz resolution • Straight, passive coupling connects 2 cables to overcome distance limitations • Gold-plated contacts for best performance • Intended for use with Manhattan HDMI cables Easily connect two HDMI cables to work over greater distances. The Manhattan HDMI Adapter is ideal for joining two HDMI cables to give additional length to a cable, passively. This HDMI Coupler allows 4K resolution and a bandwidth of 10.2 Gbps at 340 MHz. Specifications Standards and Certifications • RoHS2 • ISO 9002 General: • Bandwidth: 10.2 Gbps • 340 MHz • Meets or exceeds existing HDMI standards • Length: 3 cm (1.1 in.) Connectors • HDMI A female, 19-pin gold-plated • HDMI A female, 19-pin gold-plated Electrical • Current rating: 0.5 ADC • Withstanding voltage: 300 VDC • Insulation resistance: 5 MΩ • Conductive resistance: 2 Ω General • Length (overall): 28.5 x 11.2 x 22 mm (1.1 x 0.4 x 0.9 in.) • Weight: 10 g (0.35 oz.) • Molded PVC Package Contents • HDMI Adapter, A to A
