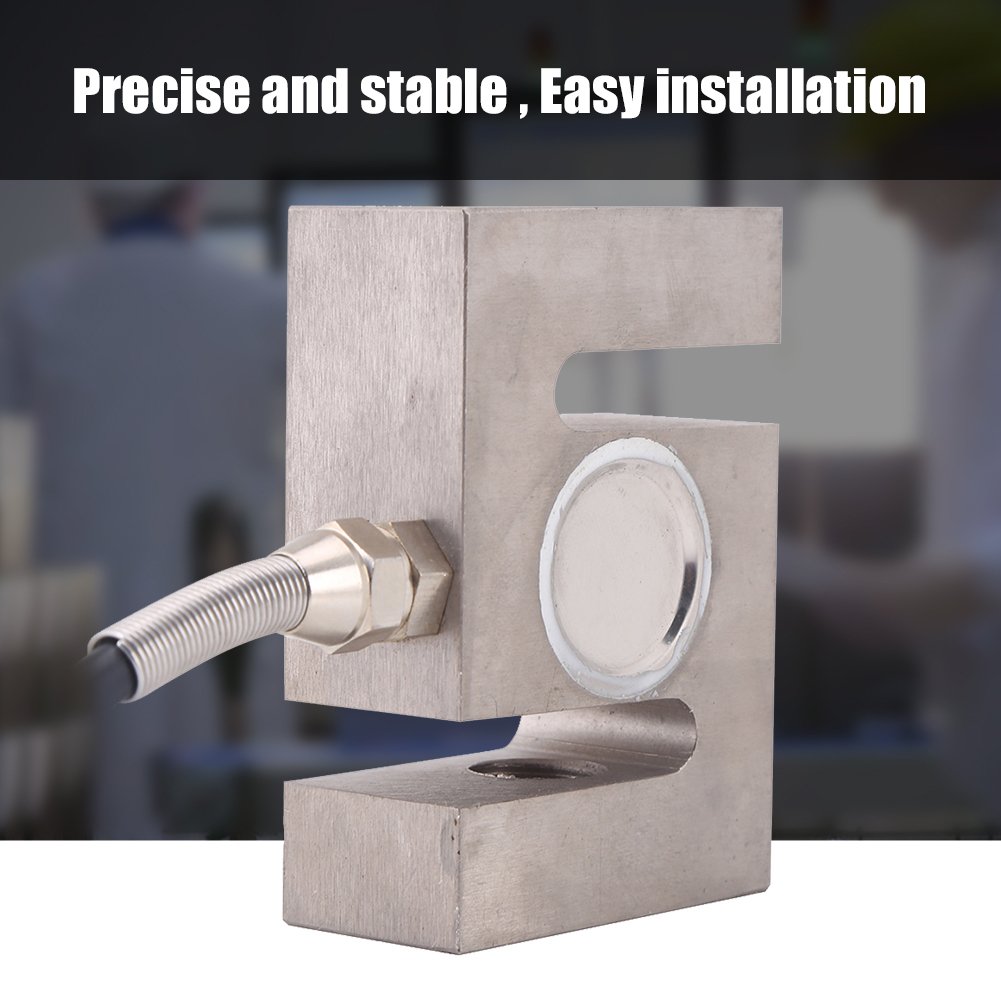

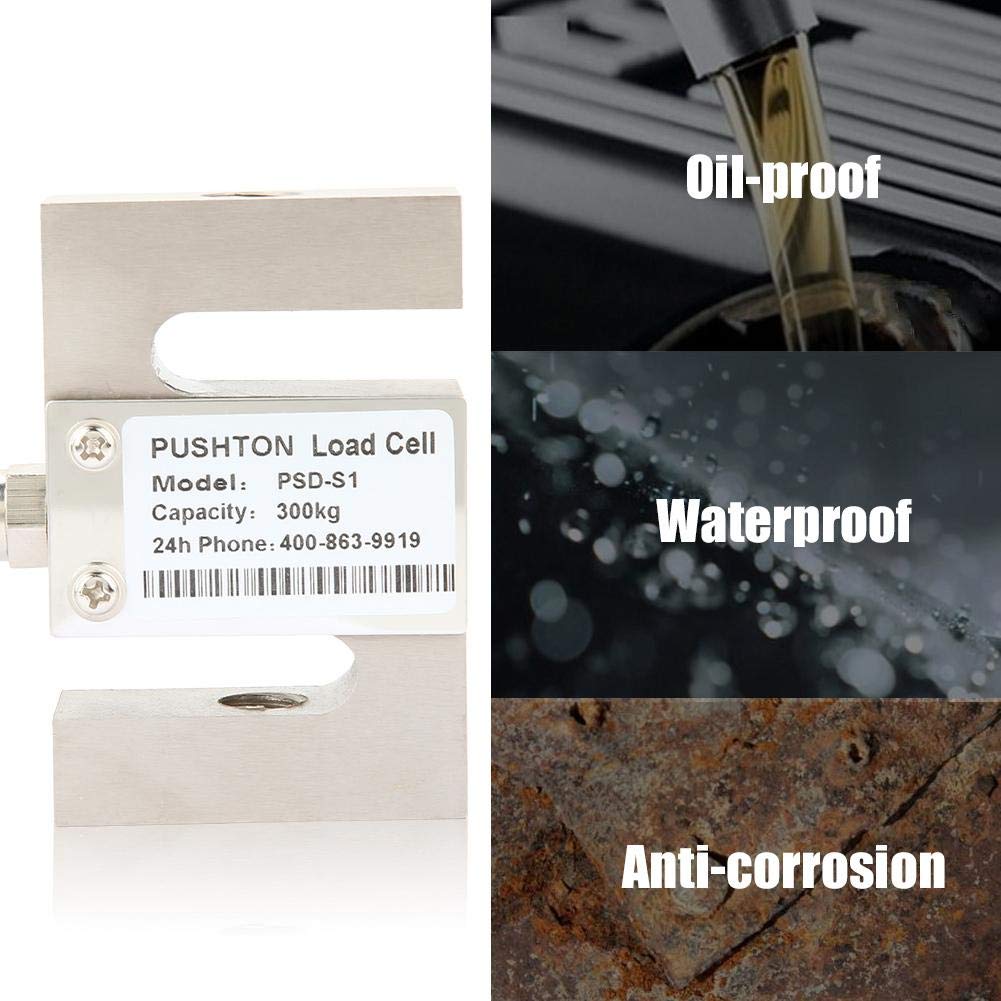

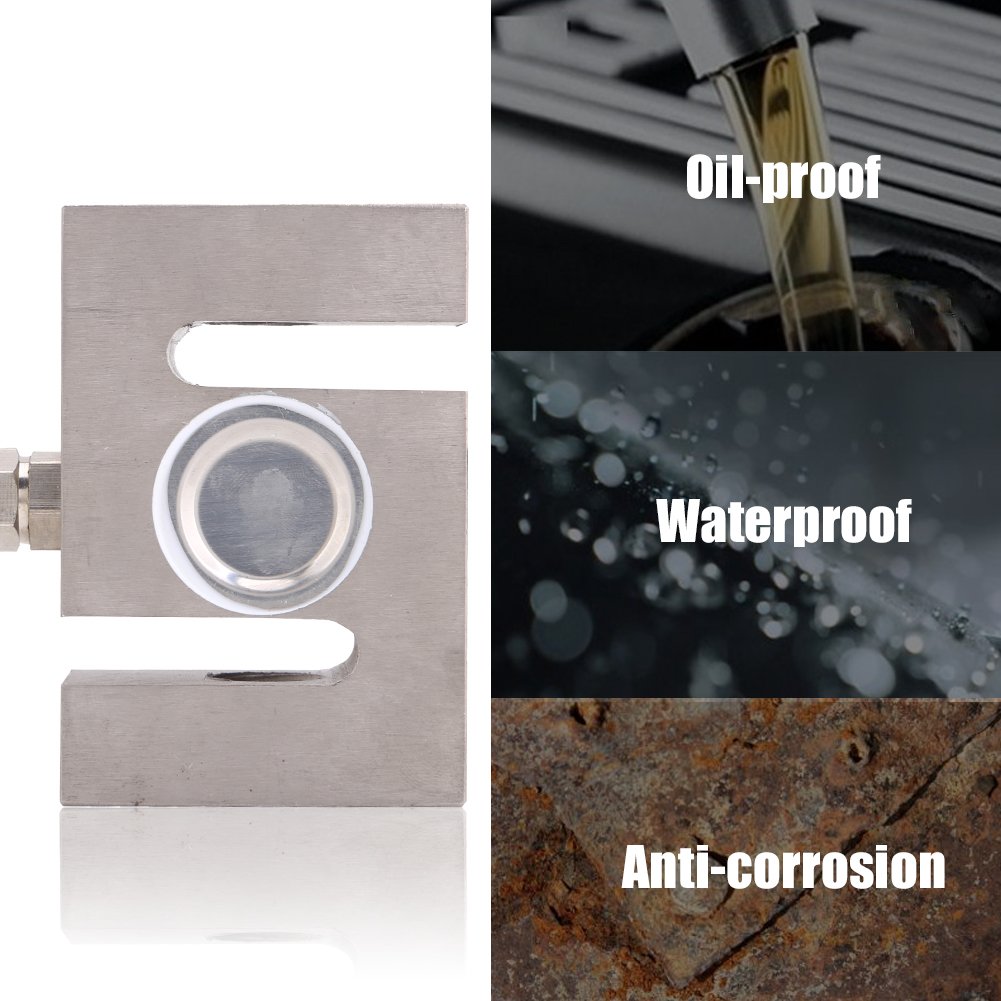

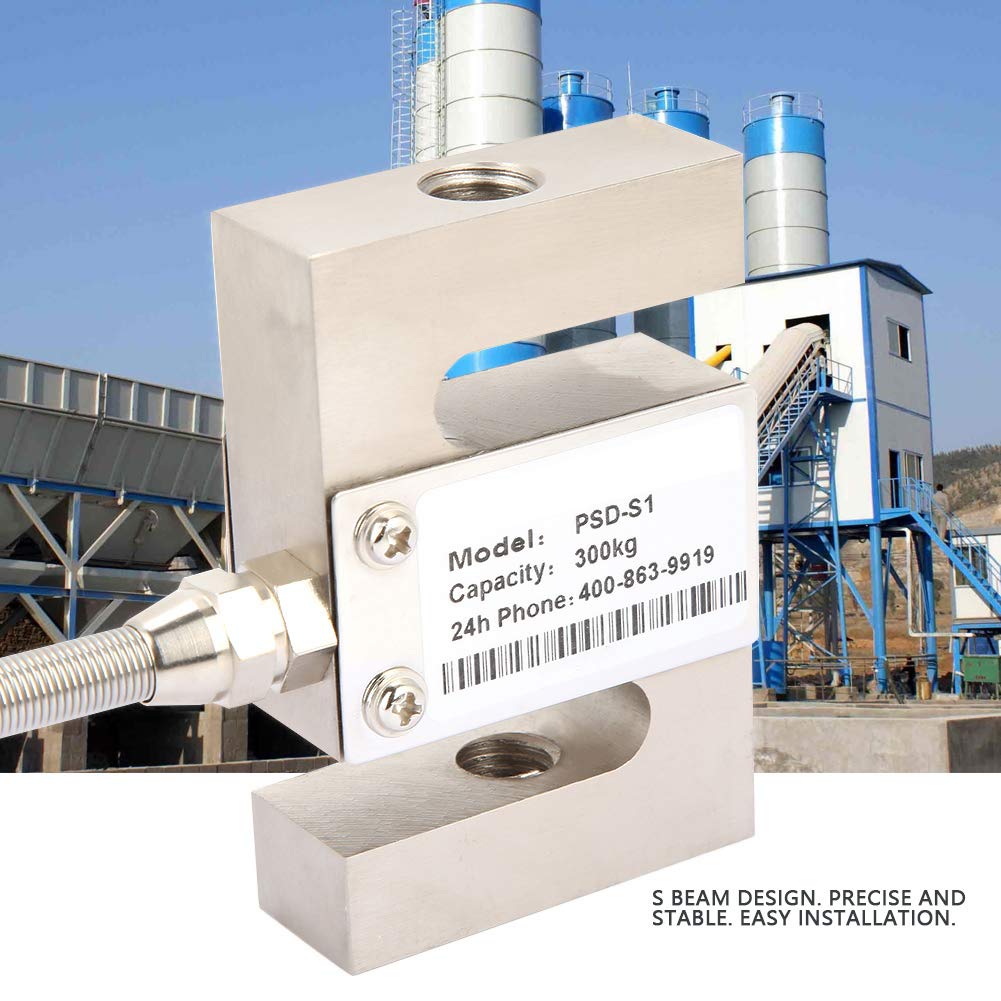

Load Cell Weight Sensor PSD-S1 S Type Load Sensor 300kg for Electronic Kitchen Scale, Mixing Station, Batching Machine, Asphalt Station,etc

• Preminum Material - Adopt high quality alloy steel, and the design of anti-pressure bearing, so with high precision and good stability.
• Application Situation - With the characteristic of oil-proof, waterproof and anti-corrosion, suitable for all kinds of environments.. High precision sensors are widely used in the field: mixing station, batching machine, asphalt station.
• Enough Range - Equipped with 300kg international superior sensor range, can meet your need.
• Easy to use - The sensor is a high-precision test component. This S type beam load cell scale sensor is easy installation. In order to ensure the accuracy of the measurement, the transmission of the control force should not be affected by the eccentric load and the lateral direction.

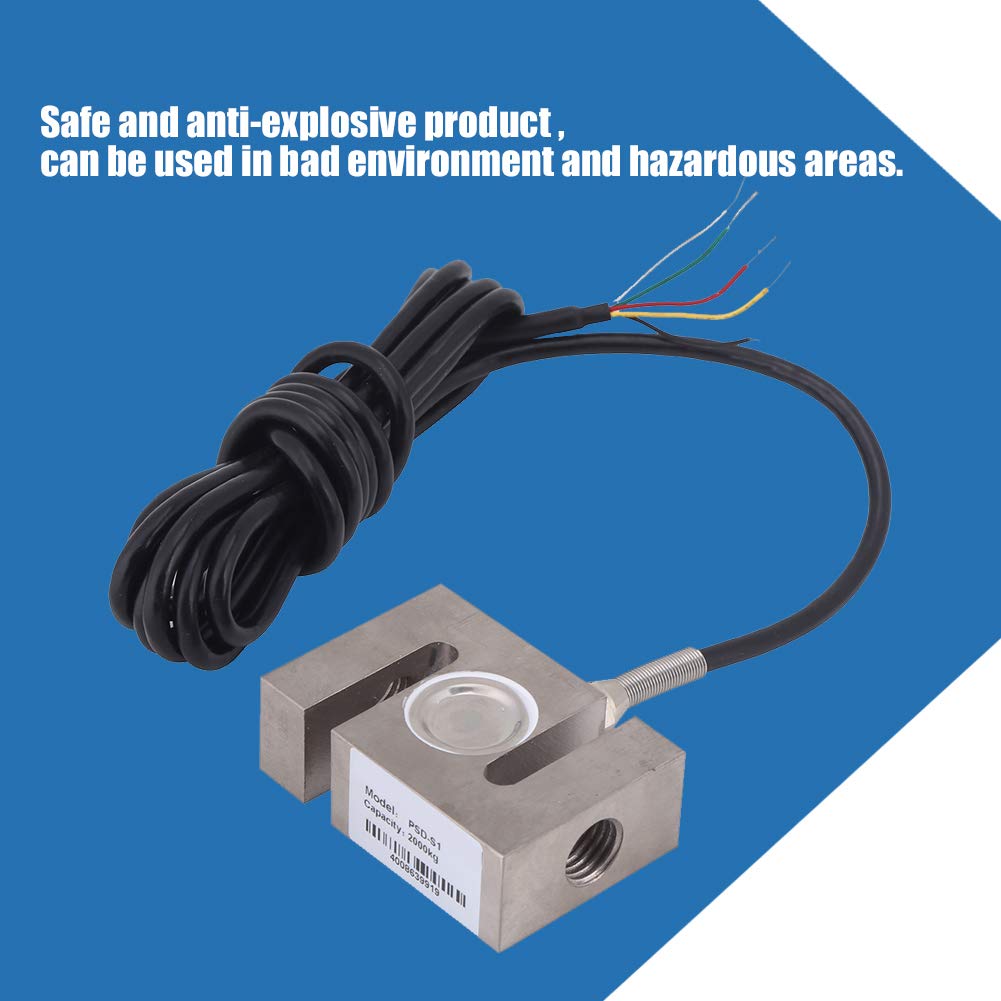

• Safe - Alloy steel, hermetically welded/sealed by adhesive inside,oil-proof, waterproof and anti-corrosion.Safe and anti-explosive product, can be used in bad environment and hazardous areas.

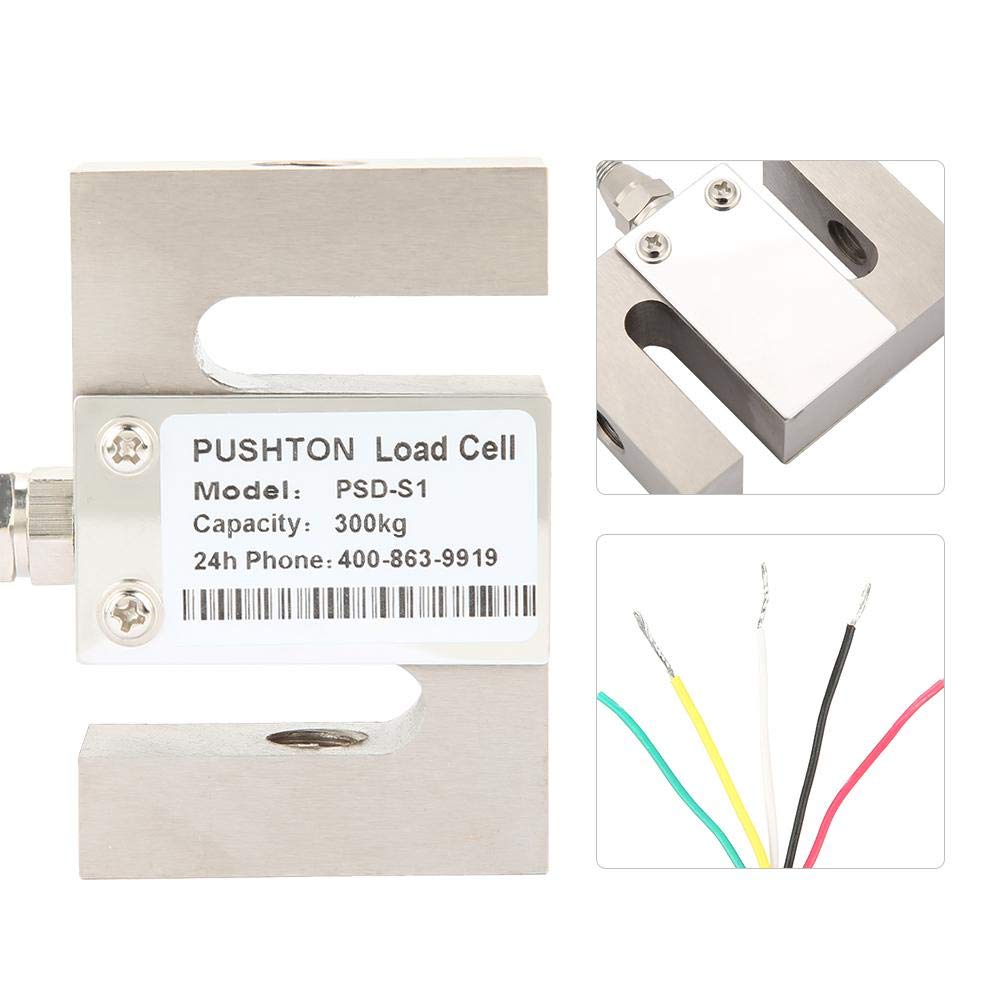

Features: brand new and high quality. Oil-proof, waterproof and anti-corrosion, suitable for all kinds of environments. S beam design. Precise and stable. Easy installation. Suitable for mixing station, batching machine, asphalt station, etc. Safe and anti-explosive product, can be used in bad environment and hazardous areas. Specifications: Model: PSD-S1 Material: metal Type: weighting Physical properties of materials: conductors Process: film Output analog grade: IP67 Linearity: ±0.02%F.S. Delaying: ±0.02%F.S. Repeatability: ±0.02%F.S. Sensitivity: 2.0mv/v Drifting: ±0.02%F.S Input impedance: 350±10Ω Output impedance: 350±5Ω Application: Mixing station, batching machine, asphalt station, etc. Measuring range(Optional): 50kg, 100kg, 300kg, 2000kg Quantity: 1PC Weight: 502g(load cell 50kg), 551g(load cell 100kg), 575g(load cell 300kg), 712g(load cell 2000kg) Wire connecting method: Input: Red wire(+), Black wire(-) Output: Green wire(+), White wire(-) Yellow wire(GND) Package Included: 1 x Weighting Sensor
