Link Lkext15 HDMI Extender

• Extends the signal distance to a distance of up to 30 meters, using two Category 6 network cables

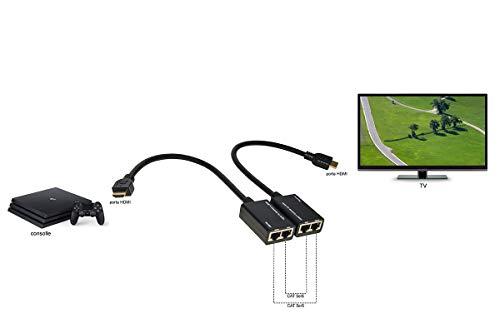

• It consists of a repeater and a receiver, which connect to each other via 2 network cables.
• Powered by HDMI

Extends the signal distance up to 30 meters, using two Category 6 network cables. It is an economical way to extend the signal as the network cable costs less than the network cable. It consists of a repeater and a receiver that connects with each other via 2 network cables. Small size, can be placed in places where there is little space. Supports resolutions up to 1920x1080/1080p along with its digital audio. It can be powered by HDMI cable, no power adapter required, you can easily extend an HDMI signal in areas where access to the mains is limited. FEATURES * Use cheap Ethernet cables to reach long transmission distances * Follow IEEE-568B * Transmission distance can be up to 30 meters 1080P with a Category 6 cable * Supports video resolutions up to 1080p * Supports bandwidth of 165Mhz/1.65gbps per channel (4.95 Gbps all channels) * Supports 8-bit color depth per channel (24 bit all channels) ) * Supports HDCP * Supports uncompressed audio such as LPCM * Supports compressed audio such as DTS. Dolby Digital (including DTS-HD master audio and Dolby TrueHD) * Supports 3D SPECIFICATIONS Video signal imput: 0.5-1.0 volts/p-p DDC signal input: 5 Volts p-p (TTL) Maximum single link range: 1080p bandwidth video amplifier: 1.65 Gbps/165 MHz Transmission distance (with cable Category 6): 30 meters 1080p Interlacing resolution (50&60Hz): 480i, 576i, 1080i resolution Progressive (50&60Hz): 480p, 576p, 720p, 1080p Power consumption: 5W extender certifications: FCC, CE, RoHS Package contents: 1 transmitter 1 manual receiver.
