Linear Motion Guide Actuators 600mm Ball screw SFU1605 Manual Linear Rail Guide CNC

• 100mm to 600mm optional, if you need other sizes, please contact via email, can be customized according to customer needs
• Ball screw accuracy: C7(±0.03mm); Horizontal maximum load: 50kg, vertical maximum load: 25kg
• Sliding table work plate size (width * height)：120*60mm，double optical axis guide
• Standard aluminum alloy profile structure, sandblasted on the surface, beautiful and rustproof, precision hole position CNC processing;
• Convenient and Easy in use, Smooth operation

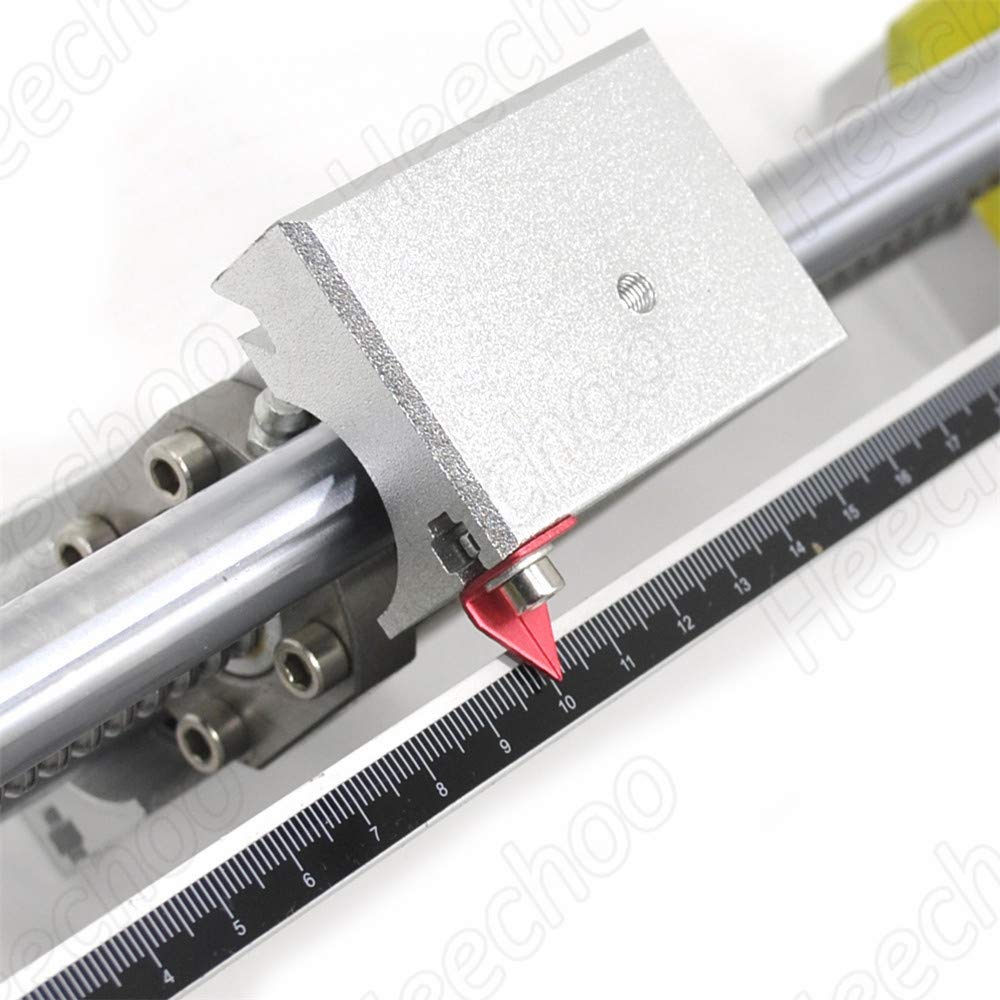

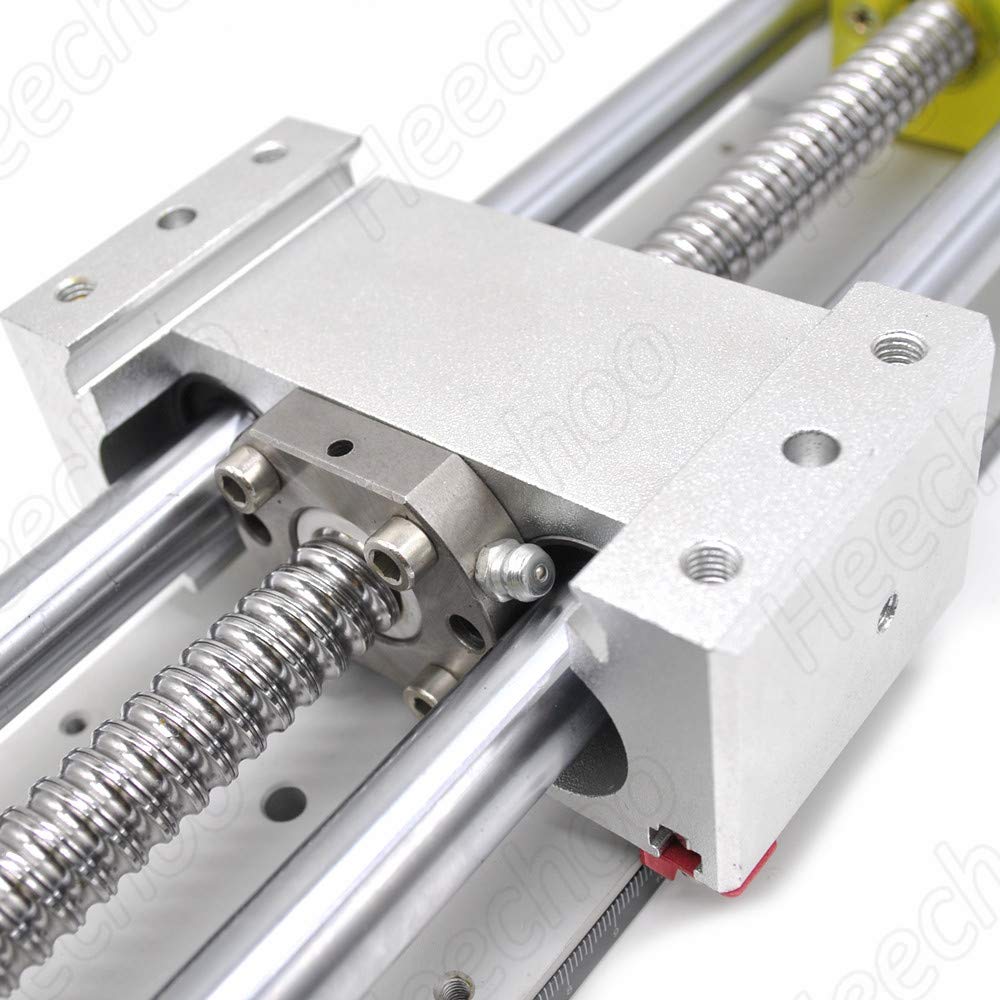

Package Included 1 x Linear Rail Guide Actuator 1 x Handwheel with lock and pointer 1 x Side HD ruler Parameters 1.Ball screw type: 1605 (diameter 16mm, lead 5mm , 1610 screw / 1620 screw can be replaced.) 2.Ball screw accuracy: C7,Repeat positioning accuracy: ± 0.03mm 3.The Handwheel can be replaced by stepper motor, servo motor, AC motor, DC motor；( Other Motor Need Extra Purchase ) 4.A HD ruler is mounted on the side of the slider to guide the actual position 5.The handwheel scale divides the lead by 360 degrees, and the screw manual lock can be fixed at any desired position. 6.Overall horizontal maximum load: 50kg, vertical installation maximum load: 25kg 7.Material: Aviation Aluminum 6061,sandblasted on the surface We have 3D drawings and CAD drawings.Can help you verify your design project in advance If you have any questions, please feel free to contact me for an after-sales engineer. email: heechooservice@gmail.com
