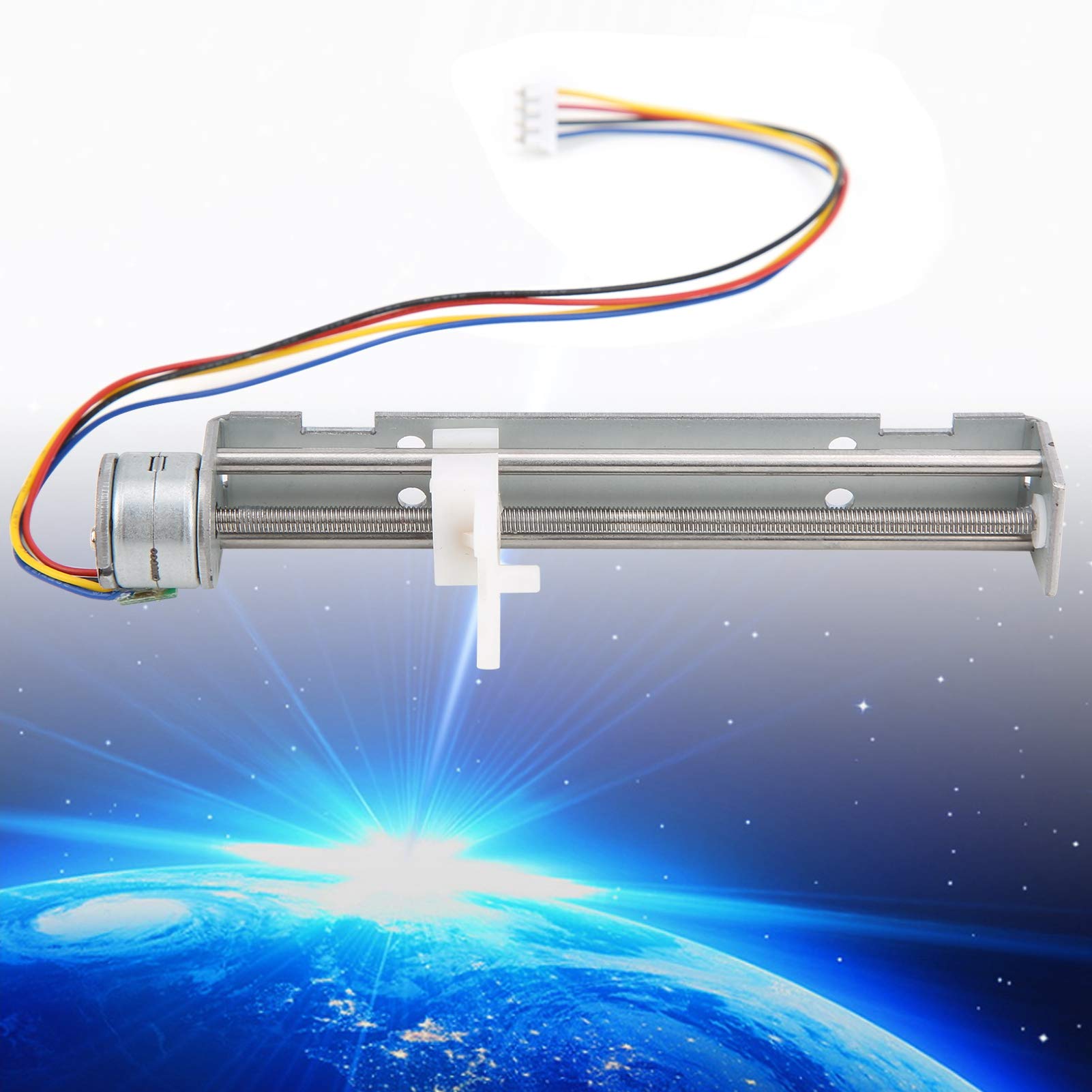

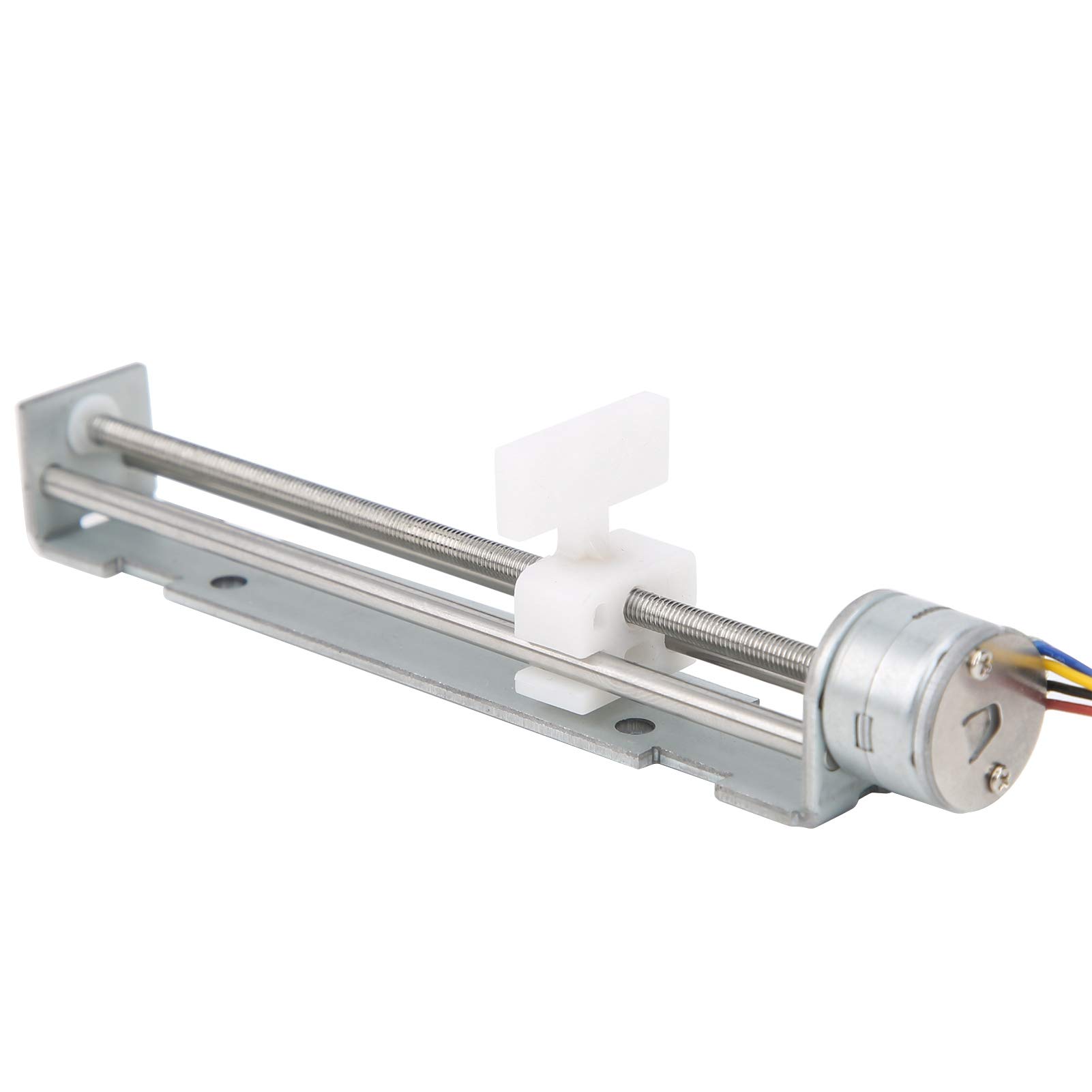

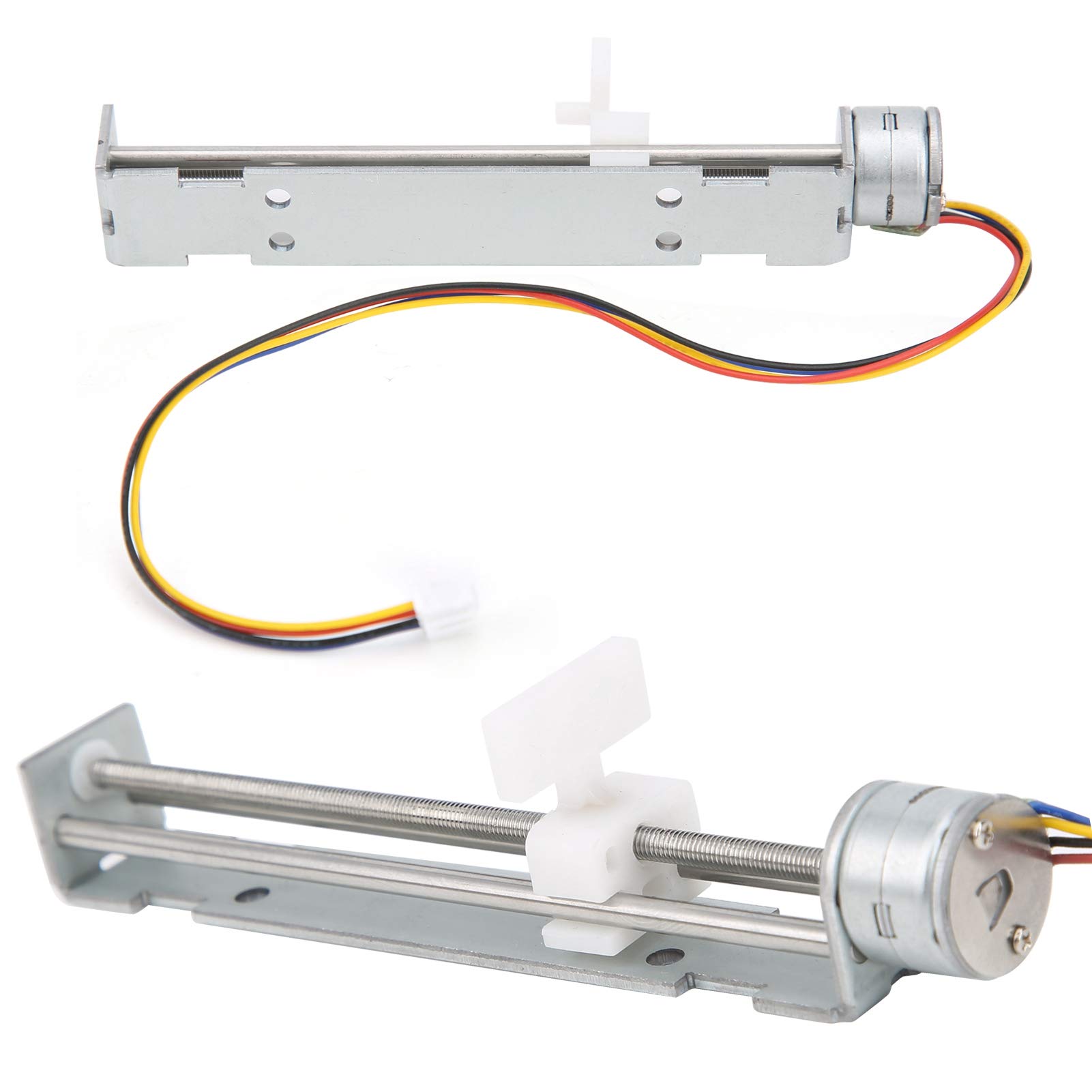

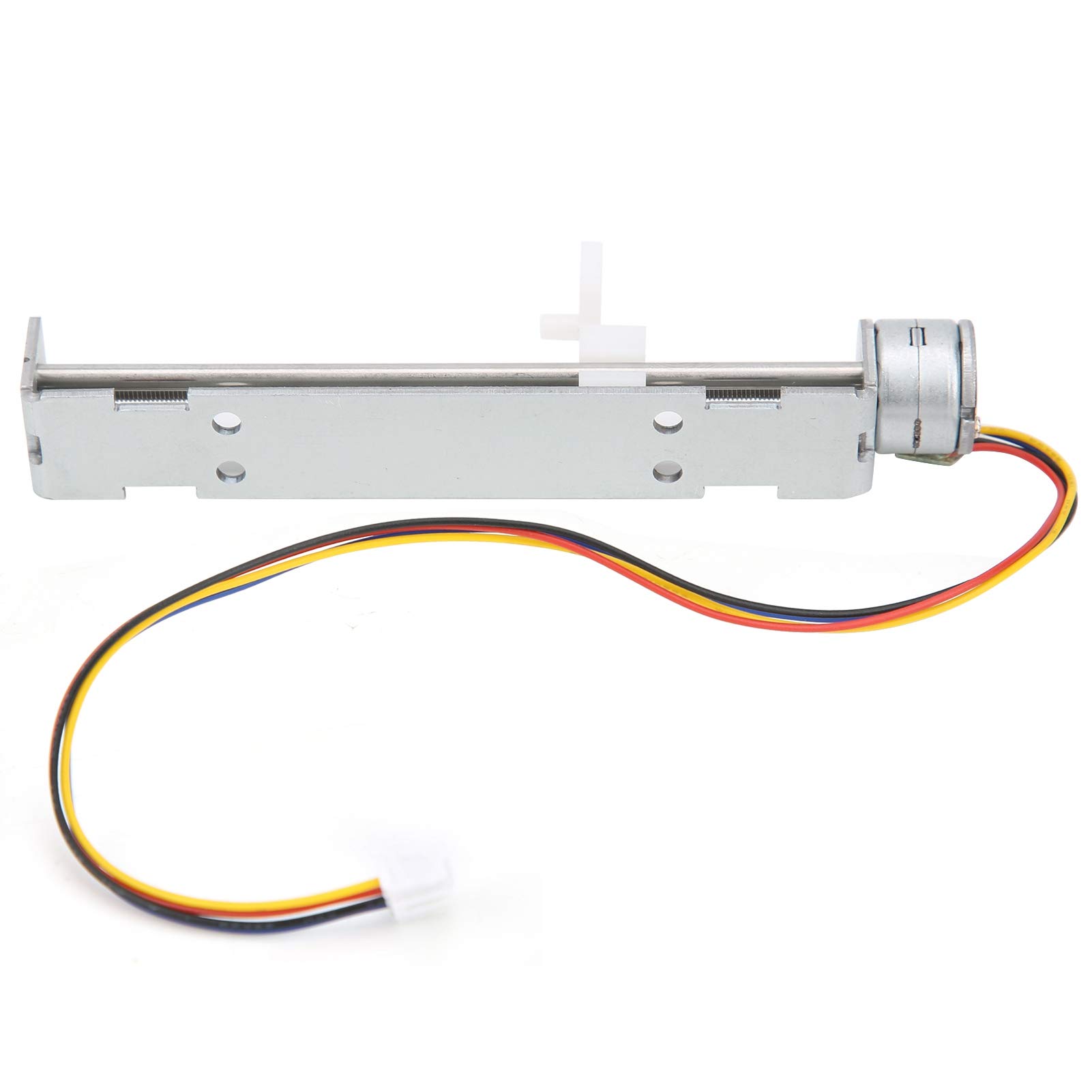

Stepper Motor,Stepper Motor Linear Actuator Stepper Motor Linear Stroke with Slider 80mm 2‑Phase 4‑Wire,for DIY Small Laser Engraving Machine

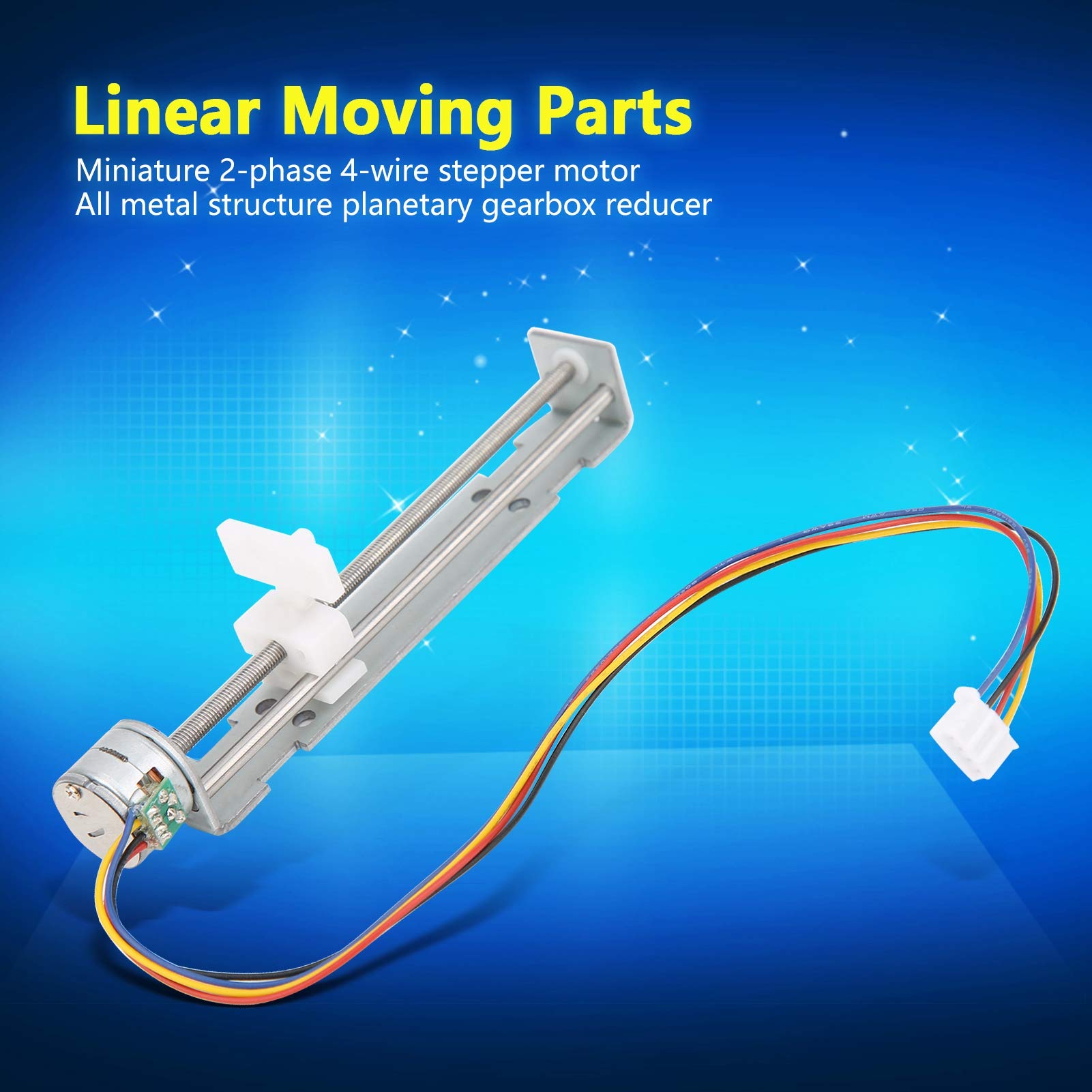

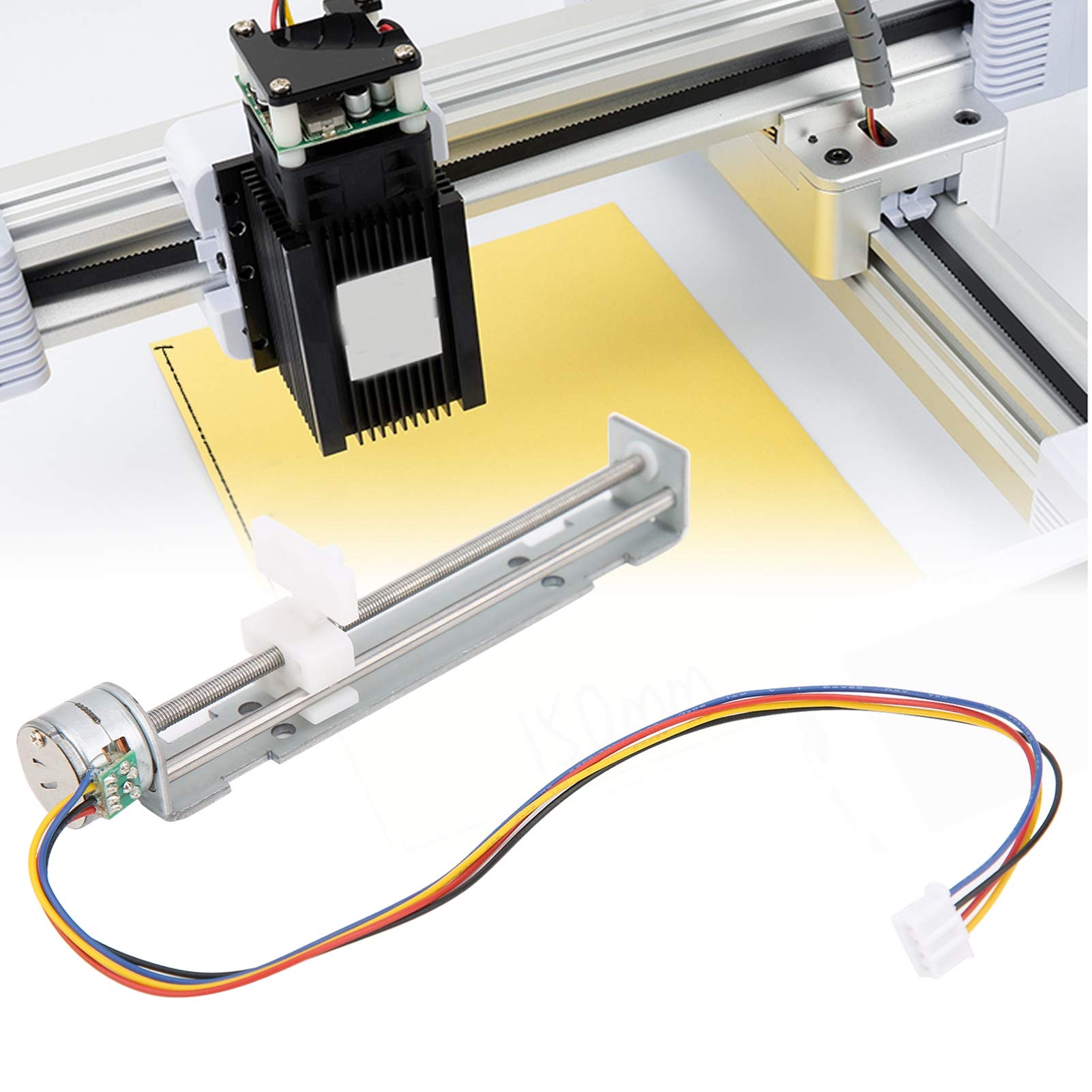

• INTRODUCTION TO STEPPER MOTOR LINEAR MOTION SYSTEMS: This Stepper Motor Linear unit integrates a 2 phase 4 wire stepper motor with a planetary for precise linear motion, making it ideal for DIY projects or as a component in small laser engraving machines. Its robust metal structure ensures durability and reliability.

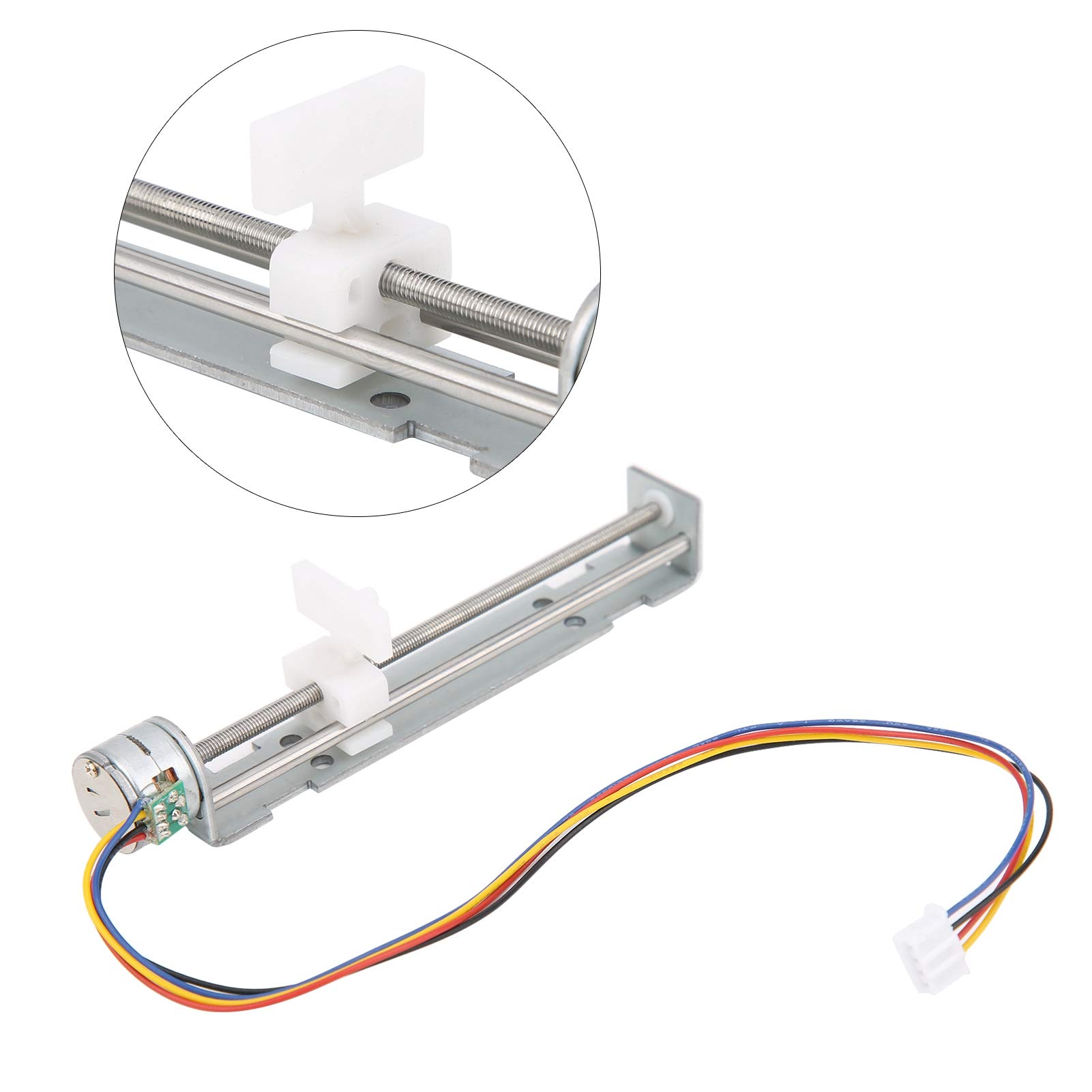

• FEATURES OF THE LINEAR STEPPER MOTOR WITH SLIDER: With an 80mm slider stroke, this linear stepper motor system offers accurate stroke control and efficient movement. Advanced technology and quality materials are employed to enhance performance and efficiency, making it essential for equipment measurement and laser printer enhancements.
• SPECIFICATIONS EXPLAINED: Designed with a lead screw length of approximately 90mm and a pitch of 0.5mm, the stepper motor features an 18° step angle for precision. Operating voltage ranges from 4 9V at 100 500mA, offering customizable force and heat management. The motor’s compact overall size makes it suitable for tight spaces.
• USAGE GUIDELINES: To operate the stepper motor linear system, connect it to a stepper motor drive board and control board, as direct power won't initiate rotation. This mechanism is critical in applications requiring precise linear movement, such as linear moving parts in mechanical equipment and DIY projects.
• PACKAGE AND NOTES: The package includes one stepper motor linear unit. Ensure all connections follow the color coded wires (Blue A+, Black A , Red B+, Yellow B ) for correct functionality. Utilize a compatible drive and control board for effective operation, maximizing this mechanical equipment’s utility in various applications.

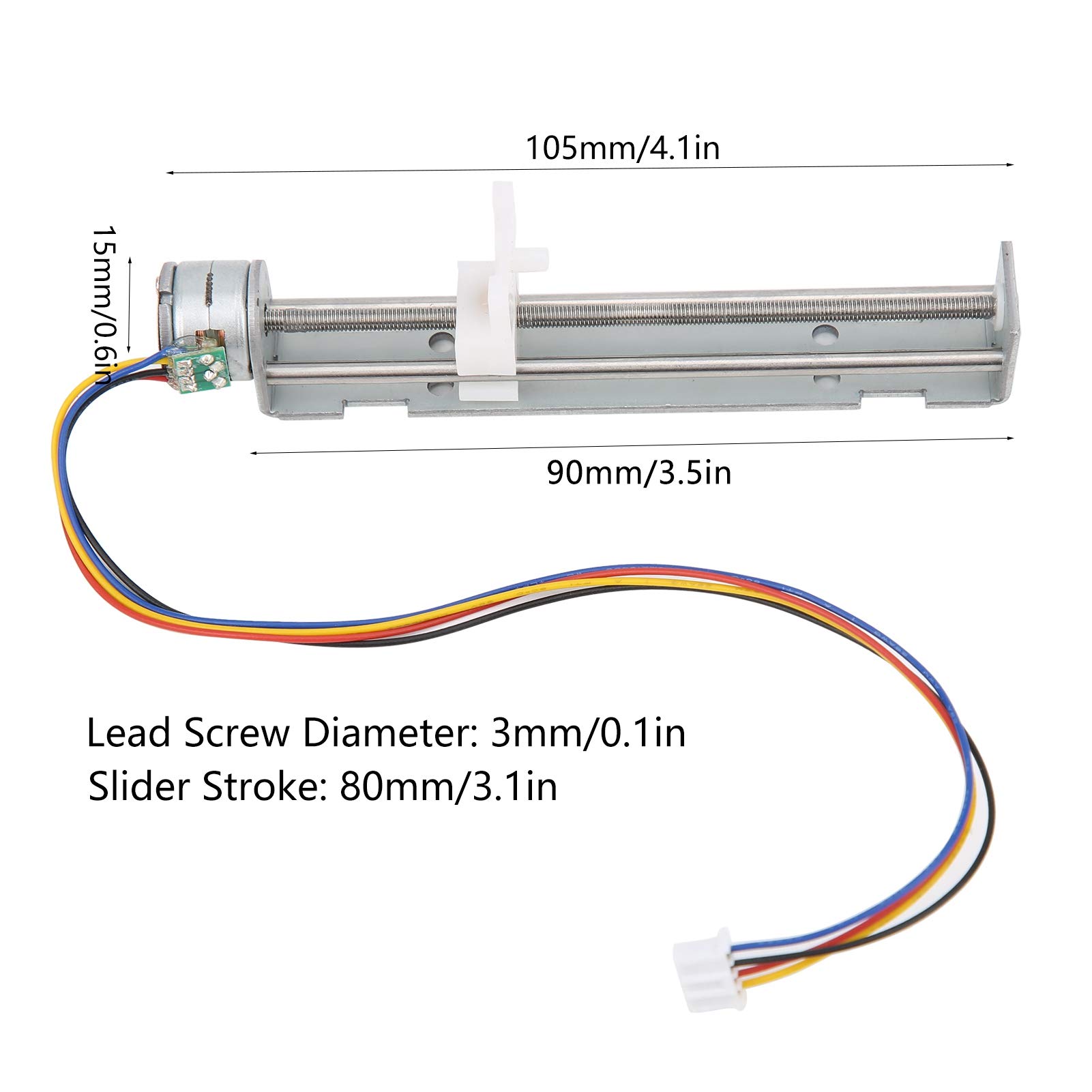

Specification Item Type: Stepper Motor Linear Motor Type: 2-Phase 4-wire Drive Voltage: 4-9V/100-500mA (the higher the voltage, the greater the force, the greater the heat) Lead Screw Length: Approx. 90mm / 3.5in Slider Stroke: Approx. 80mm / 3.1in Motor Diameter: Approx. 15mm / 0.6in Lead Screw Diameter: Approx. 3mm / 0.1in Lead Screw Pitch: 0.5mm Step Angle: 18° Phase Resistance: 15.5 ohms Overall Size: Approx. 15 x 105mm / 0.6 x 4.1in Blue A+ Black A- Red B+ Yellow B- Package List 1 x Stepper Motor Linear
