Yanmis Linear Actuator, JS-TGZ-U1 Linear Actuator Electric DC Motor 30mm/s 300N 12VDC IP45 Actuator for Remote Control Centralized Control or Automatic Control(300mm)

• ★★★ 3 Control】 - The actuator can be used in a variety of simple or complex processes as a mechanical machine for remote control, centralized control or automatic control.
• ★★★ 3 Control】 - The actuator can be used in a variety of simple or complex processes as a mechanical machine for remote control, centralized control or automatic control.
• ★★★ 【Adjustable】 - By changing the length of the lever arm, the stroke can be increased or increased.
• ★★★ 【Usage】 - After the motor is decelerated by the gear, it drives a pair of screw nut. Turn the rotation motion of the motor into a linear motion, and use the motor to reverse the push rod to complete the actuator action.

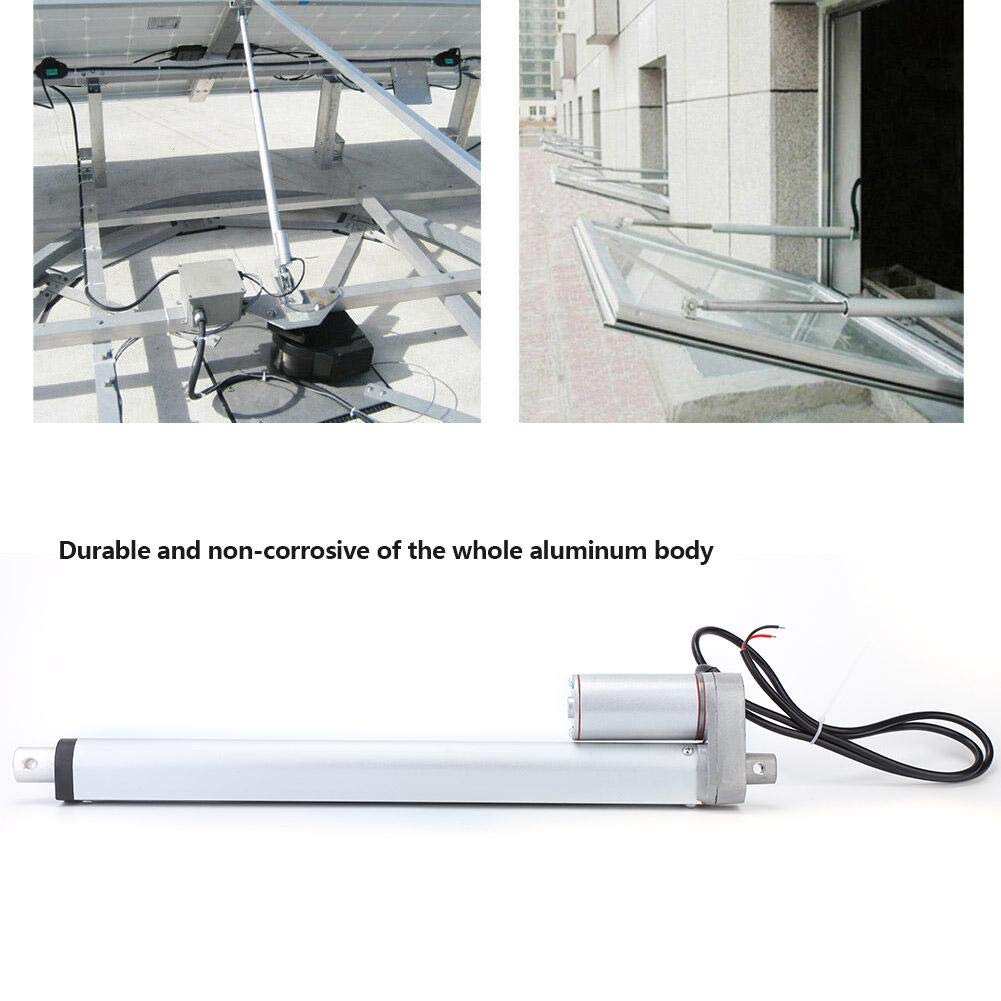

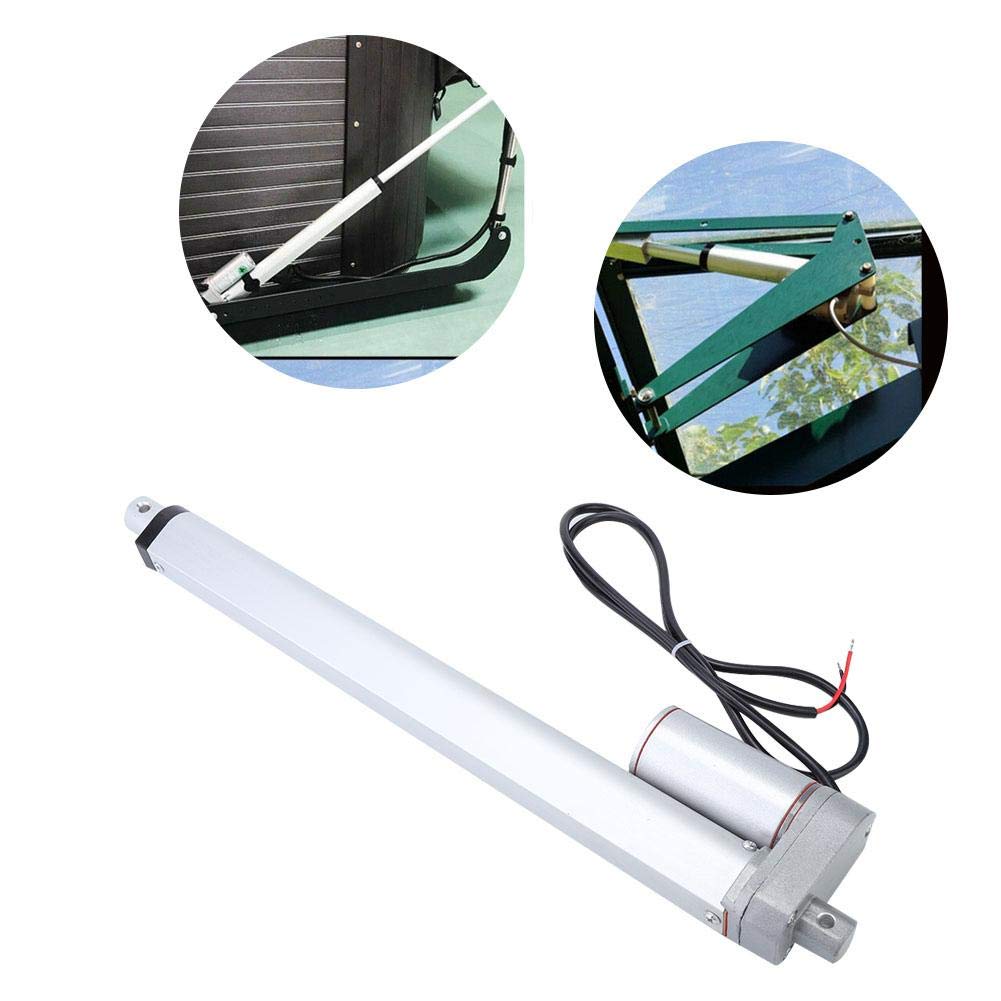

• ★★★ 【Widely Application】 - Mainly used to electric bed, electric sofa, electric stand lifting rod, industrial electric lifting system, camera frame, head camera, wedding system.

Feature: 1. The actuator can be used in a variety of simple or complex processes as a mechanical machine for remote control, centralized control or automatic control. 2. The electric actuator is an electric drive device that converts the rotation motion of the motor into a linear reciprocating motion. 3. Applicable to electric bed, electric sofa, electric stand lifting rod, industrial electric lifting system, camera frame, head camera, wedding system. 4. After the motor is decelerated by the gear, it drives a pair of screw nut. Turn the rotation motion of the motor into a linear motion, and use the motor to reverse the push rod to complete the actuator action. Complex movements such as turning and shaking can be accomplished by various levers, rockers or connecting rods. 5. By changing the length of the lever arm, the stroke can be increased or increased. Specification: Item Type:Linear Actuator Model:JS-TGZ-U1 Stroke:300mm/350mm/400mm/450mm(Optional) Voltage:12VDC Motor Power:25W Standard installation size: stroke + 105mm Load capacity: 300N No-load speed: 30mm/s Work efficiency: 10% Ambient temperature: -5℃ ~+50 ℃ Protection level: IP45 Built-in limit switch, not adjustable after delivery Noise:<53dB Package List: 1 x Linear Actuator
