LIKERAINY 90 Degree Soft-Down Lid Stay Support with Soft Open for Kitchen Cabinet Flap Door Opening Downward Arbitrary Angle Stop Struts Hinge Mechanism Pack of 2 Sets

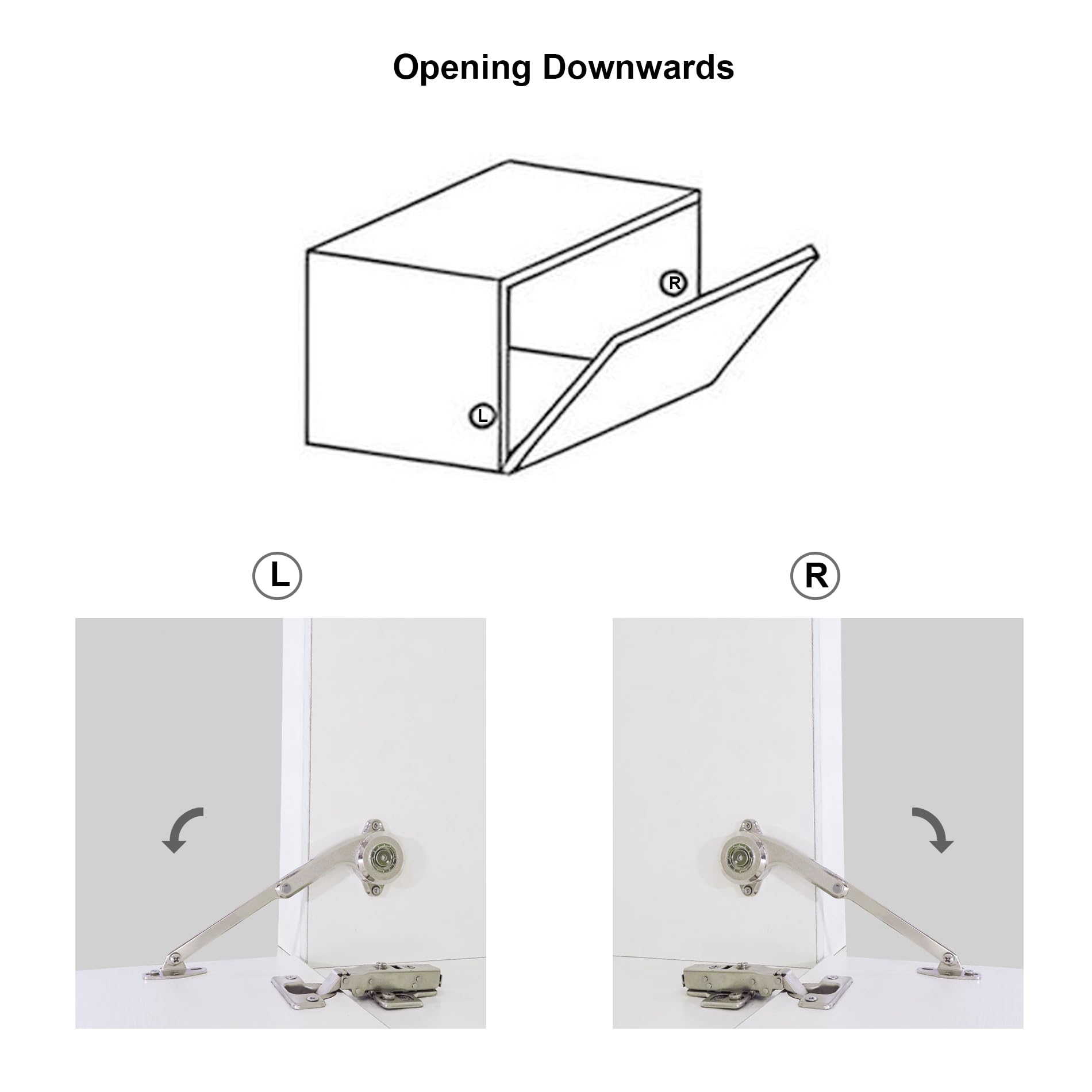

• The lid stay is used for downward opening doors, such as kitchen cabinet flaps

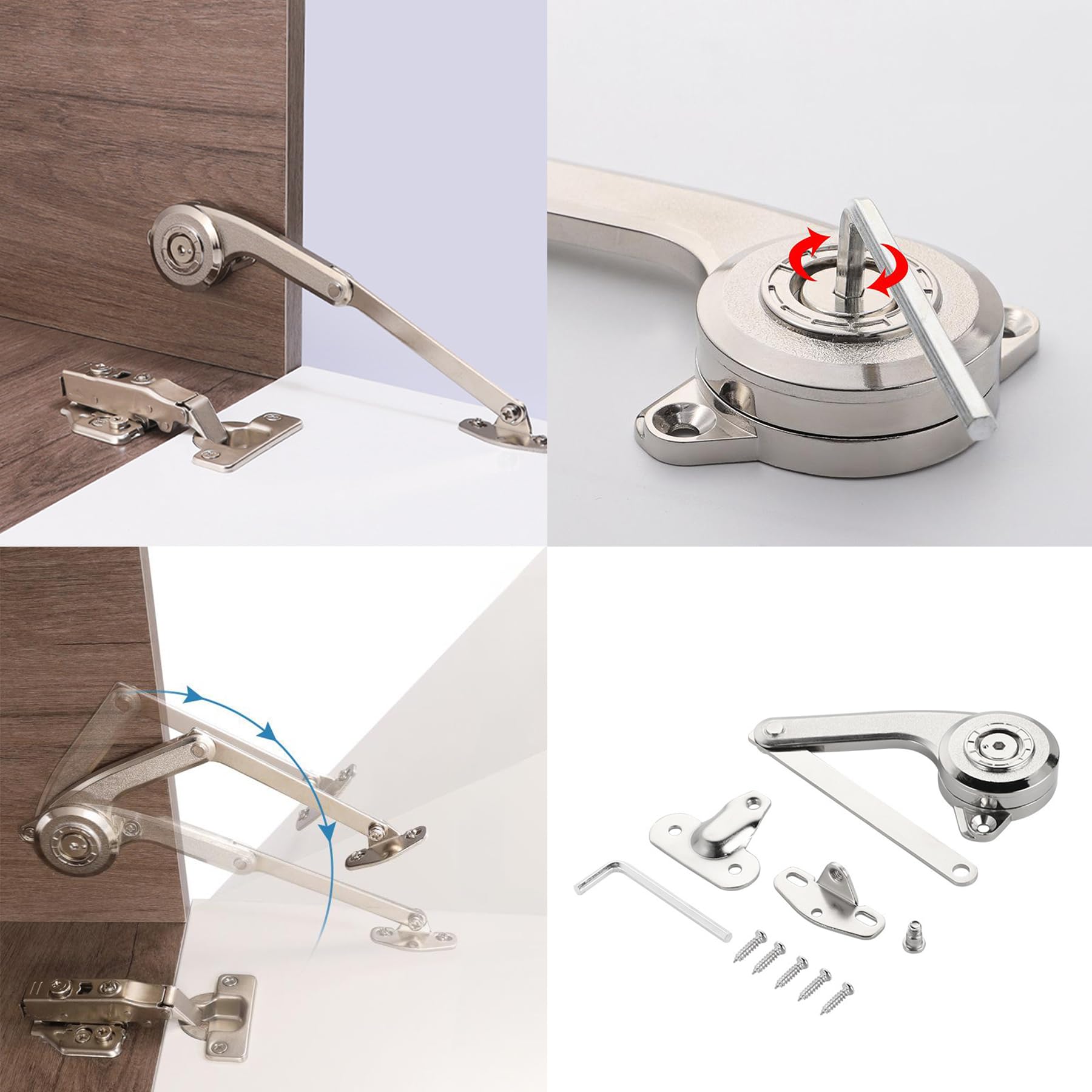

• By adjusting the strength, effects such as a cushioning function (soft open) and a random angle stop function can be achieved. The strength of the damper can be adjusted with a hexagonal spanner
• The compact design is very suitable for installation in places with limited space. We recommend that the maximum thickness of the door should be less than 18 mm
• Made of steel and zinc alloy, nickel plated steel arms. One product is for the left side installation and another for the right side installation
• Load-bearing Capacity: Single product torque 50 - 70 kgf.cm (less than 7 kg); Calculation method: (Door Height (m) / 2) x Door Weight (kg) x 9.8 = 4.90 - 6.86 N.M (50 - 70 kgf.cm)

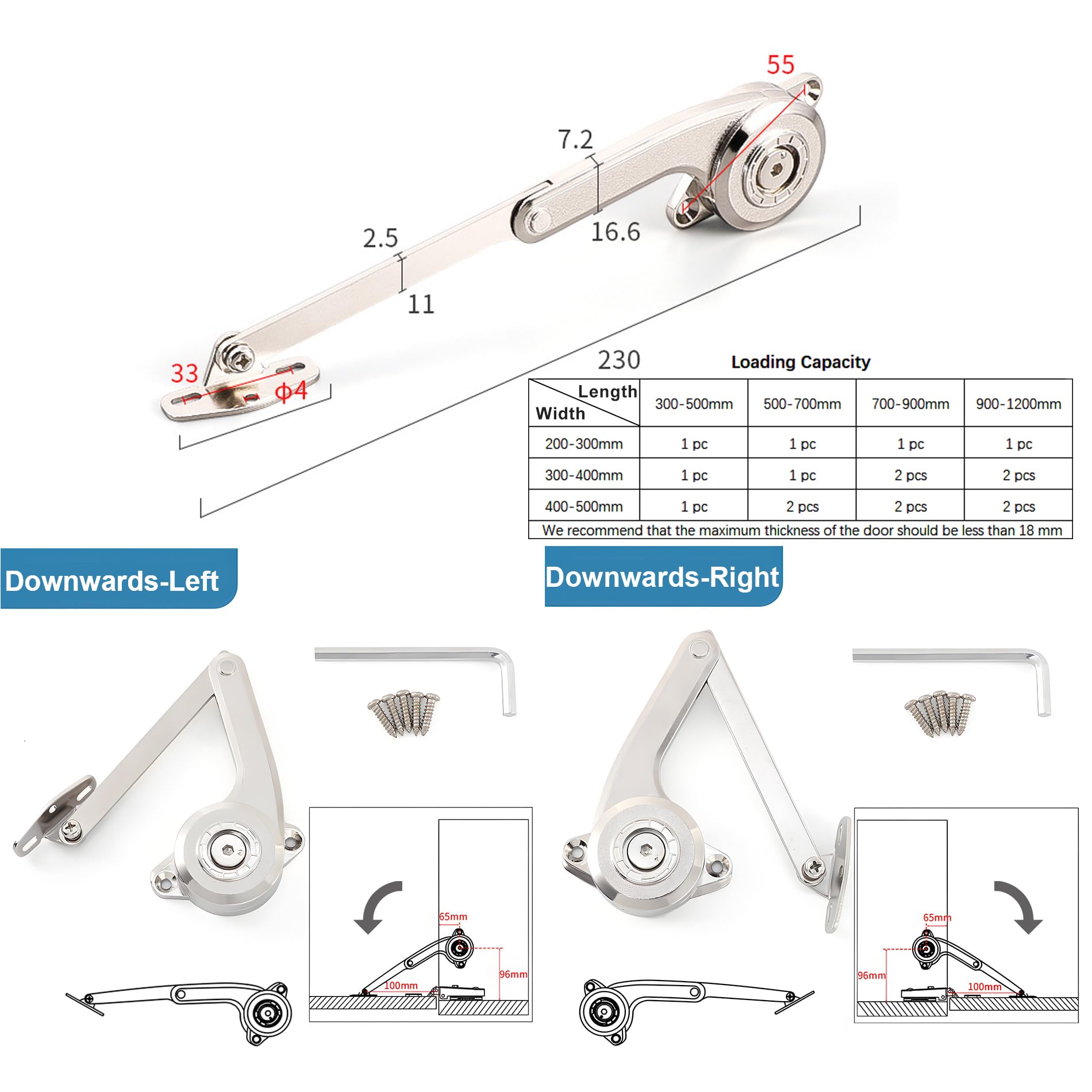

Product Details Item name: Downward Opening, Lid Stay with Soft Open, Stop at Will Dimension: 230 x 45 x 20 mm Weight: 261 g Material: Steel and zinc alloy Surface treatment: Nickel plated Bearing capacity for single product: 4.90 - 6.86 N.M (less than 7 kg) Bearing capacity for two products: 9.80 – 13.72 N.M (less than 14 kg) Suitable for door height: 200 - 500 mm We recommend that the maximum thickness of the door should be less than 18 mm One product is for the left side installation and another for the right side installation Features: Mute cushioning, stop at any angle, adjustable strength, anti-corrosion and rust-proof, smooth operating Soft Open: The lid support hinge has built-in hydraulic dampening device which is designed to open the lid slowly and gently. Operating slowly can reduce impact and make no noise Arbitrary angle stop: The lid support can hold the door at any desired opening angle by adjusting the resistance force Compact design allows installation in places where space is limited. Does not take up too much cabinet space Package Installation instruction Accessories: brackets and mounting screws (M4 x 16 mm) Lid stay: 2 Sets Note If you want to place heavy objects on the door panel or work on the door panel, In addition to this lid support mechanism, pillars or reinforcement materials must be installed to support the door
