LIKERAINY 100 Degree Soft-Down Lid Support Lid Stay with Soft Close for Flap Door Toy Chest Box Top Opening Upward Arbitrary Angle Stop Hinges Mechanism Pack of 2 Sets

• The lid stay is used for top-opening doors, such as box lids, tatami lids, kitchen cabinet flaps, and toy chests

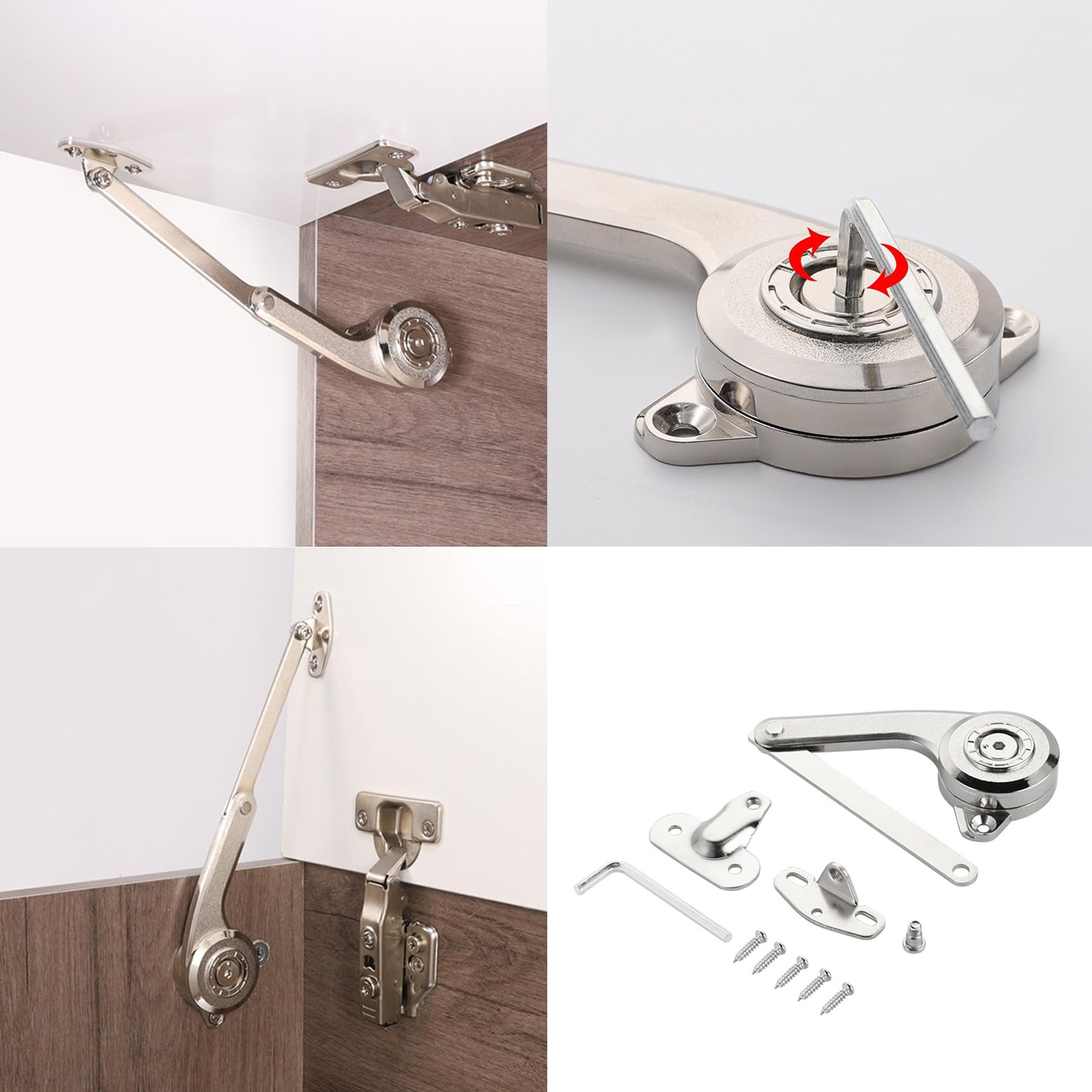

• By adjusting the strength, effects such as a cushioning function (Soft Close) and a random angle stop function can be achieved. The strength of the damper can be adjusted with a hexagonal spanner
• The compact design is very suitable for installation in places with limited space. We recommend that the maximum thickness of the door should be less than 18 mm

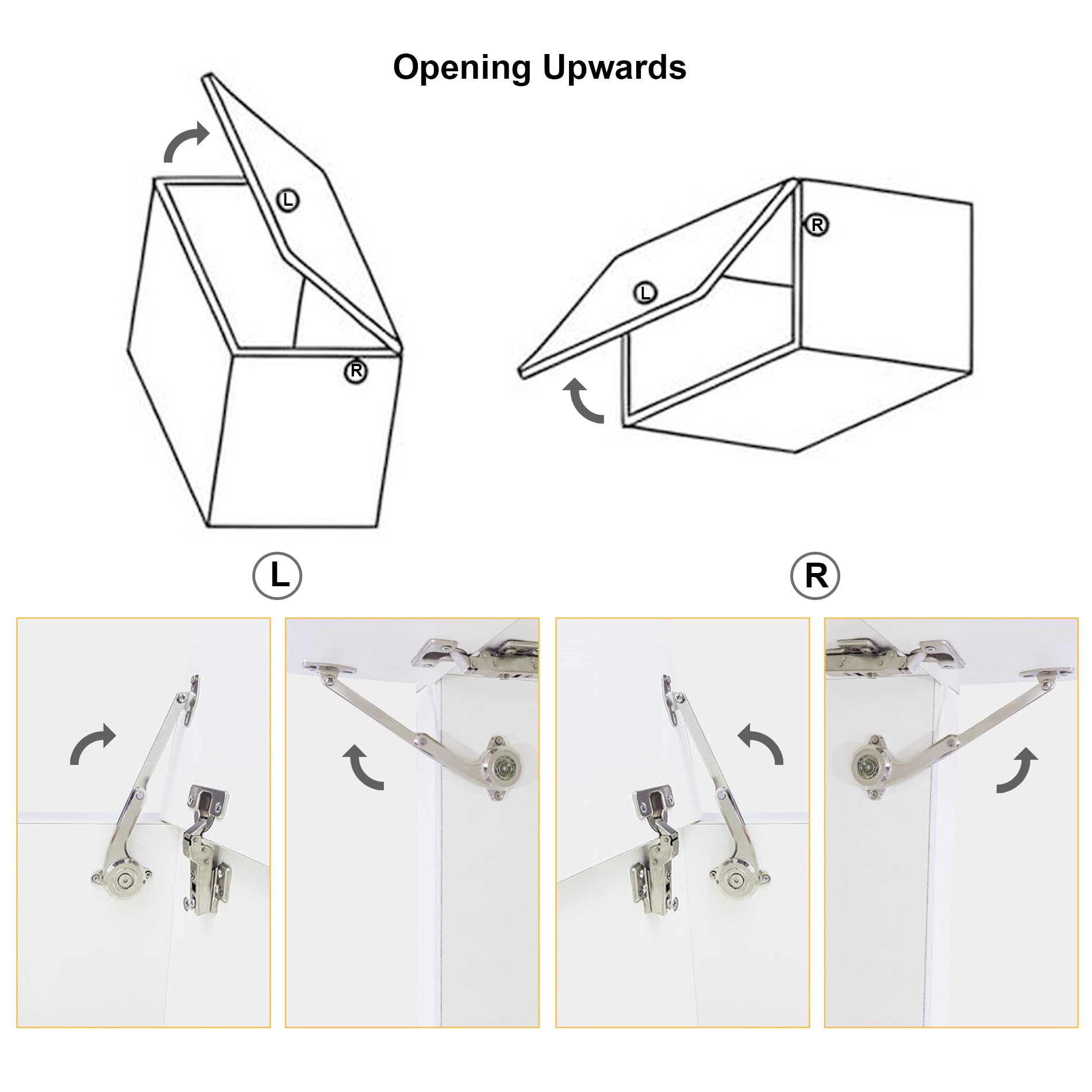

• Made of steel and zinc alloy, nickel plated steel arms. One product is for the left side installation and another for the right side installation
• Load-bearing Capacity: Single product torque 50 - 70 kgf.cm (less than 7 kg); Calculation method: (Door Height (m) / 2) x Door Weight (kg) x 9.8 = 4.90 - 6.86 N.M (50 - 70 kgf.cm)

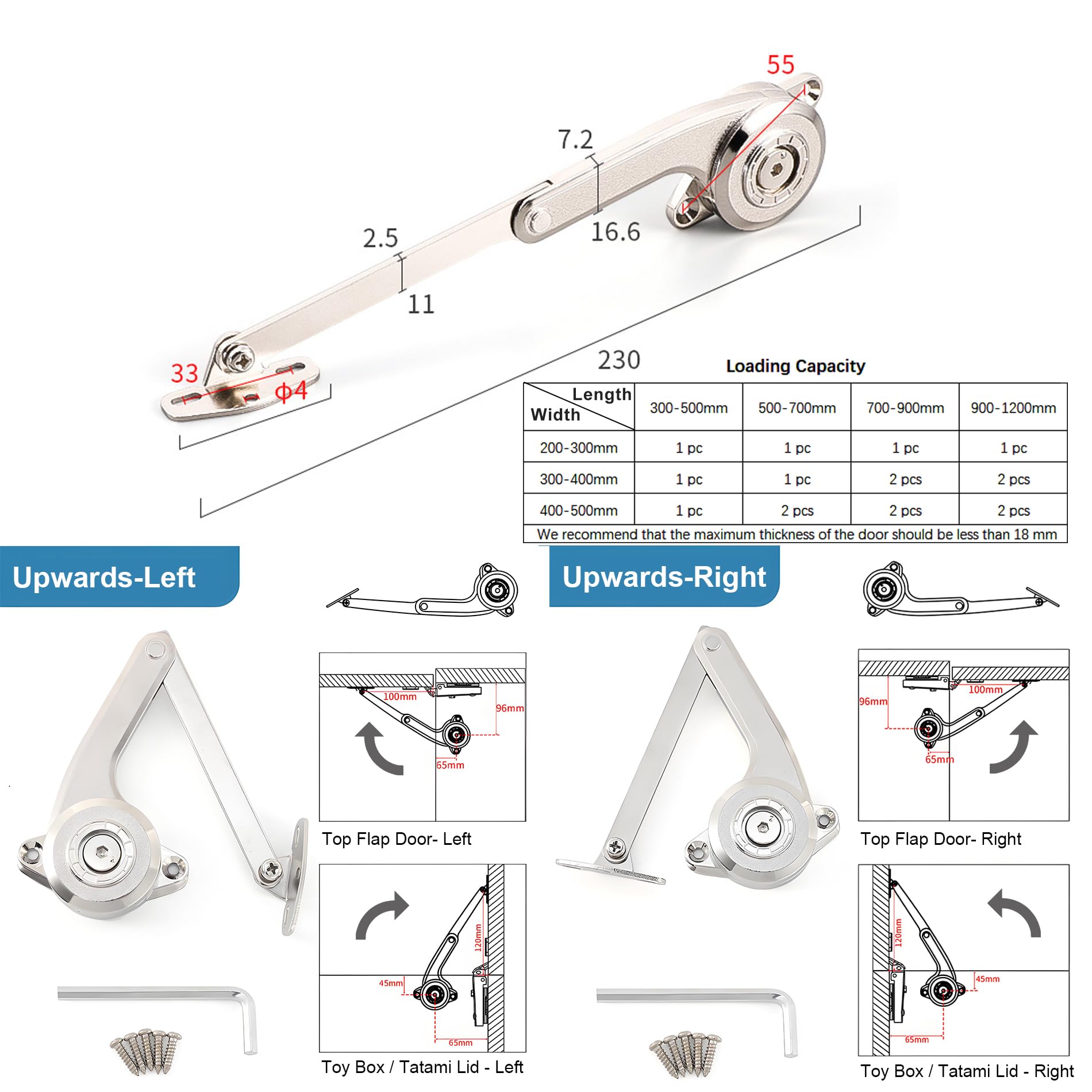

Product Details Item name: Top-Opening, Lid Stay with Soft Close, Stop at Will Dimension: 230 x 45 x 20 mm Weight: 260 g Material: Steel and zinc alloy Surface treatment: Nickel plated Bearing capacity for single product: 4.90 - 6.86 N.M (less than 7 kg) Bearing capacity for two products: 9.80 - 13.72 N.M (less than 14 kg) Suitable for door height: 200 - 500 mm We recommend that the maximum thickness of the door should be less than 18 mm Features: Mute cushioning, stop at any angle, adjustable strength, anti-corrosion andrust-proof, smooth operating One product is for the left side installation and another for the right side installation Soft Close function: The lid support hinge has built-in hydraulic dampening device which is designed to close the lid slowly and gently. And prevent slammed doors and smashed your fingers Arbitrary angle stop function: The lid support can hold the door at any desired opening angle by adjusting the resistance force Compact design allows installation in places where space is limited. Does not take up too much cabinet space The lid stay is used for top-opening doors, such as toy box lids, tatami lids, kitchen cabinet flaps, and toy chests Package Installation instruction Accessories: brackets and mounting screws (M4 x 16 mm) Lid stay: 2 Sets
