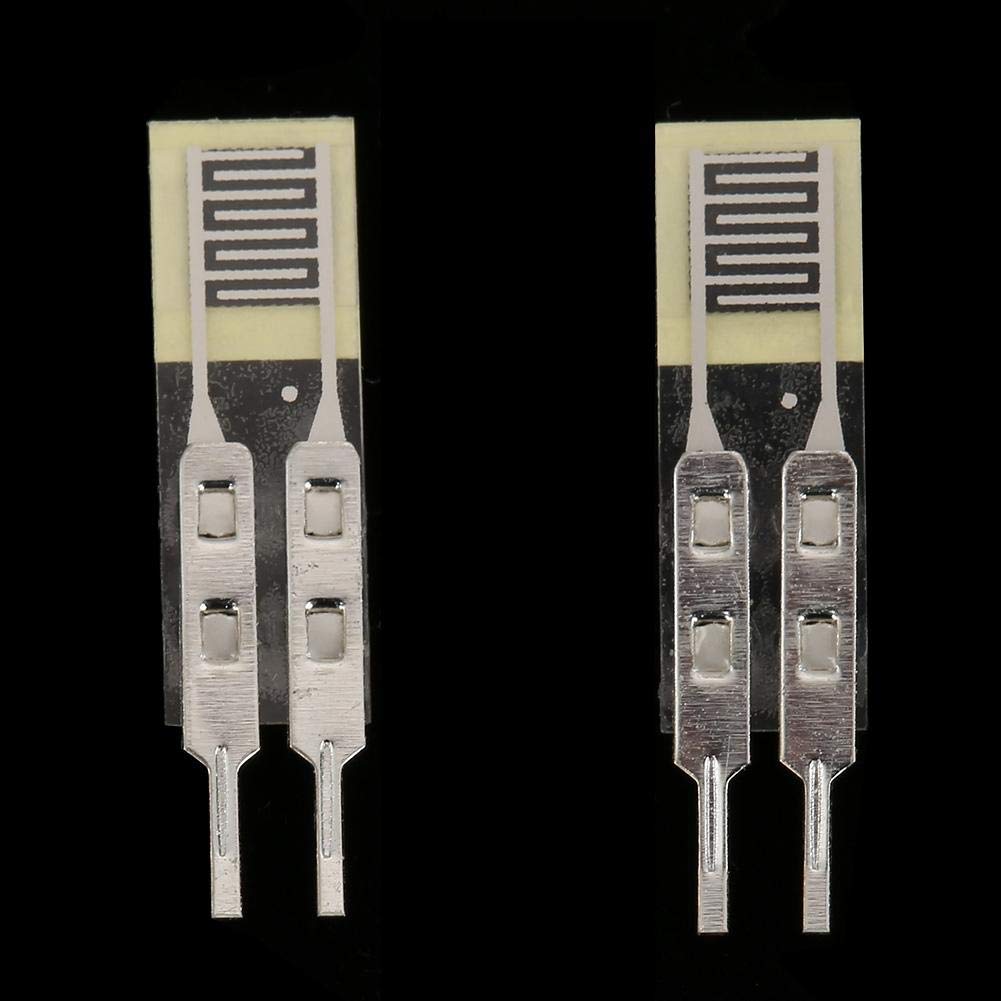

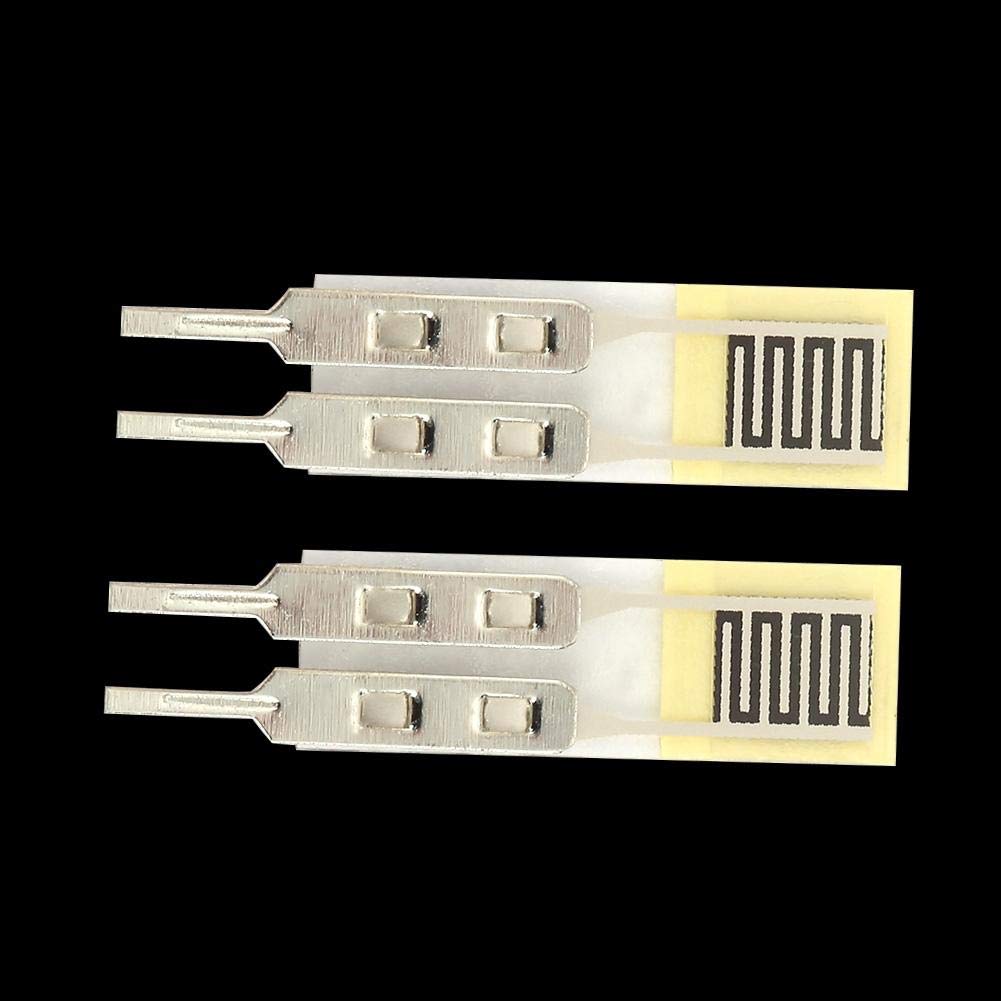

kraftsensor, Pressure Sensor, 2pcs 10g~1kg High Precise Resistance-type Thin Film Force Sensor

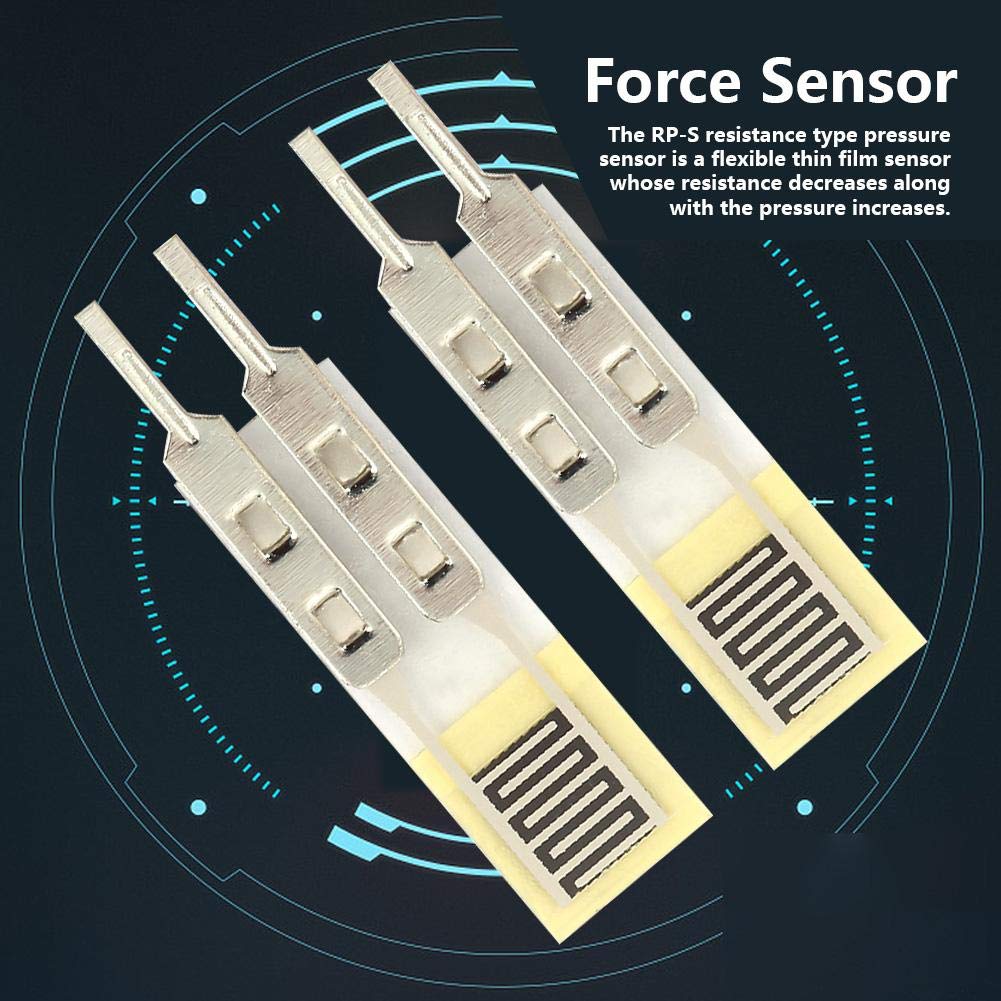

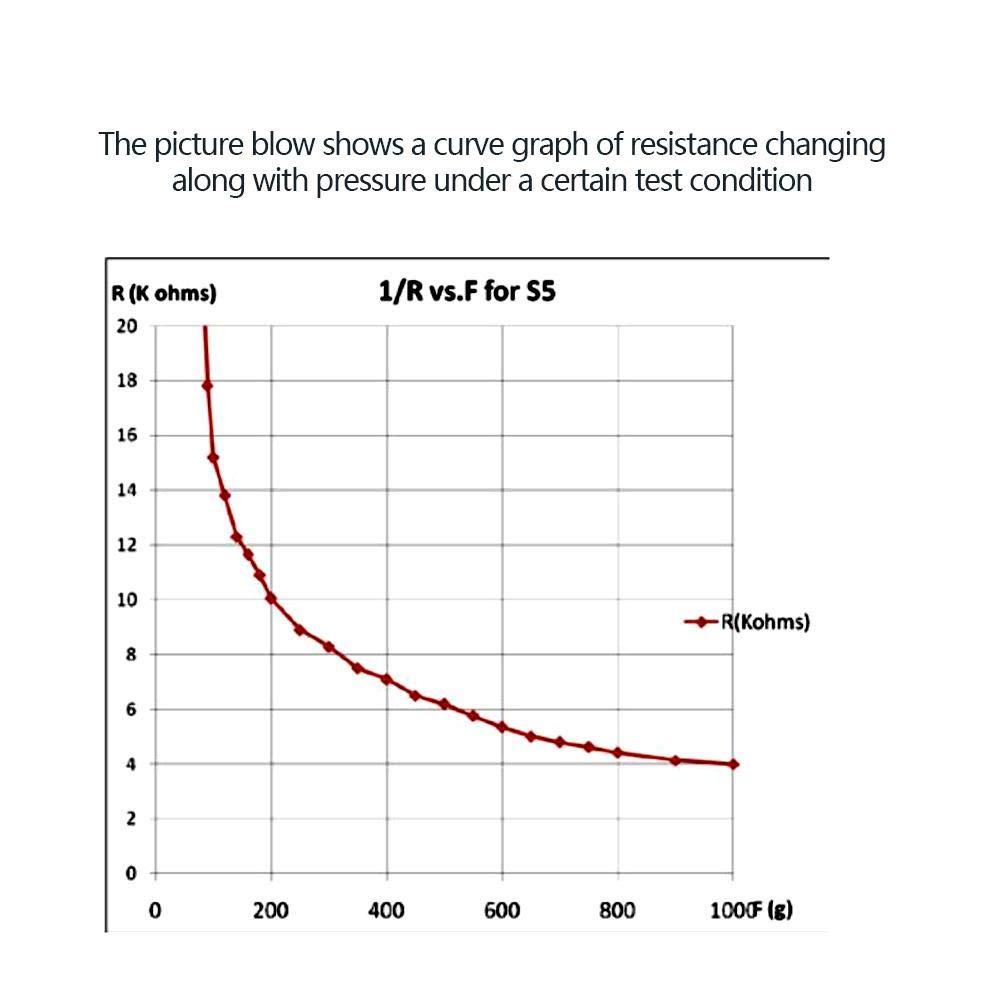

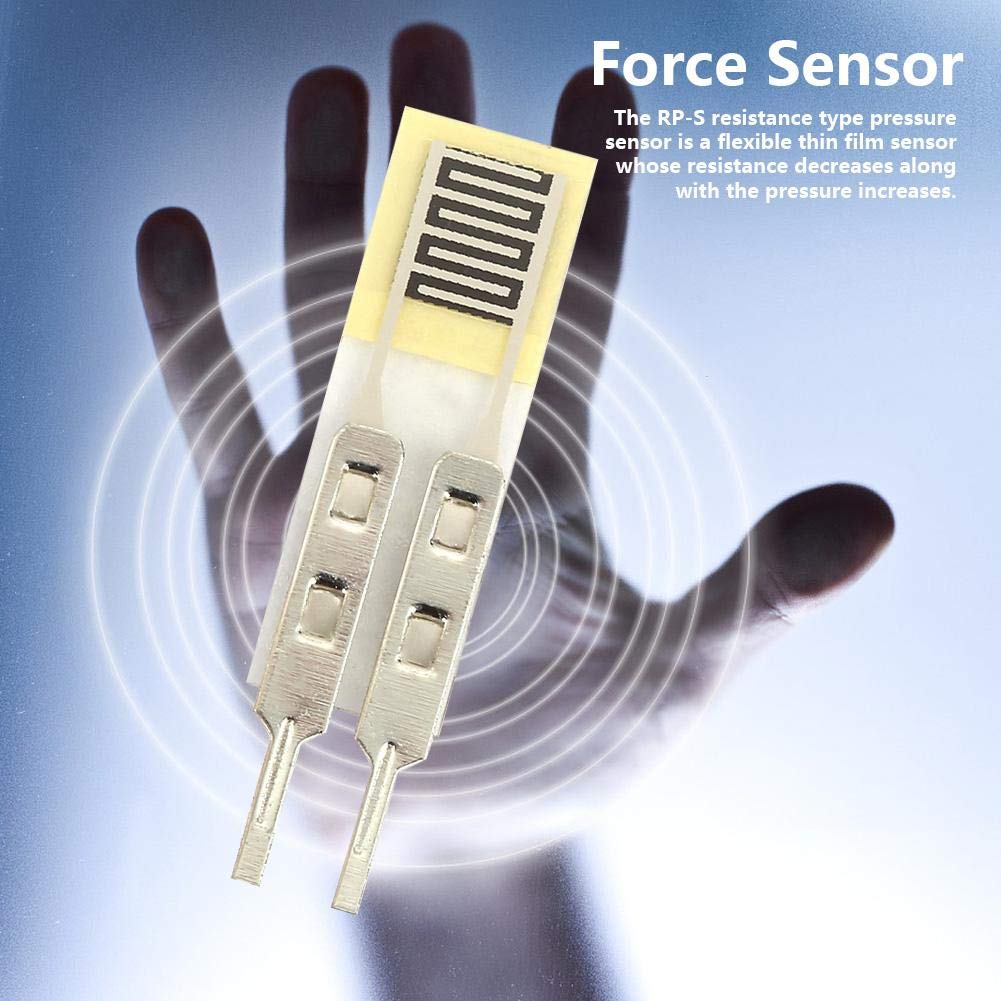

• The RP-S resistance type pressure sensor is a flexible thin film sensor whose resistance decreases along with the pressure increases.

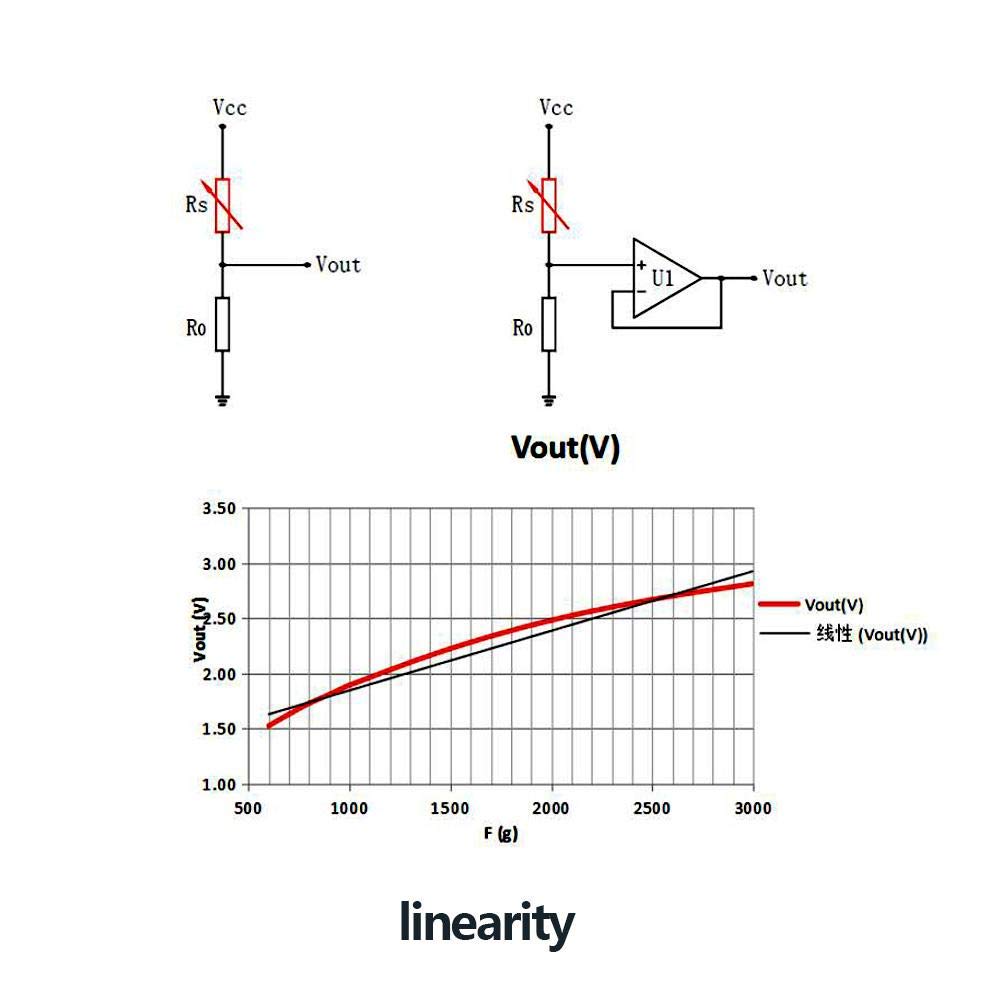

• Single sensitive area pressure sensor is equivalent to a dual port variable resistance whose resistance is controlled by pressure, and to a switch of a certain threshold, the threshold is determined by pressure and equipment parameters setting.
• The pressure sensor supports static/dynamic pressure sensing, and has fast response speed.
• Made of high quality material, the sensor is and has long service life.
• Widely used for bed monitoring, sleep monitoring, smart shoes, smart switches, counters and medical equipment.

Specification: Model: RP-S5-ST Thickness: 0.25 mm Trigger force: 10 g, triggered when resistance is less than 200 kΩ by default Pressure sensing range: 10 g ~ 1 kg Pressure action mode: Static or dynamic (frequency within 10 Hz) Non-trigger resistance: More than 10 MΩ Activation time: less than 0.01 S Operating temperature: -40 ℃ ~ +85 ℃ Lag: +10%, (RF+ - RF-)/FR+, 1000g force Response time: <10 ms Drifting: <5%, 2.5Kg force static load 24H Weight: 1g / 0.04oz (approx.) Package list: 2 * Pressure Sensors
