KeeYees Pro Micro ATmega32U4 5V 16MHz Micro USB Development Board Module Microcontroller for Arduino (Pack of 1pcs)

• ATMega32U4 running at 5V/16MHz, maximum voltage on the RAW pin is 9V, recommended voltage 6-7V.

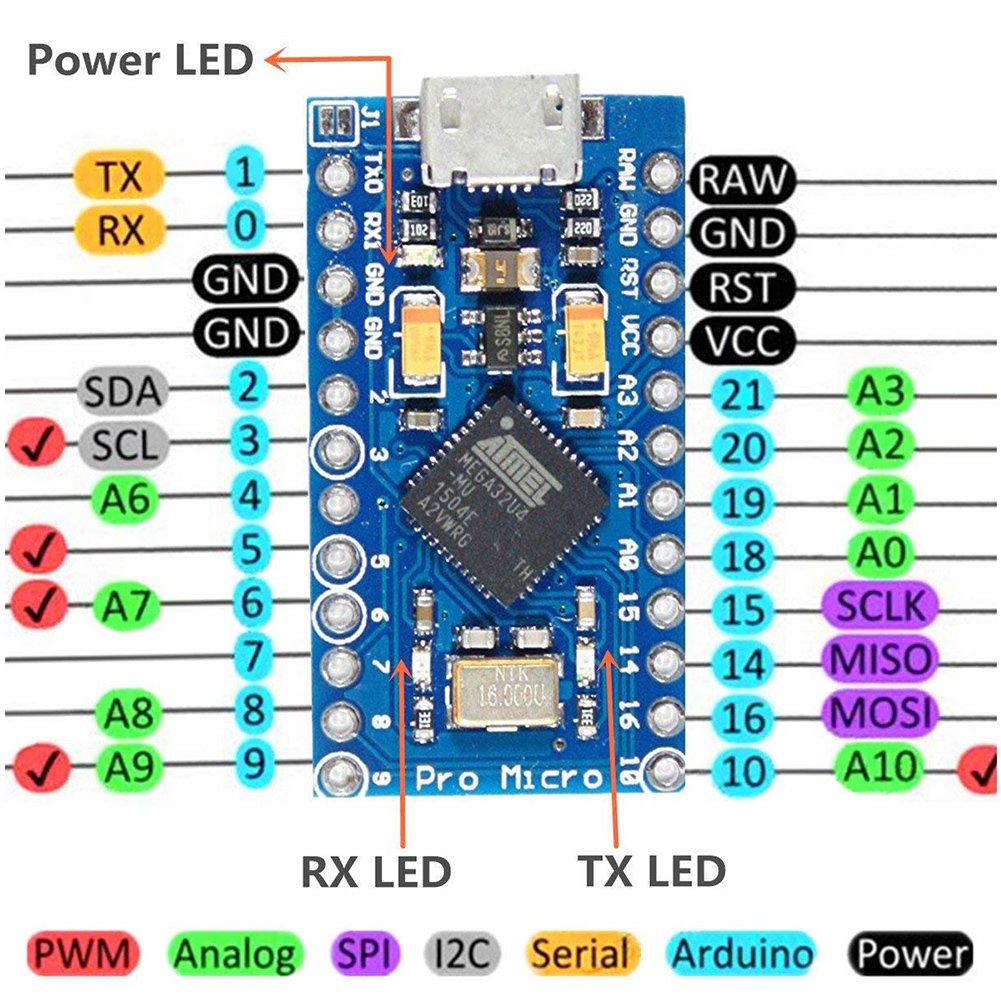

• Supported by Ard IDE V1.0.1; 4 x 10-bit ADC pins, 12 x Digital I/Os; Rx and Tx Hardware Serial Connections.

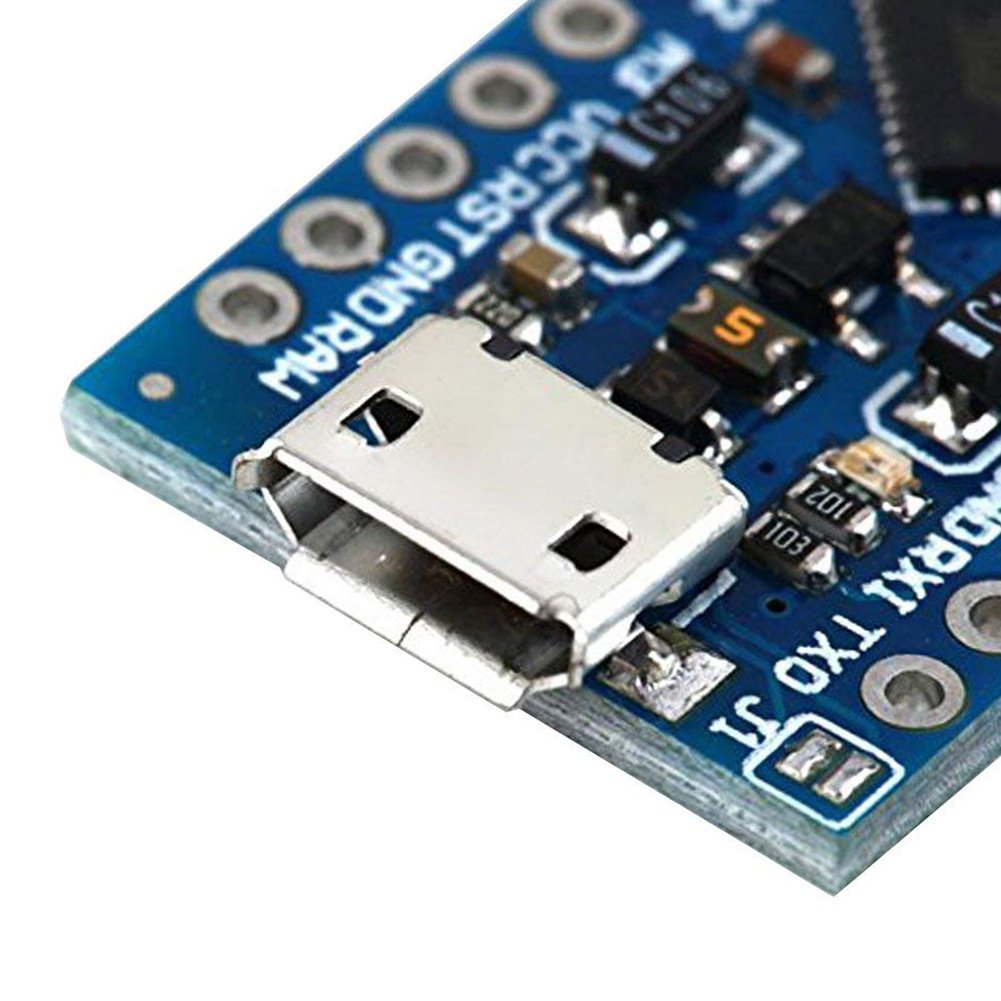

• Just connect to the On-Board micro-USB connector for programming. (If this module cannot be recognized by your computer, please refer to this link to install the driver
• The PRO Micro board can be powered via the micro USB connection or with an external power supply.

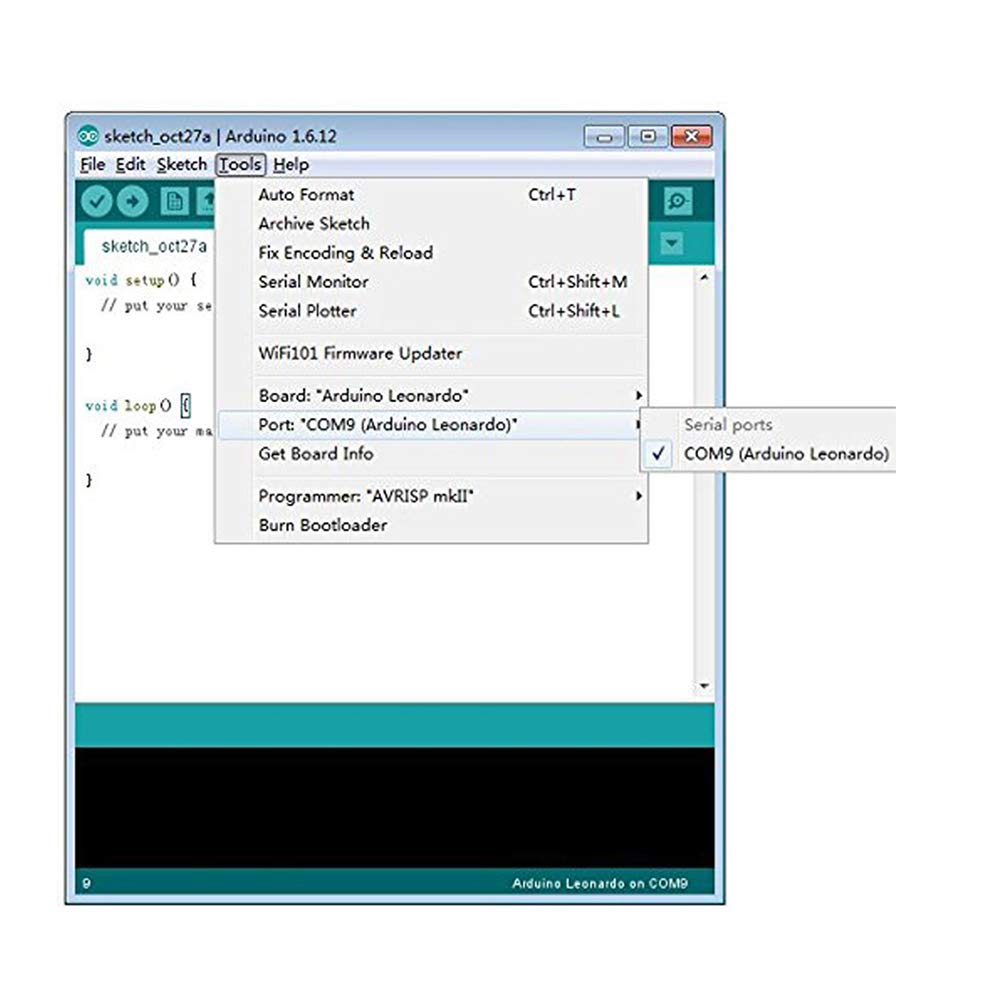

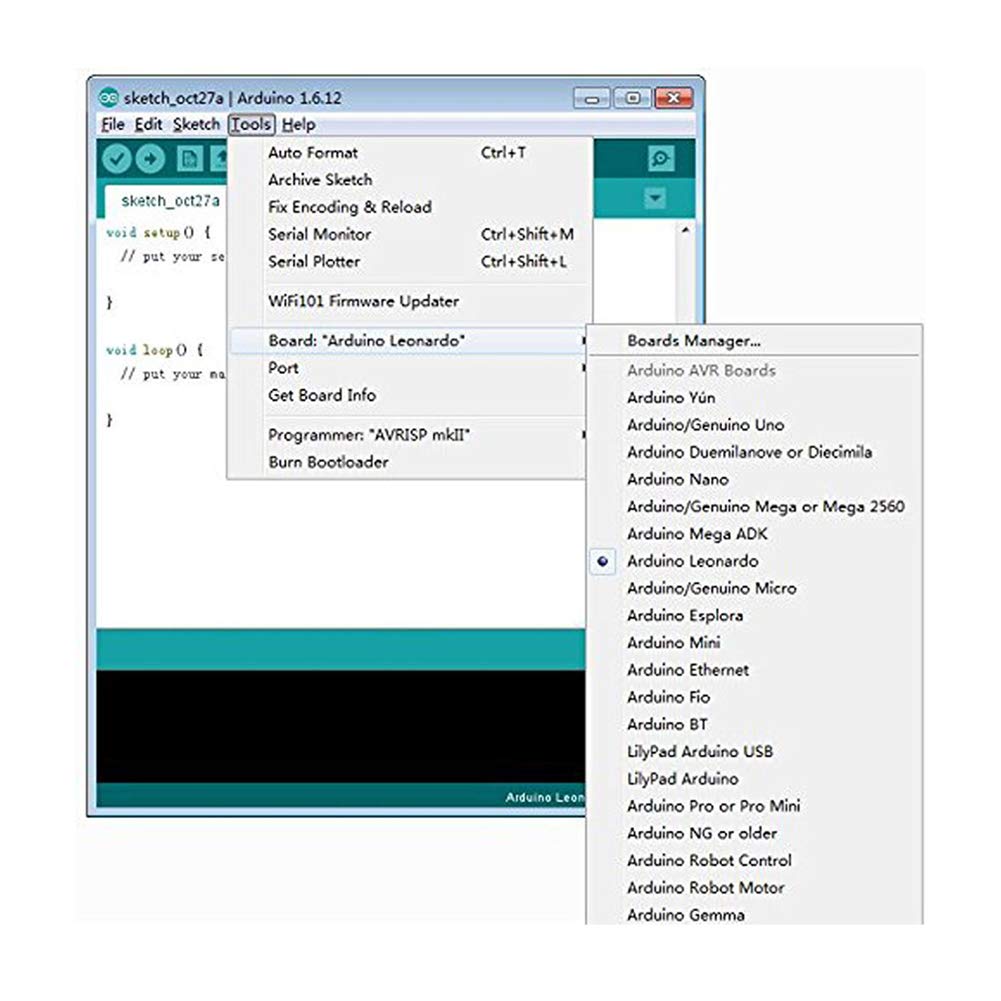

Features: ATmega32U4 running at 5V/16MHz Supported under Ard IDE v1.0.1 Recommend power supply for board: 6-7V, less than 9V On-Board micro-USB connector for programming 4 x 10-bit ADC pins, 12 x Digital I/Os Rx and Tx Hardware Serial Connections How to use? 1. Connected to computer. (If this module cannot be recognized by your computer, please refer to this link to install the driver 2 Opened Ard IDE and loaded Blink sketch. 3. Set board to Leonardo and selected the appropriate COM port (It showed up in the list already identified as a Leonardo). 4. Connected an LED to pin 9 and modified the sketch accordingly. 5. Hit upload and within a few seconds having a blinking LED. Package Includes: 1 x Pro Micro ATmega32U4 5V 16MHz Module for Arduino KeeYees: Best choice in various Electronic Modules & Components, DIY Parts and Tools to support your work and design challenges from Home, School to Industrial applications!
