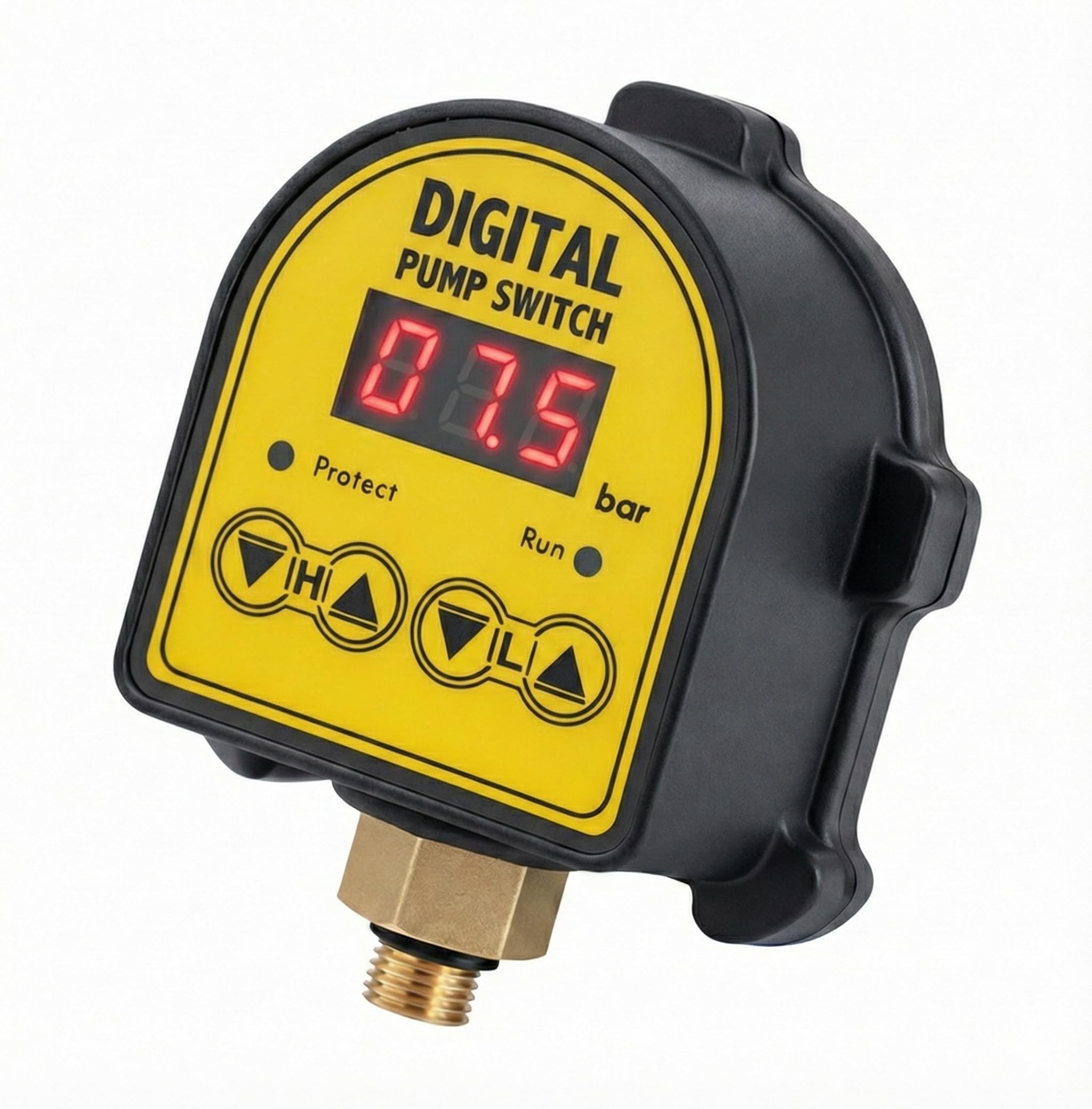

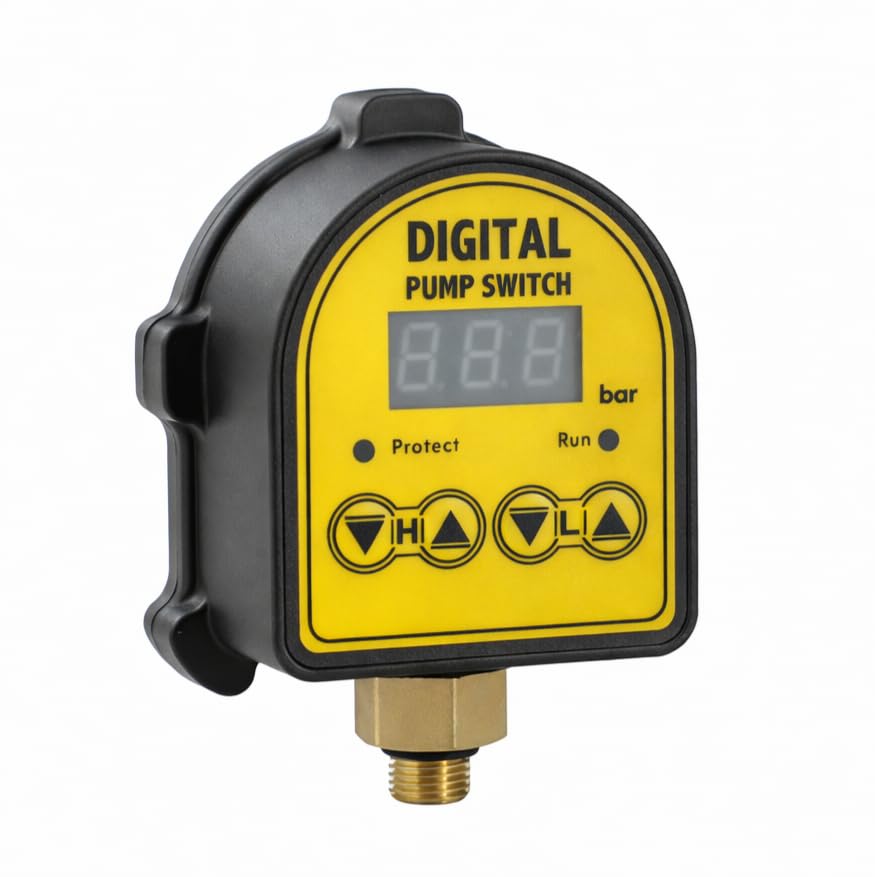

KATSU Digital Pressure Control Switch 10 Bar, 220V 10A Automatic Pump Controller, G1/4 Electronic Pressure Sensor for Water, Oil & Gas with Short Circuit & Water Shortage Protection

• 1️⃣Digital pressure control switch with ≤1% full scale accuracy, ensuring stable and precise pressure regulation. Adjustable setting range within full measurement span for customised pump control in domestic and industrial systems.

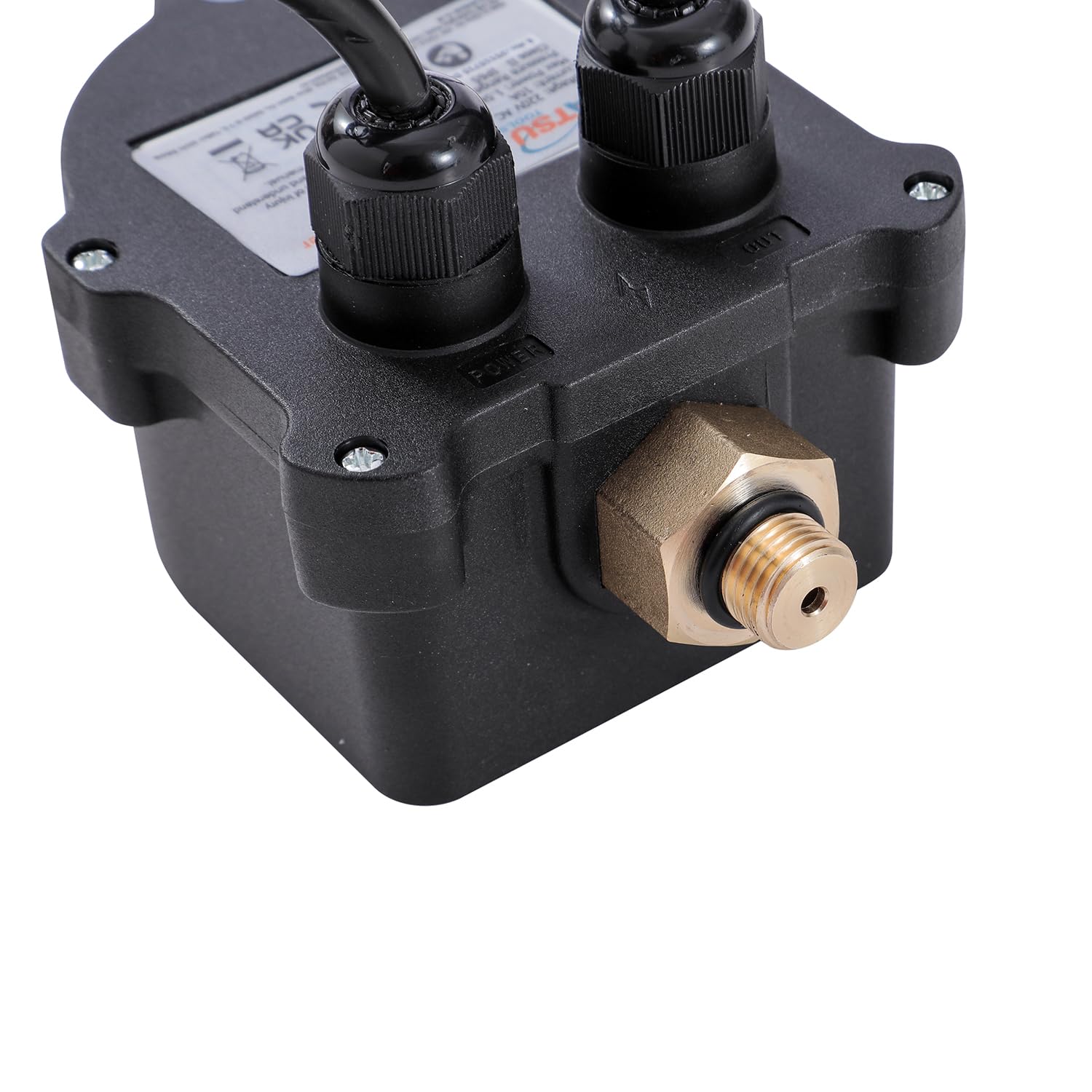

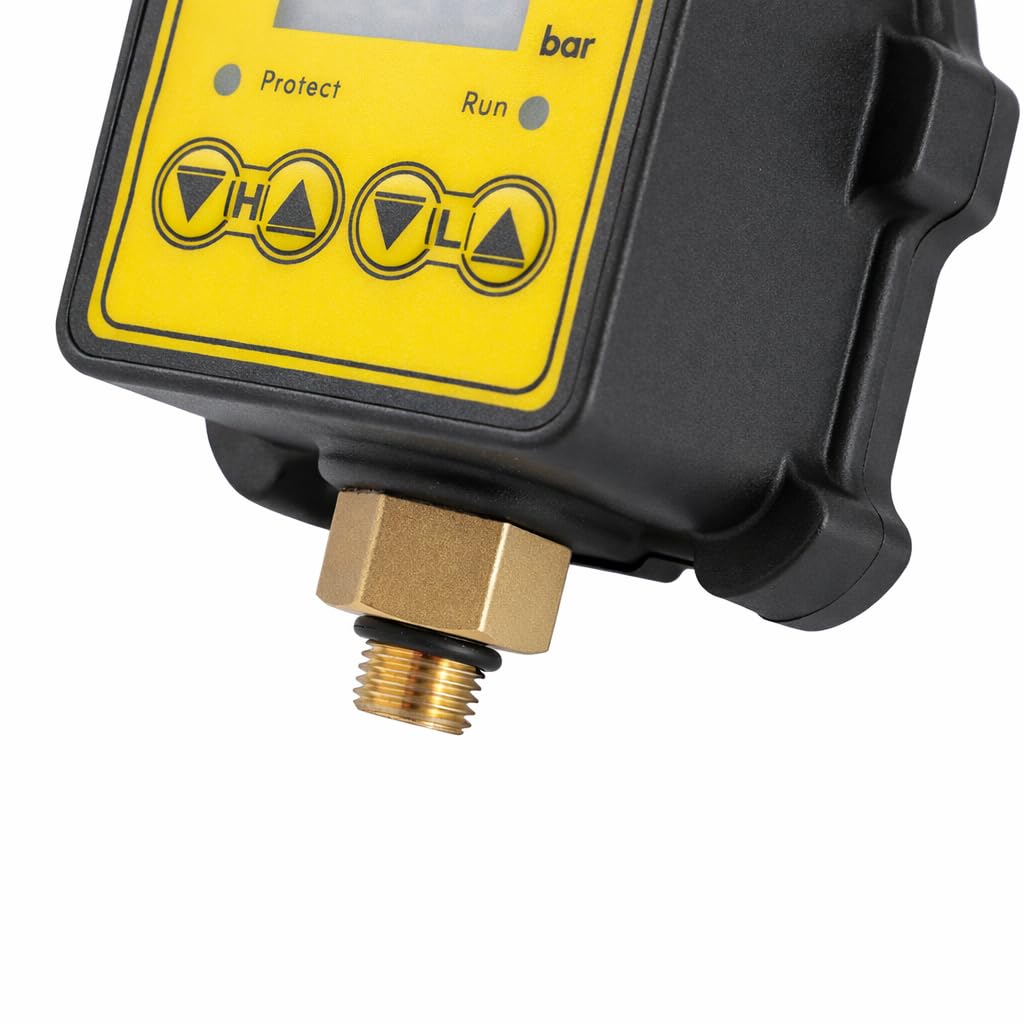

• 2️⃣ 10 Bar Maximum Working Pressure Designed for demanding applications with max working pressure of 10 Bar, suitable for water booster pumps, oil systems and compressed air installations. G1/4 pressure connection for secure and reliable installation.
• 3️⃣ Durable 220V 10A Relay Output Built with 220VAC 10A relay capacity and 200% overload capacity for dependable performance. Suitable for automatic pump start/stop control in water supply systems and machinery.
• 4️⃣ Wide Operating Temperature Range Operates reliably in temperatures from -20°C to 80°C, making it ideal for UK outdoor installations, workshops, plant rooms and industrial environments.

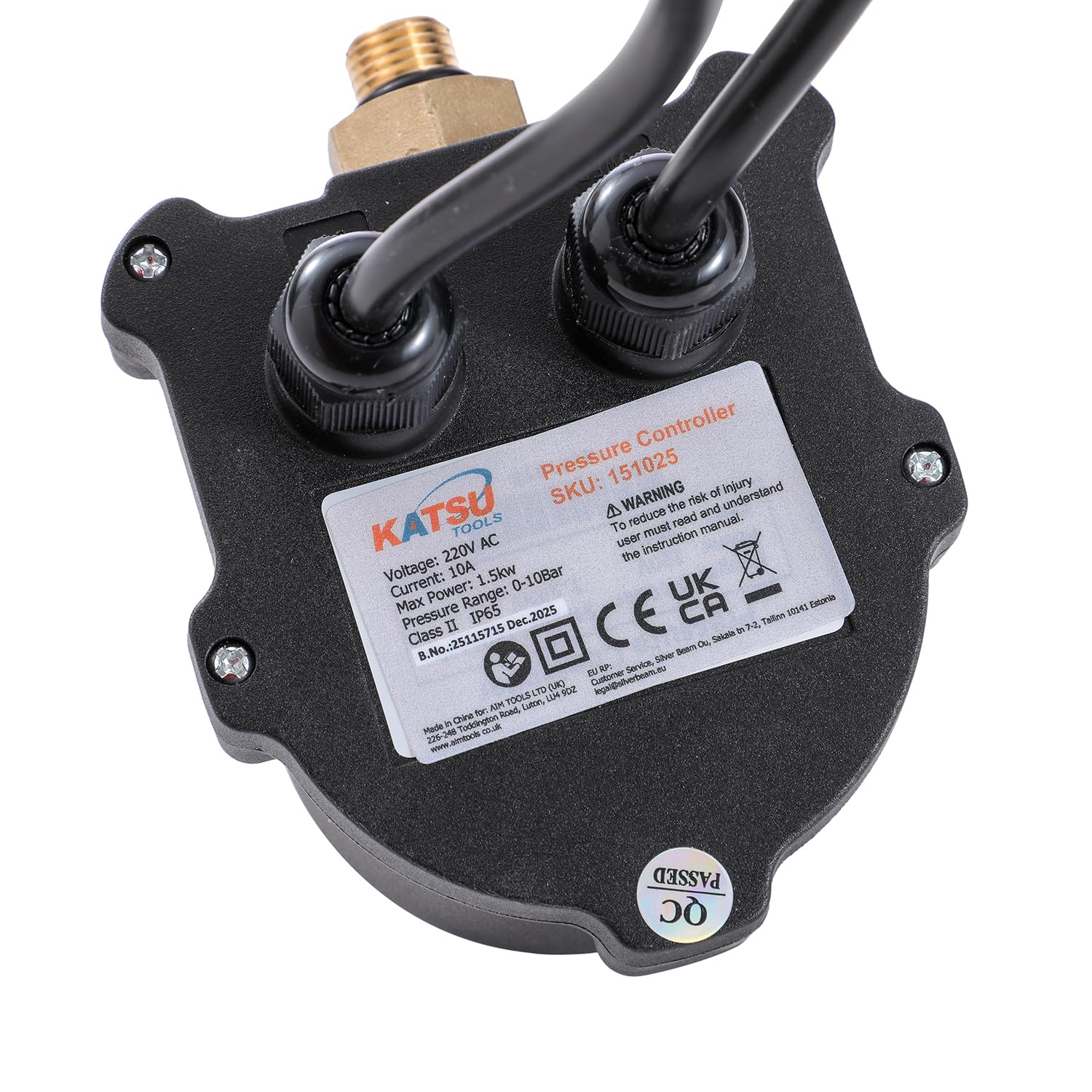

• 5️⃣ Advanced Safety Protection Integrated reverse polarity protection, short circuit protection and water shortage protection to prevent dry running and system damage. Clear wiring configuration: Power (Red & Blue), Output (Black & White).

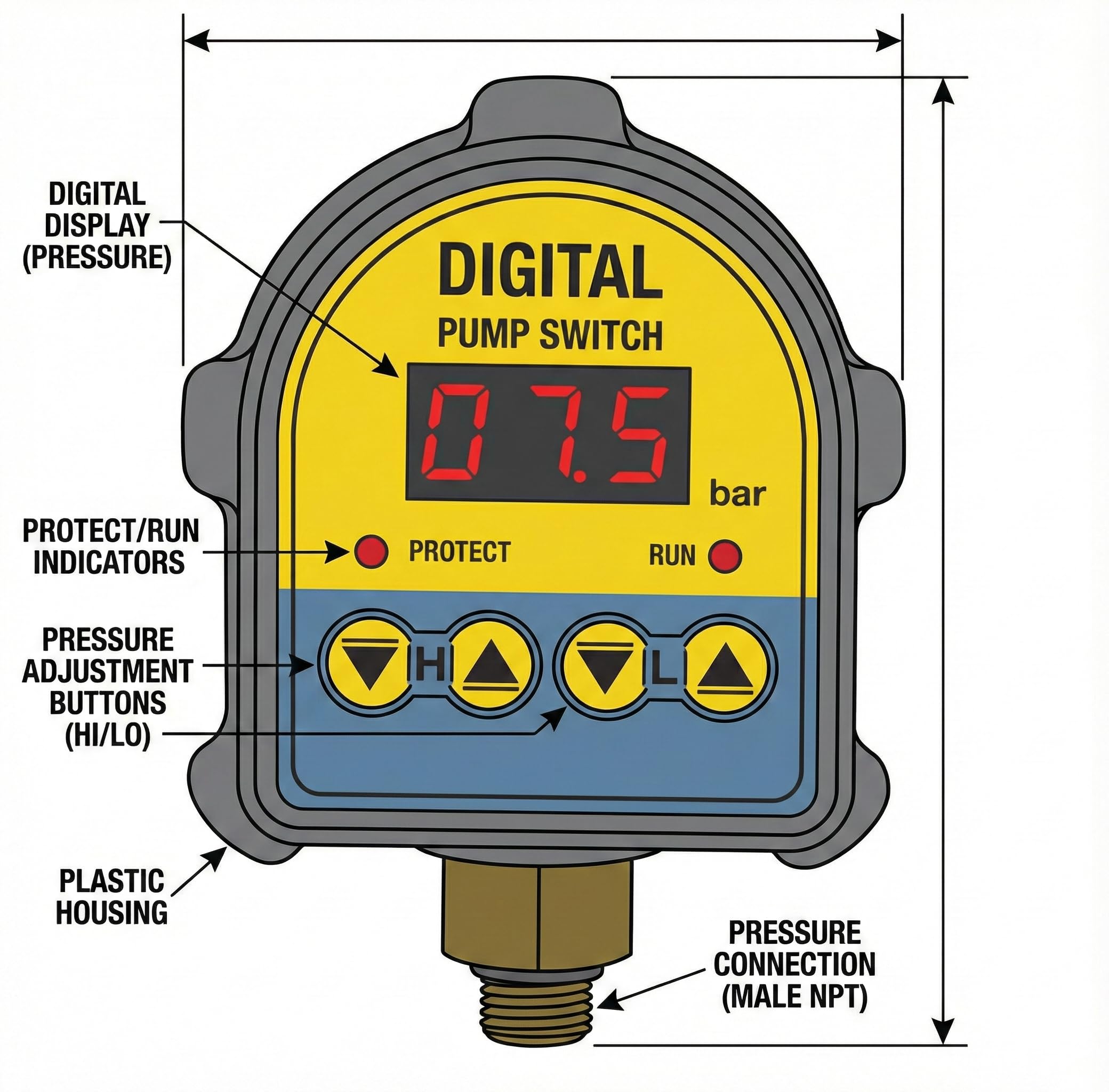

Product Details: Max Working Pressure: 10 Bar Relay Capacity: 220VAC 10A. Overload Capacity: 200%. Frequency: 5 times/second. Temperature range: -20℃ ~ 80℃ Accuracy: Better than 1% FS. Pressure Connection: G1/4. Measuring media: Water/oil/gas. Wires Connection: Power(red and blue),Output(black and white). Protection: Reverse polarity and short circuit protection, Water shortage protection. Reference for setting parameters: 1. Stop pressure H (upper limit) : pump head /10-0.5(such as: 40m head set to 40/10-0.5=3.5). 2. Starting pressure L (lower limit) : 1 floor 1.2, 2 floors 1.5, 3 floors 1.8(add 0.3 for each more floor, the controller is on the first floor). 3. Water shortage pressure F: generally the lower limit starting pressure value -0.5. Default values L1.5, H2.9, F0.6, suitable for most applications. Maximum difference between H and L: 9.5bar Minimum difference between H and L: 0.5bar
