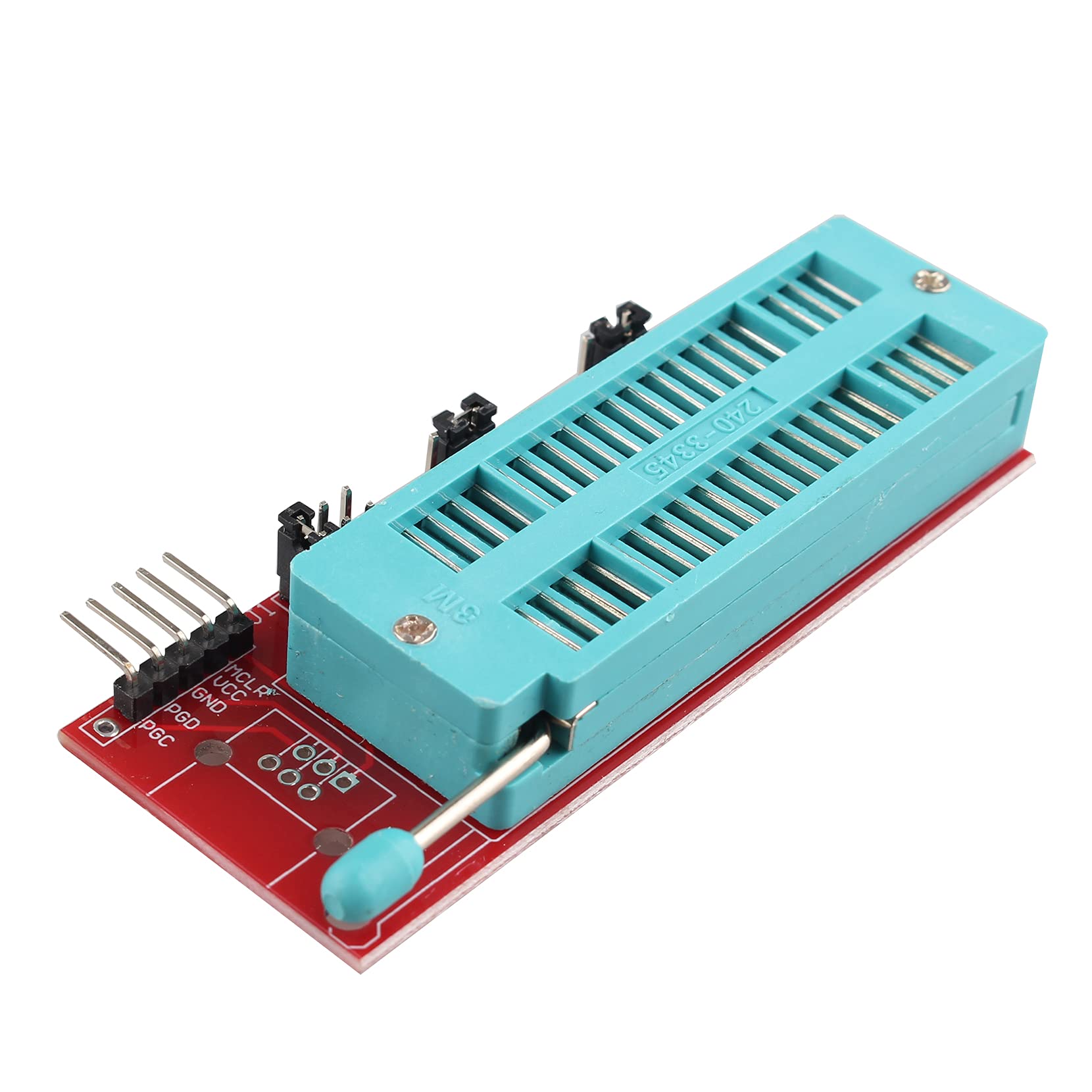

Jopto PIC ICD2 PICKit 2 PICKIT 3 Programming Adapter PICKIT2 PICKIT3 Universal Programmer Seat

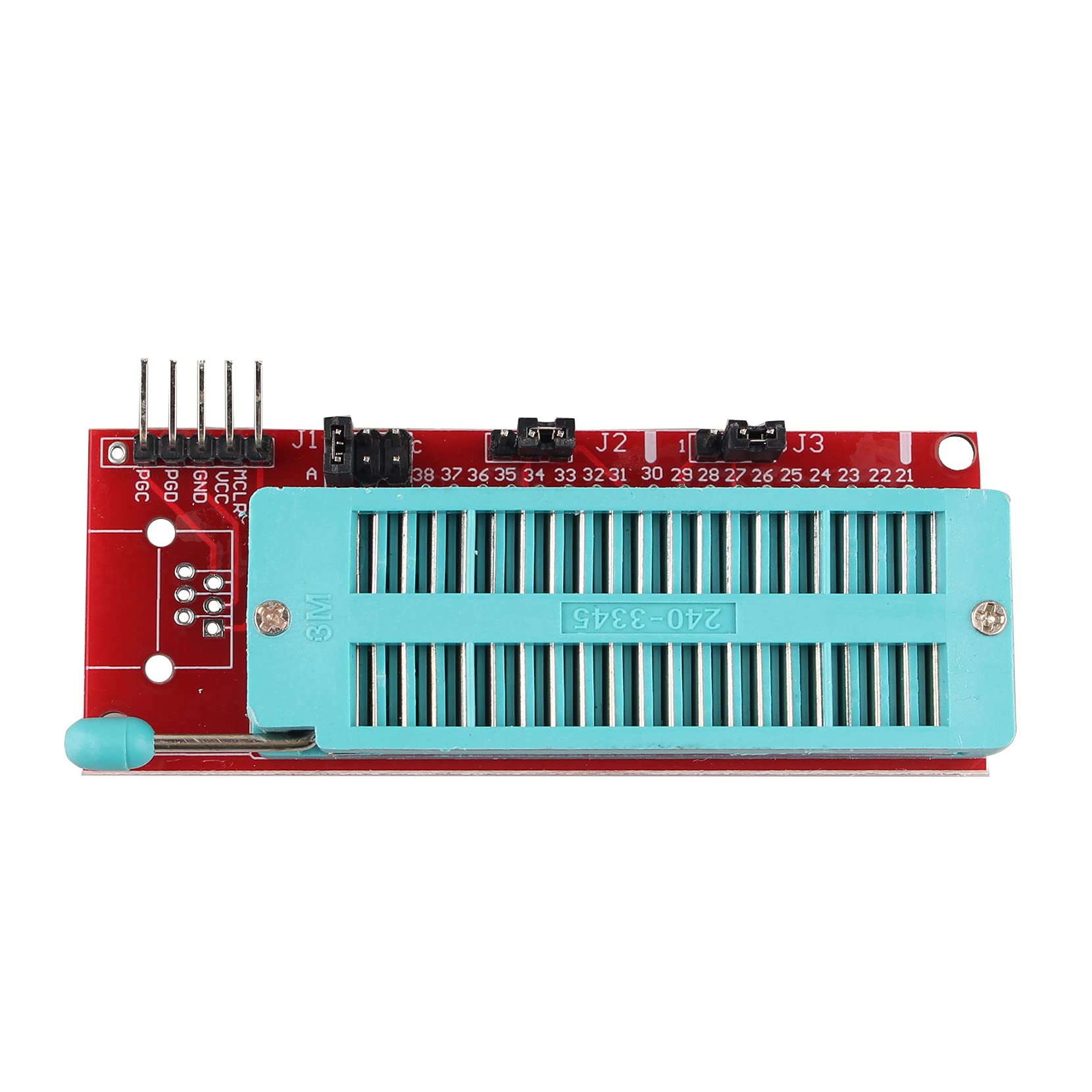

• Installing the microcontroller, 28-pin, 40-pin microcontroller left aligned 28/40P (A) This flag line short-circuit cap on the A position.
• The 8,14,18,20-pin microcontroller aligned on the left 8P/14P/18P/20P flag line (B), shorting cap on the B position.
• The ICD2, KIT2, KIT3 crystal head or 6Pin Block programming connection for programming the programming operation. (Note: a separate program of the seat can not be programmed the chip is programmed functions.)
• The programmer seat can only be used for programming, and cannot be used for hardware emulation.
• The seat supports the following programming microcontroller: PIC16/18XX 40PIN Series devices (except 16F59); PIC16/18XX 28PIN Series devices; PIC16/18XX 18PIN Series devices; PIC 8PIN/14PIN/20PIN series devices

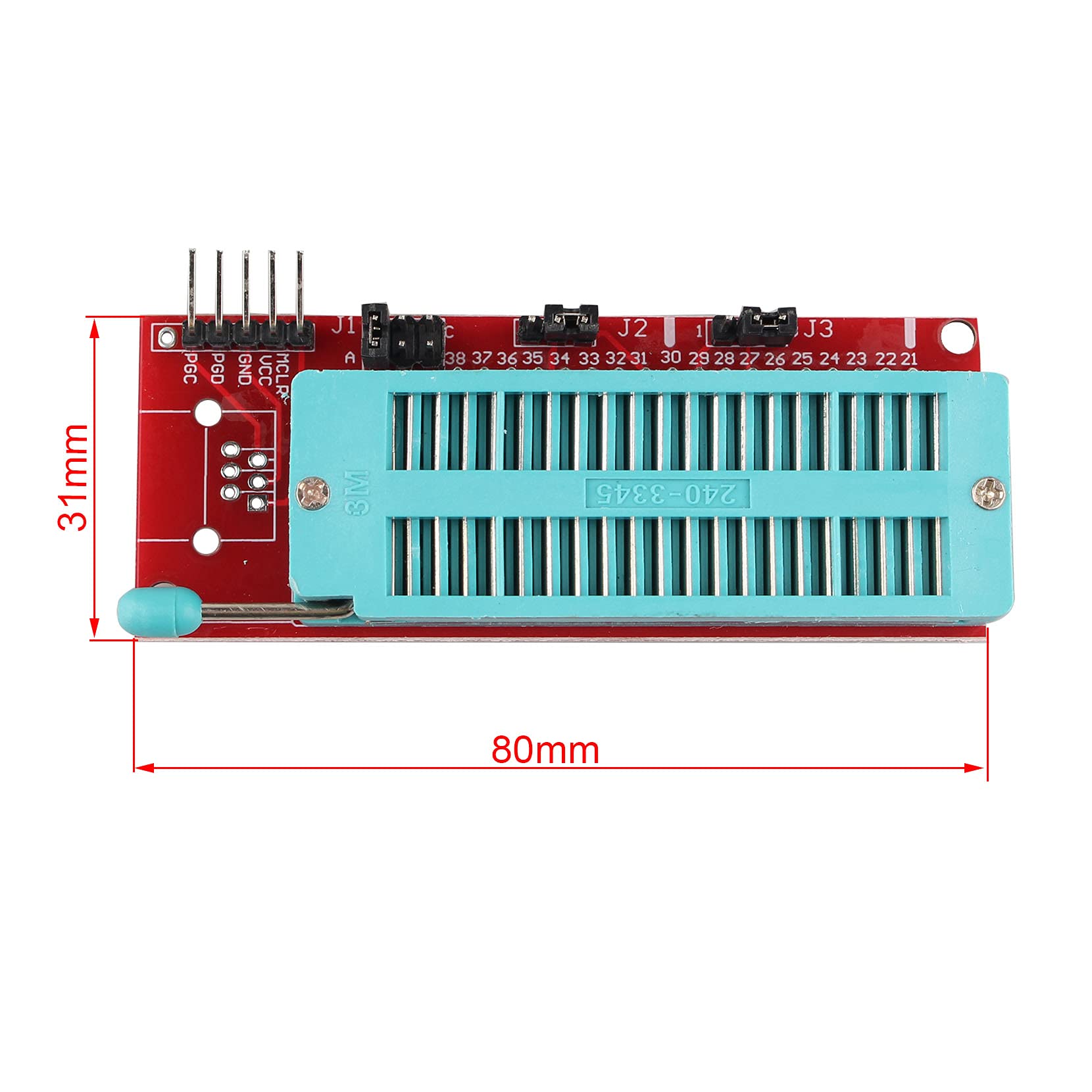

Instructions for use: There are detailed mark on the back of the programming socket where the microcontroller is installed. ICD2, KIT2, KIT3 are connected to the programming socket through 5Pin for programming and programming operations. This programming socket can be used in conjunction with ICD2, KIT2, and KIT3. Please note: The programming socket can only be used for programming and cannot be used for hardware emulation. This programming socket supports the following microcontrollers: PIC16/18XX 40PIN series devices (except 16F59) PIC16/18XX 28PIN series devices PIC16/18XX 18PIN series devices PIC 8PIN/14PIN/20PIN series devices Specification: Model: PIC ICD2 PICKit 2 PICKIT 3 Programming Adapter Size: 80 × 31 × 15 mm Weight：30.8 g Package Content: 1 × PIC ICD2 PICKit 2 PICKIT 3 Programming Adapter
