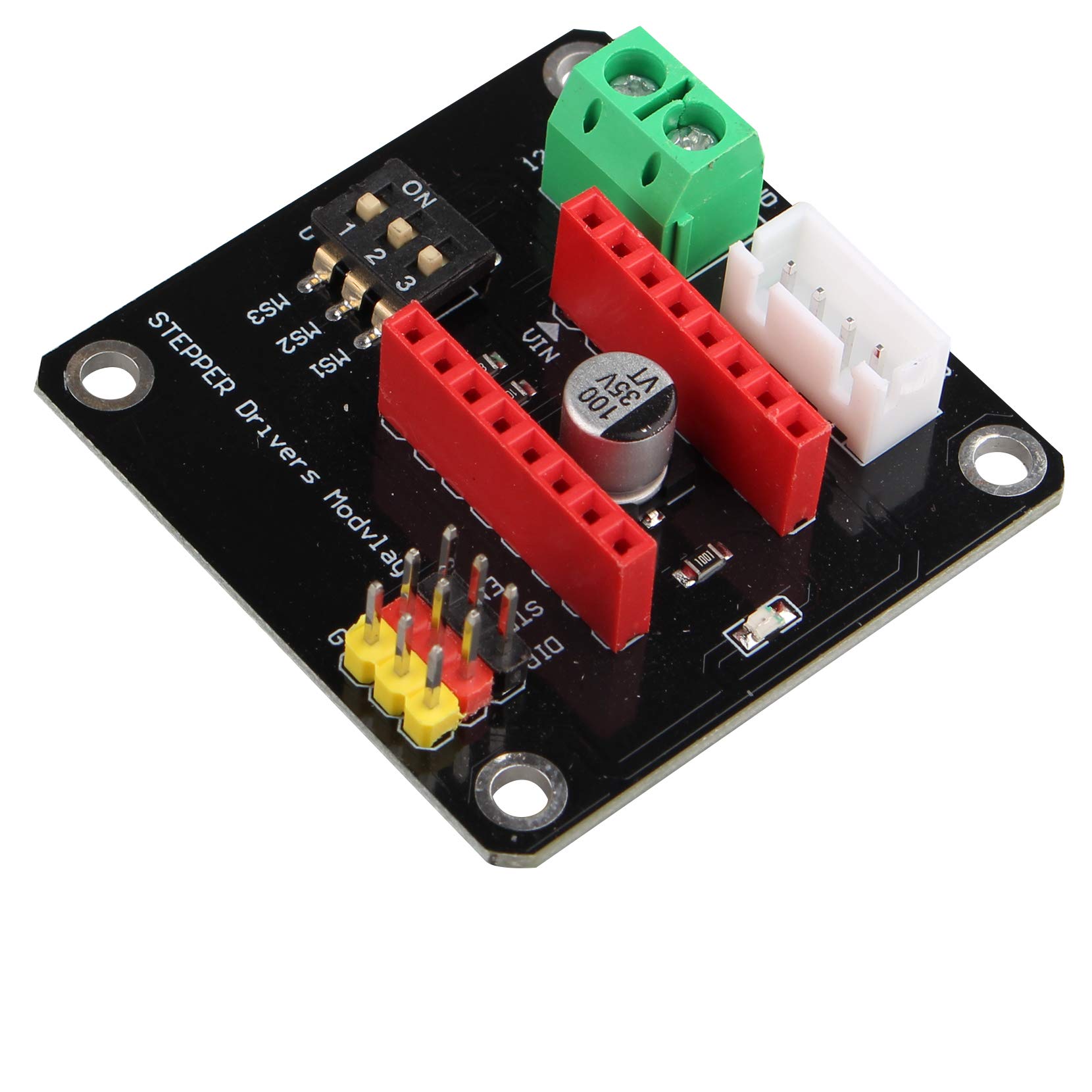

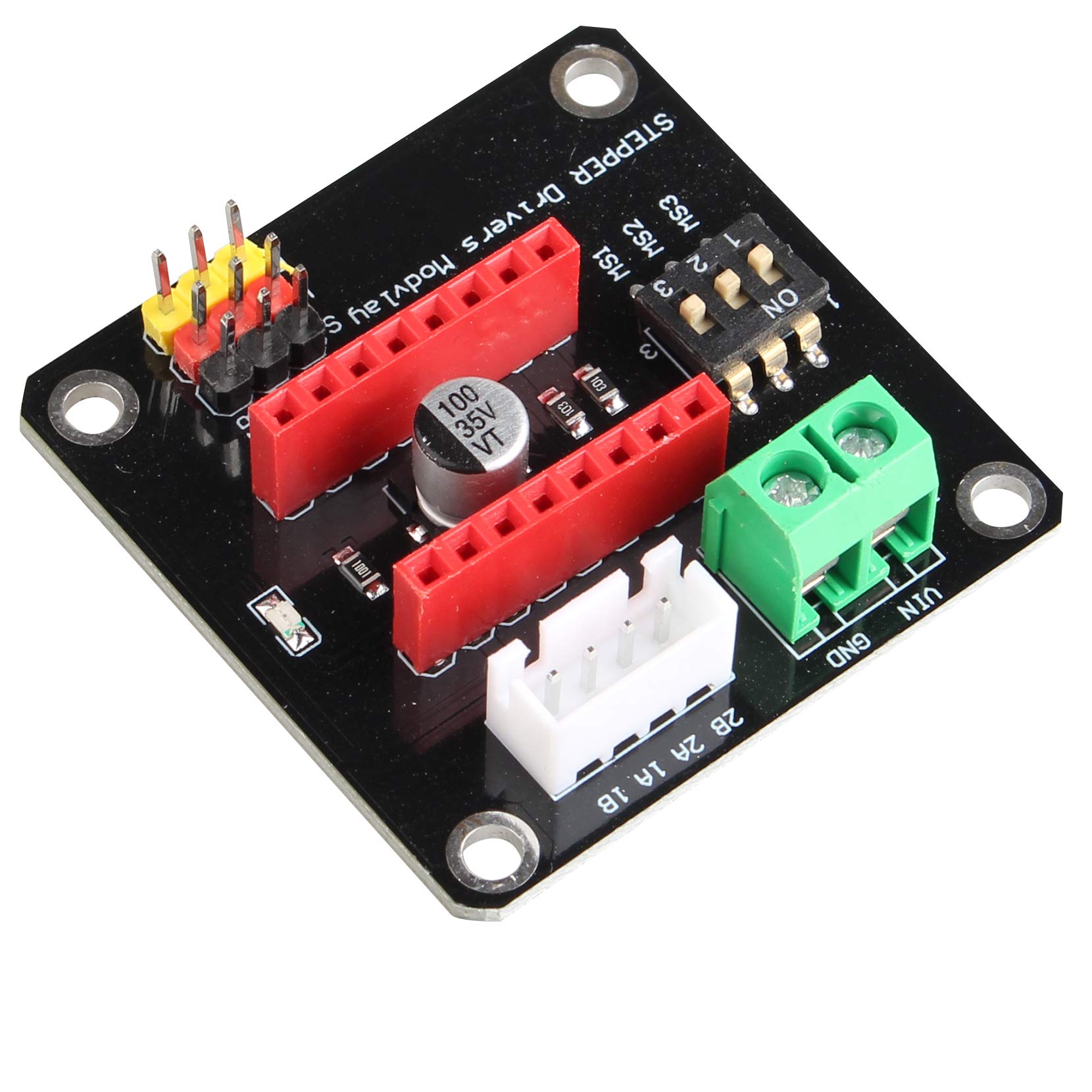

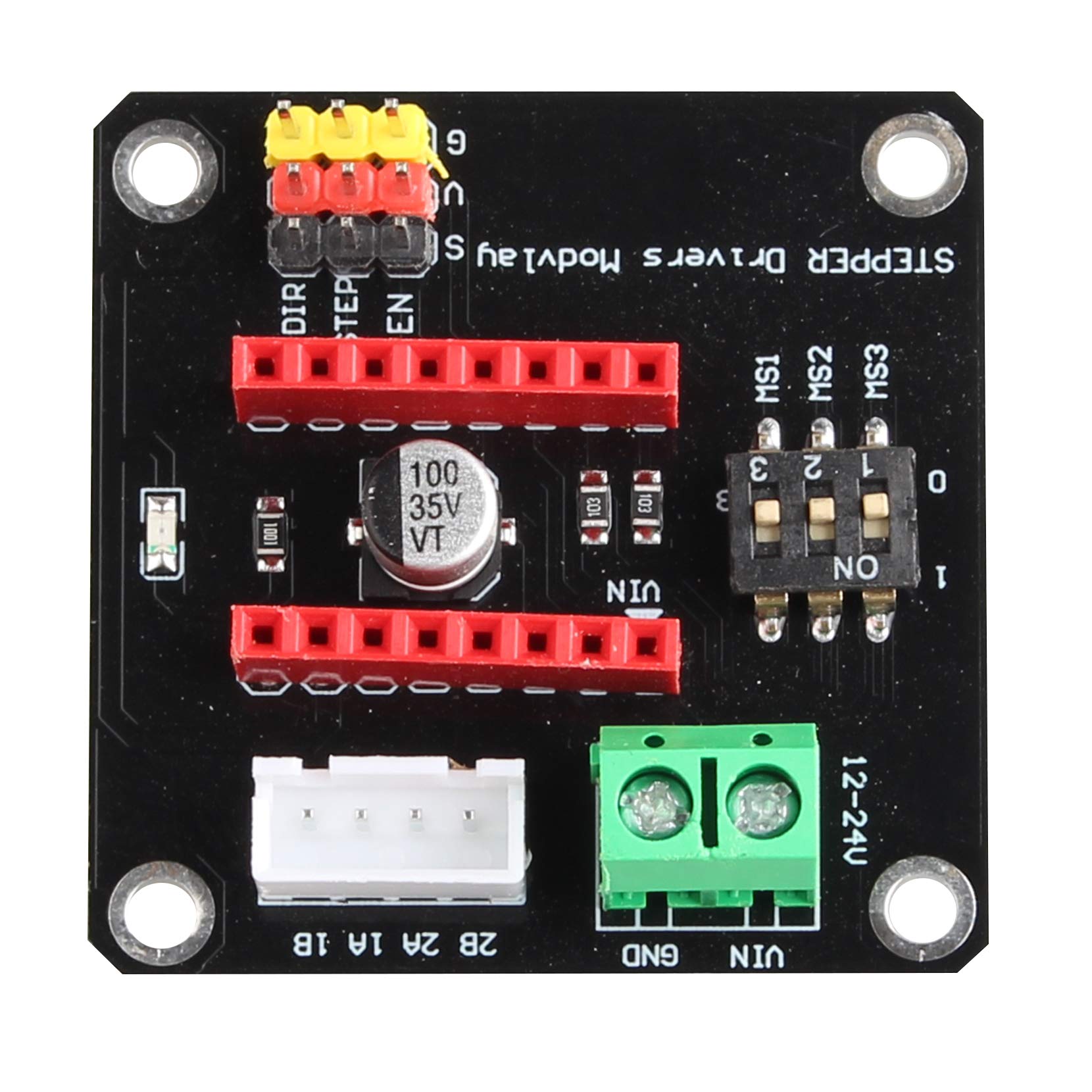

Jopto 2Pcs 3D Printer A4988 DRV8825 42 Stepper Motor Driver Control Expansion Board Shield Module DRV8825 / A4988 Compatible with Arduino UNO R3 DIY Kit

• On-board DIP switch, you can easily adjust the drive segments. Port: digit / Suitable for A4988, DVR8825.
• Terminal power connector for easy connection drive power. Interface: Direction, enable, speed.
• Compatible with 12 / 24V drive scheme. Logic Voltage: 5V / Input voltage: 12-30V.
• Suitable for 42 stepper motor drive, 3D printers and DIY.
• The rotation enable, direction, and speed control interfaces are all led out and are compatible with the Arduino3P interface.

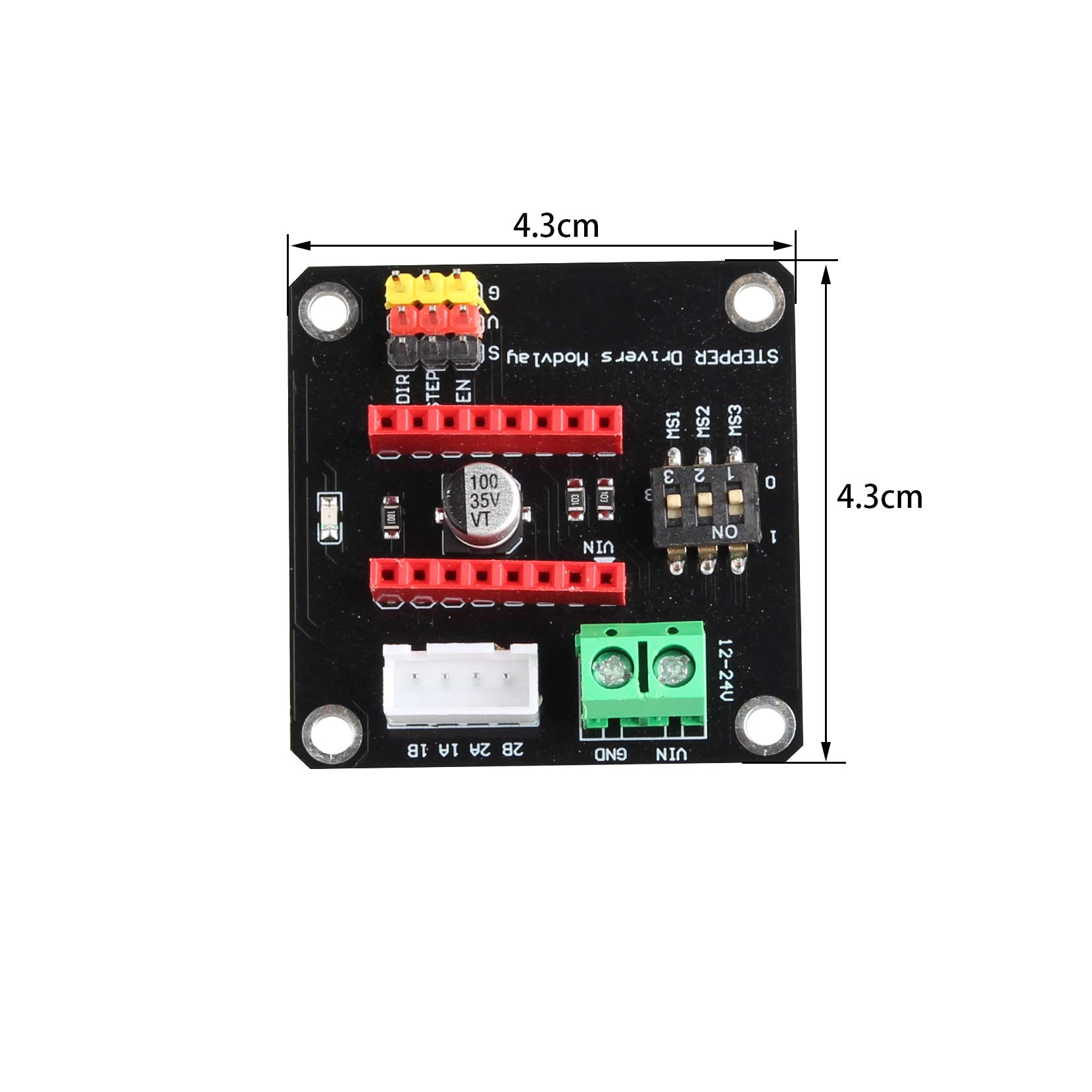

Features: Suitable for 42 stepper motor drive, 3D printers and DIY. On-board DIP switch, you can easily adjust the drive segments. Terminal power connector for easy connection drive power. Compatible with 12 / 24V drive scheme. Turn to enable, direction, speed control interface all leads, compatible with Arduino3P interface. Fixed: 3mm Pitch: 1400 x 1400mil (35.56 x 35.56mm) Logic Voltage: 5V Input voltage: 12-30V Ports: Digital Interface: Direction, enable, speed Applicable Module: A4988, DRV8825 Material: Plastic + Metal Size: 43 x 43 x 14mm Weight: 10.9g Package Content: 2 x 42 Stepper Motor Drive Expansion Board
