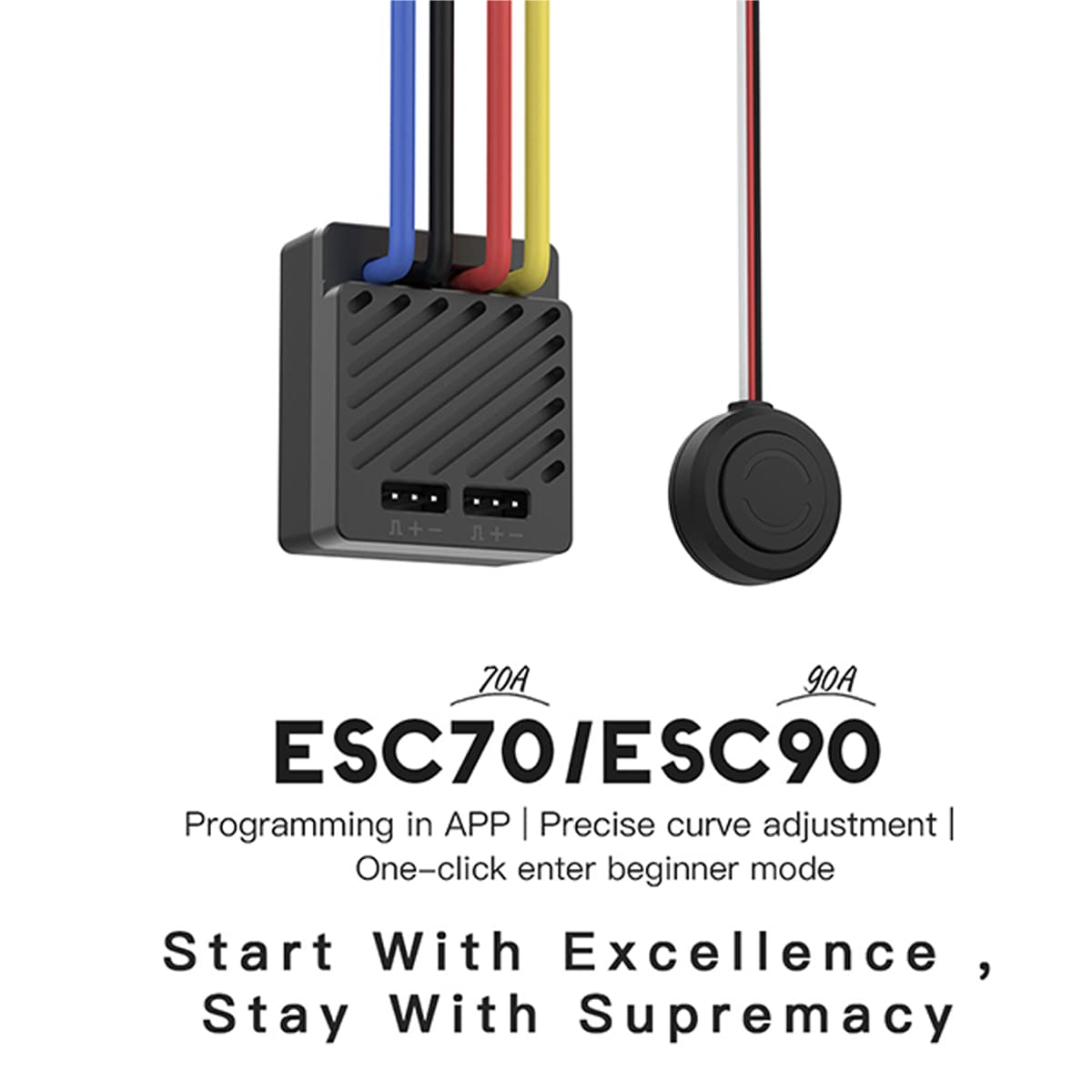

ISDT RC Electronic Speed Controller,ESC70 WP 1080 70/120A Brushed Motor Electronic Speed Controller,Smart ESC with Brake Waterproof for RC Car 1:10 1:8 Model(2-3S LiPo/6-8S NiMH)

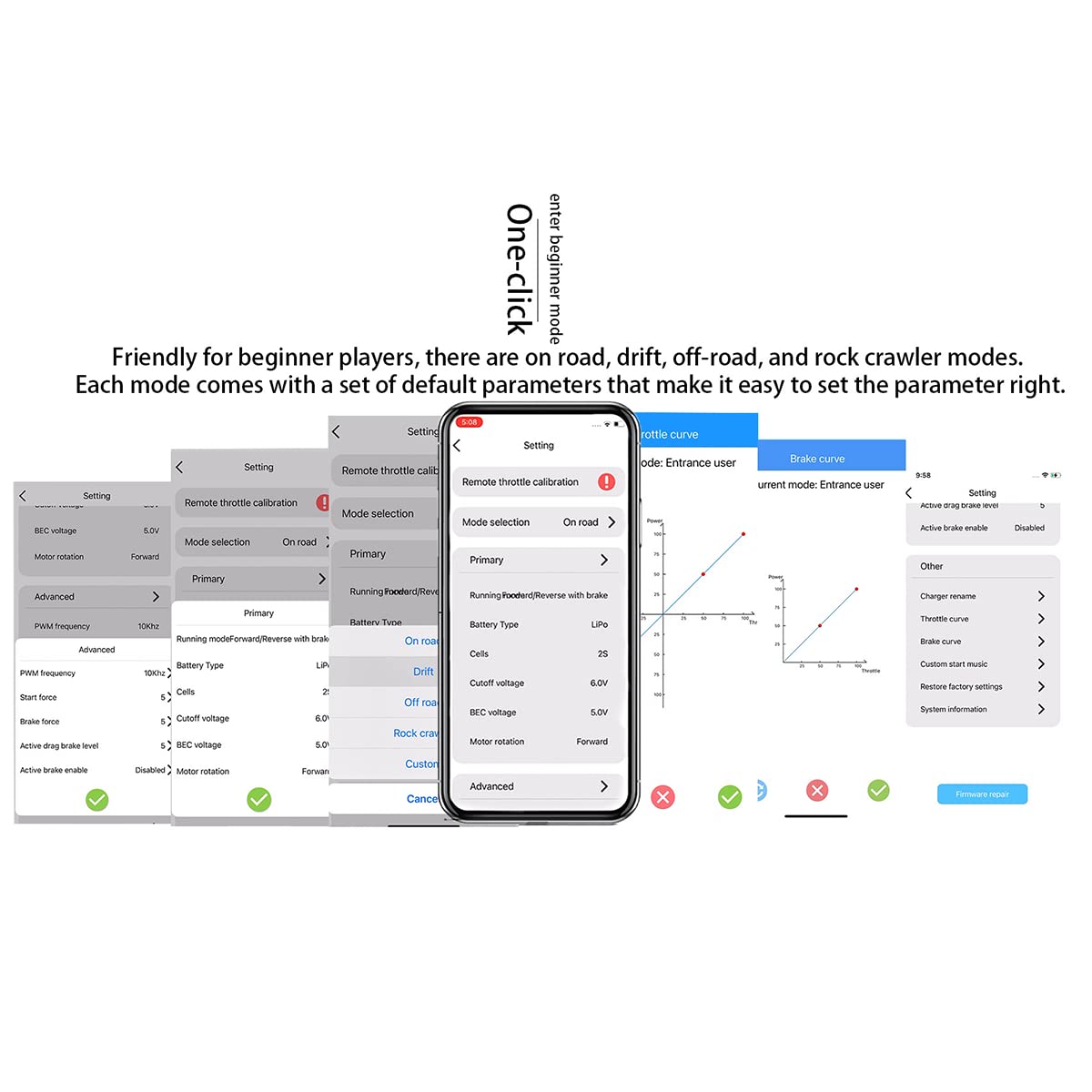

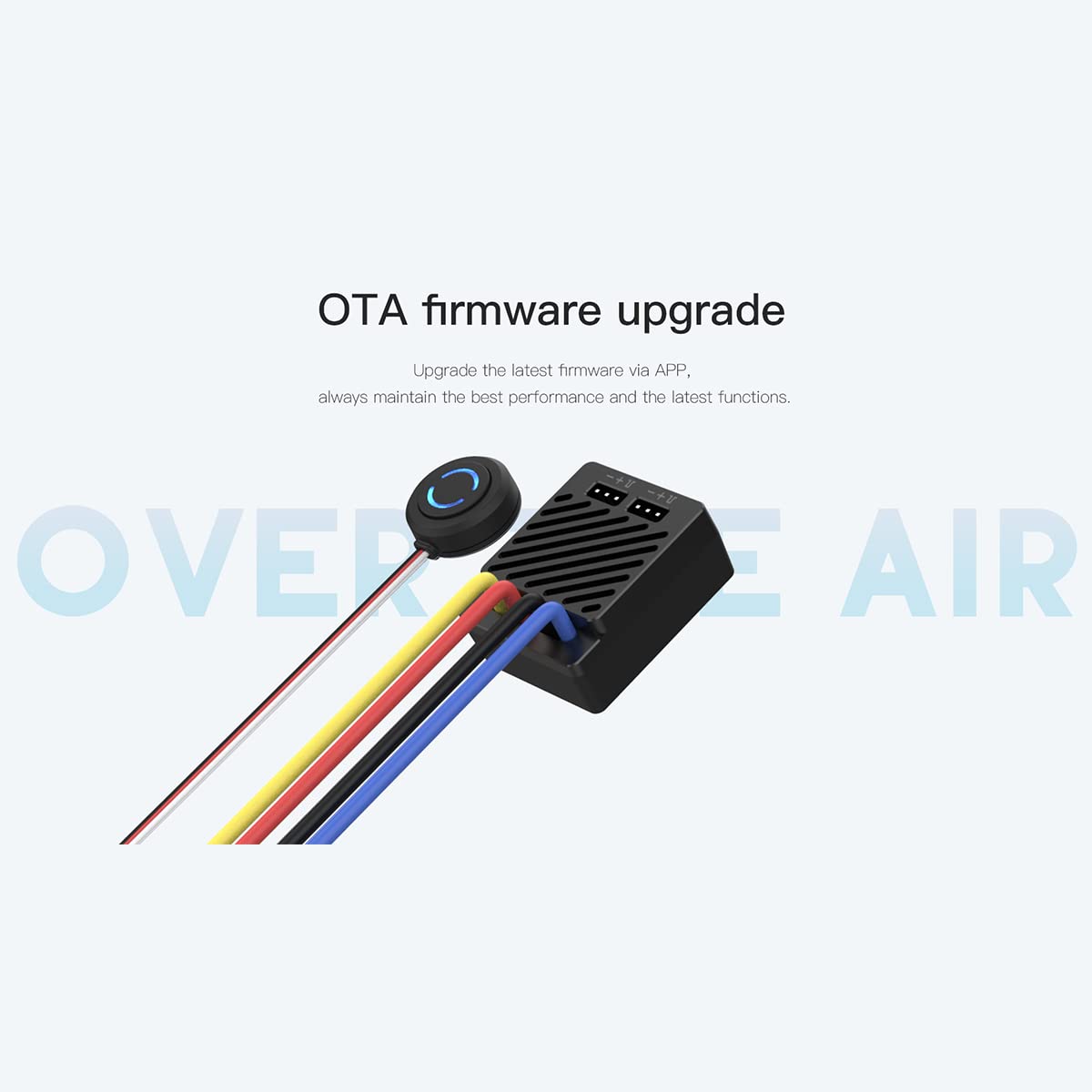

• 【Bluetooth connection function】 You can establish a wireless connection with your mobile phone without extra accessories. The mobile App has multiple programmable parameter settings, real-time data query, OTA upgrade and other operations. It is powerful, convenient and easy to use.

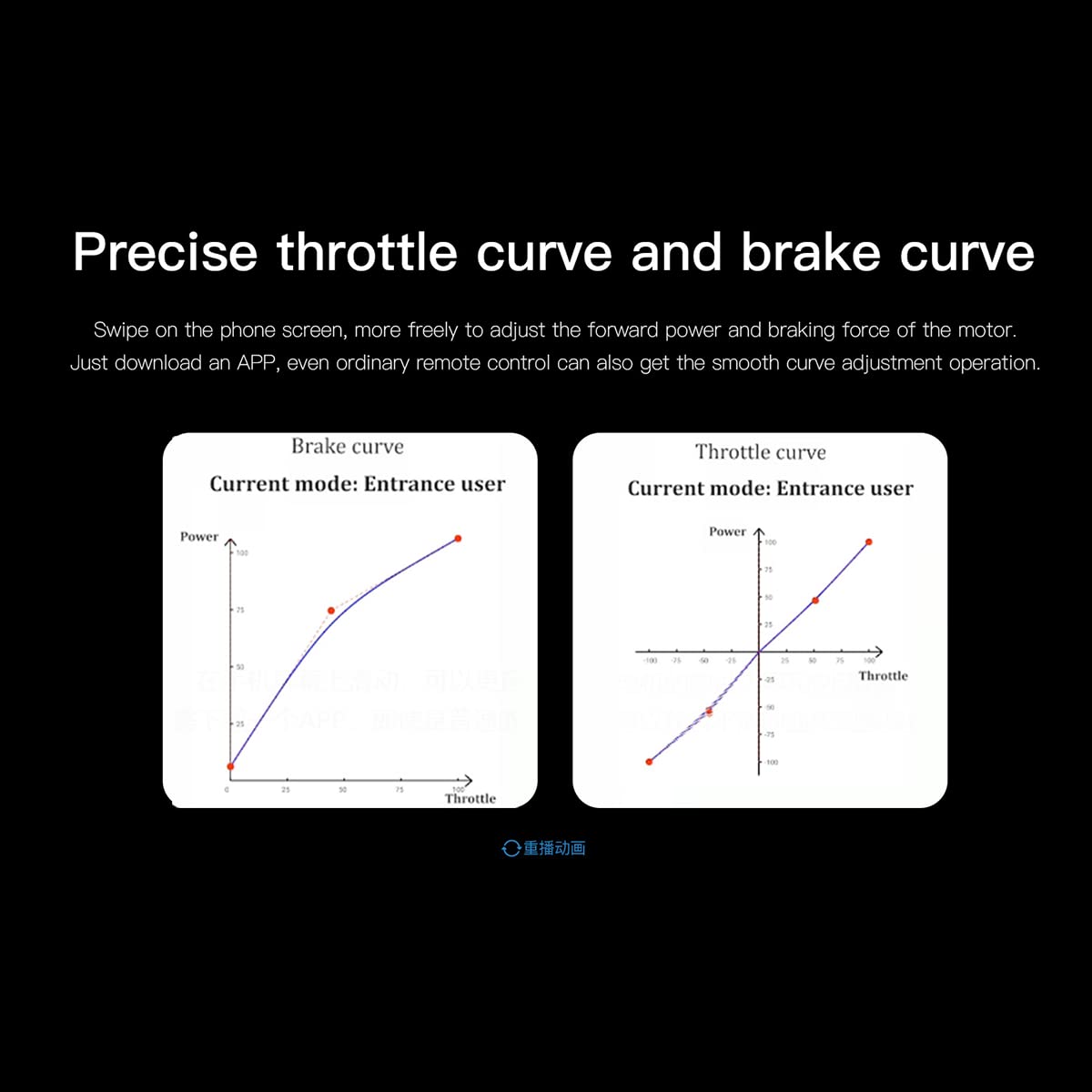

• 【Precise adjustment】 0.1V step adjustment, curve adjustment of brake and accelerator parameters, allowing users to be more handy and manipulative, and accurately adjust the forward power and braking force of the motor,specially designed for RC Crawler that characteristics operating on toughest terrain.
• 【Advanced BEC Function】Built-in BEC with adjustable output functions,outputs up to 3A continuous current and supports 5V to 7.5V via ISD Go APP. Supports various powerful RC applications and high voltage servos.
• 【Multiple protection functions】battery low voltage protection, over temperature protection, throttle out of control protection, BEC overvoltage and undervoltage protection.
• 【Strong waterproof performance】Fully waterproof design for all conditions. (Note: Please clean and maintain after use to avoid corrosion)

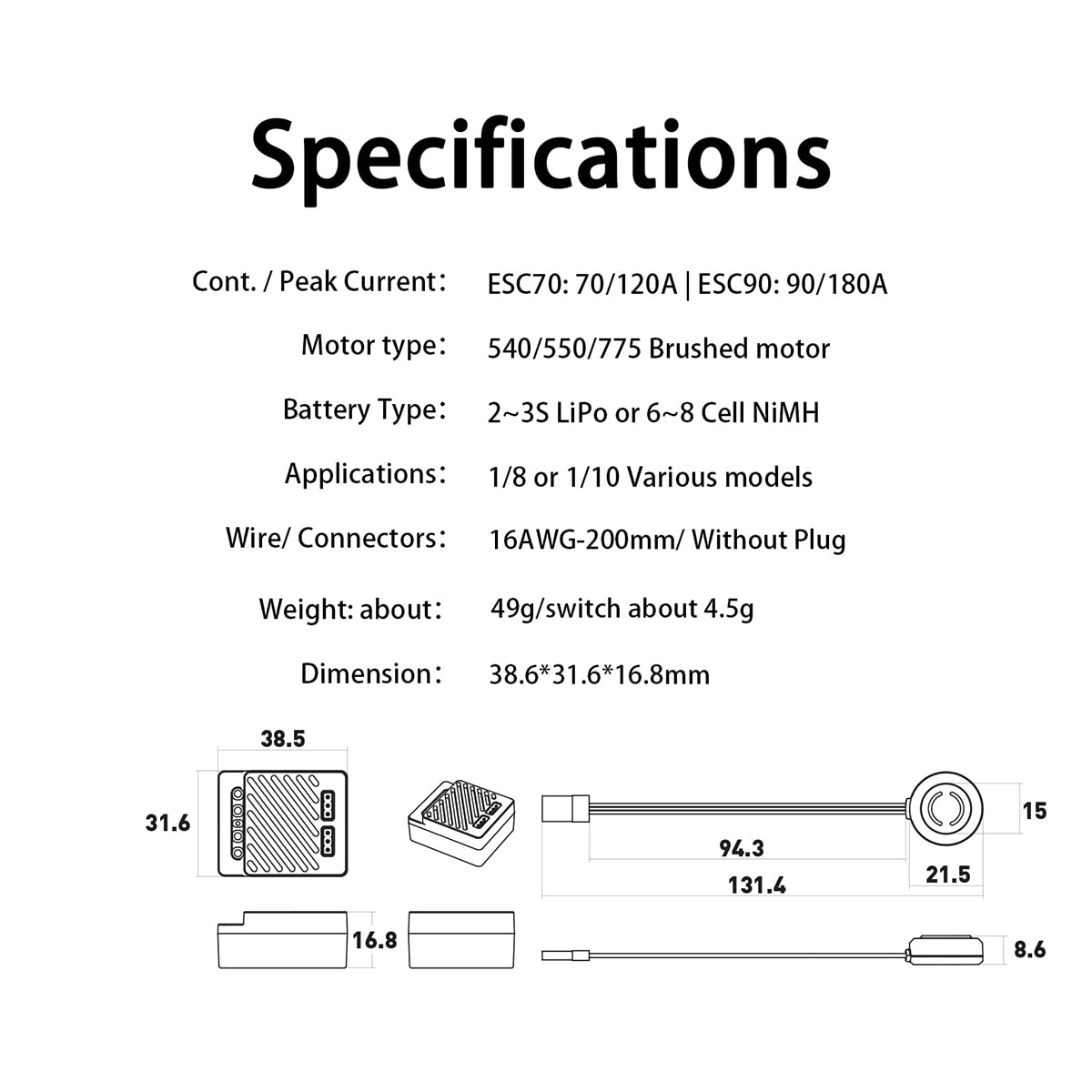

Product description Item Brand:ISDT Model:ESC70 Cont./Peak Current:70/120A Motor Type:540/550/775 Brushed Motor Application:1/8 1/10 Support batteries:Lipo(2-3S)/NiMH(6-8S) BEC Output:3A amp rating,5V-7.5V Switch (Stepping 0.1V) Wire/Connectors:16AWG 200mm / No Explanation for LED Status Power On:Short press once-white LED flashes Standby:Green LED on Error:Red LED flashes Bluetooth to be connected:Long press 5 seconds before use to enter setting Blue LED flashes Bluetooth Connected: Blue LED ON Power Off: Long press once Package included: 1X 70A ESC Directions 1. Take the ESC out of its packaging. 2. Connect the ESC to the motor and receiver (using the provided 16 AWG, 200 mm cables). 3. Connect the battery to the ESC. 4. Turn on the transmitter and receiver. 5. Use the transmitter to control the speed and direction of the RC vehicle. 6. To adjust the ESC parameters, use the ISD Go app via Bluetooth.
