InLine 57830I HDMI 4x4 Multi View Matrix/Video Wall Switch, 4 Inputs to 4 Outputs, Full HD

• HDMI matrix switch with 4 inputs and 4 outputs
• 6 modes for viewing: Matrix, PIP (picture in picture), PAP (picture to picture), Quadview, Windows mode and video wall
• HDMI - 4 inputs and 4 outputs: maximum resolution: 1920 x 1080 (FullHD)

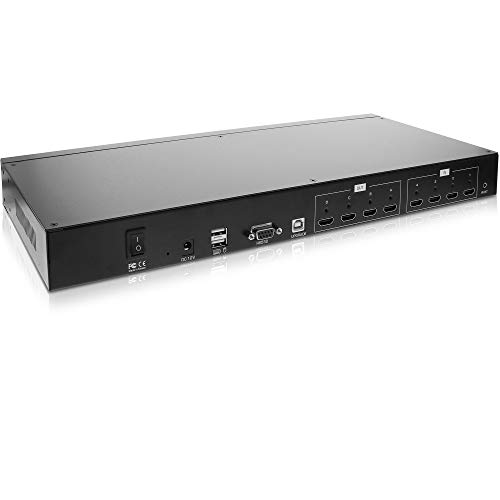

• 2 USB sockets for connecting mouse and keyboard, RS-232 connector (female), 3.5 mm socket for IR receiver
• Operating temperature: 0-40°C, storage temperature: -20° to +60°C, 0-90% relative Humidity
• Dimensions: 437 x 205 x 43 mm (19 inch/1U) with mounting brackets
• External power supply 12 V DC

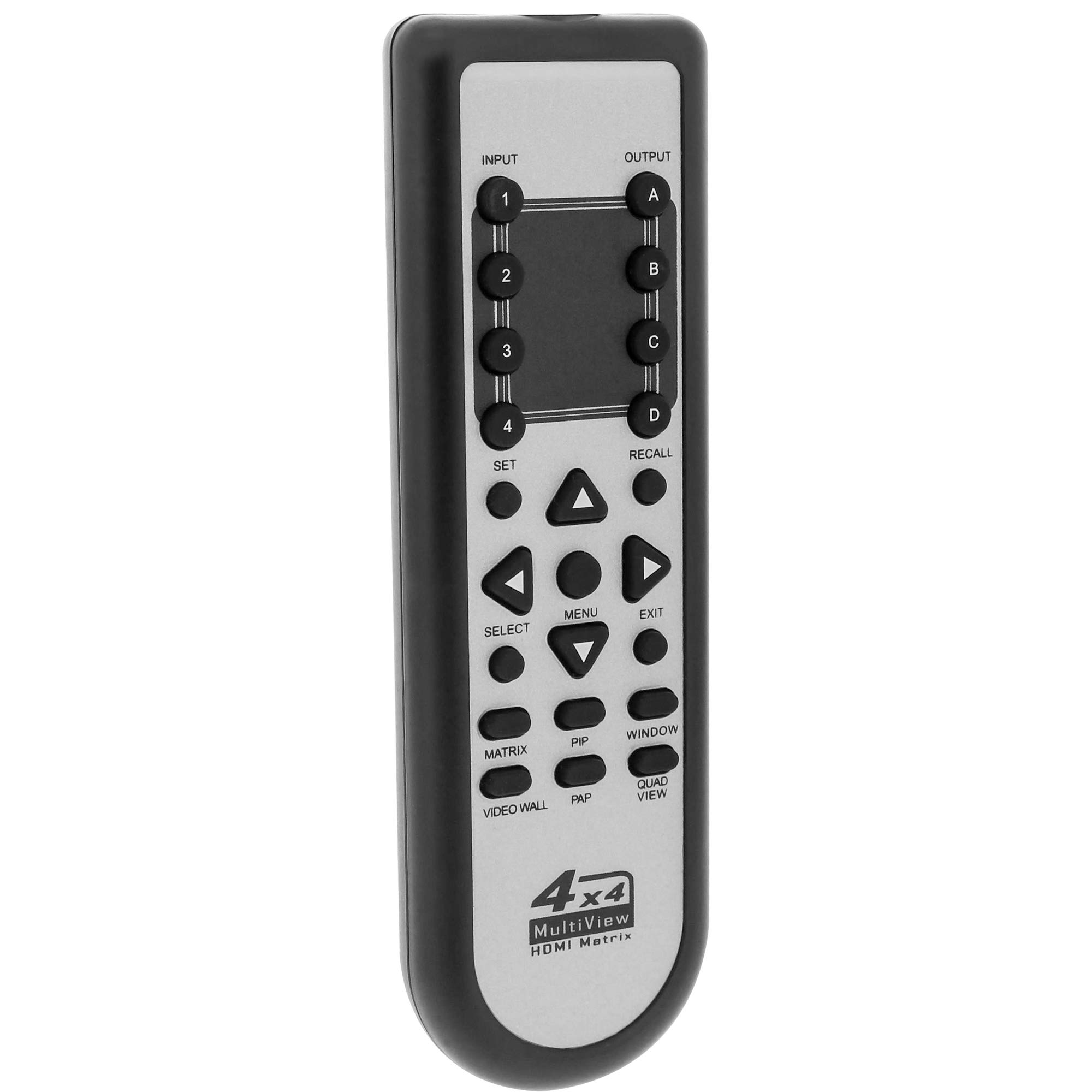

The InLine® 4x4 Multi-View HDMI Matrix distributes 4 HDMI inputs individually to 4 HDMI outputs, while the assignment between the image source and the display on the display is very individually adjustable, it can even be displayed on any source on a 2x2 video wall. The six display modes are: Matrix, PIP (Picture to Picture), PAP (Picture to Picture), Quadview, Windows Mode and Video Wall. In matrix mode, 1-4 sources can be output on 1-4 displays. PIP maps a source as a small image within another source. Windows Mode displays all 4 window-style sources simultaneously on the displays. Quadview mode shows the 4 sources in windows arranged next to each other on all four displays. The PAP forms a large source on a display, the other 3 sources small next to it. The video wall mode stretches the signal of a source on 4 displays arranged as a video wall (2x2) so a display of 1920x1080 plugged into 3840x2160 is possible. The operation of the Matrix switch can be operated via the buttons on the front of the device, via an IR remote control, via a mouse/keyboard (via USB) or via RS-232. The switch has a 19 inch format and can be easily accommodated with the installation brackets in network cabinets. Up to eight individual presets can be programmed, which can be accessed with just 2 buttons. An OSD menu helps to display the source and programming. HDMI matrix switch with 4 inputs and 4 outputs 6 modes for displaying: Matrix, PIP (picture to picture), PAP (picture to picture), Quadview, Windows mode and video wall HDMI - 4 inputs and 4 outputs: maximum resolution: 1920 x 1080 (FullHD) 2 USB sockets for connecting mouse and keyboard, RS-2. 32 connection (female), 3.5 mm socket for IR receiver, operating temperature: 0-40°C, storage temperature: -20° to +60°C, 0-90% rel. Humidity dimensions: 437x205x43mm (19" / 1U) with mounting brackets External power supply 12V DC
