Electronic Ruler Pull Rod Displacement Sensor, IP67 Level, Injection Molding Stainless Steel Linear Position Sensor, Universal Hardware Parts(KTC-300)

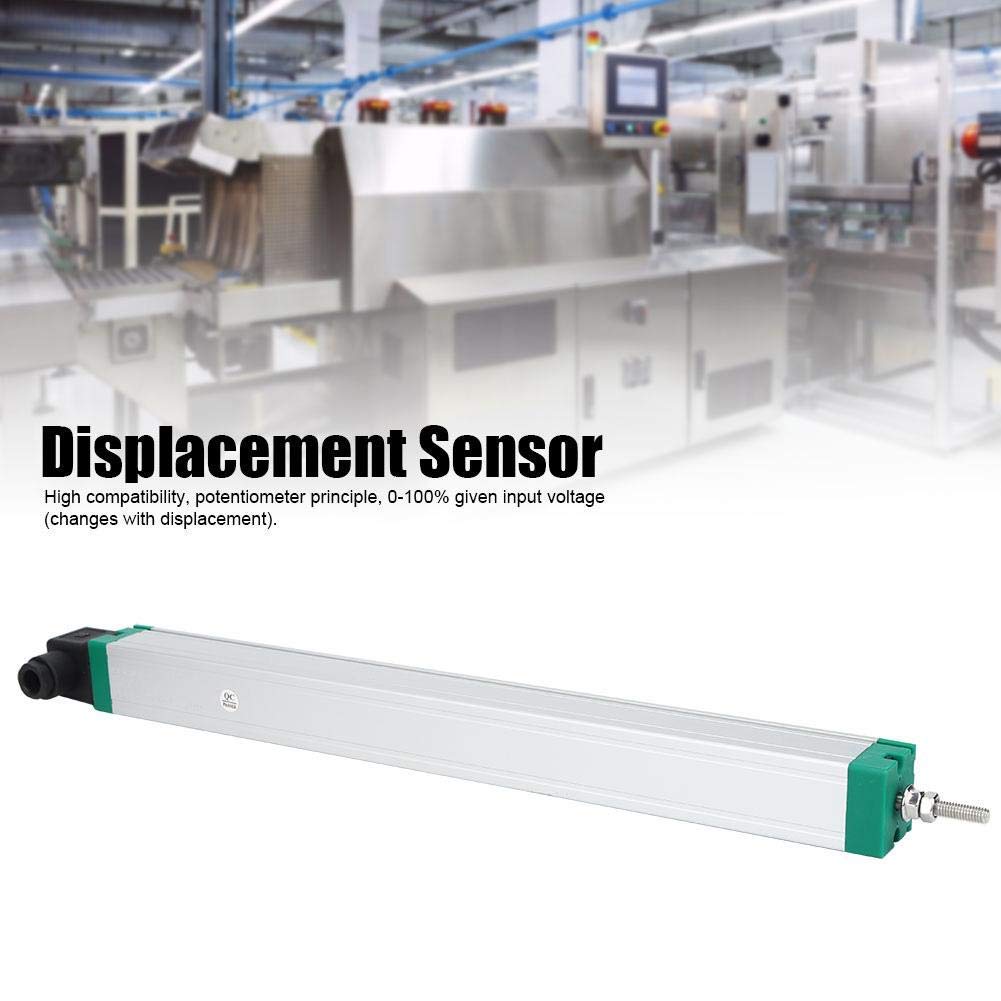

• 【Potentiometer Principle】The sensor has high compatibility, adopts the potentiometer principle, and will change with displacement when the given input voltage is 0-100%, with stable performance and fast response.
• 【Convenient】This electronic ruler adopts plug type, convenient and practical, no noise output, smooth engineering rod, resolution: Infinite uninterrupted analysis, repeatability: 0.01mm.
• 【Good Performance】This displacement sensor supports high-definition sound quality, is compatible with all devices, has a wide range of uses, and has strict performance requirements through the precise processes of many experts.

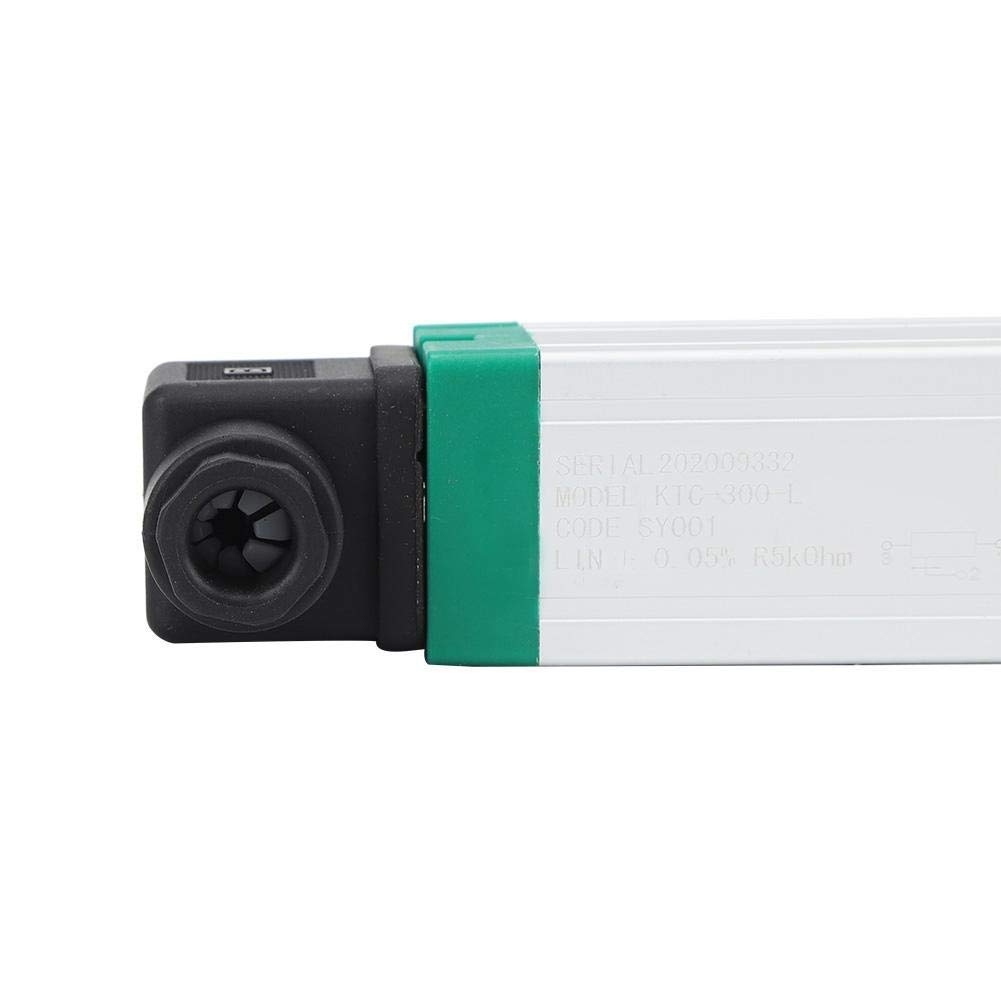

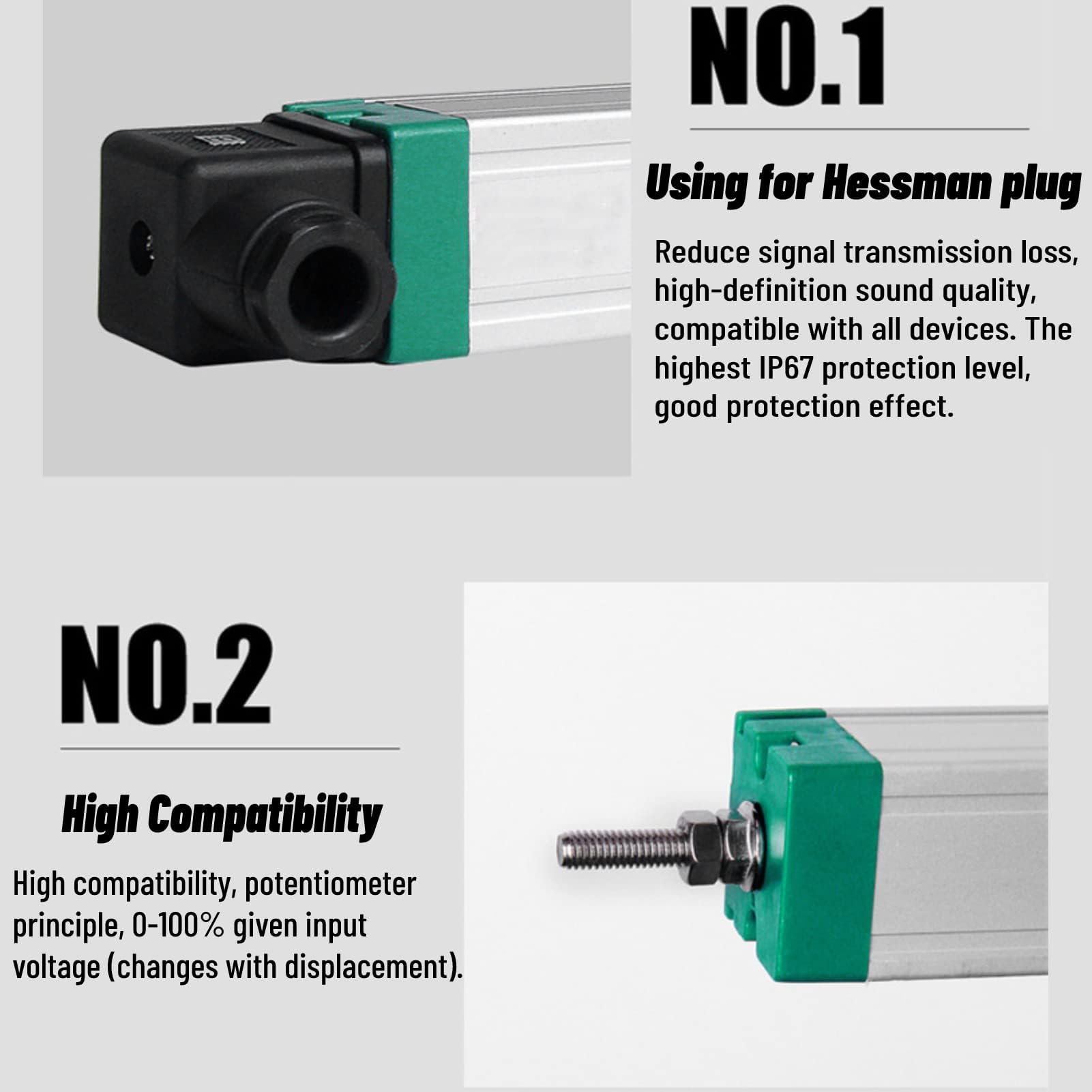

• 【Feature】The injection molding electronic ruler adopts plug for Hessman to resist oxidation, corrosion, and durability; the displacement sensor is exquisite workmanship, which can reduce signal transmission loss.
• 【Safety】The product is made of stainless steel, not easy to rust, long service life. The highest IP67 protection level, good protection effect, you are safe to use.

Specification: Item Type: Displacement Sensor Optional Models: KTC-100, KTC-300 Material: Stainless steel Electrical Stroke: Range + 3mm Resolution / Resolution: Infinite uninterrupted analysis Repeatability: 0.01mm Normal Working Current Of Sliding Brush: ≤10μA The Maximum Current Of The Sliding Brush When Causing The Fault: 10mA Maximum Allowable Working Voltage: 42V Effective Temperature Coefficient Ratio Of Output Voltage To Input Voltage: Usually 5ppm / K Insulation Resistance (500VDC, 50Hz): ≥10MΩ Insulation Strength (500VAC, 50Hz): ≤100μA Shell Length (A): Range + 78.5mm Mechanical Stroke (B): Range + 8mm Maximum Load Of Pull Rod: 50KG Work Force: Horizontal direction <10N Vertical direction≤10N Vibration Resistance Standard: 5 ... 2000Hz, Amax = 0.8mm, amax = 20g Shock Resistance Standard: 50g, 11ms Operating Temperature Range: -60 ... + 150 ℃ Life: > 100 × 10 ^ 6 times Maximum Operating Speed: 10m / S, maximum operating acceleration 10m / s² Level: Highest IP67 (DIN40500 / IEC529) Package List: 1 x Displacement Sensor 1 x Plug 3 x Accessories 4 x Screw
