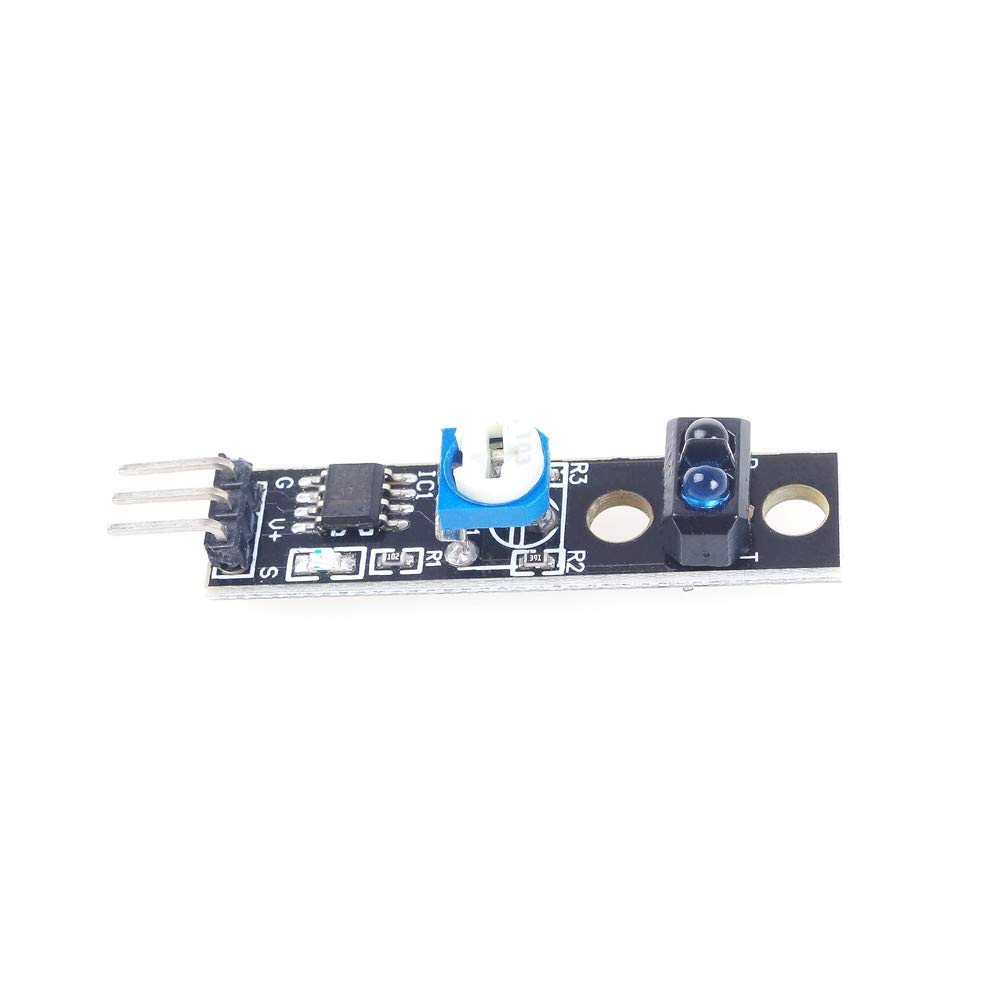

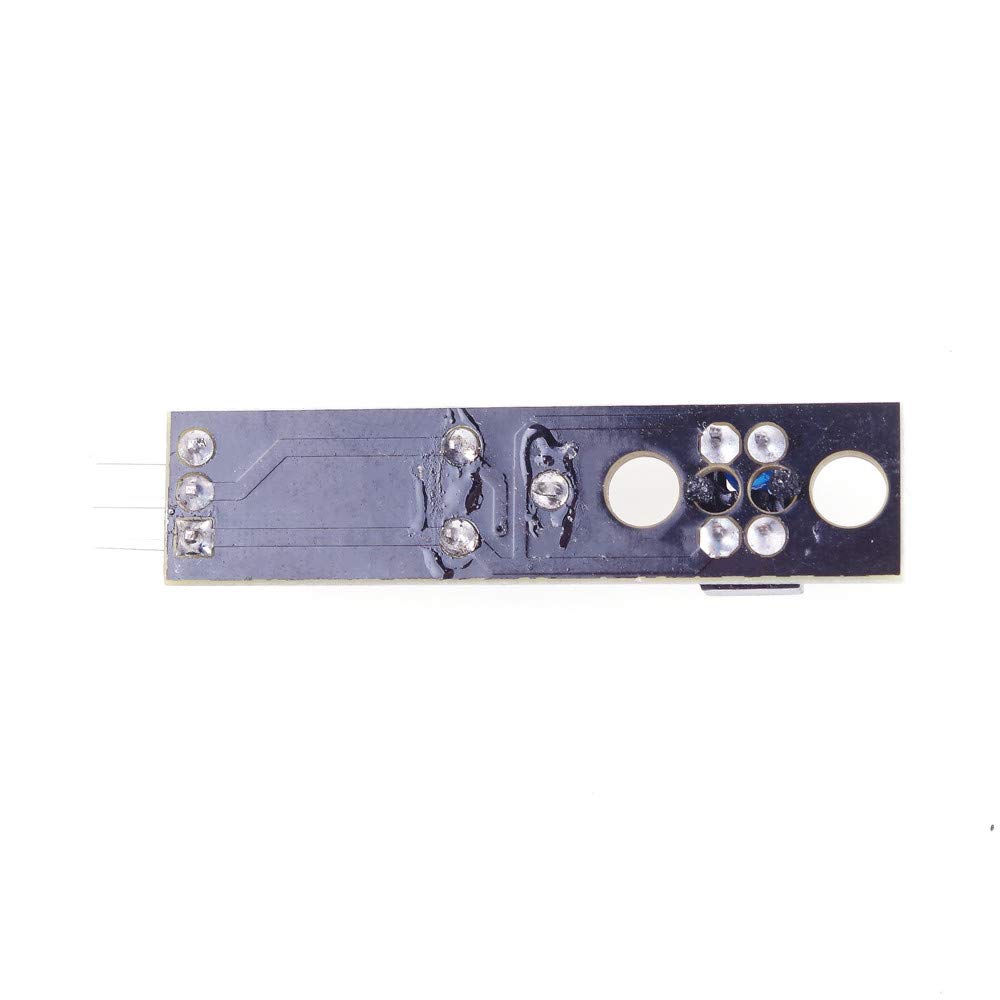

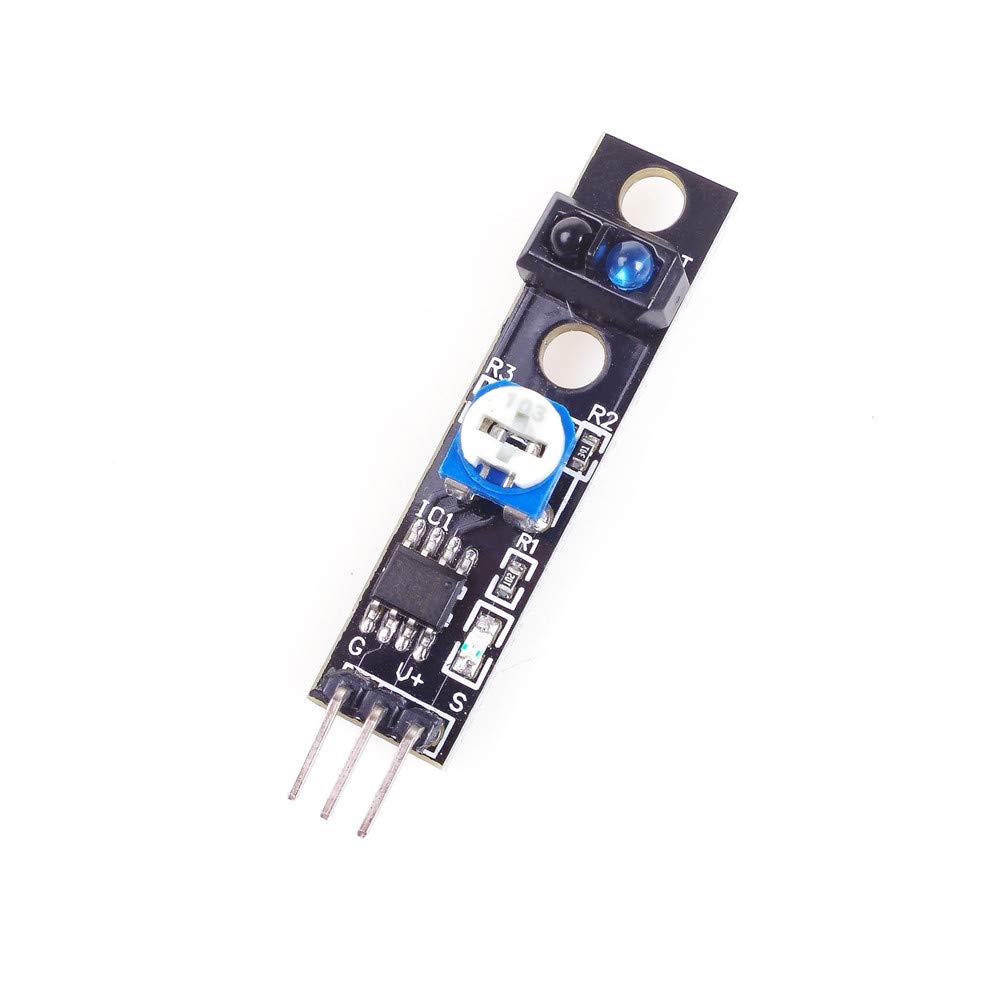

ANGEEK 5pcs Diy KY-033 One Channel 3 pin Tracking Path Tracing Module Intelligent Vehicle Probe Infrared Detection Sensor

• The detection distance, testing the whitepaper is about 2 cm. Depending different color different distance away whiter.
• Supply voltage:2.5 V ~ 12 V, no more than 12 V. (Note:Use the power supply low voltage, supply voltage is too high sensor life will become short 5 v source is preferred power.)
• Working current, 5 v 18-20mA. After many tests, sensor hardware set to the current working eighteen twenty ma best performance, manifested mainly in the anti capacity - interference. If you require small power consumption, we can modify, least they can do 5 mA. Take a message may be indicated.
• The detected objects, final output signal of low level;Has not been detected objects,the final output signal high level.
• Level TTL sensor output,can work directly with the microcontroller IO port 3.3 V or 5 V connected.

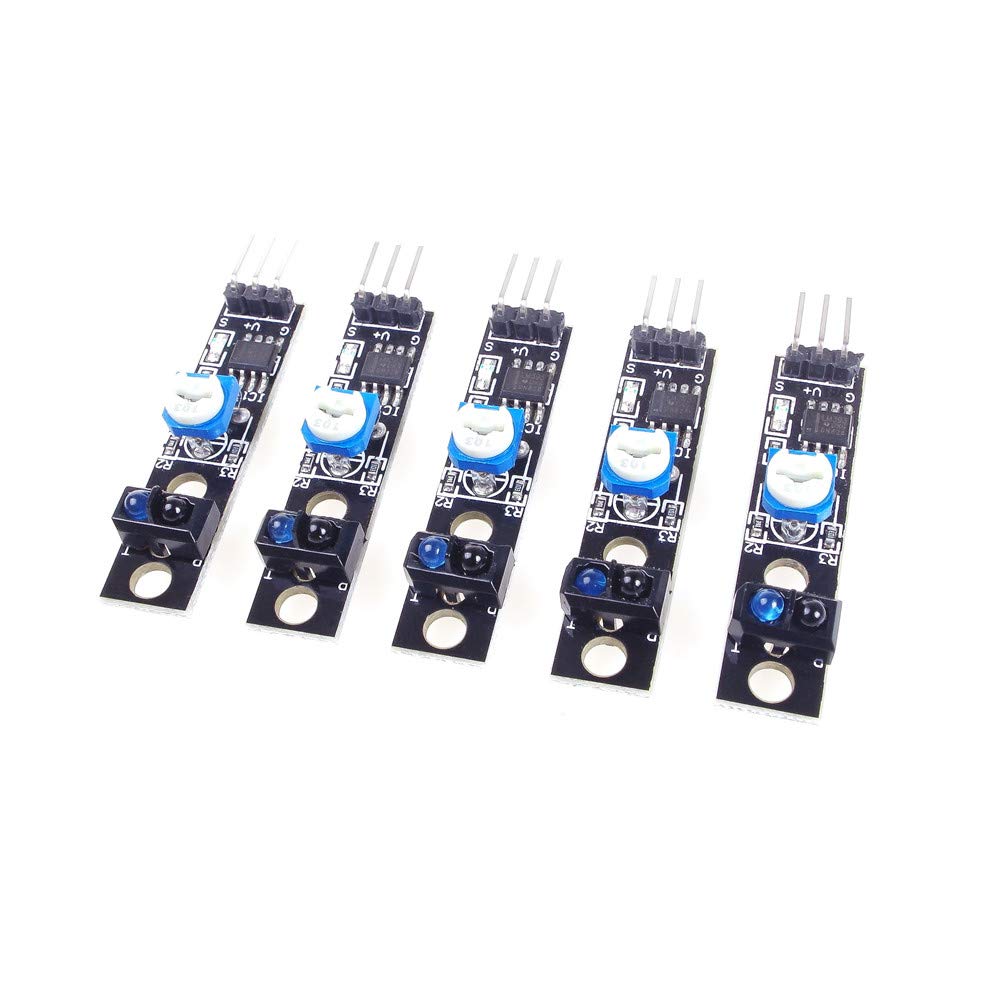

Packaged Included: 5x 3 pin Path Tracing Module
