RP2040-Zero Mini Development Board Based on Raspberry Pi Microcontroller RP2040,High-Performance Pico-Like MCU Board,Low-Cost, USB-C Connector

• RP2040 MCU Board,a Pico-like MCU board based on Raspberry Pi RP2040
• Comprehensive SDK, Dev Resources, Tutorials To Help You Easily Get Started
• Dual-Core Arm Cortex M0+ Processor, Flexible Clock Running Up To 133 MHz
• Configurable Pin Function, Allows Flexible Development And Integration
• Castellated Module, Suitable For SMD Applications

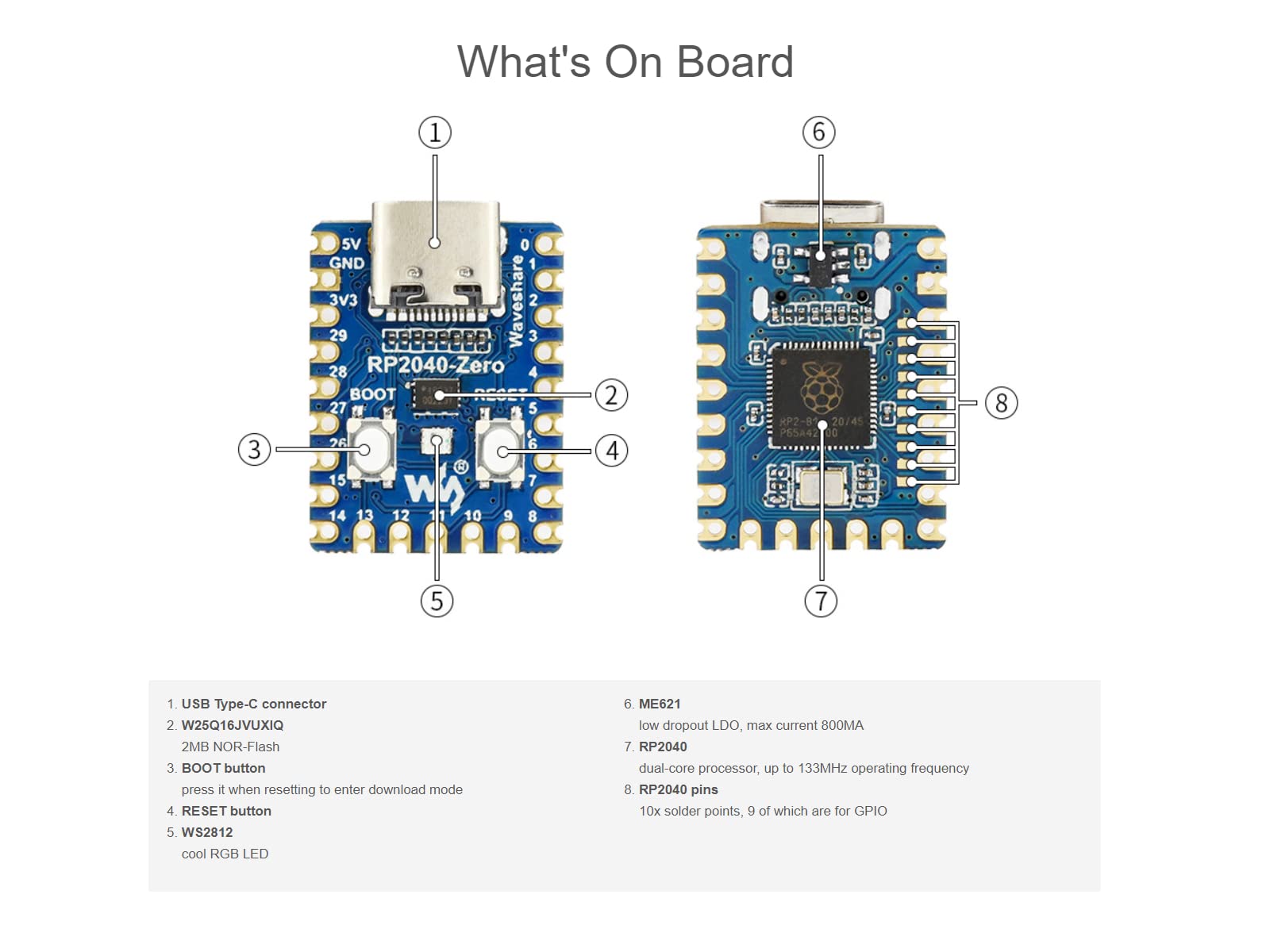

Overview RP2040-Zero, A Low-Cost, High-Performance Pico-Like MCU Board Based On Raspberry Pi Microcontroller RP2040 Specification RP2040 microcontroller chip designed by Raspberry Pi in the United Kingdom Dual-core Arm Cortex M0+ processor, flexible clock running up to 133 MHz 264KB of SRAM, and 2MB of on-board Flash memory USB-C connector, keeps it up to date, easier to use The castellated module allows soldering direct to carrier boards USB 1.1 with device and host support Low-power sleep and dormant modes Drag-and-drop programming using mass storage over USB 29 × multi-function GPIO pins (20× via edge pinout, others via solder points) 2 × SPI, 2 × I2C, 2 × UART, 4 × 12-bit ADC, 16 × controllable PWM channels Accurate clock and timer on-chip Temperature sensor Accelerated floating-point libraries on-chip 8 × Programmable I/O (PIO) state machines for custom peripheral support What's On Board 1.USB Type-C connector 2.W25Q16JVUXIQ 2MB NOR-Flash 3.BOOT button press it when resetting to enter download mode 4.RESET button 5.WS2812 cool RGB LED 6.ME621 low dropout LDO, max current 800MA 7.RP2040 dual-core processor, up to 133MHz operating frequency Package Content RP2040-Zero x1 Development Resources https://www.waveshare.com/wiki/RP2040-Zero?Amazon Note Technical Support is provided, please contact with us first if you have any problem .
