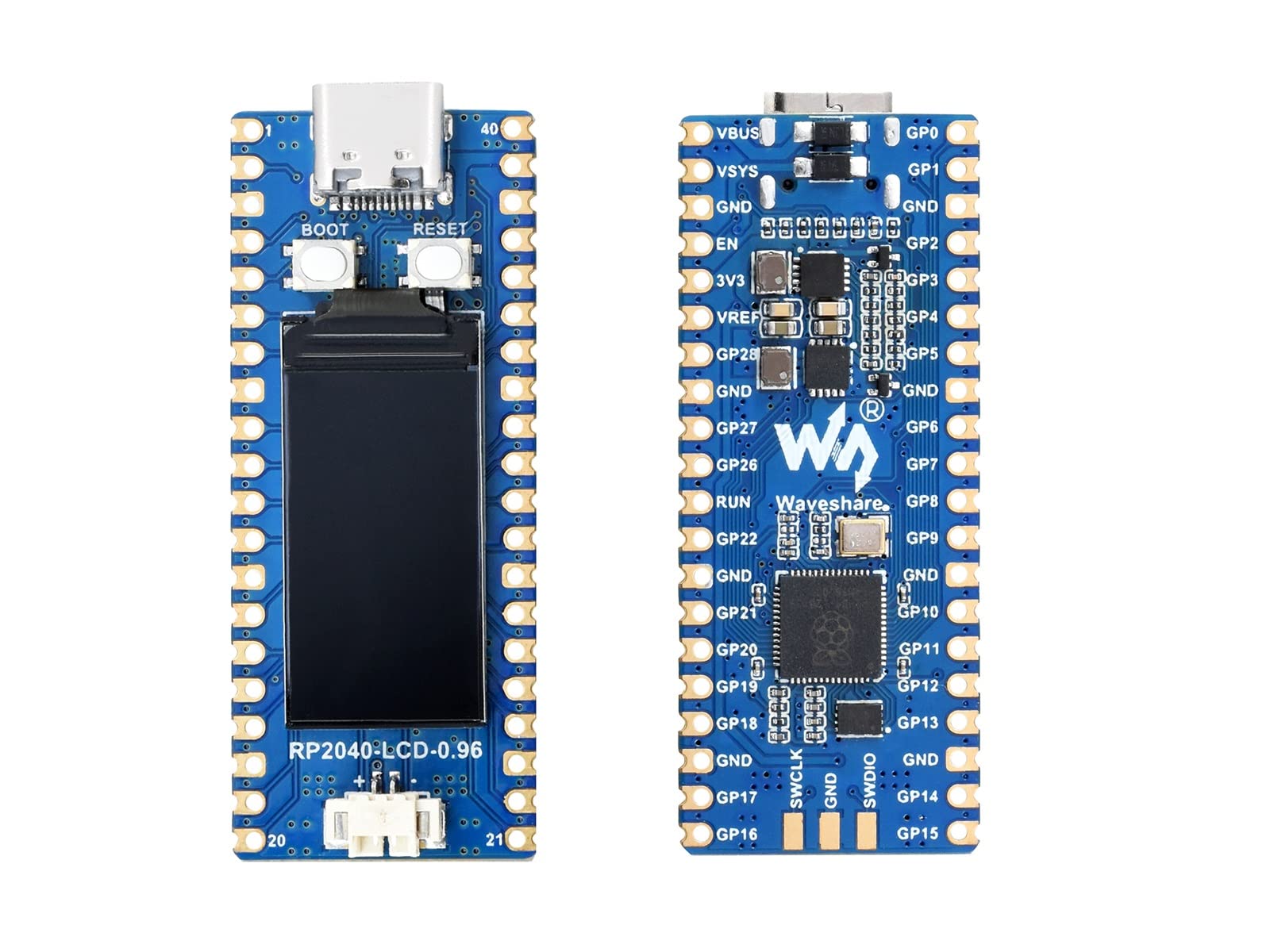

RP2040-LCD-0.96 Mini Development Board Based on Raspberry Pi Microcontroller RP2040,High-Performance Pico-Like MCU Board,Onboard 0.96 inch LCD,Low-Cost, USB-C Connector

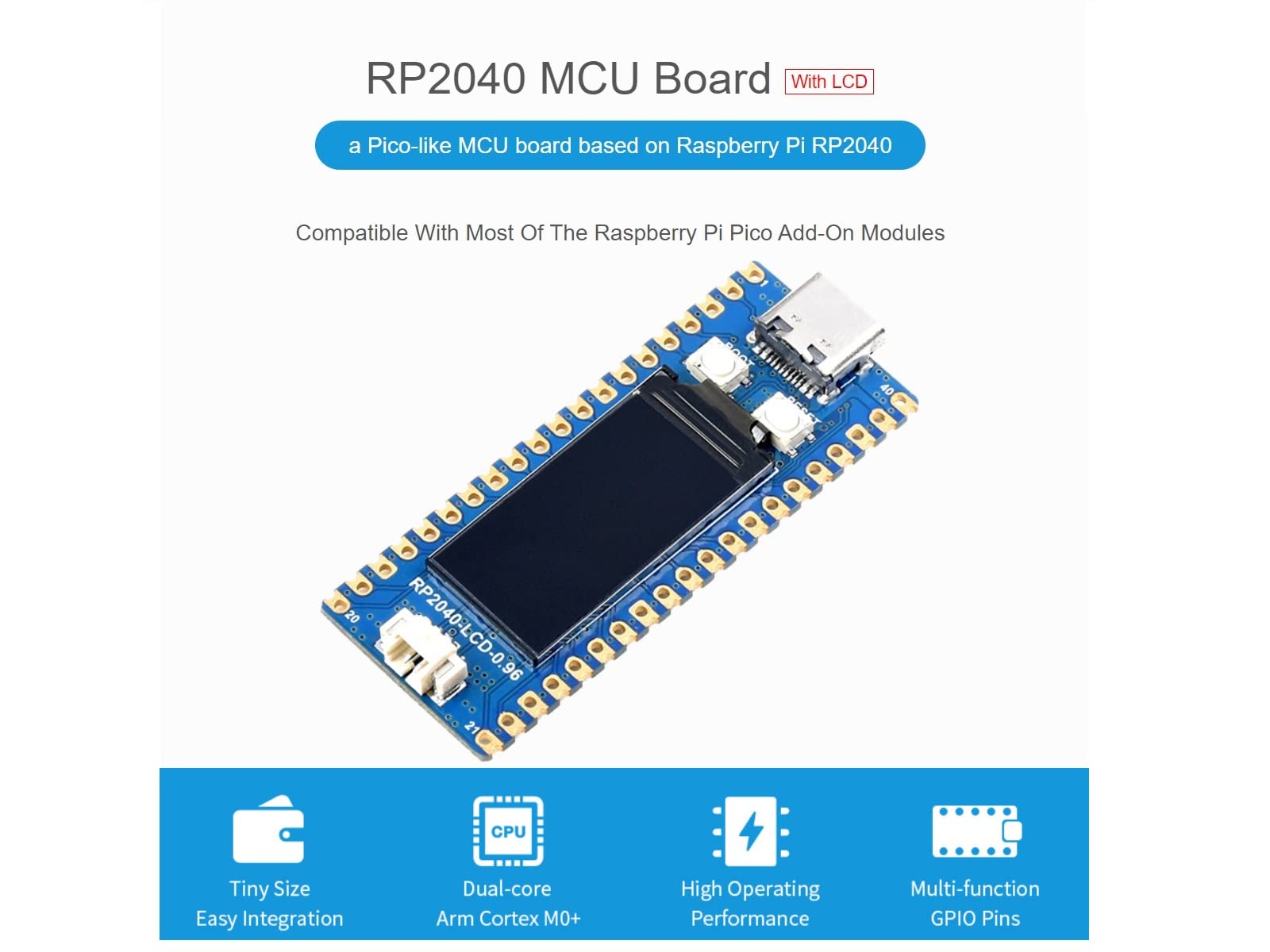

• RP2040 MCU Board With LCD.A Pico-like MCU board based on Raspberry Pi RP2040.Compatible With Most Of The Raspberry Pi Pico Add-On Modules
• Comprehensive SDK, Dev Resources, Tutorials To Help You Easily Get Started
• Dual-Core Arm Cortex M0+ Processor, Flexible Clock Running Up To 133 MHz

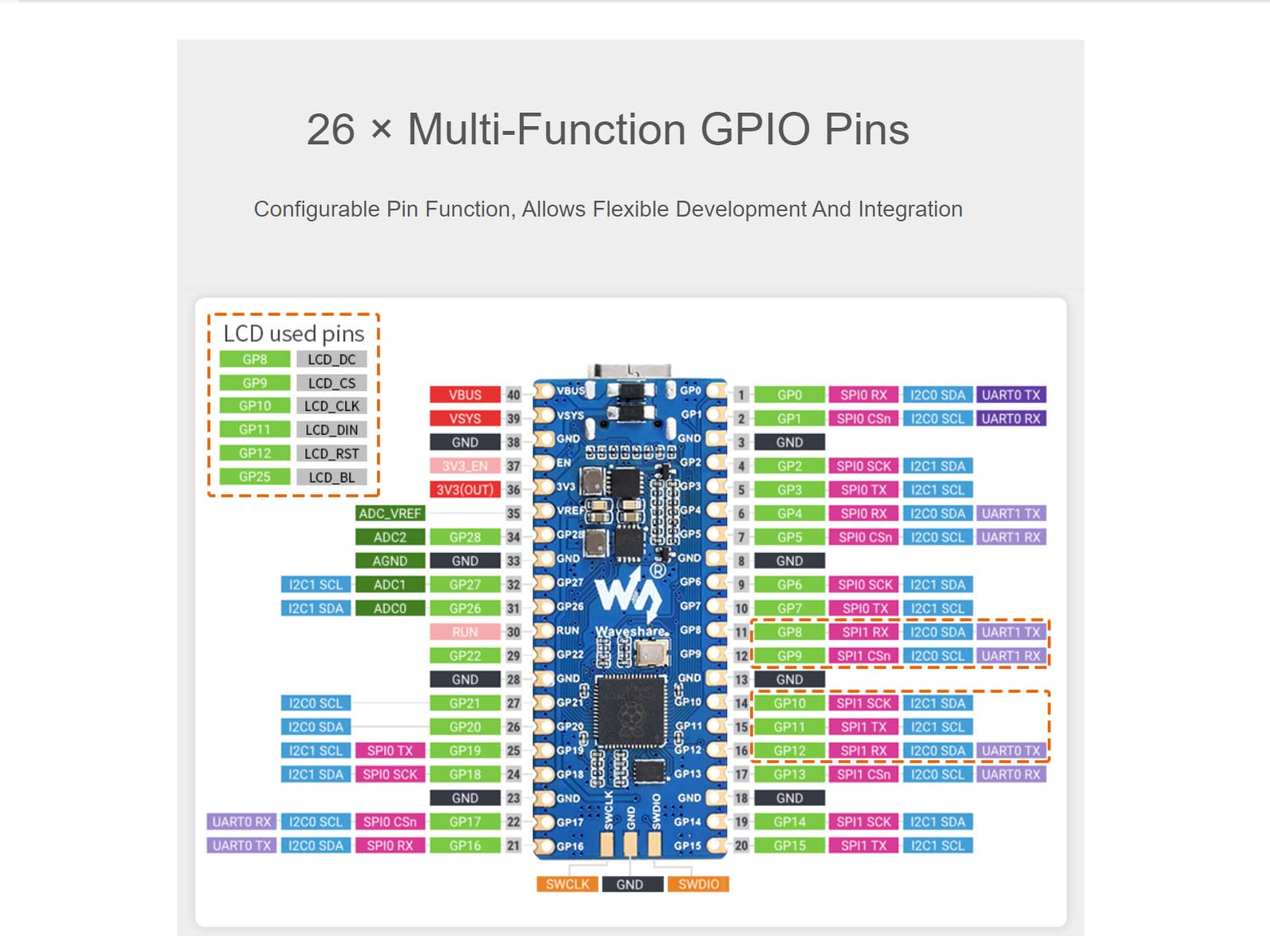

• Configurable Pin Function, Allows Flexible Development And Integration

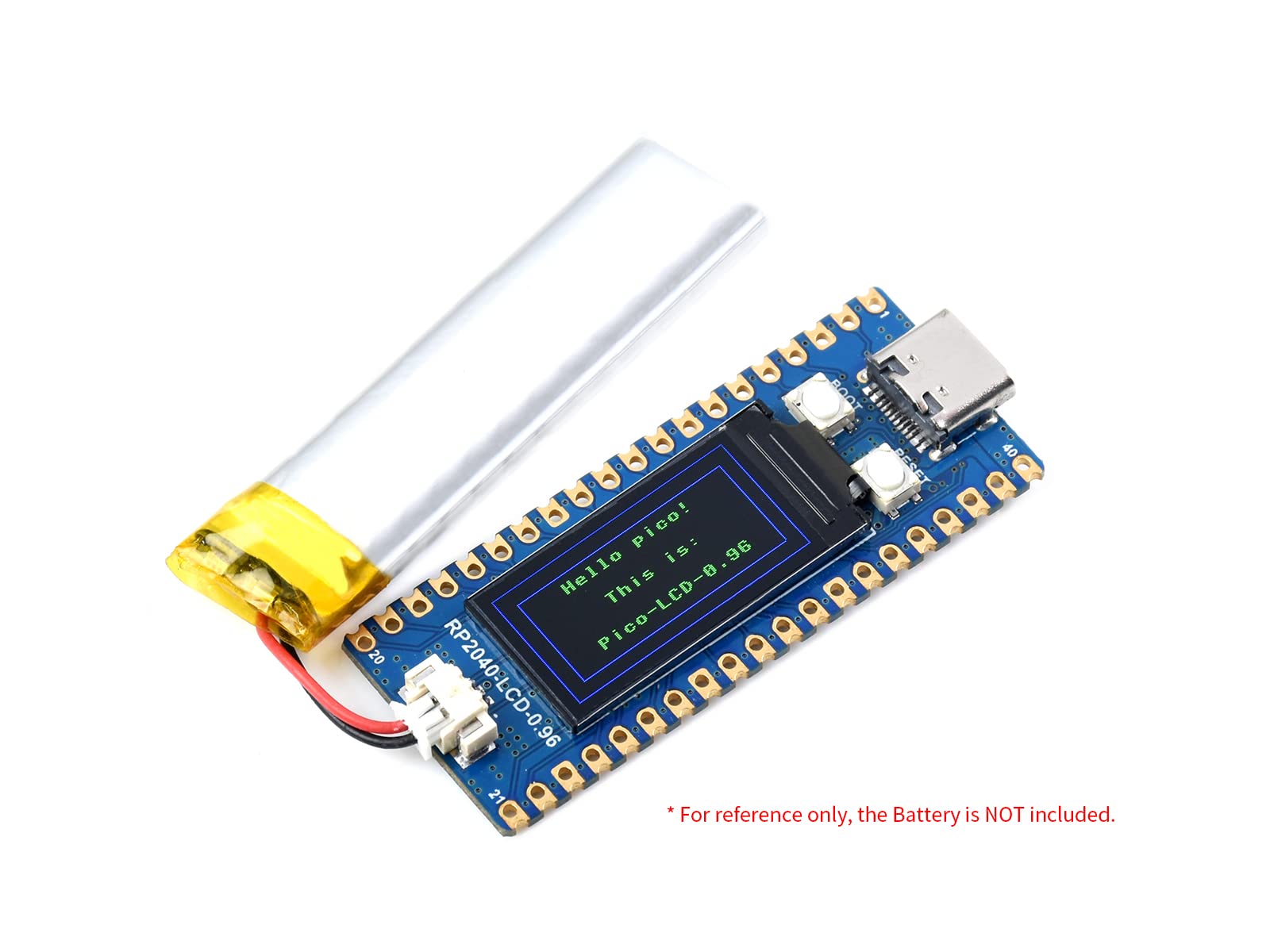

• Onboard 0.96inch IPS display, Lithium battery recharge/discharge header, and high-efficiency DC-DC buck-boost chip.

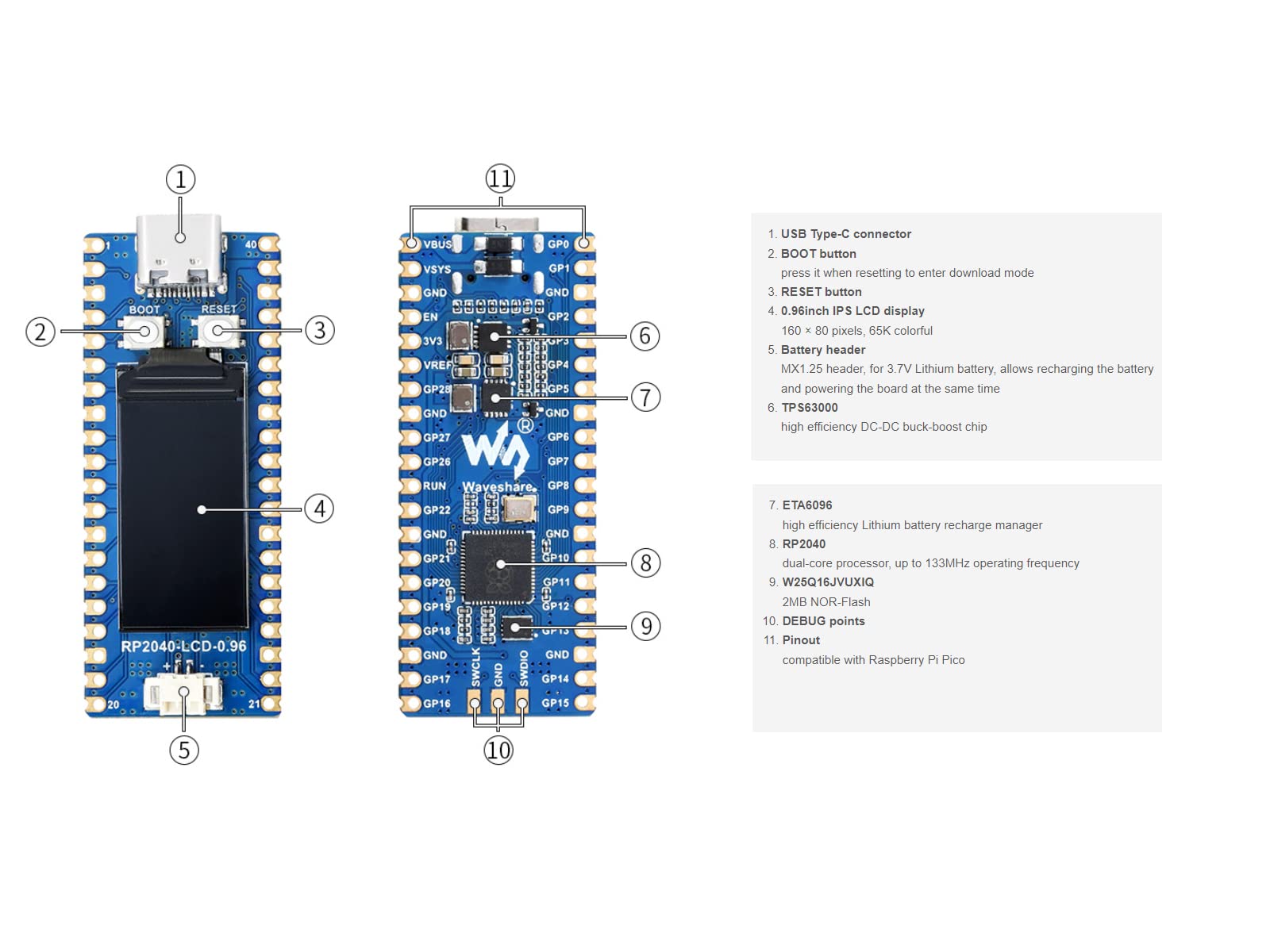

Overview RP2040-LCD-0.96 is a low-cost, high-performance Pico-like MCU board with flexible digital interfaces. It incorporates Raspberry Pi's RP2040 microcontroller chip, as same as the one on Raspberry Pi Pico. For software development, either Raspberry Pi's C/C++ SDK, or the MicroPython is available, which makes it easy for you to get started, and integrate it into end products quickly. In addition, there're also an onboard 0.96inch IPS display, Lithium battery recharge/discharge header, and high-efficiency DC-DC buck-boost chip. Features RP2040 microcontroller chip designed by Raspberry Pi in the United Kingdom Dual-core Arm Cortex M0+ processor, the flexible clock running up to 133 MHz 264KB of SRAM, and 2MB of onboard Flash memory USB-C connector, keeps it up to date, easier to use 0.96inch 160×80 pixels 65K colorful IPS LCD display Lithium battery recharge/discharge header, suitable for mobile devices Onboard DC-DC chip TPS63000, high-efficiency DC-DC buck-boost chip, 1.8A current switch Castellated module allows soldering directly to carrier boards (there should be dedicated cut-out for embedding the bottom components) USB 1.1 with device and host support Low-power sleep and dormant modes Drag-and-drop programming using mass storage over USB 26 × multi-function GPIO pins 2 × SPI, 2 × I2C, 2 × UART, 3 × 12-bit ADC, 16 × controllable PWM channels Accurate clock and timer on-chip Temperature sensor Accelerated floating-point libraries on-chip 8 × Programmable I/O (PIO) state machines for custom peripheral support Development Resources https://www.waveshare.com/wiki/RP2040-LCD-0.96?Amazon Note Technical Support is provided, please contact with us first if you have any problem .
