ESP8266 WiFi Module For Raspberry Pi Pico, WiFi Expansion Module Based On ESP8266,IEEE 802.11b/g/n WIFI Standard,Supports TCP/UDP Protocol,UART Communication

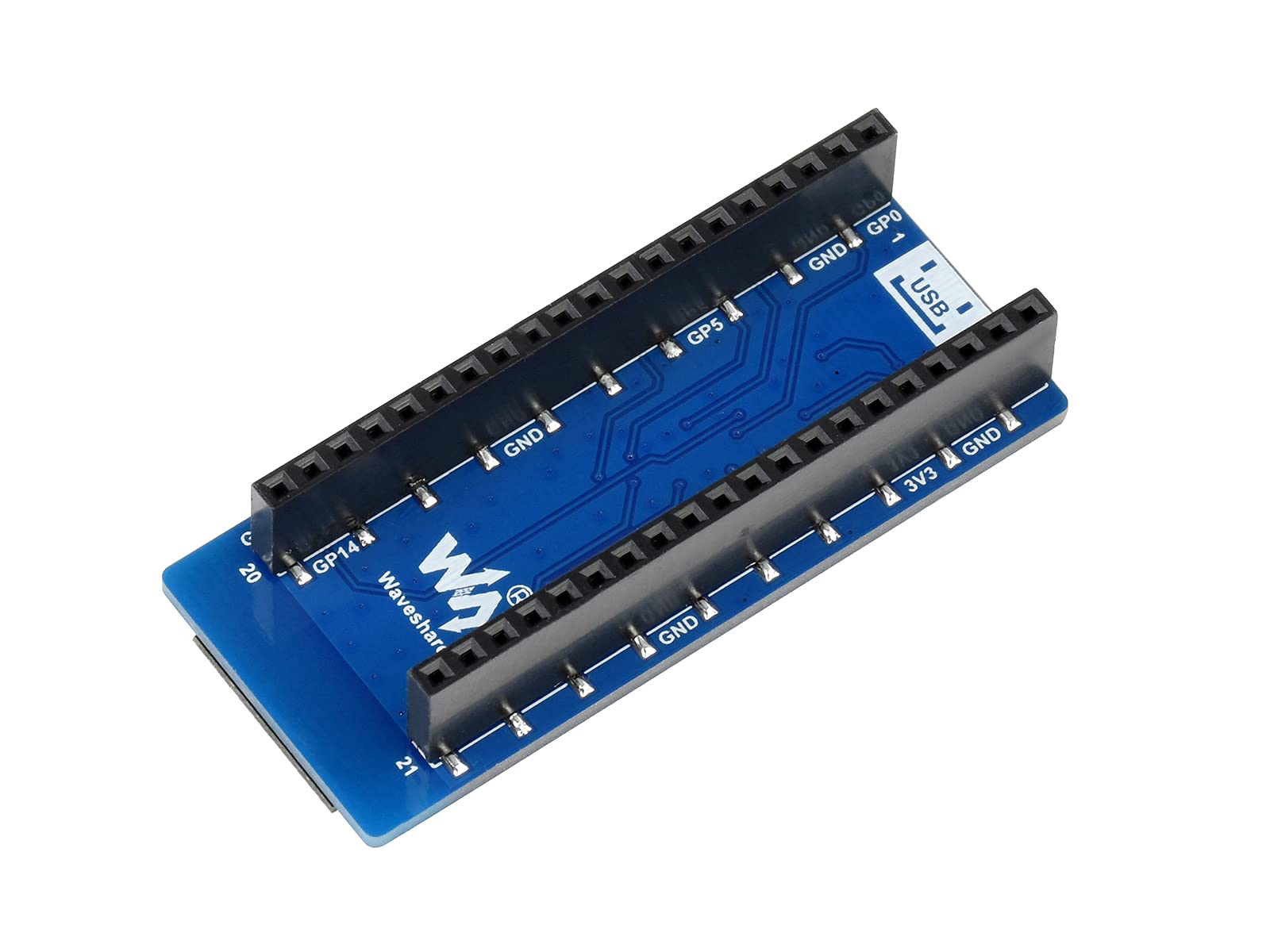

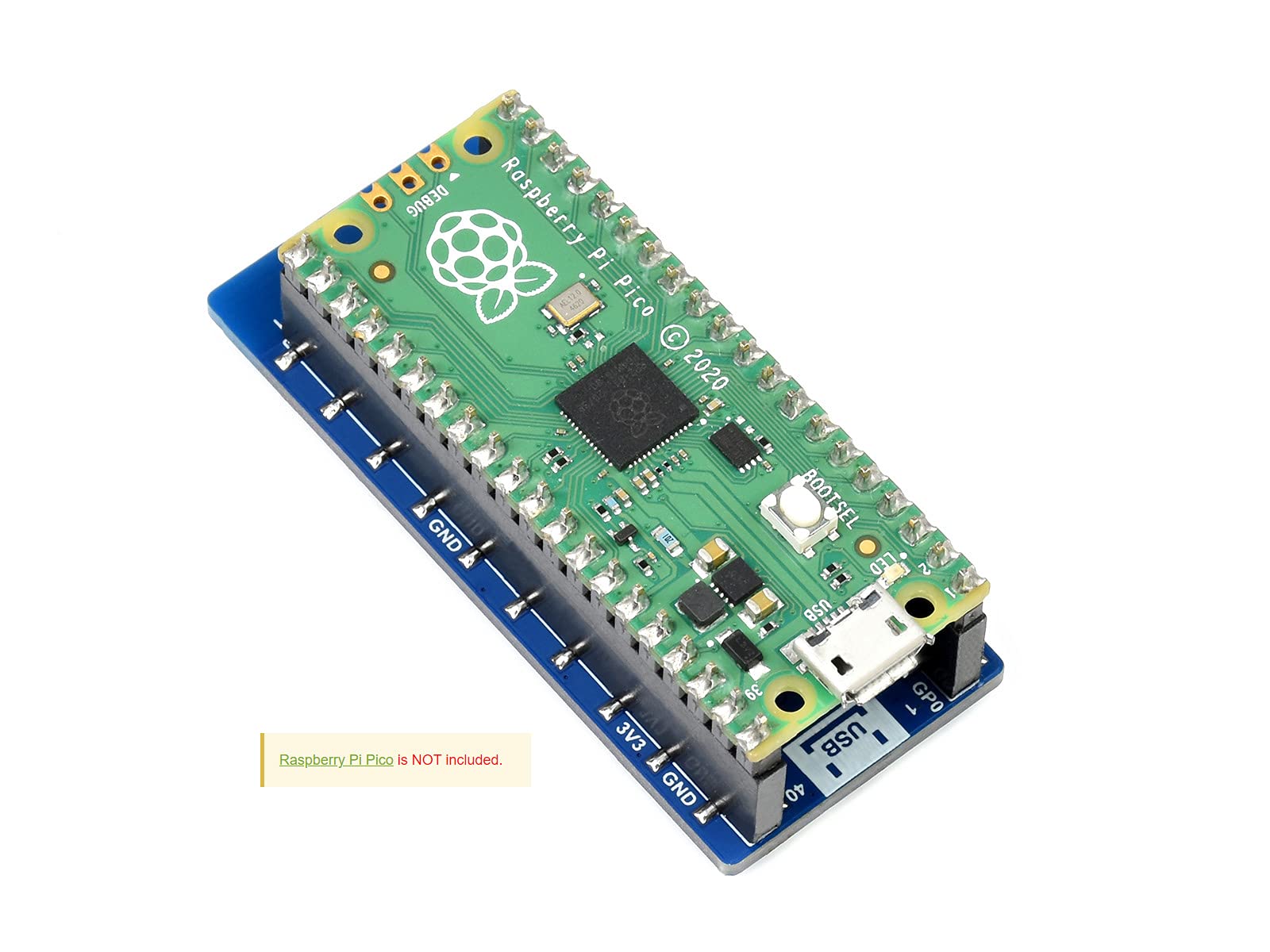

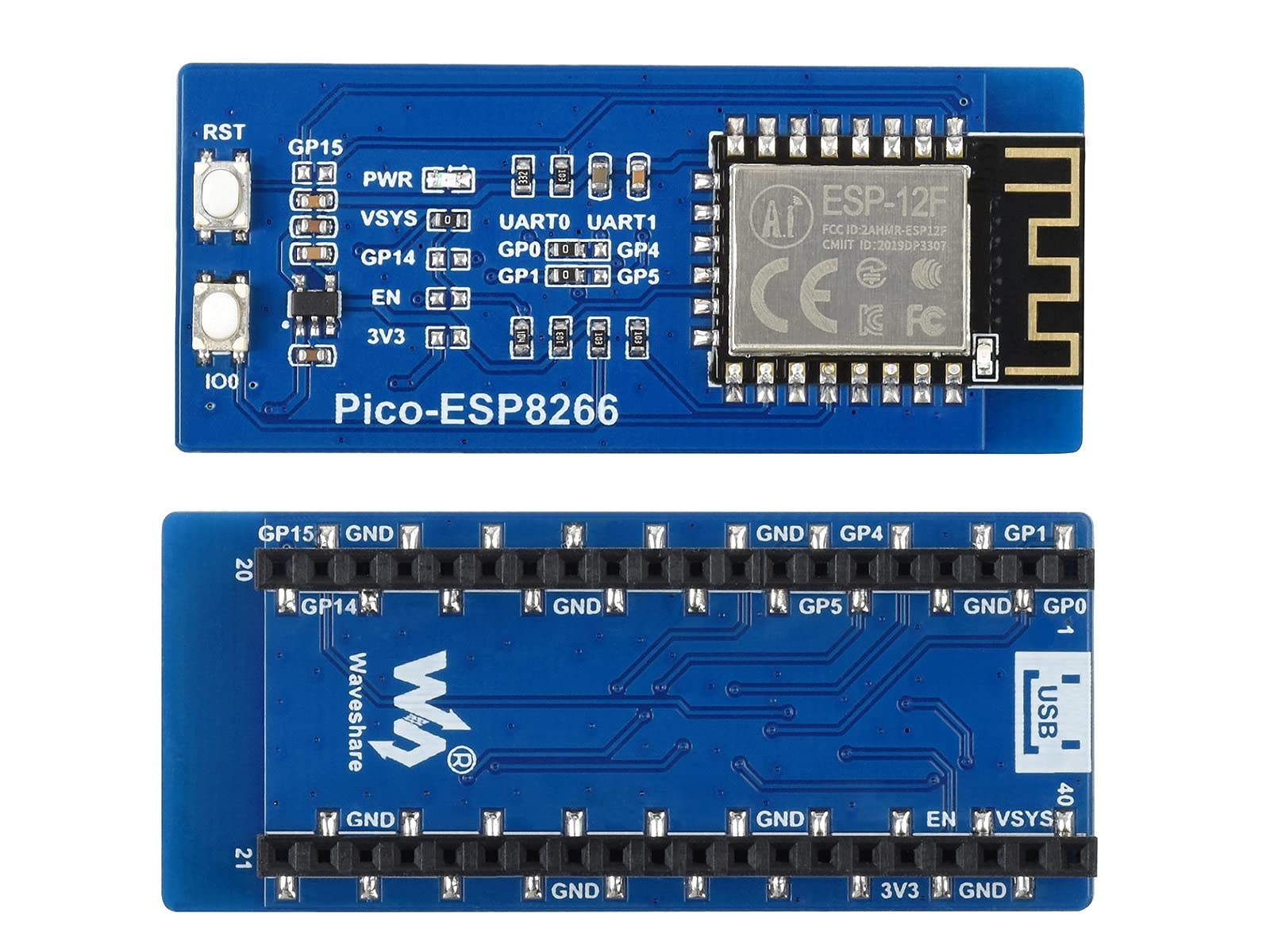

• The ESP8266 WiFi Module with Standard Raspberry Pi Pico header, supports Raspberry Pi Pico series
• UART communication, controlled via AT command, helps you get started quickly.Supports STA, AP, and STA+AP three WiFi operating modes, embedded LWIP protocol stack, supports TCP/UDP communication

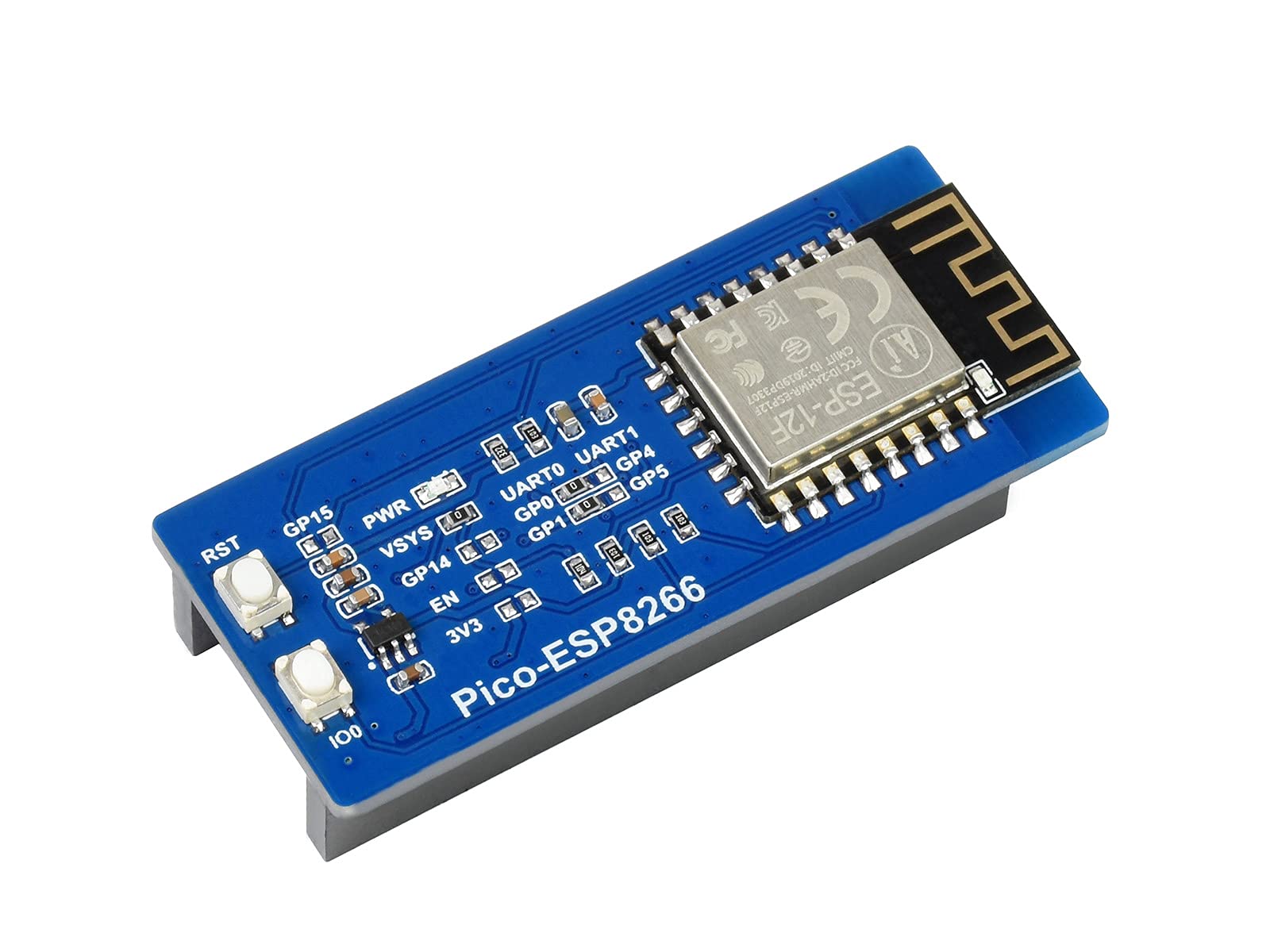

• Based on ESP8266 module, four-layers process, enhanced impedance matching, stronger signal, more stable connection

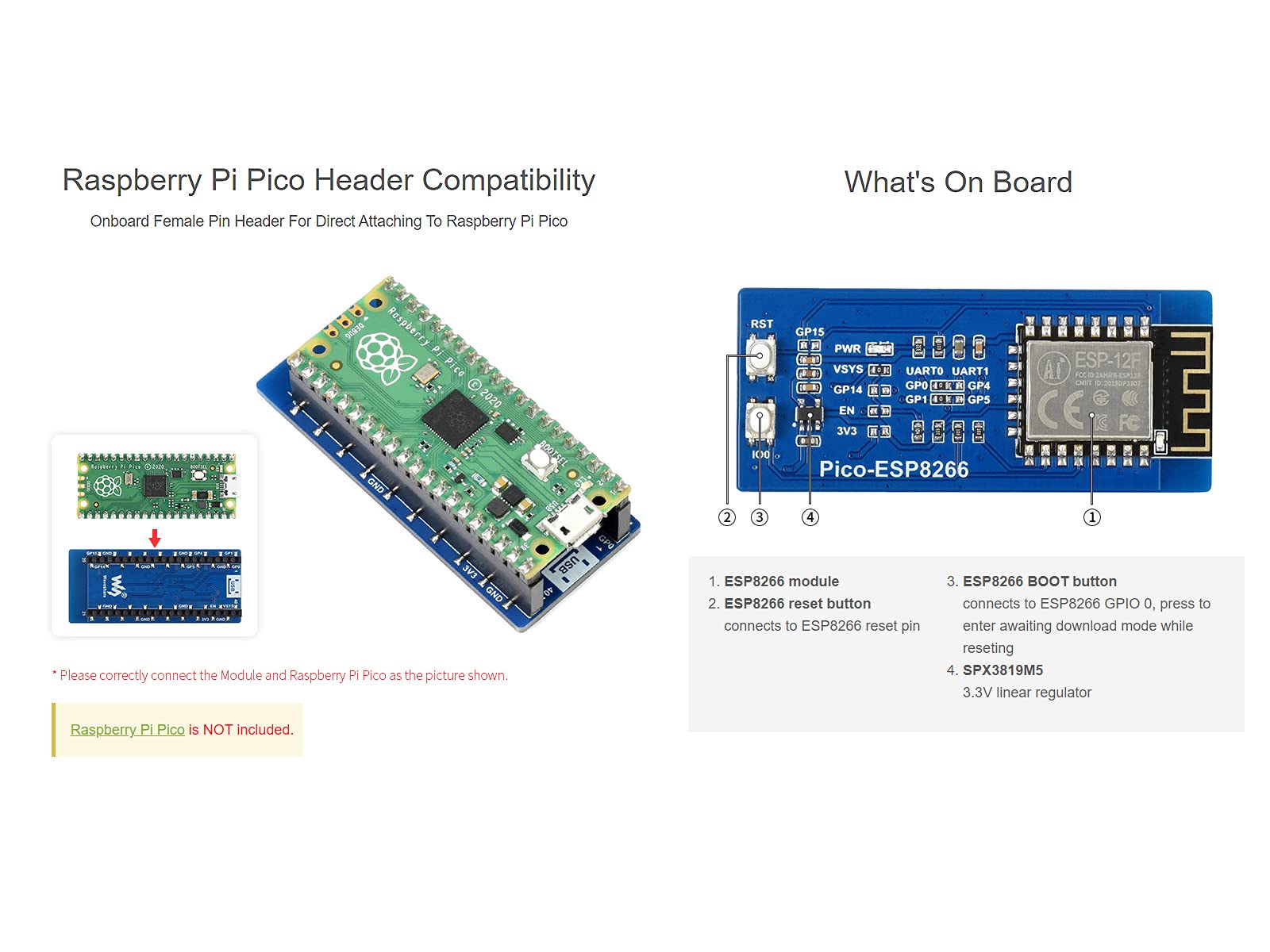

• 2x functional buttons, convenient for user to update AT firmware through Raspberry Pi Pico
• Comes with development resources and manual (Raspberry Pi Pico C/C++ and MicroPython examples)

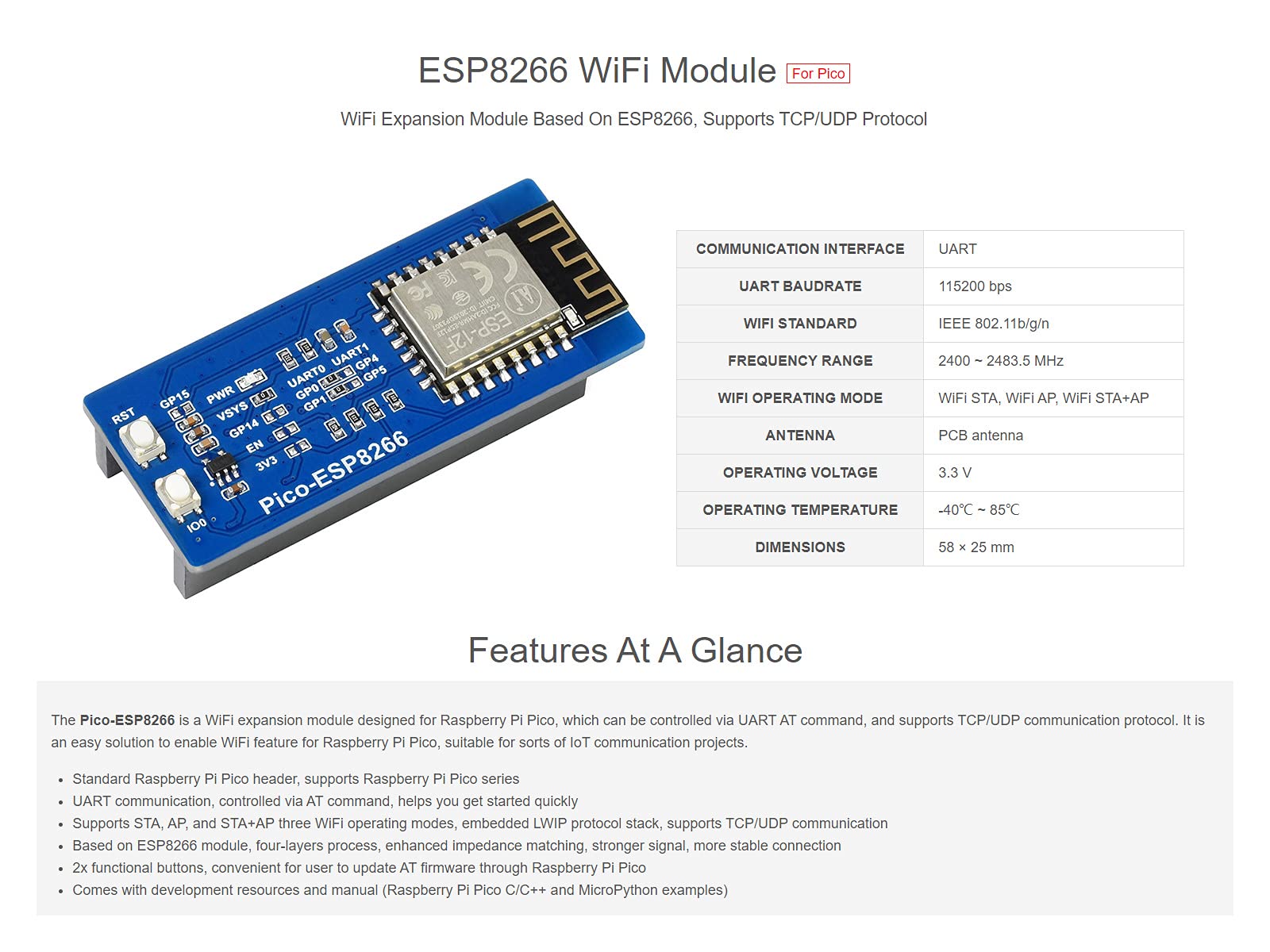

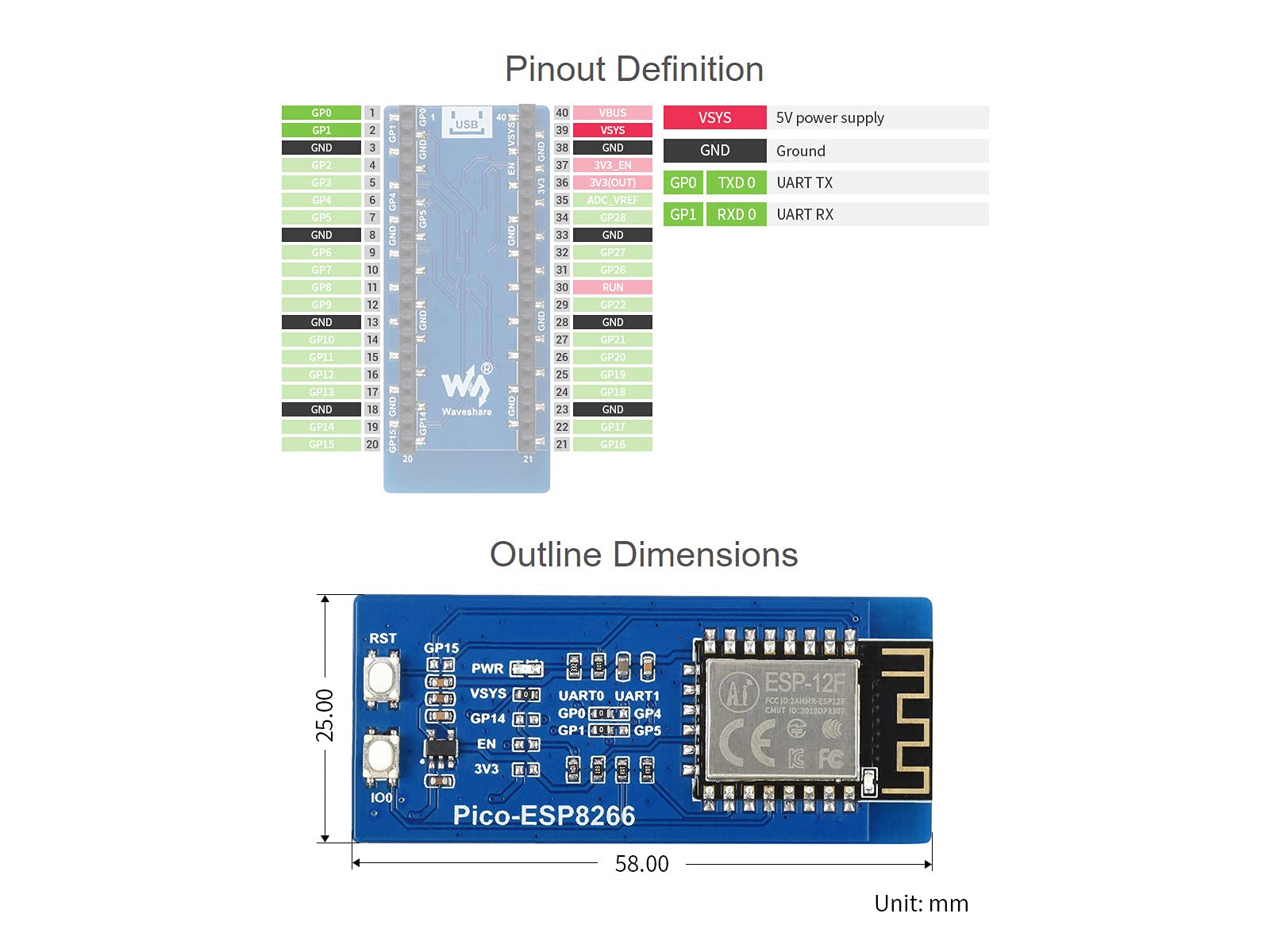

Overview The Pico-ESP8266 is a WiFi expansion module designed for Raspberry Pi Pico, which can be controlled via UART AT command, and supports TCP/UDP communication protocol. It is an easy solution to enable WiFi feature for Raspberry Pi Pico, suitable for sorts of IoT communication projects. Features Standard Raspberry Pi Pico header supports Raspberry Pi Pico series UART communication, controlled via AT command, helps you get started quickly Supports STA, AP, and STA+AP three WiFi operating modes, embedded LWIP protocol stack, supports TCP/UDP communication Based on ESP8266 module, four-layers process, enhanced impedance matching, stronger signal, more stable connection 2x functional buttons, convenient for the user to update AT firmware through Raspberry Pi Pico Specification Communication interface: UART UART baud rate: 115200 bps WIFI standard: IEEE 802.11b/g/n Frequency range: 2400 ~ 2483.5MHz WIFI operating mode: WiFi STA, WiFi AP, WiFi STA+AP Antenna: PCB antenna Operating voltage: 3.3V Operating temperature: -40°C ~ 85°C Dimensions 58 x 25mm Package Content Pico-ESP8266 x1 Development Resources https://www.waveshare.com/wiki/Pico-ESP8266?Amazon Note 1.Raspberry Pi Pico in the product package is NOT included. 2.Development Resources is provided , please visit the WIKI or contact us if you have any problem.
