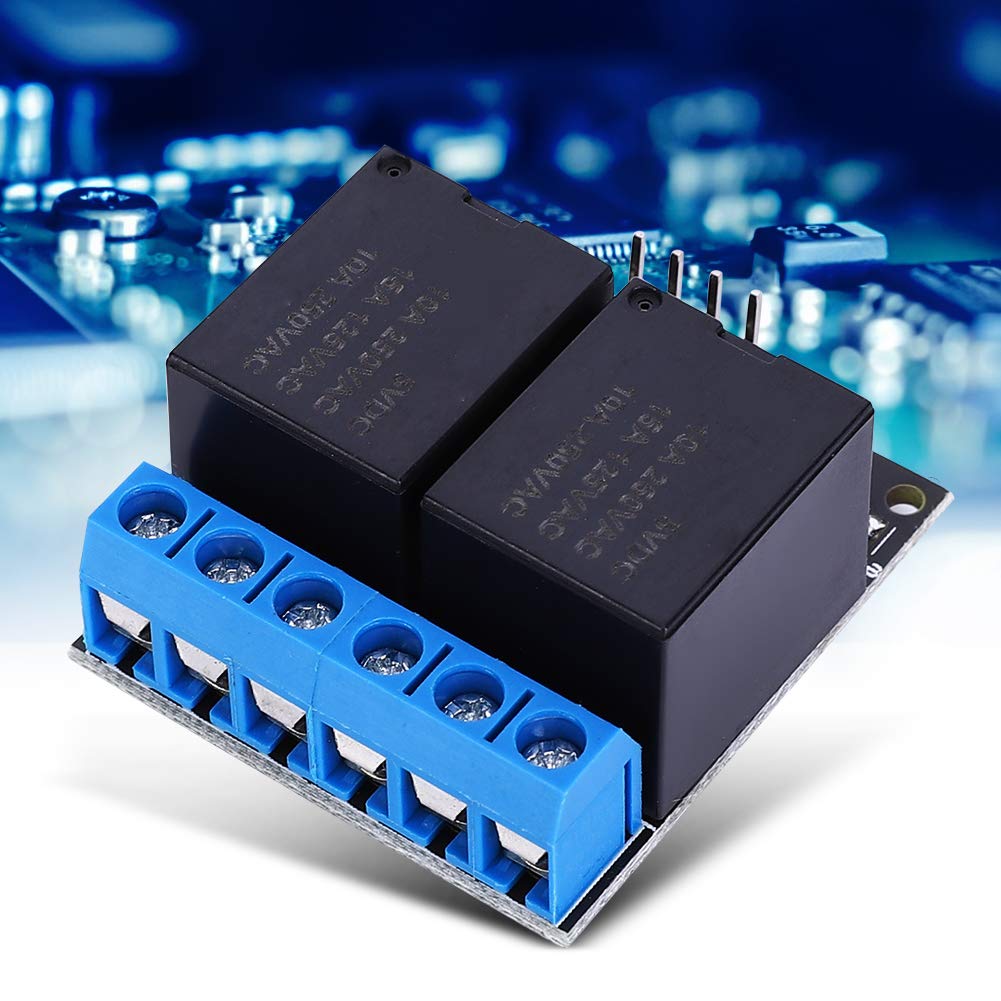

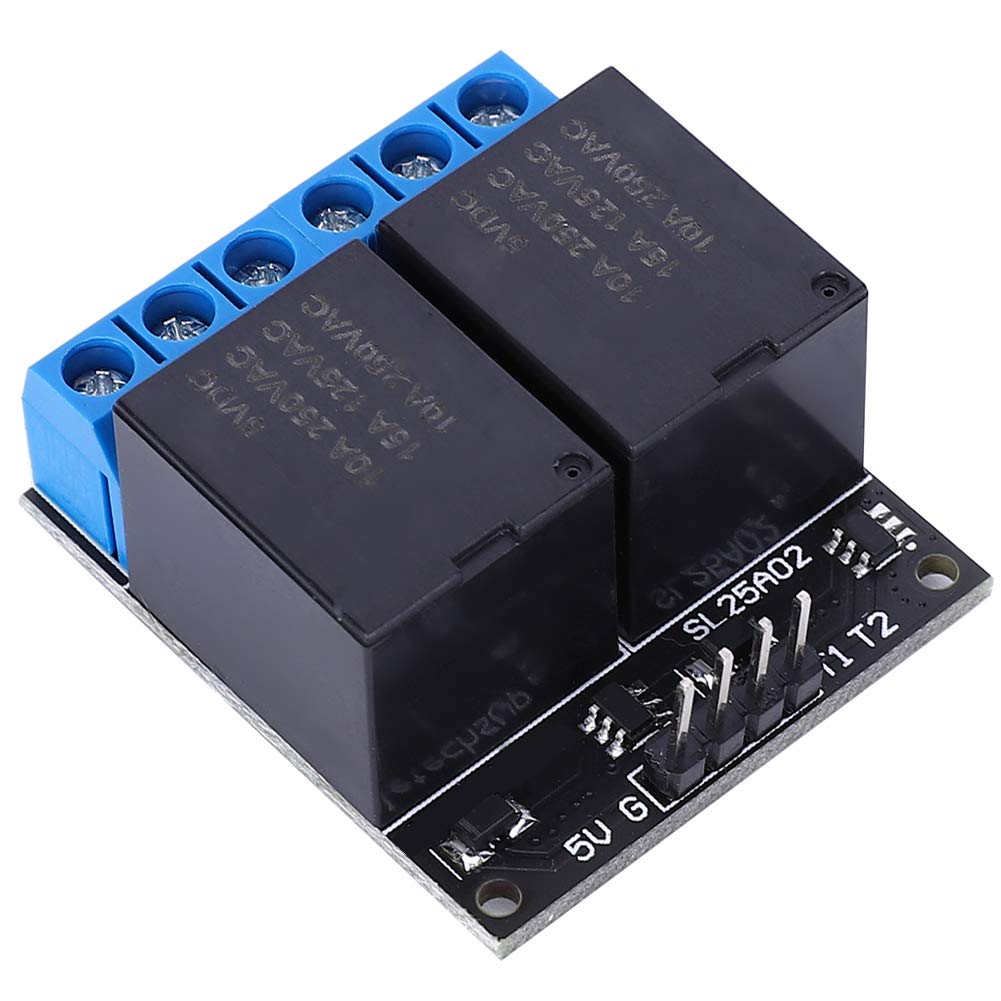

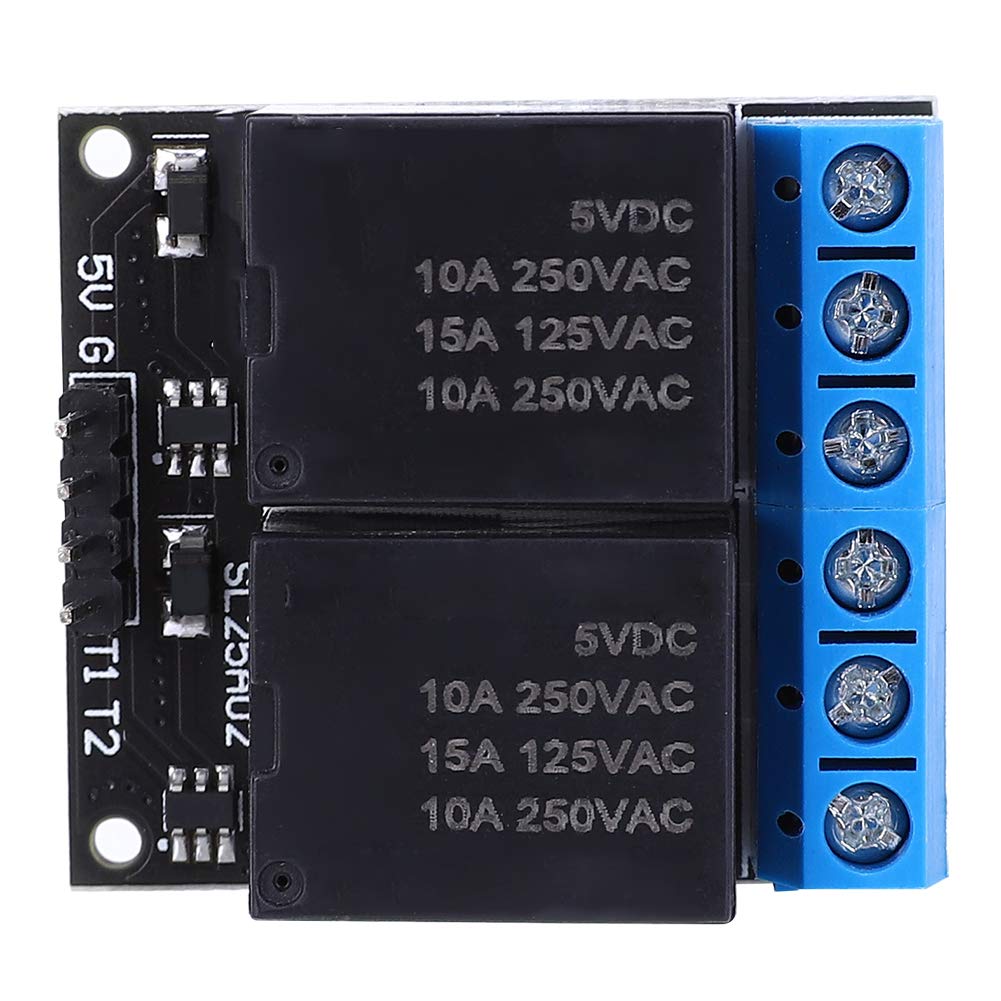

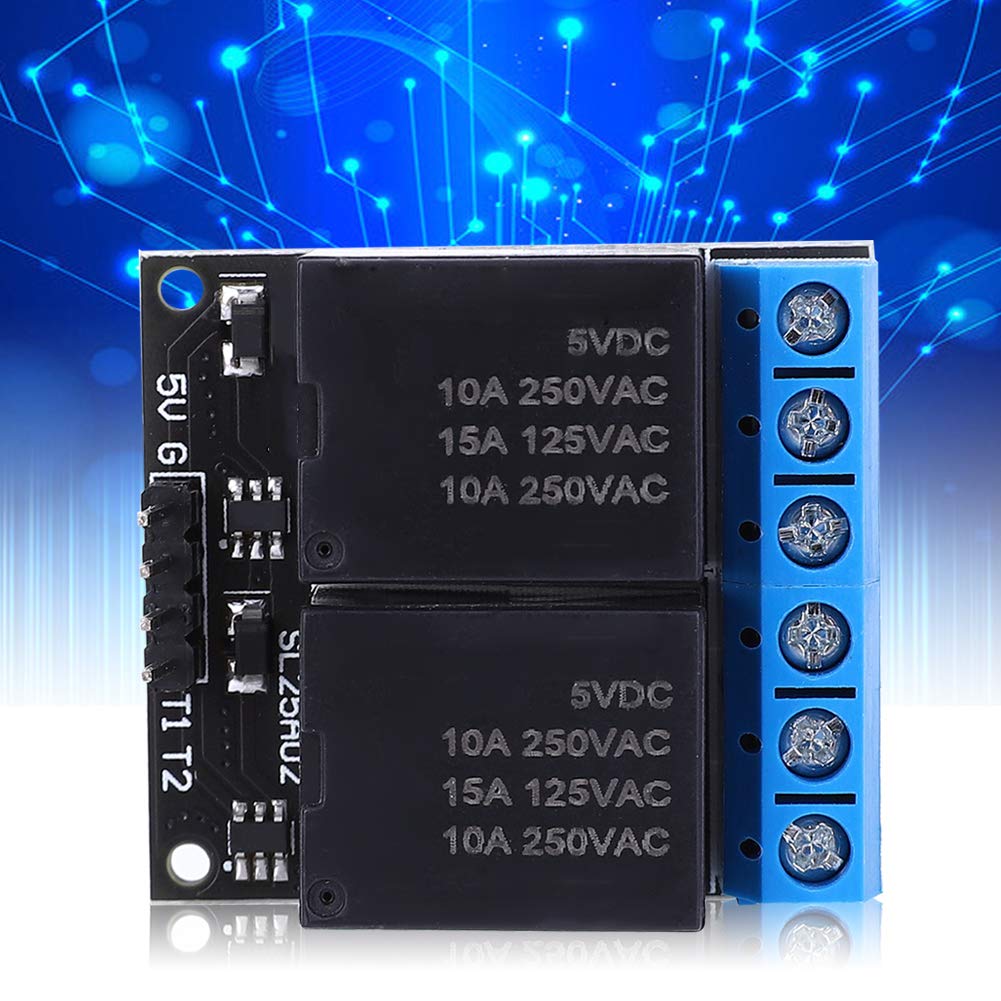

Hyuduo 5V 2-Channel Relay Board Module for Arduino & Bistable Self-Locking Low-Level Trigger Relay Switch with PLC Control

• Working current: 1 relay pulls in 70MA, 2 relays pull in 140MA, static working current: 0.2mA.
• The relay module is easy to install and use, high accuracy and strong stability.
• Working voltage: DC 5V, working current: 1 relay pulls in 70MA, 2 relays pull in 140MA.

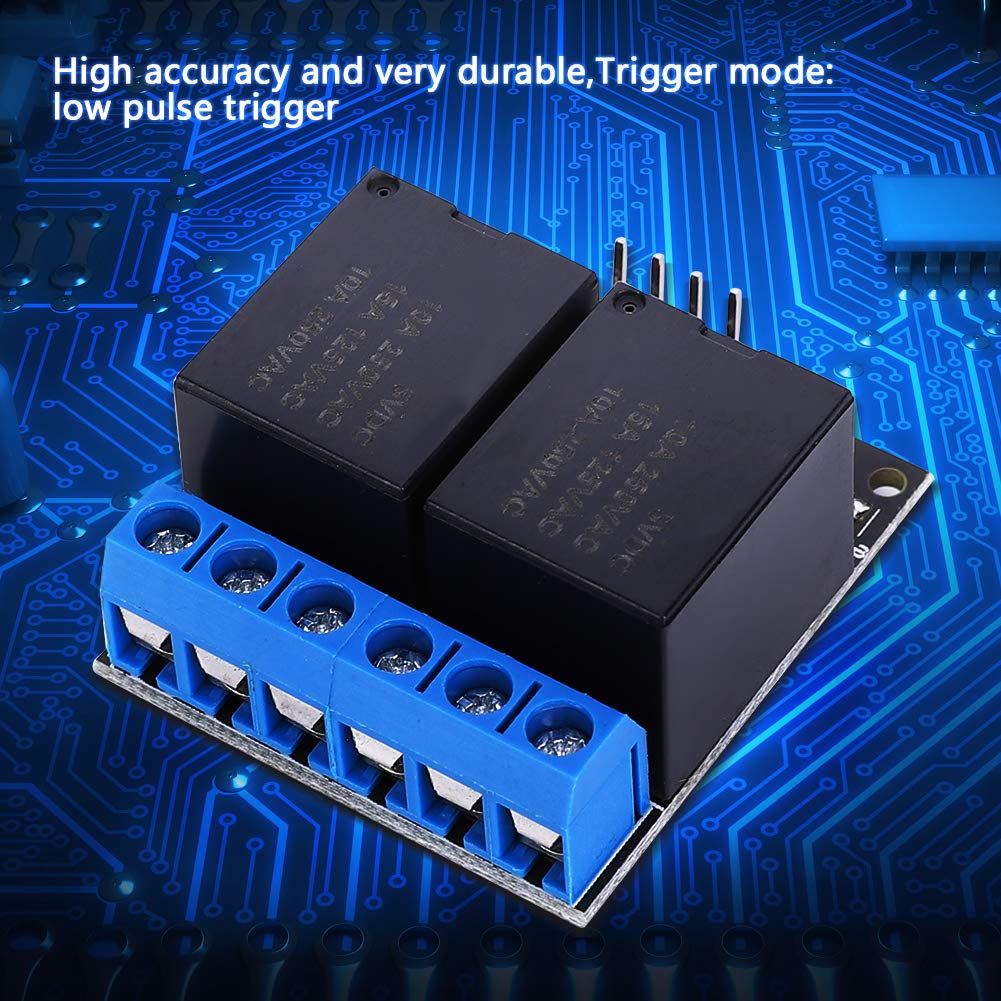

• Trigger mode is low pulse trigger, more reliable and convenient.
• The relay module is made of high quality material with stable performance, durable.

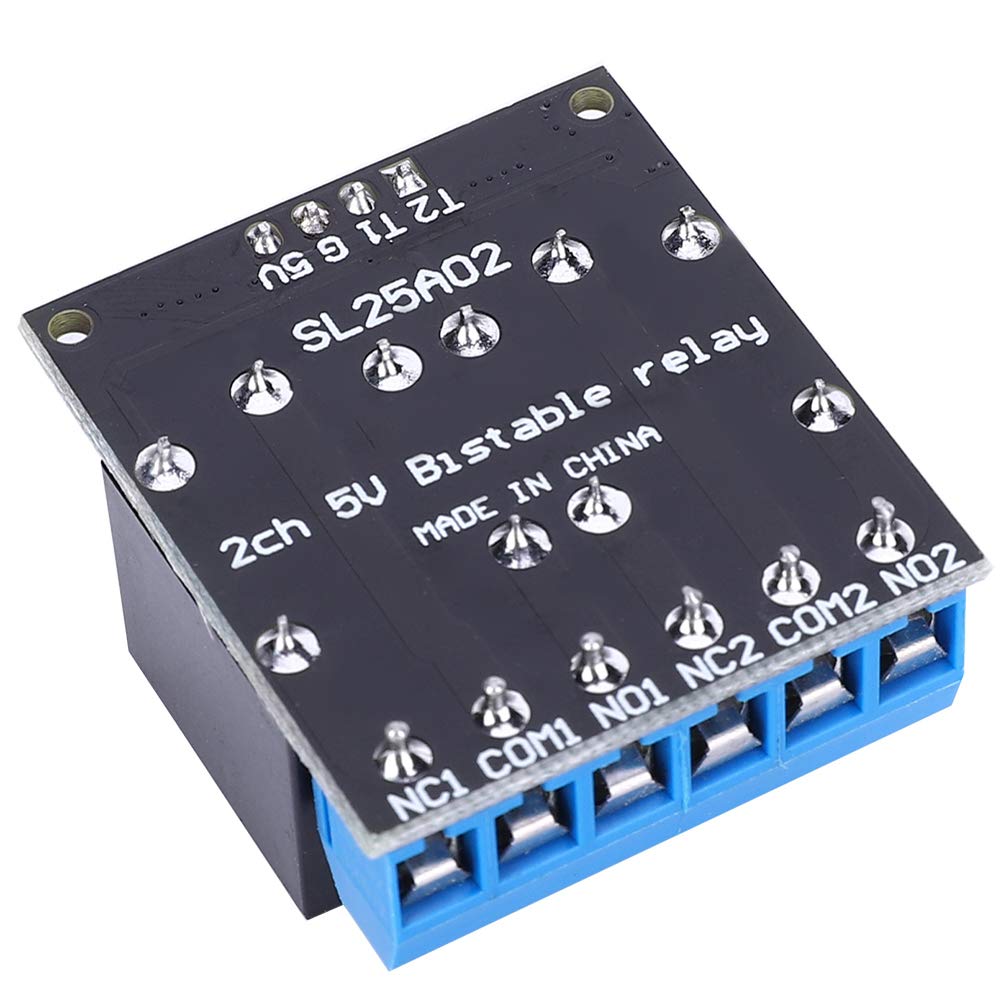

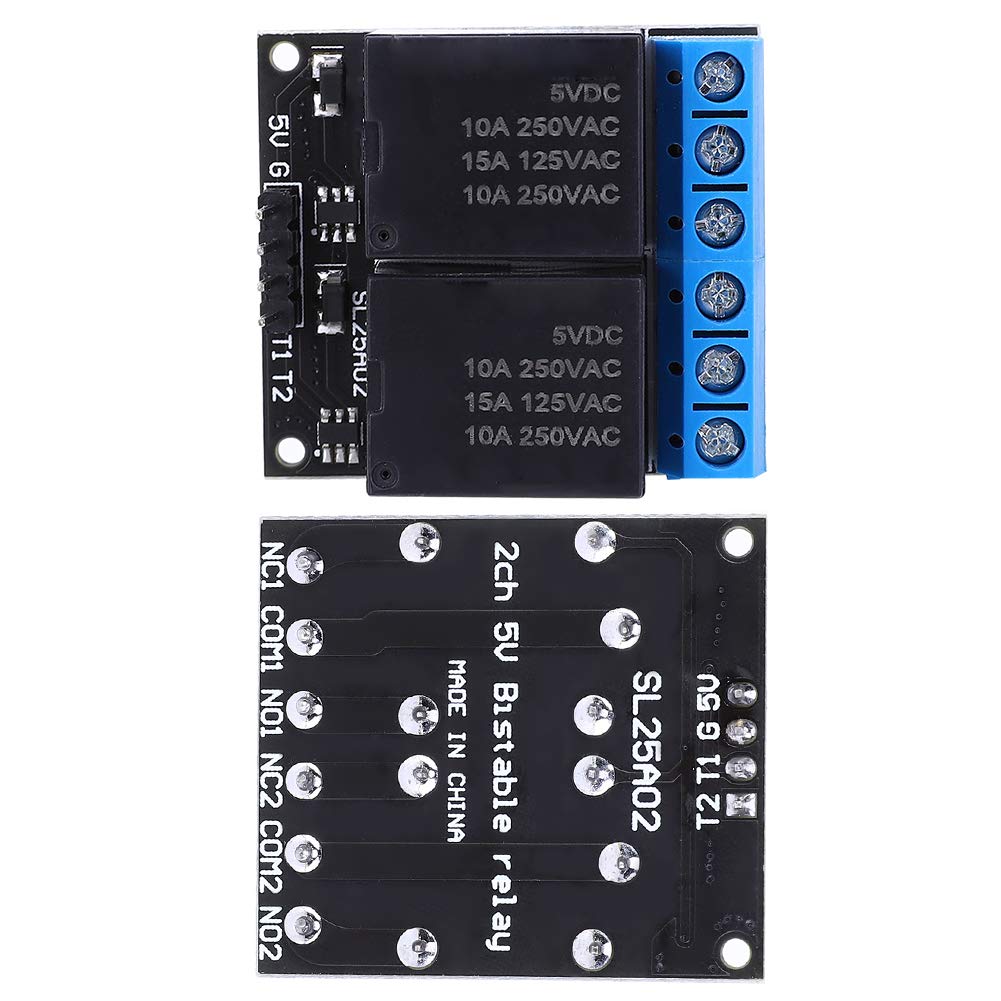

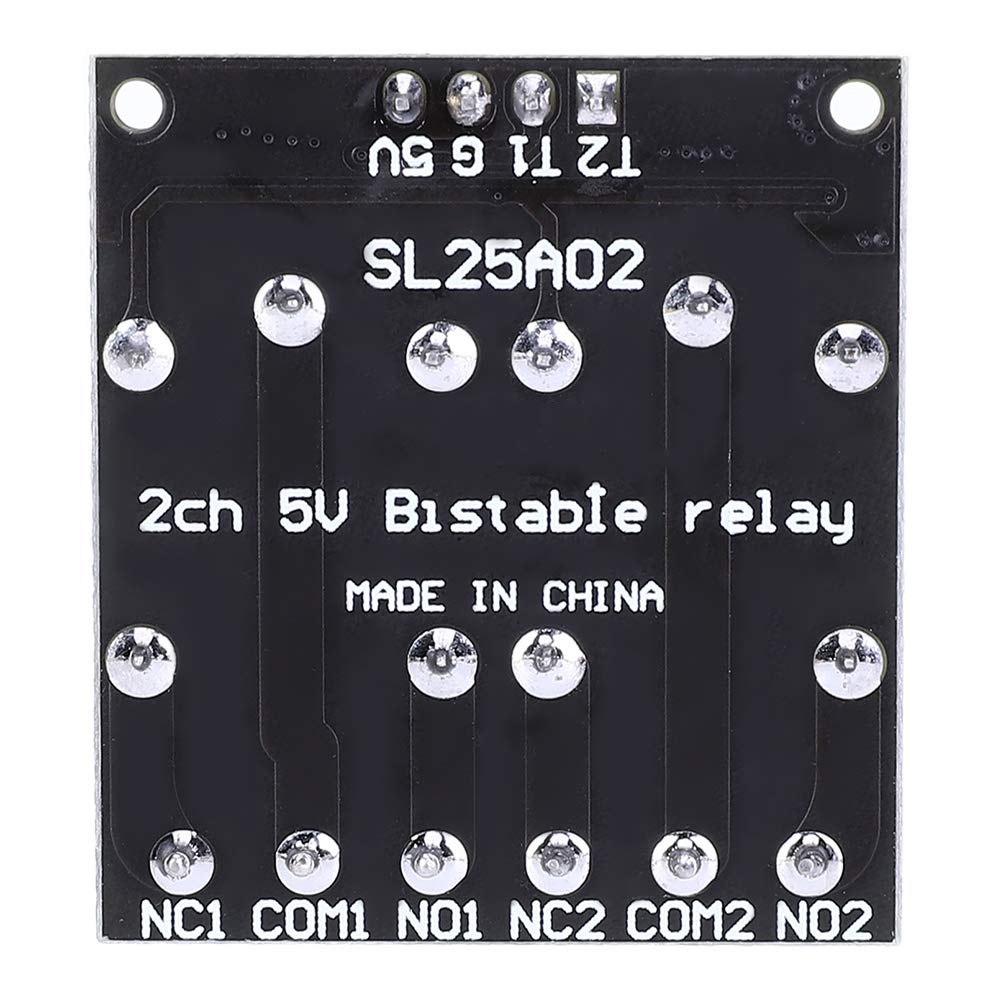

Description Specification: Condition: Brand New Item Type: Relay Module Material: Metal Working Voltage: DC 5V Working Current: 1 relay pulls in 70MA, 2 relays pull in 140MA Static Working Current: 0.2mA Relay Load Current: AC 250V/10A, DC 30V/10A Trigger Mode: Low Level Trigger Pin Description: V: Power positive G: Power negative and trigger ground terminal; T (T1/T2/T3/T4): Trigger input (0.2-2s low pulse) NO: Relay normally open port COM: Relay common port NC: Relay normally close port Instructions: When the power is turned on, the relay is turned off. Click the trigger port (T1/T2/T3/T4 port) to pull in relay (and hold), click the relay again to disconnect, and so on. Package List: 1 x Relay Module
