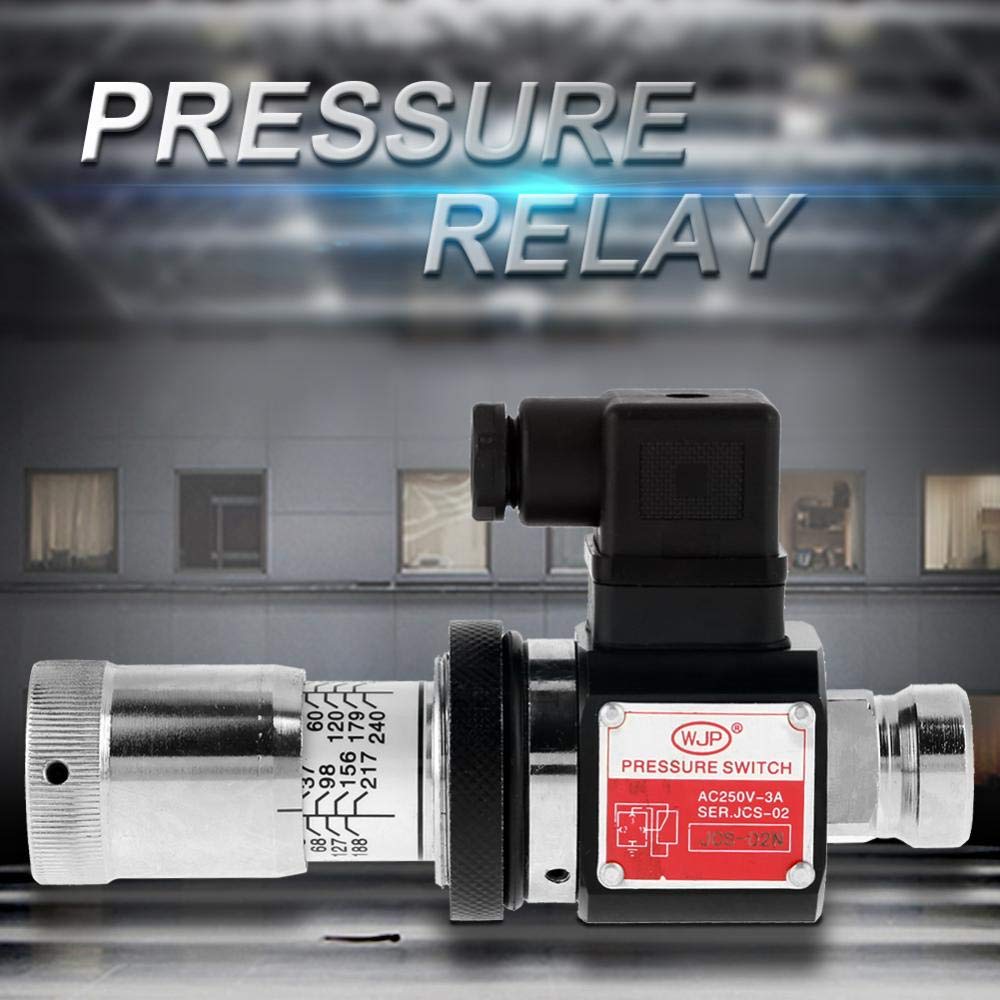

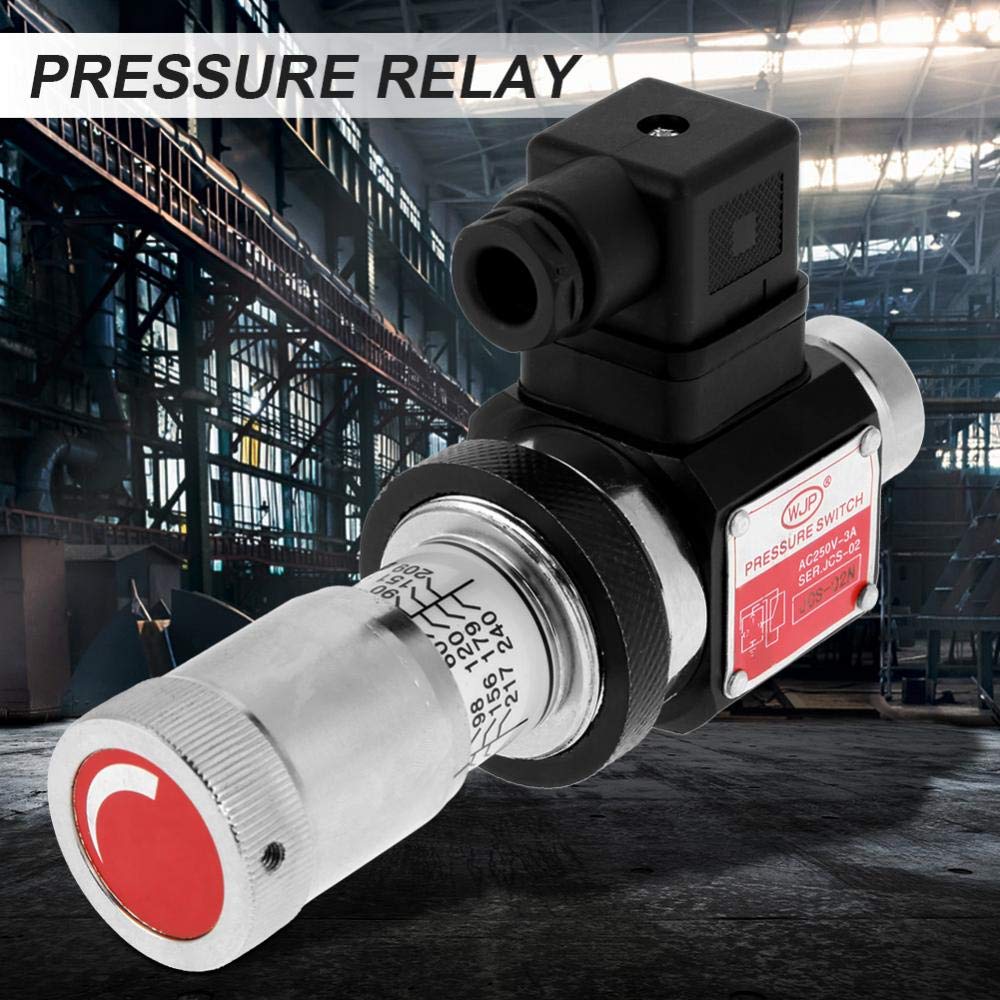

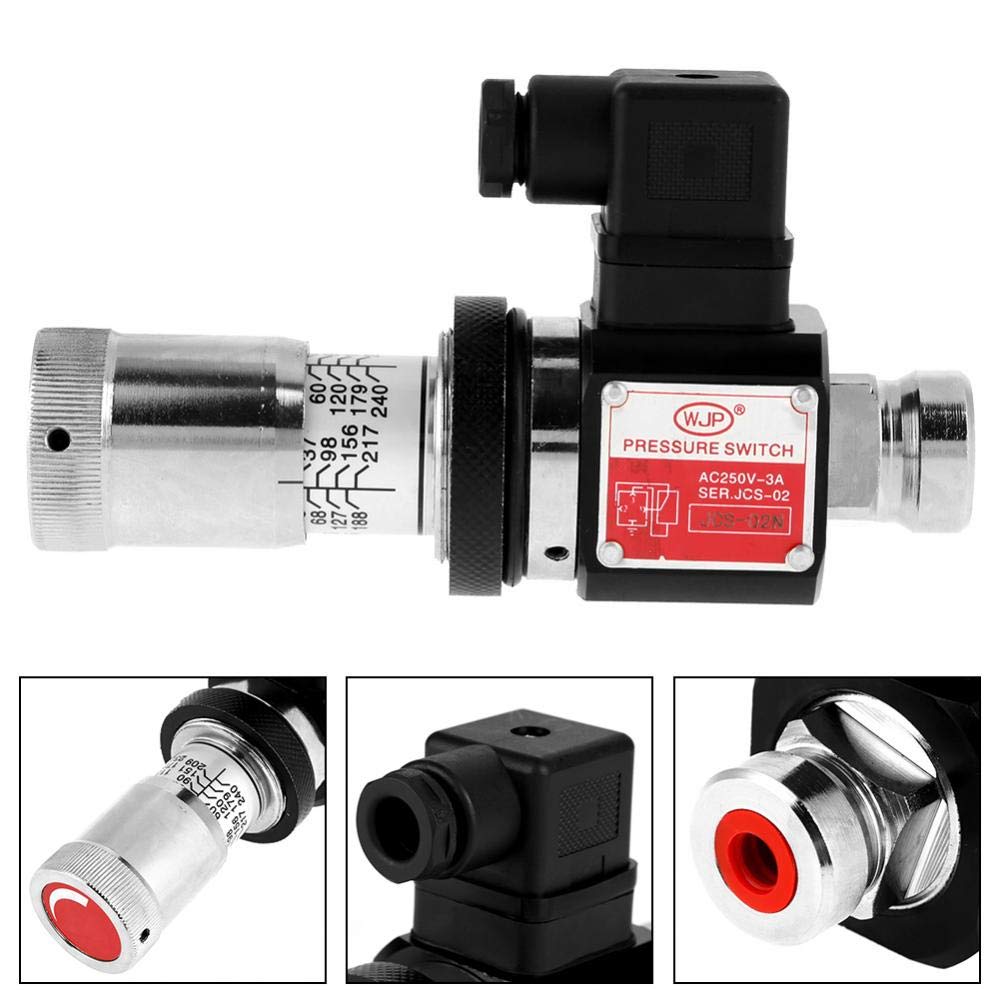

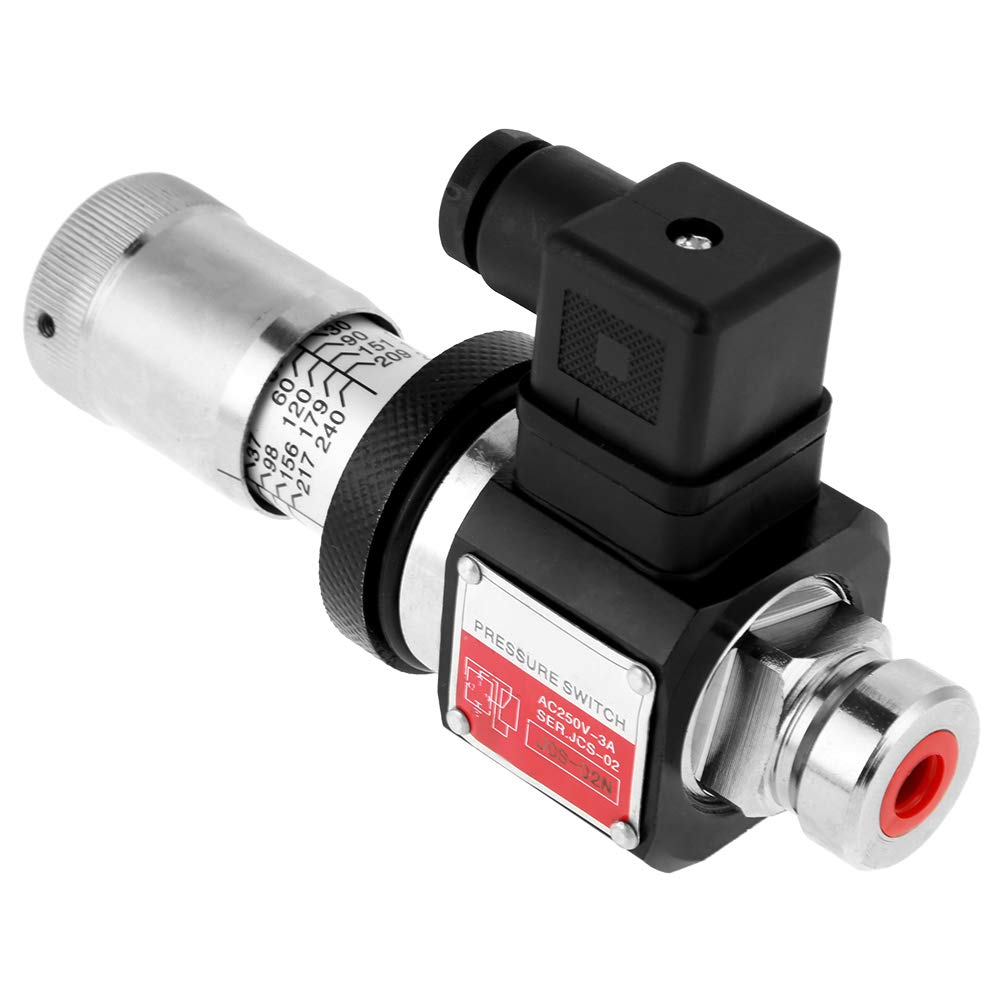

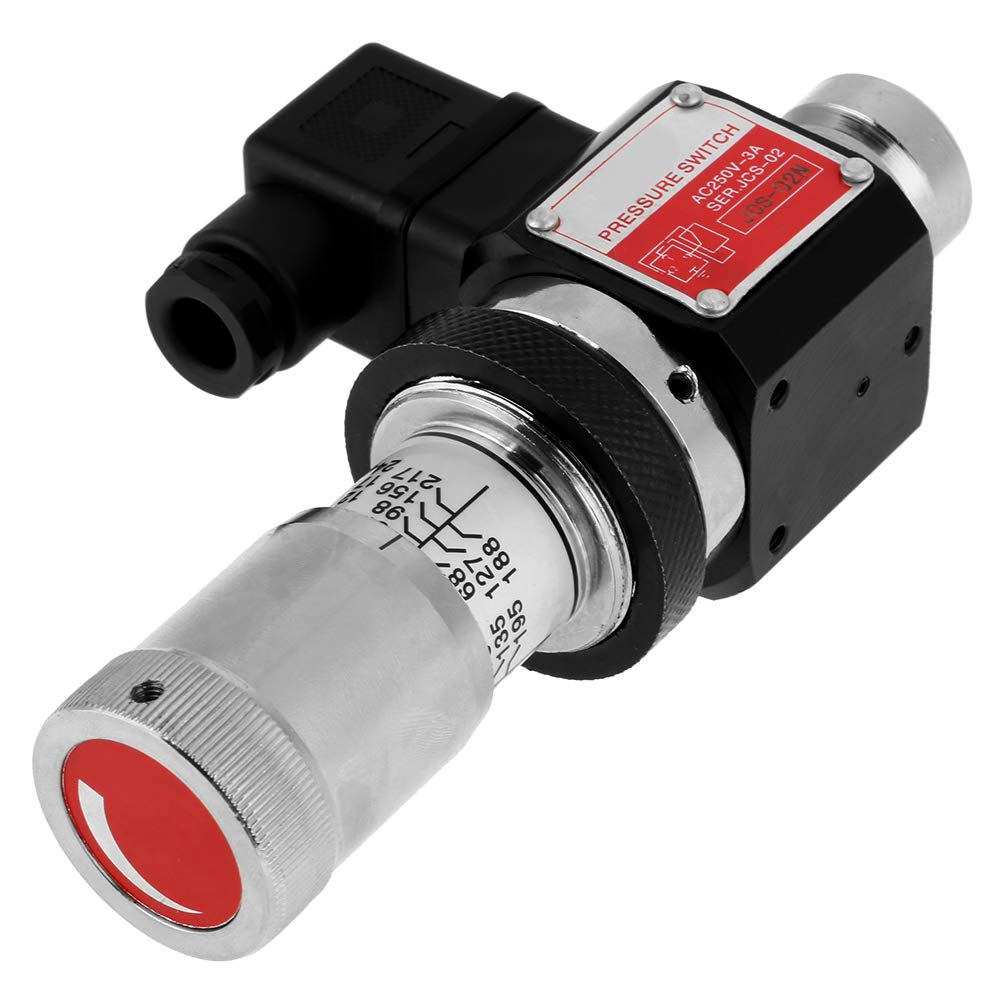

Vikye Hydraulic Pressure Switch, 30-210kg/cm², Straight Through, Automatic

• The pressure relay can be used in pneumatic, hydraulic and oil system
• The scales are marked clearly on the surface, very convenient and precise to control
• PT1/4 inch thread is suitable for most machine, easy to install
• The special structure about channel of valve body can reduce the internal pressure loss, which improves energy efficiency
• Reduce the oil temperature and increase life expectancy, save maintenance costs because of the small impedance

Description: The pressure relay can be used in pneumatic, hydraulic and oil system. In the process of operation, the pressure relay can provide an electrical signal to regulate the working condition when sense pressure rises or falls below the selected setting. Features: The pressure relay can be used in pneumatic, hydraulic and oil system. The scales are marked clearly on the surface, very convenient and precise to control. PT1/4 inch thread is suitable for most machine, easy to install. The special structure about channel of valve body can reduce the internal pressure loss, which improves energy efficiency. Reduce the oil temperature and increase life expectancy, save maintenance costs because of the small impedance. Specifications: Type: Straight through Voltage: AC 250V Current: 3A Working temperature: 60℃ Installation: Tube type Connecting thread: PT1/4" Rated pressure: 30-210kg/cm² Max pressure: 210kg/cm² Size: Approx. 13.5 x 8.2cm / 5.31 x 3.23inch Weight: Approx. 999g Package Included: 1 x Pressure Relay
