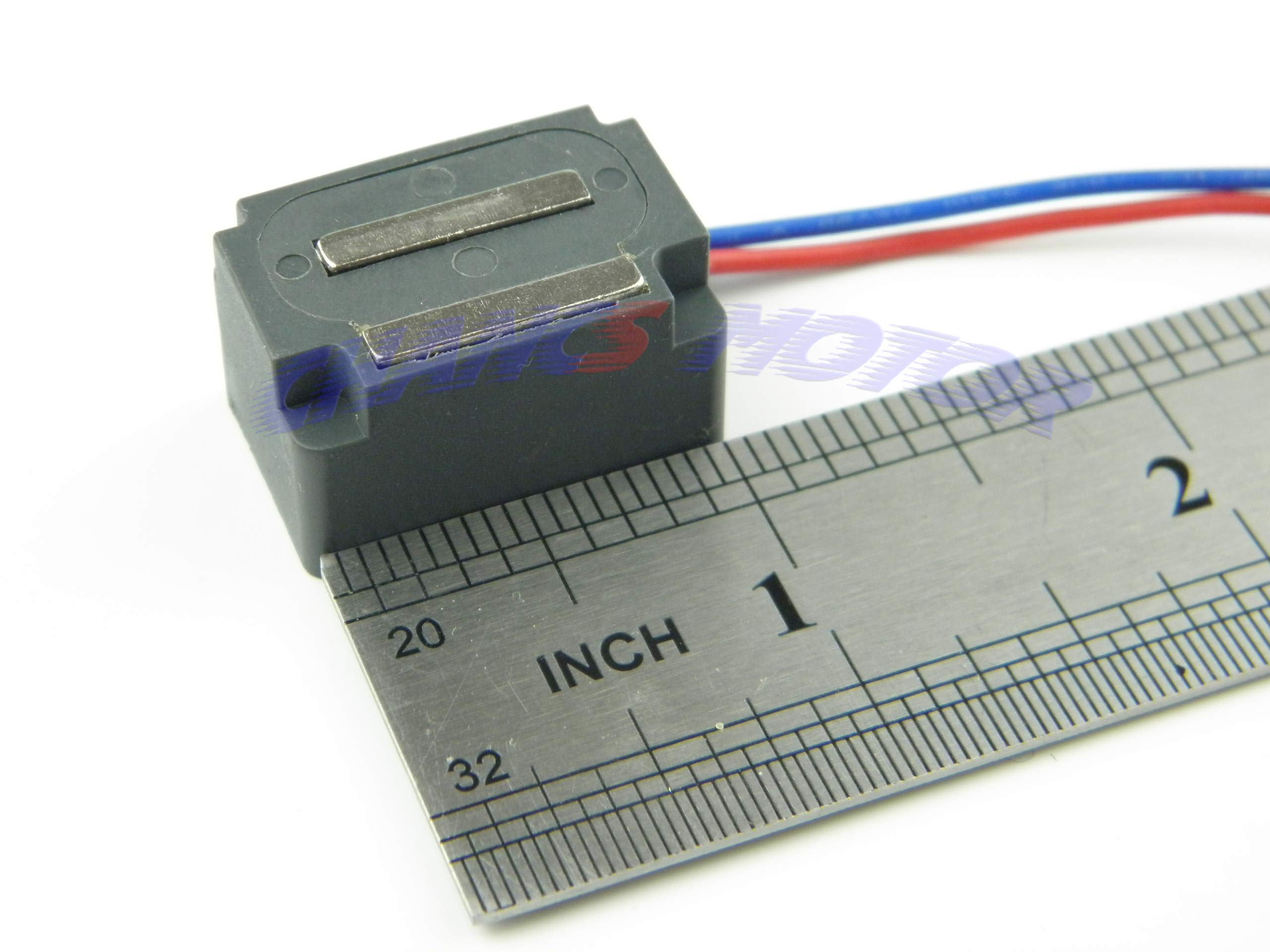

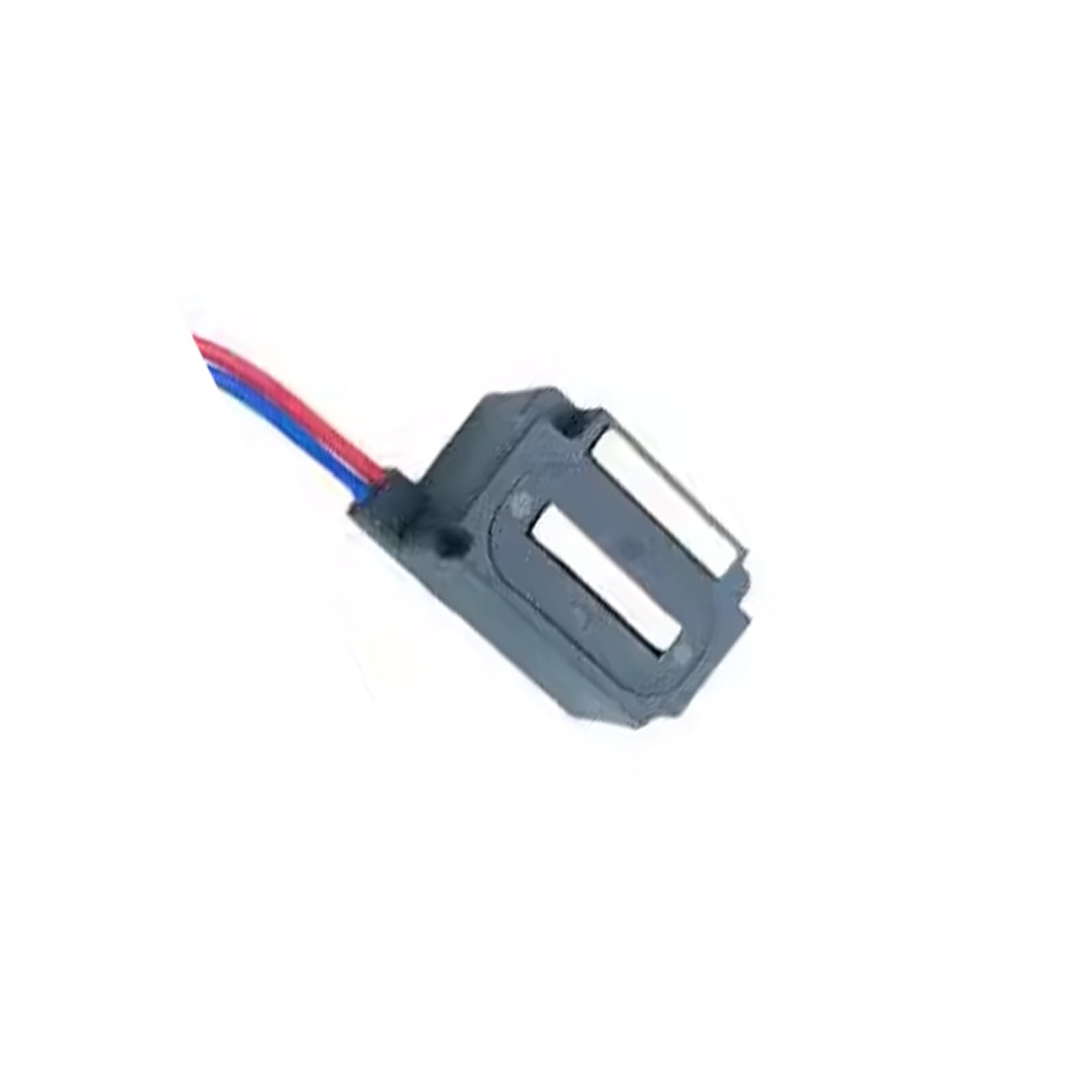

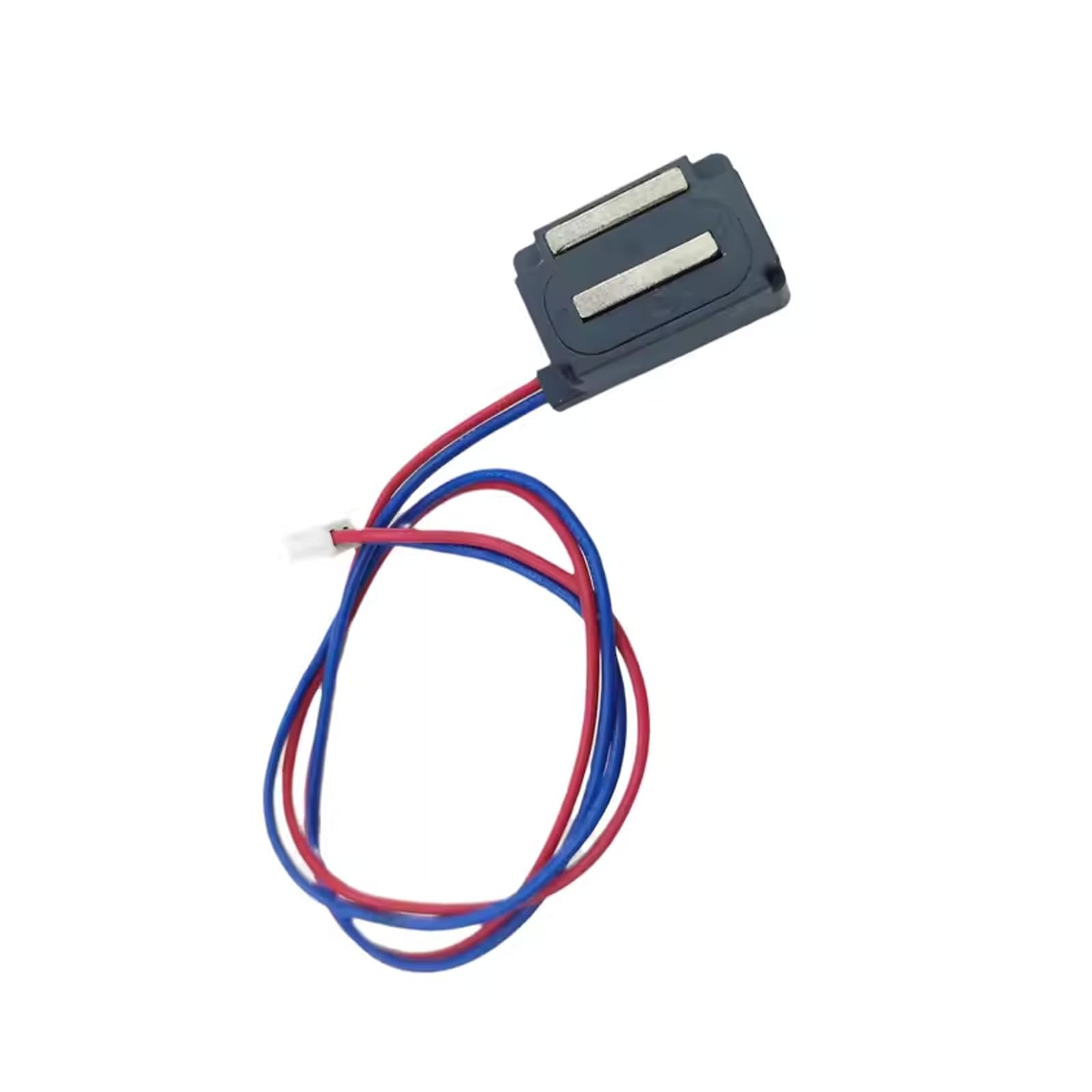

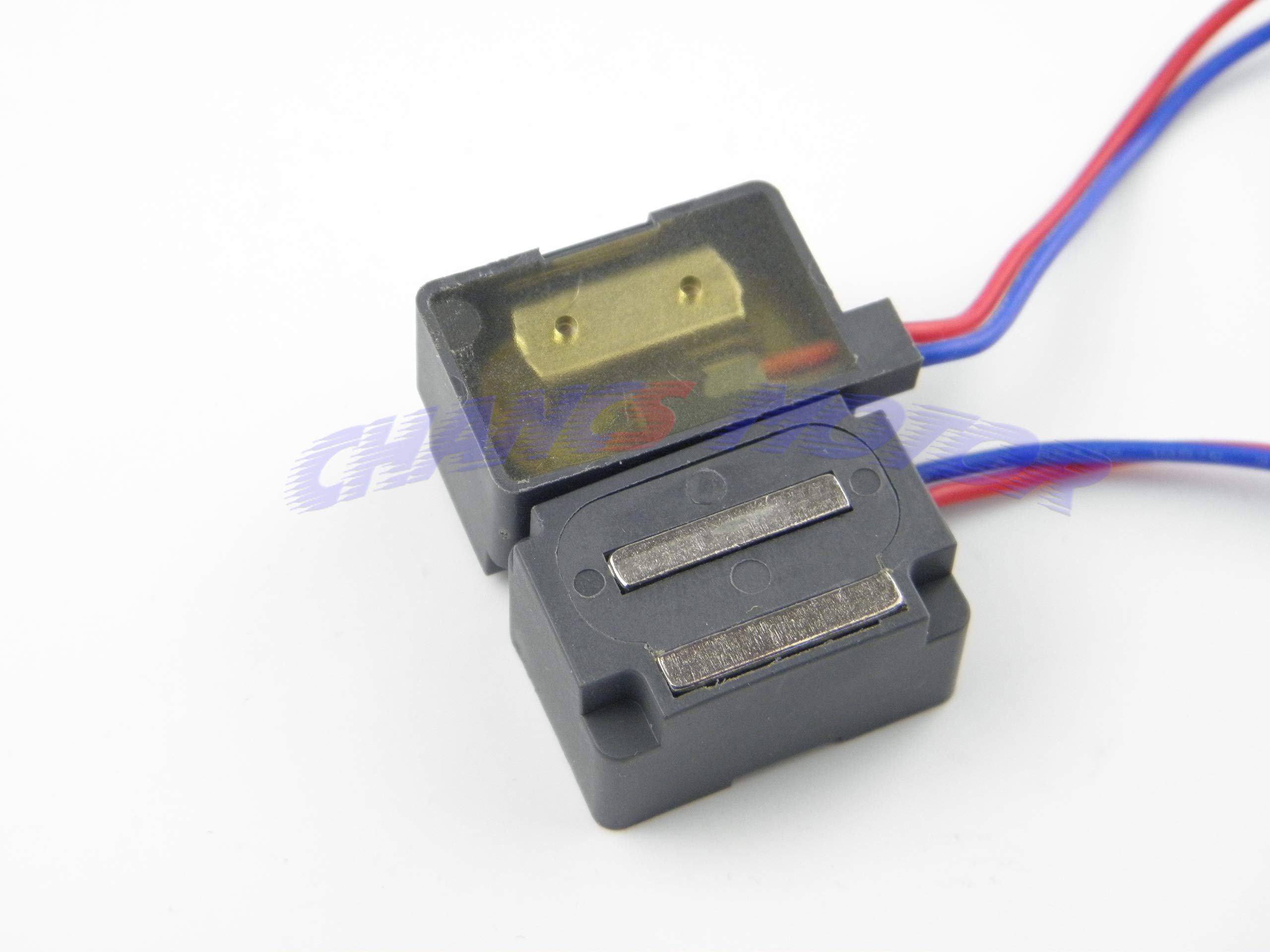

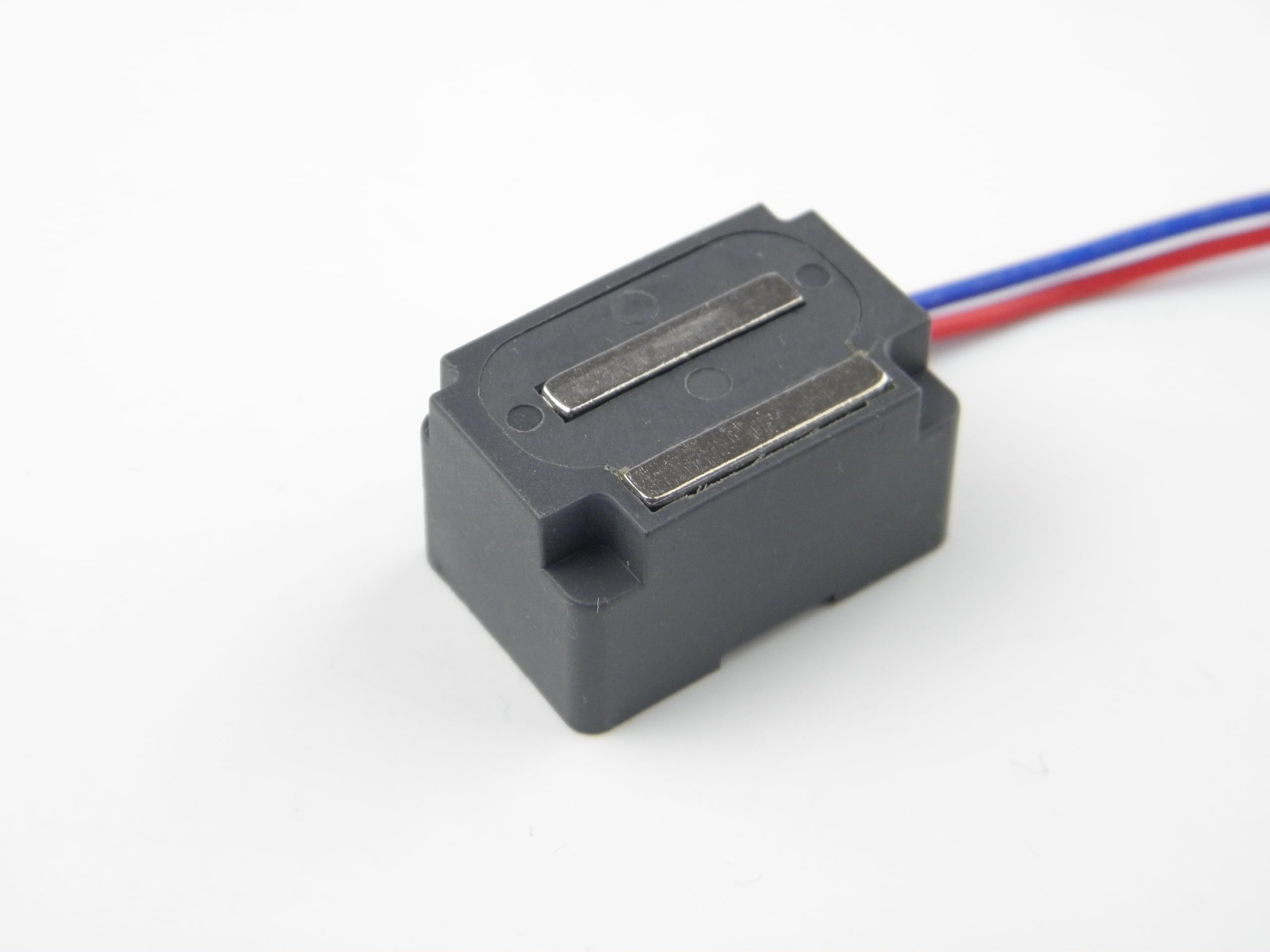

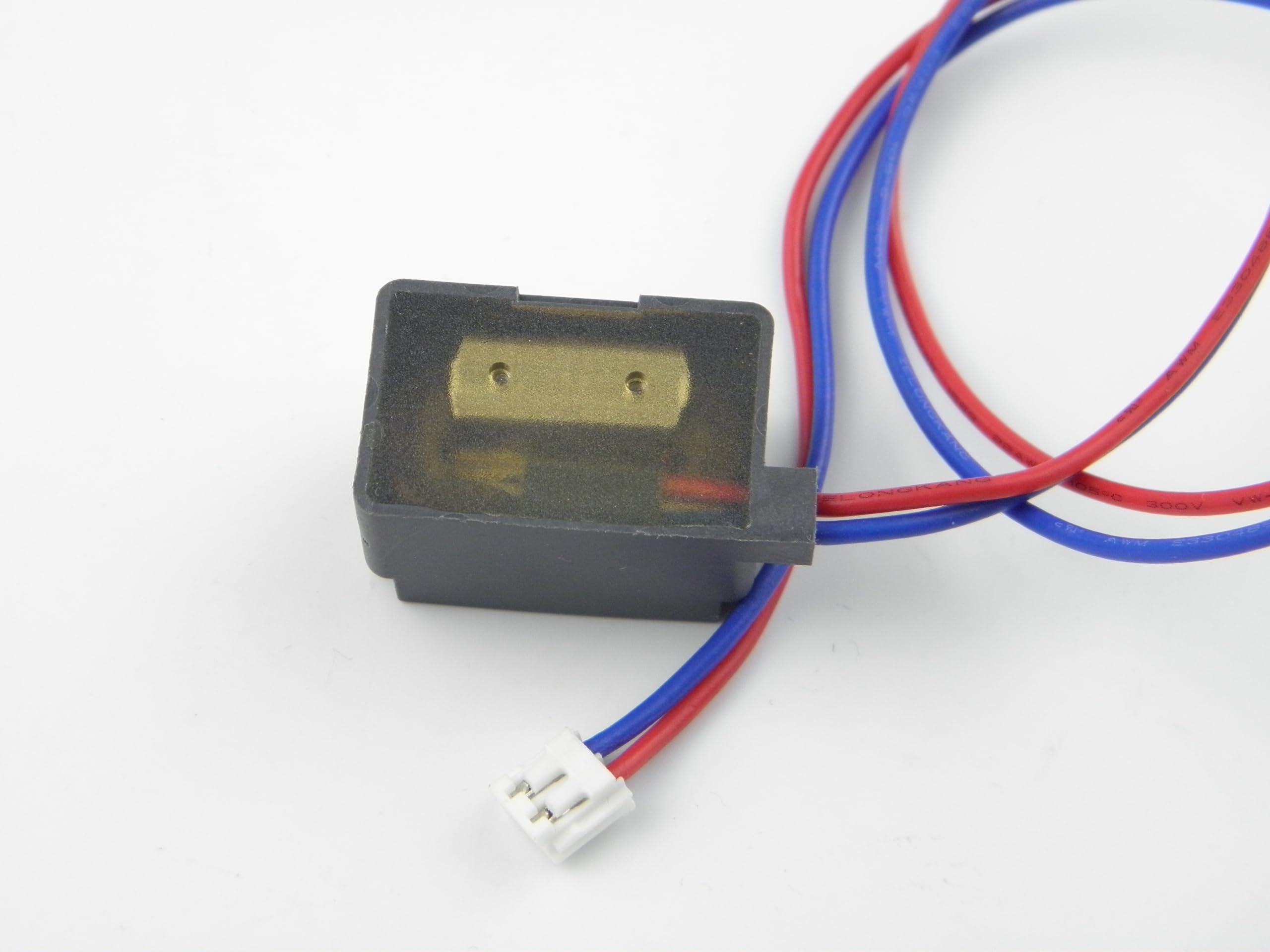

DC 12V-24V Electromagnet for Household Appliance Vacuum Cleaners Small Volume and Large suction

• *The applicable voltage of this electromagnet is DC 5V - DC 48V, the higher the voltage, the higher the power of the electromagnet, the greater the suction, but the shorter the suitable energizing time, please buyers decide the working voltage according to their working environment, but remember that the higher the voltage, the shorter the energizing time.
• *For example, DC 48V, its maximum energizing time is 3 seconds, DC 12V, even if energized for 5 minutes, it The heat generation is not big.
• *The following is the measured operating current at DC5V-30V: DC 5V，Current:18 MA； DC 6V，Current:18 MA； DC 9V，Current:31 MA； DC 12V，Current:42 MA； DC 18V，Current:65 MA； DC 24V，Current:83 MA； DC 30V，Current:103 MA；
• *Please attention: 1.When the electromagnet is sucking the object, please note the suction surface. It needs to be flat and smooth. In this way, the suction of the electromagnetic iron will has maximum efficiency.
• *2.The applicable voltage of this electromagnet is DC 5V-48V. The higher the voltage, the higher the power of the electromagnet output, the greater of the suction, but the shorter the power-up time. Please select the working voltage according to your working environment. For example, at DC 48V, its maximum power-on time is 3 seconds；at DC 12V, it is power-up for 5 minutes, and it is not too hot.

*The applicable voltage of this electromagnet is DC 5V-DC 48V, the higher the voltage, the higher the power of the electromagnet, the greater the suction, but the shorter the suitable energizing time, please buyers decide the working voltage according to their working environment, but remember that the higher the voltage, the shorter the energizing time. *For example, DC48V, its maximum energizing time is 3 seconds, DC12V, even if energized for 5 minutes, it The heat generation is not big. *The following is the measured operating current at DC5V-30V: DC 5V，Current:18 MA； DC 6V，Current:18 MA； DC 9V，Current:31 MA； DC 12V，Current:42 MA； DC 18V，Current:65 MA； DC 24V，Current:83 MA； DC 30V，Current:103 MA； *Please attention: 1.When the electromagnet is sucking the object, please note the suction surface. It needs to be flat and smooth. In this way, the suction of the electromagnetic iron will has maximum efficiency. 2.The applicable voltage of this electromagnet is DC 5V-48V. The higher the voltage, the higher the power of the electromagnet output, the greater of the suction, but the shorter the power-up time. Please select the working voltage according to your working environment. For example, at DC 48V, its maximum power-on time is 3 seconds；at DC 12V, it is power-up for 5 minutes, and it is not too hot.
