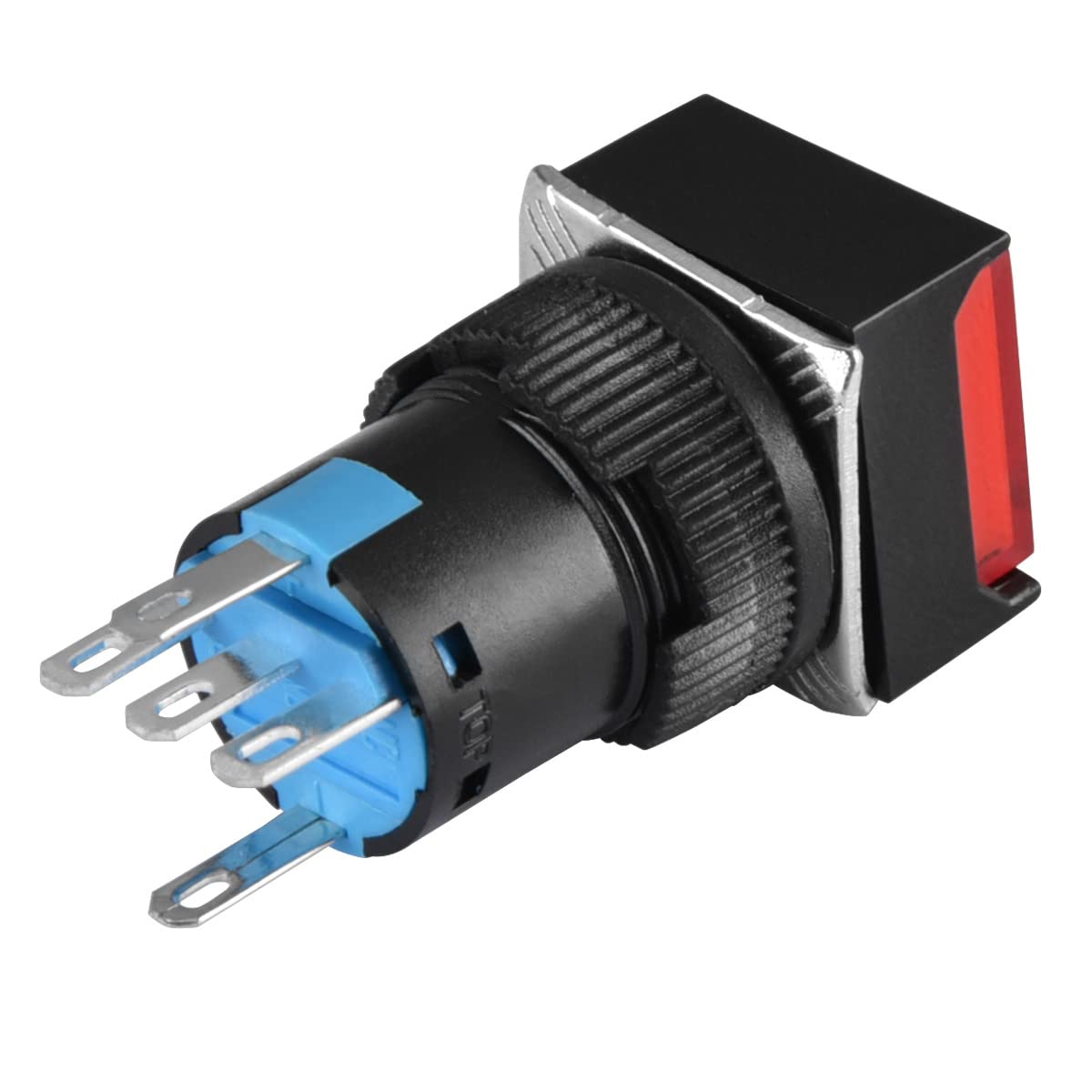

Heschen 16mm Square Latching Push Button Switch 1NO 1NC Red Blue Yellow Green Orange 24V LED Lamp

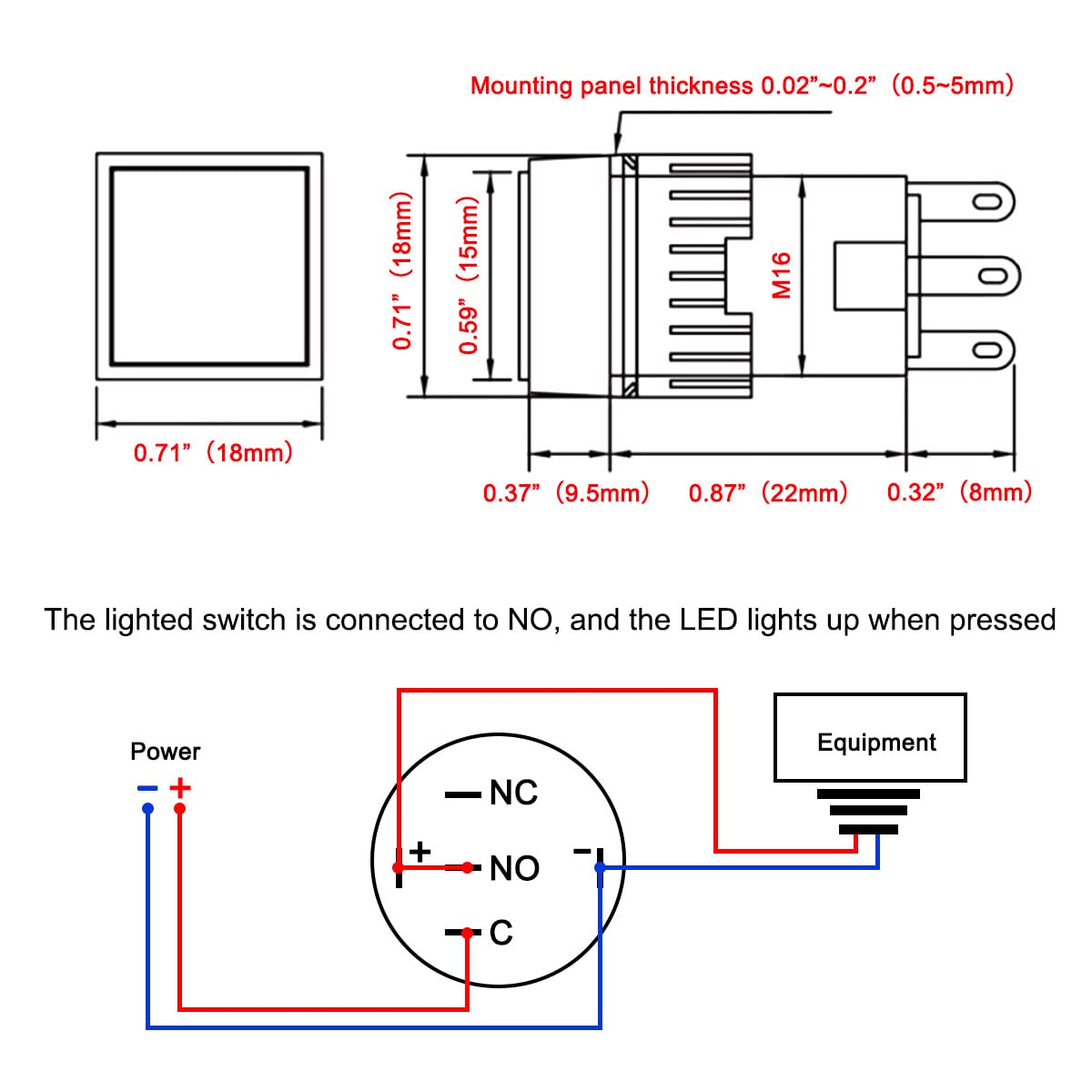

• mounting hole diameter: 16mm

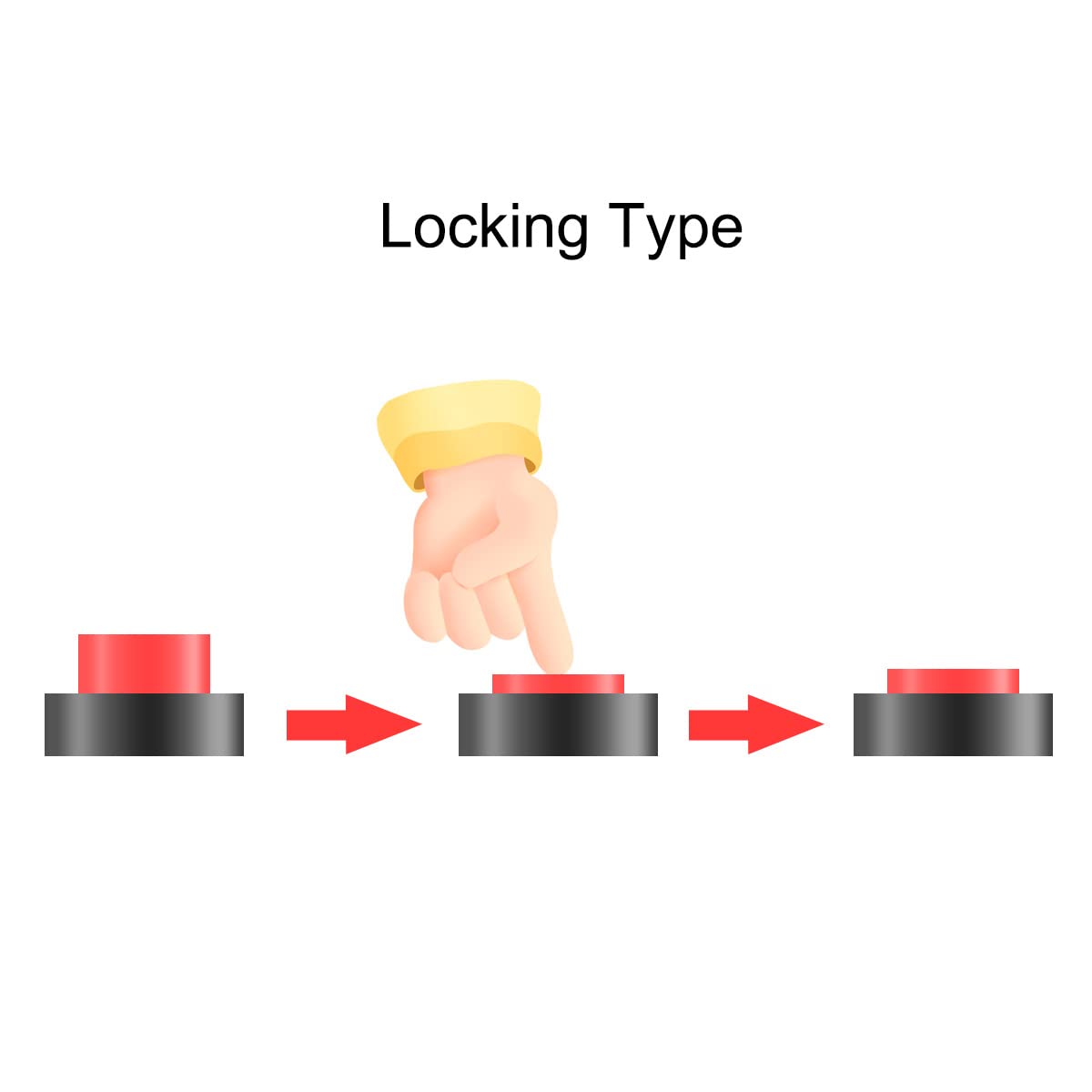

• Operation type: Latching(Self Locking)

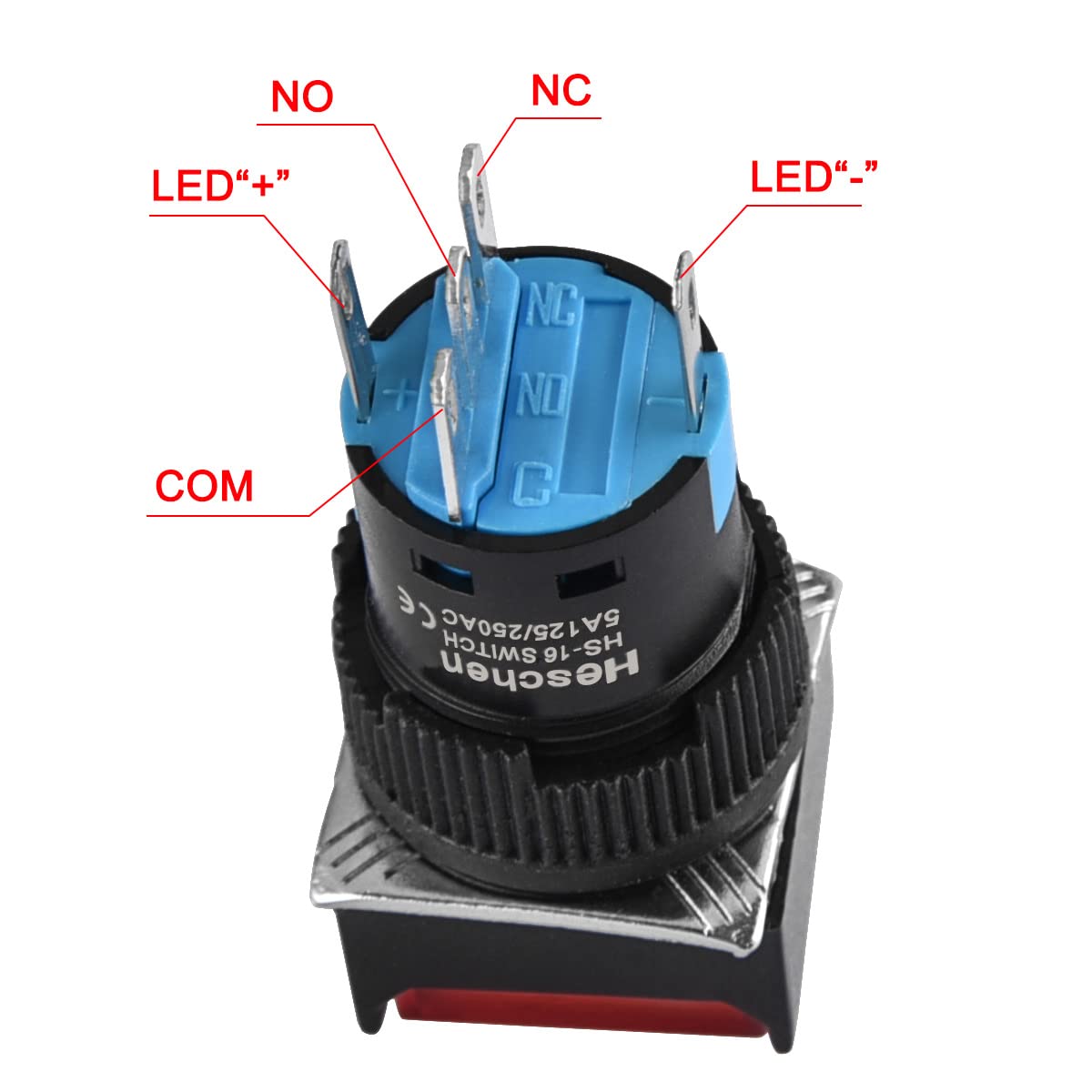

• Contact Type: 1NO, 1NC
• switch rating: 5A 250V, Lamp Voltage: 24VDC
• Package Content: 5 PCS

Product description LA128A mini button has the characterics of the unique and fine operation mechanism, the instantaneous release of switch uses relible vermeil as contact, the service life is long. The production is suitable for controlling the interlocking of indicating light and in the electric controlling circuit such as numerically-controlled machine tool, mechanism, power, telecommication, automated equipment, bank, hospital, insstrument and so on. Maximum Voltage: 250V AC/DC Thermal Current: 3A Minimum Applicable Load: 5V AC/DC, 1mA Terminal Style: #110 Quick Connect Operatin Humdity: -25 to +55 °C Operating Temperature: 45 to 85% RH Insulation Resistance: 100M Ohm minimum Electrical Life: 100,000 operations minimum Package Content: 5 PCS Safety Warning IP40 Watertight/Oiltight
