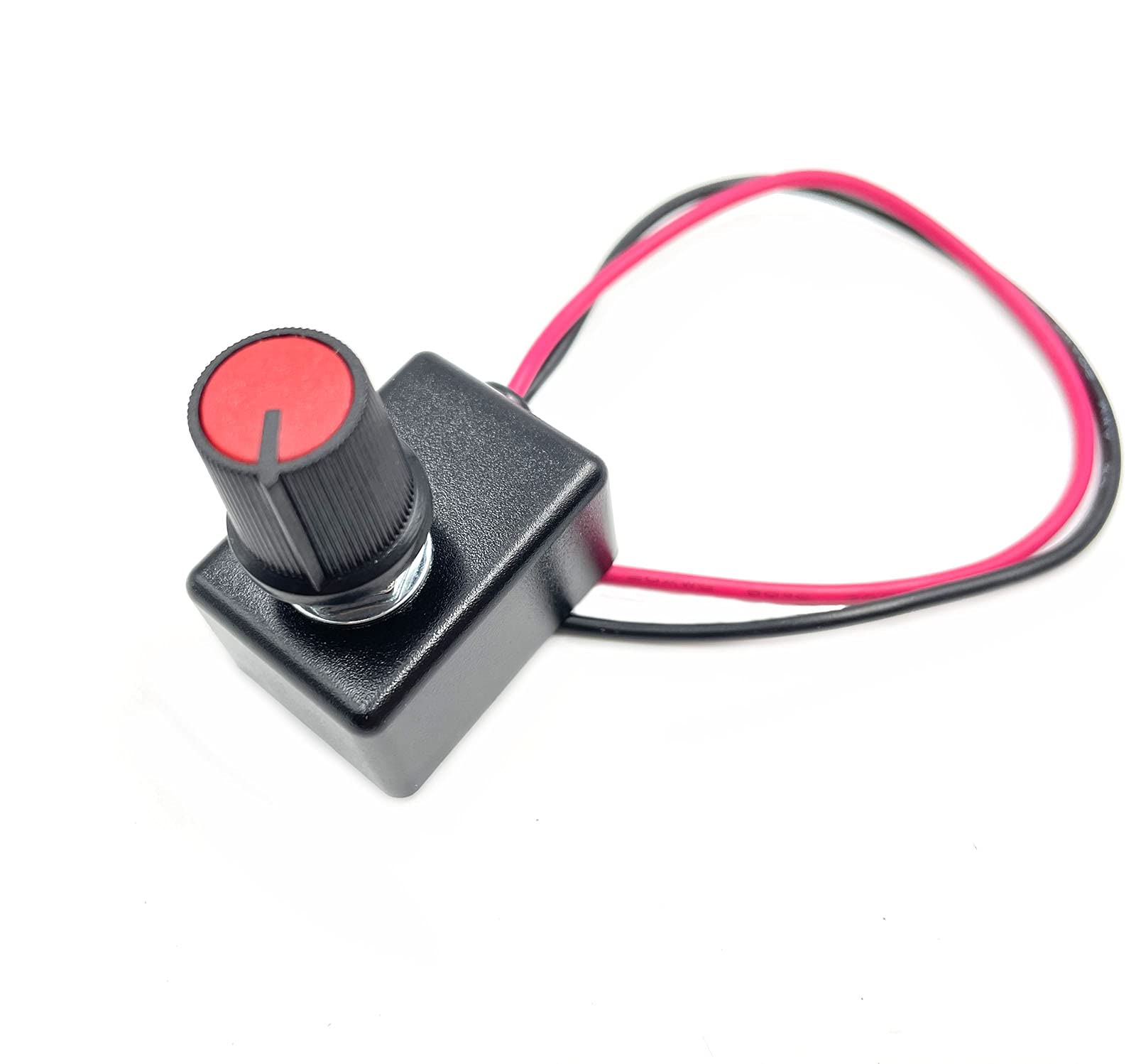

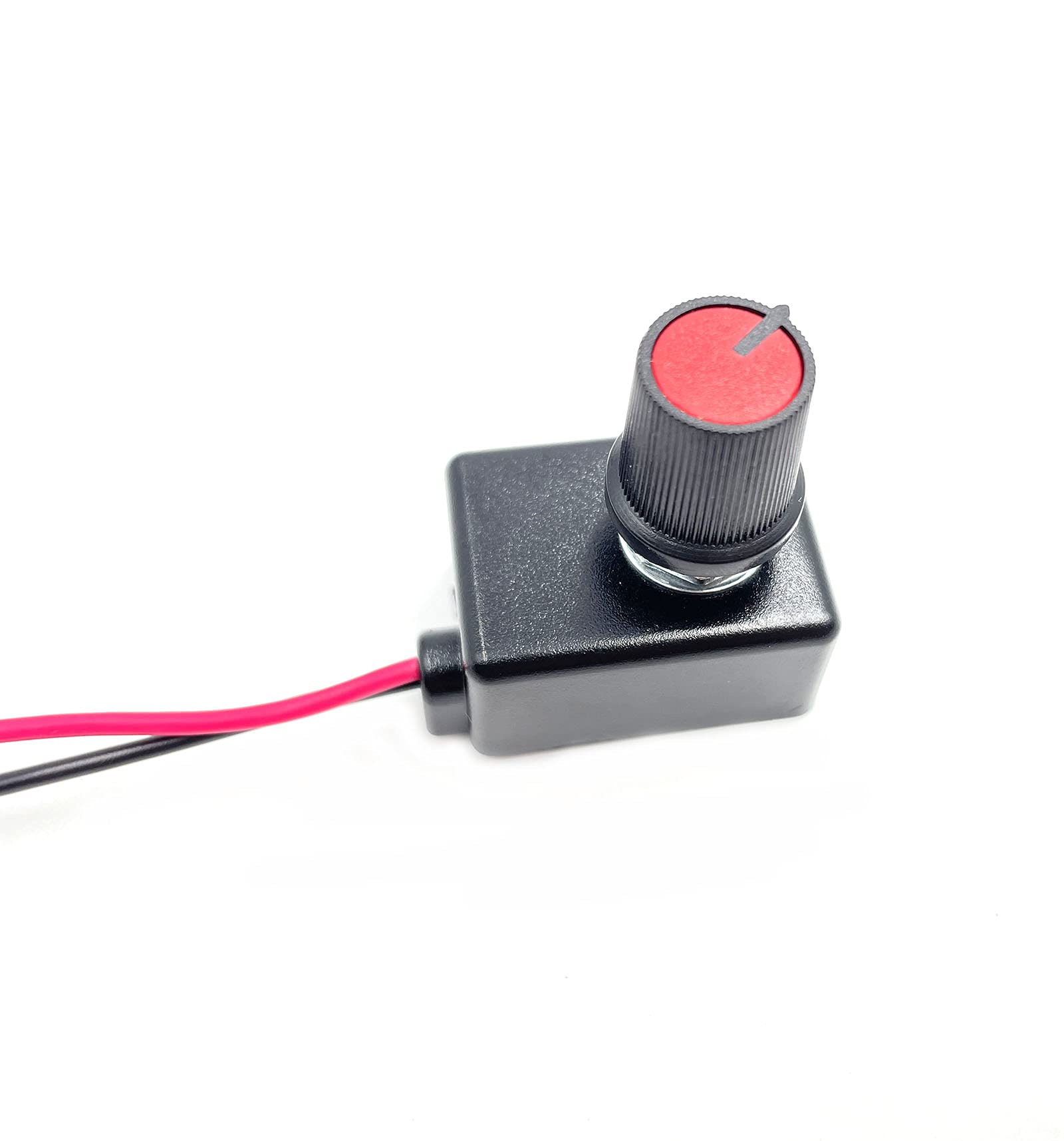

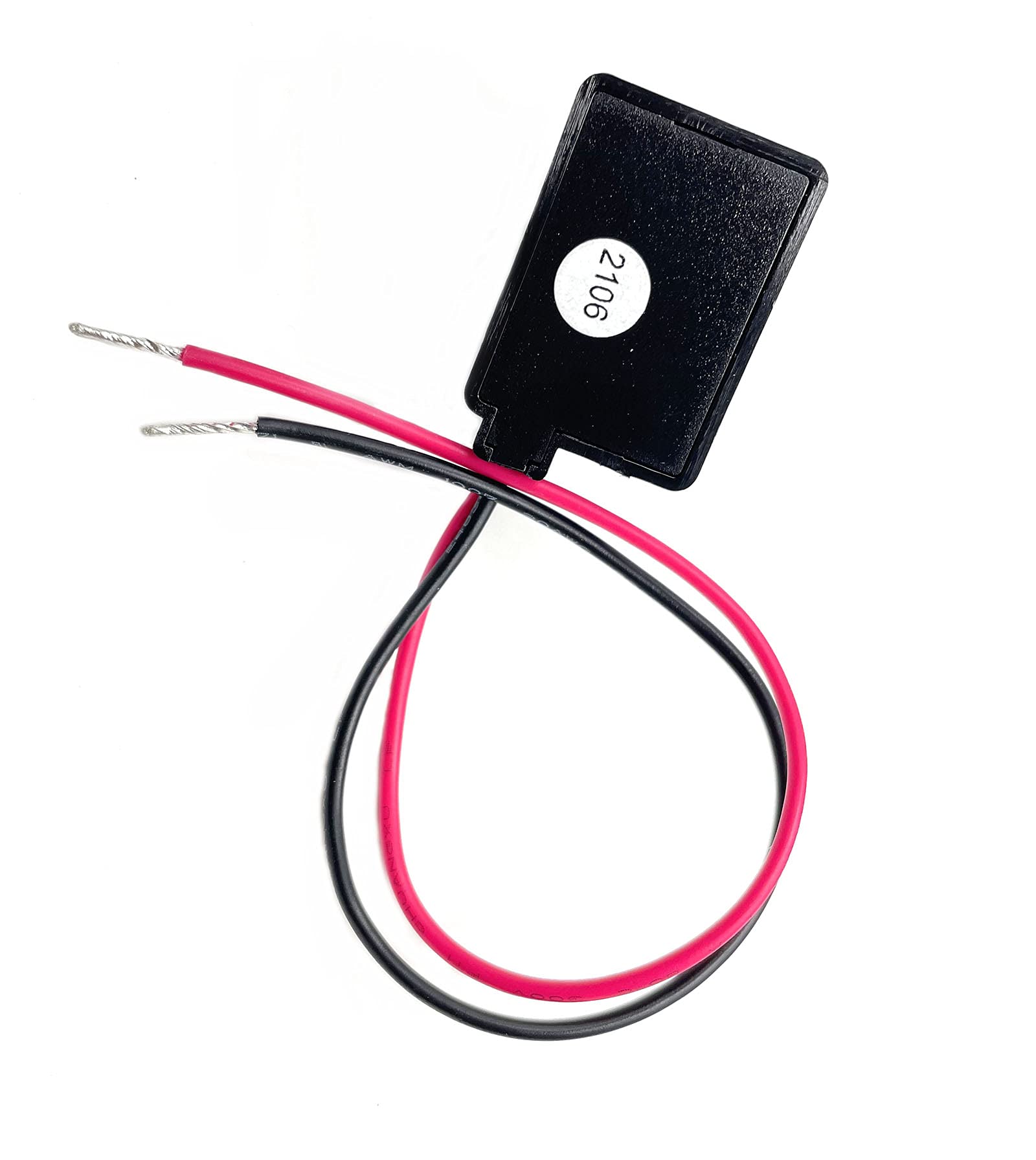

SAUTOP 1pcs Mini DC 0/1-10V Dimmer Knob Controller Rotary Switch PWM Dimming For Dimmable LED light Grow lamp Driver Interior Spotlight

• The dimmer is a 0-10V dimmer which has switch off features ,Adjustment range is 0-100%
• It is small and easy to install,Switch Size: 32*20*35（mm）,Mounting Hole Diameter :φ7mm.
• Place the driver away from direct heat sources and in well-aired spaces .If the driver is built-in ,sufficient ventilation must be ensured.
• When connecting the electronis LED Driver & ballasts & transformers and power dimmers ,careful attention should be paid to connecting "+" and "-" as the picture of Wiring Diagram .(Red line connects to "DIM+" ,Black line connects to "DIM-" )
• Package included: 1pcs Mini DC 0/1-10V Dimmer Knob Controller Rotary Switch PWM Dimming For Dimmable LED light Grow lamp Driver Interior Spotlight

Specification : Minimum output connect cable size is 1007#20AWG, maximum output cable length is 50 meters.. Input Voltage(Max.):10V DC Input Voltage(Min.):0.5V DC Output Control Current(Max.): 40mA Working Temperature:-10 Degree C -40 Degree C ambient operating at full load Working humidity: 20 Percent -90 Percent RH non-condensing Storage temperature, humidity: -20 Degree C -80 Degree C , 10 Percent -90 Percent RH Dimension: 32x20x35.5mm Package include: 1pcs DC 0/1-10V Knob Dimmer Mini Controller Rotary Switches PWM Dimming for LED Light Interior Lighting Dimmable Spotlight Grow Lamp ( Could Switch Off )
