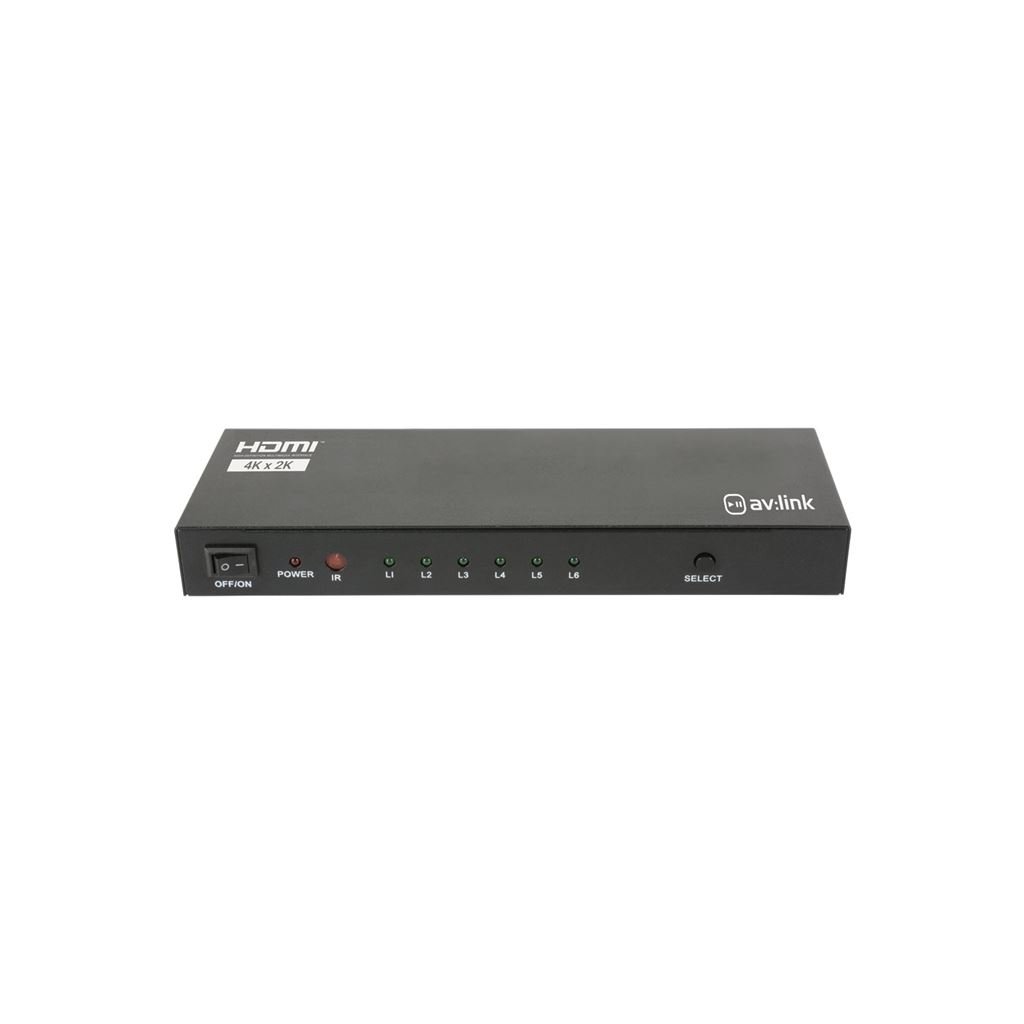

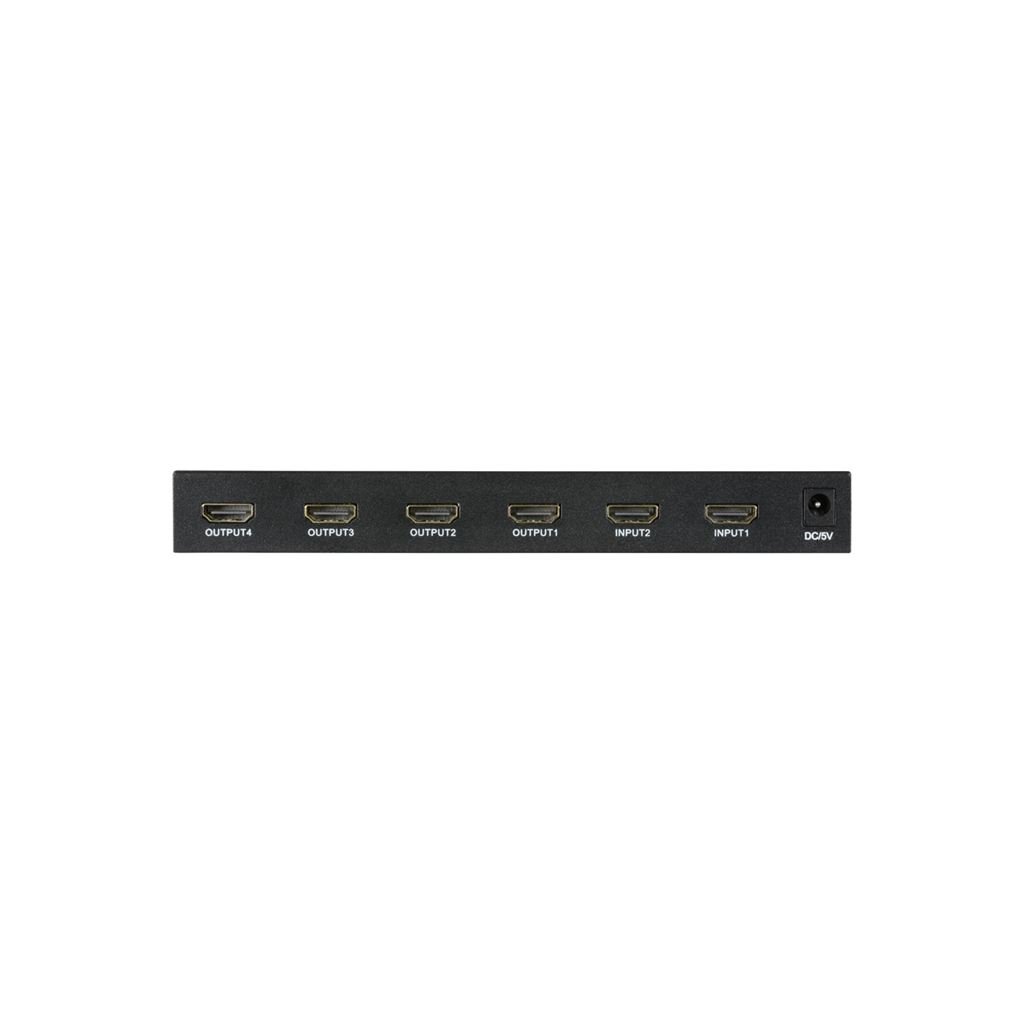

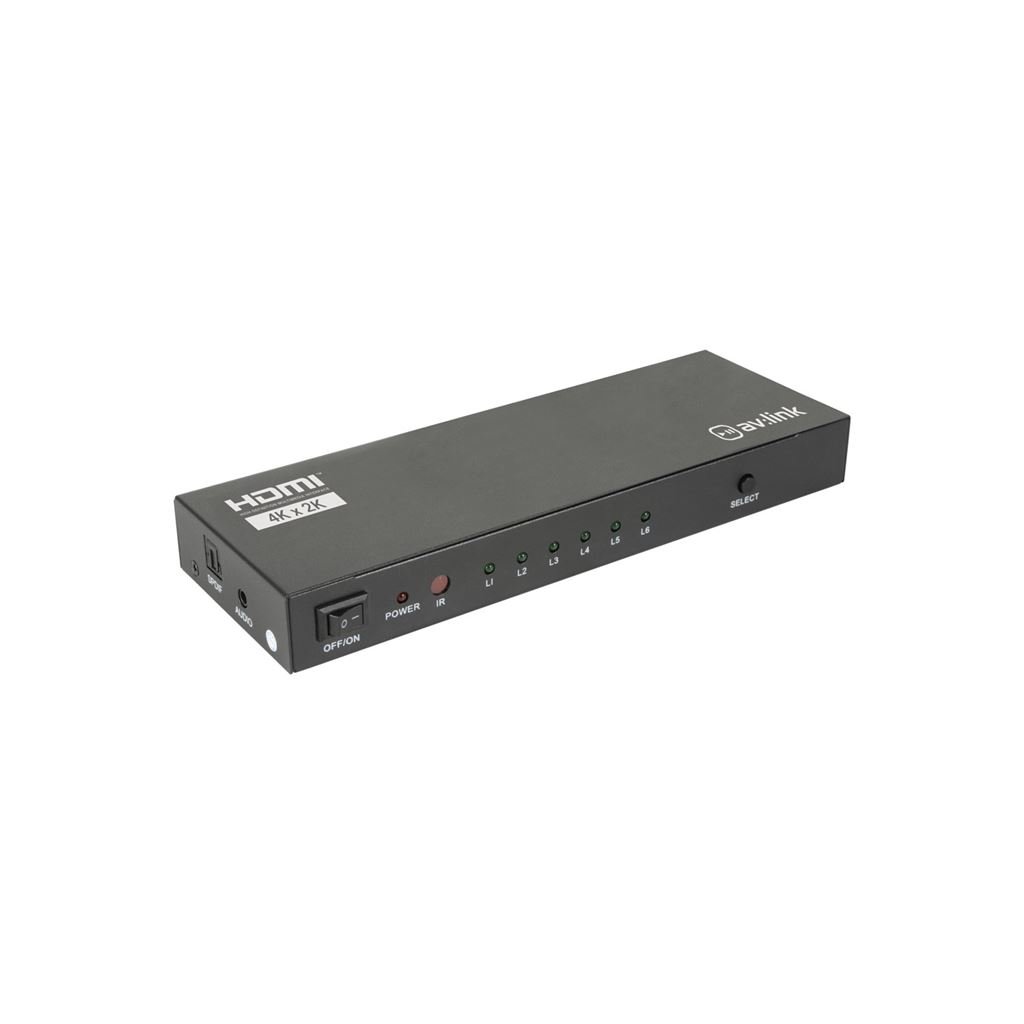

AV Link HSS24 HDMI Switch/Splitter | 2 In 4 Out 4K Ready, Gold

• Simple connection and operation
• Gold plated HDMI connectors for optimum signal transfer
• Supports HDMI v1.4b resolutions up to 3840 x 2160 @ 30Hz
• Digital SPDIF and analogue 3.5mm jack audio outputs

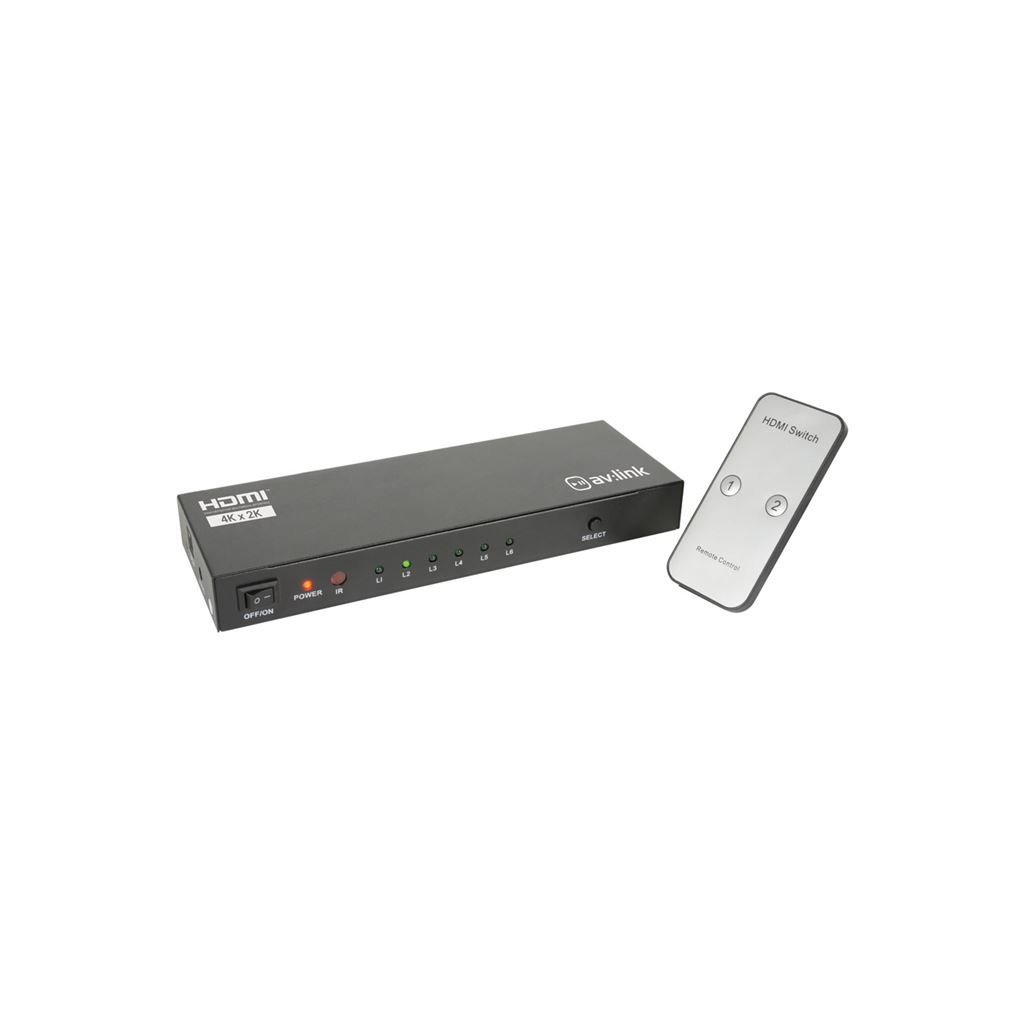

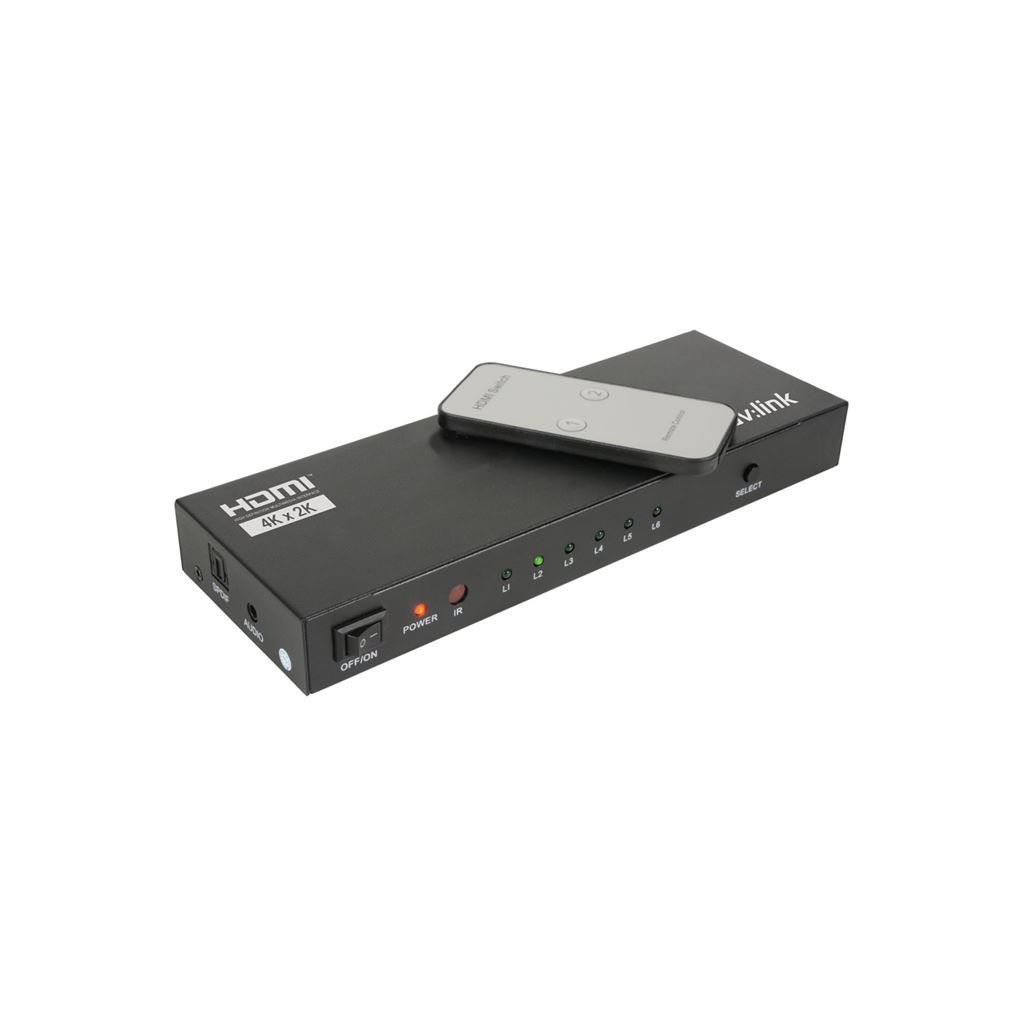

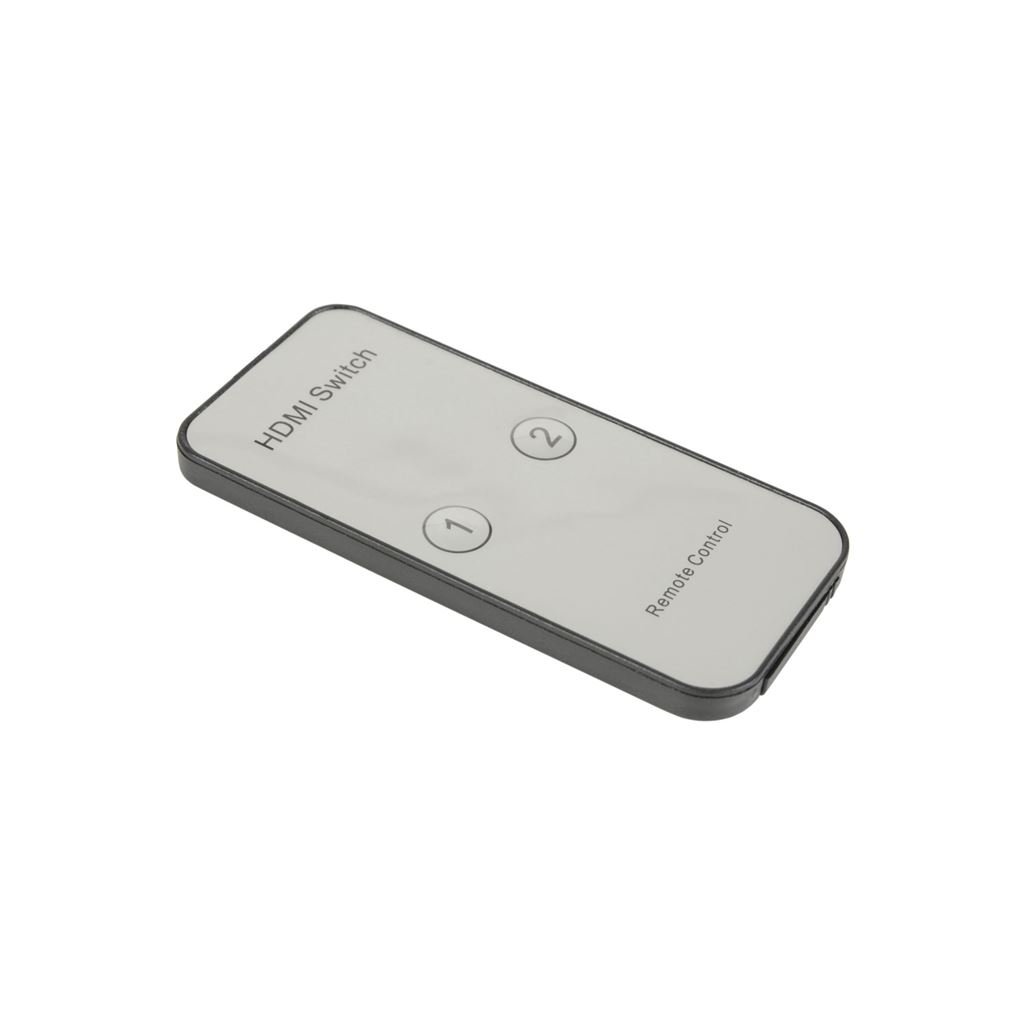

• IR remote and UK power adaptor supplied

Product Description A 4K HDMI splitter to switch between 2 source devices, with up to 4 display outputs. Use with HDMI cables of a combined 25m per output for HD resolution, or a combined 16m per output for 4K resolution, without signal loss. SPDIF and 3.5mm jack outputs allow the audio signal of the selected source device to simultaneously be channelled through a separate sound system; ideal for hospitality and entertainment venues. Supplied with IR remote to switch between sources. - Simple connection and operation - Gold plated HDMI connectors for optimum signal transfer - Supports HDMI v1.4b resolutions up to 3840 x 2160 @ 30Hz - Supports DTS-HD, Dolby True, DTS, Dolby-AC3 and DSD audio formats - Digital SPDIF and analogue 3.5mm jack audio outputs - Ideal for entertainment, hospitality and other commercial venues with multiple displays - IR remote and UK power adaptor supplied SPECIFICATION: • HDMI version 1.4b • Resolution Up to 3840 x 2160 @ 30Hz • Display colours 8/10/12bit deep colour • Audio format DTS-HD, Dolby True, DTS, Dolby-AC3 and DSD • Max. bandwidth 300MHz • Max. baud rate 3Gbps • Transmission distance 25m max HD or 16m max 4K (15m input/10m output @ 1080p and 8m input/output @ 4K) • Max. working current 1000mA • Operating temperature range -15°C ~ +55°C • Dimensions 200 x 75 x 25mm • Weight 280g Box Contains • HDMI switch / splitter • IR remote control • UK power adaptor • User manual
