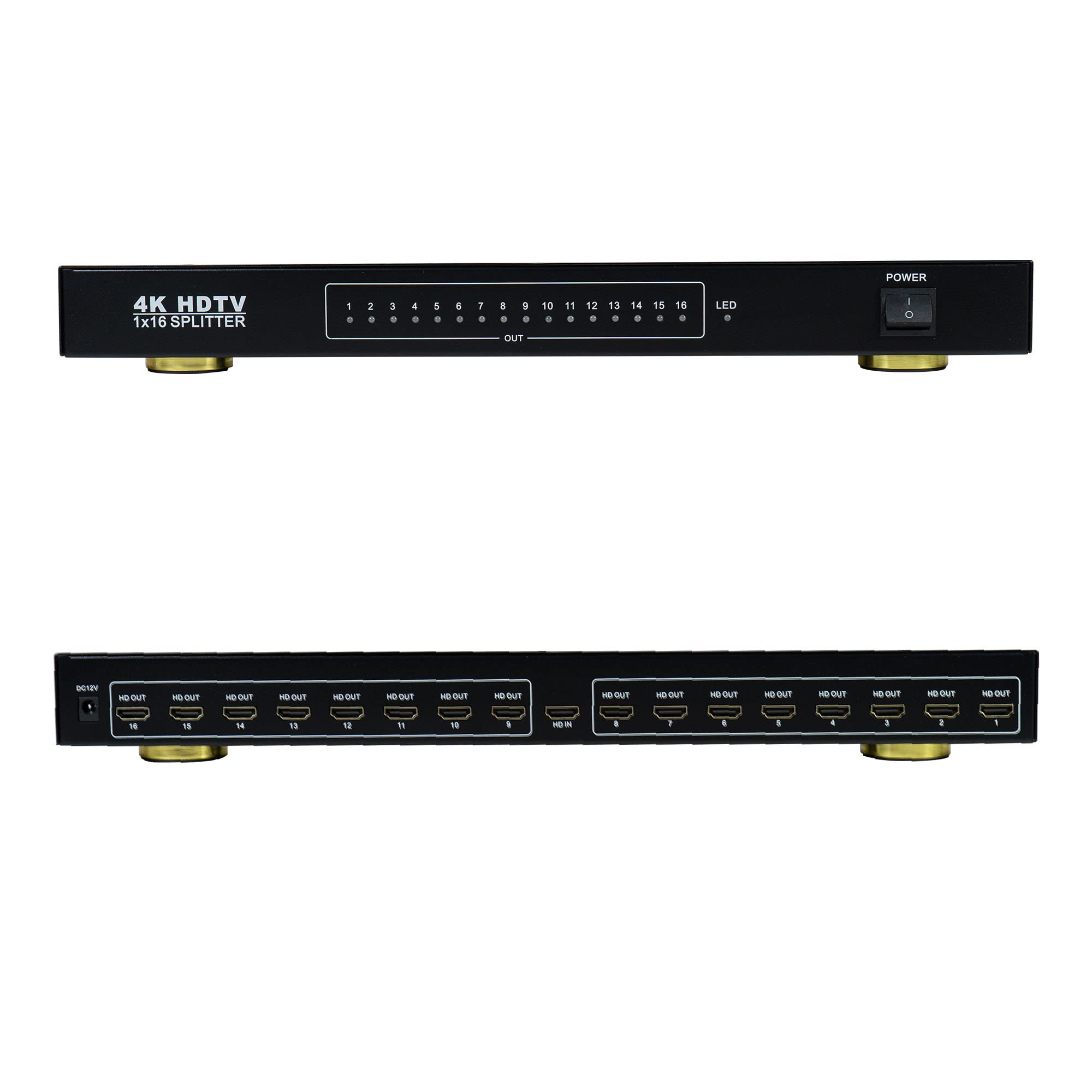

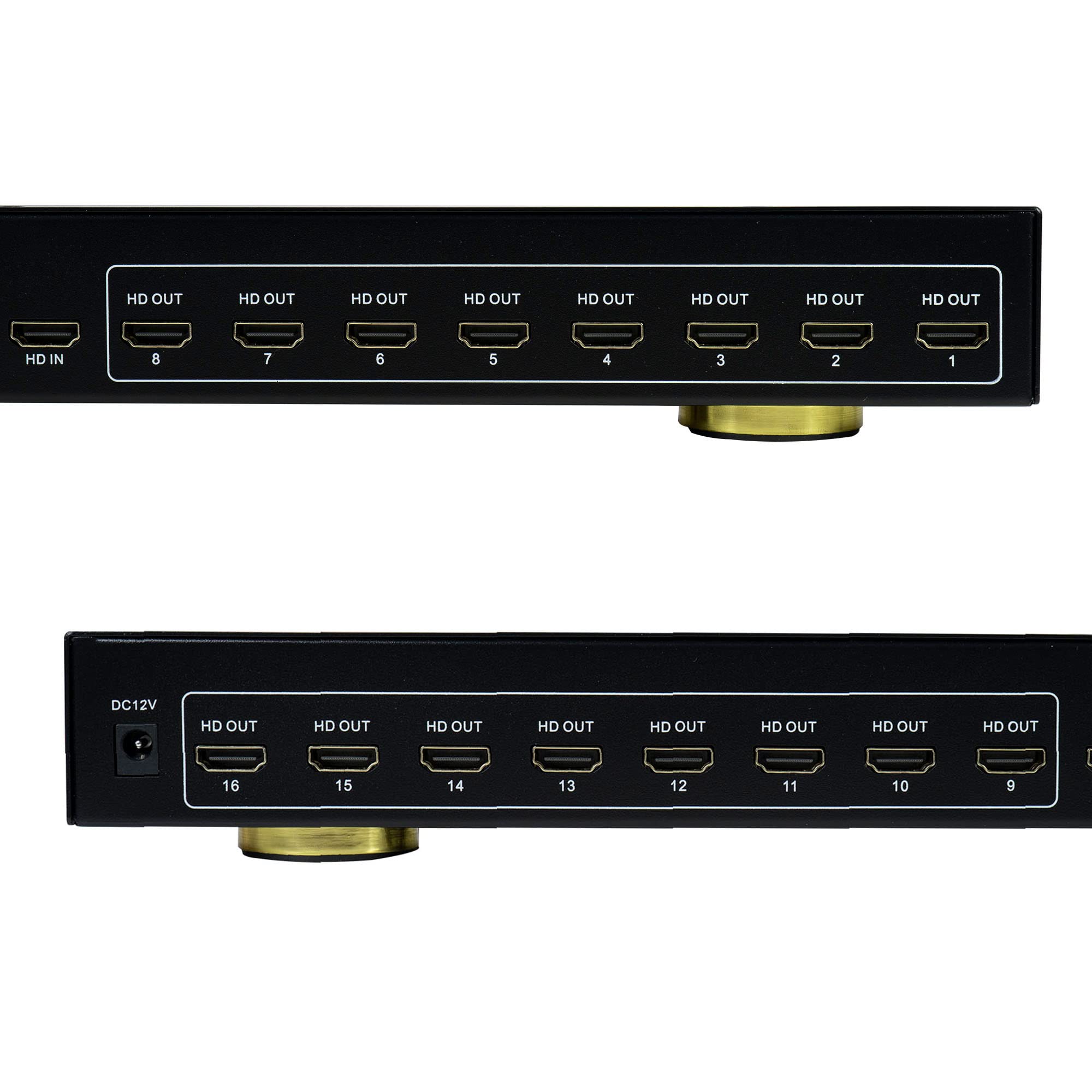

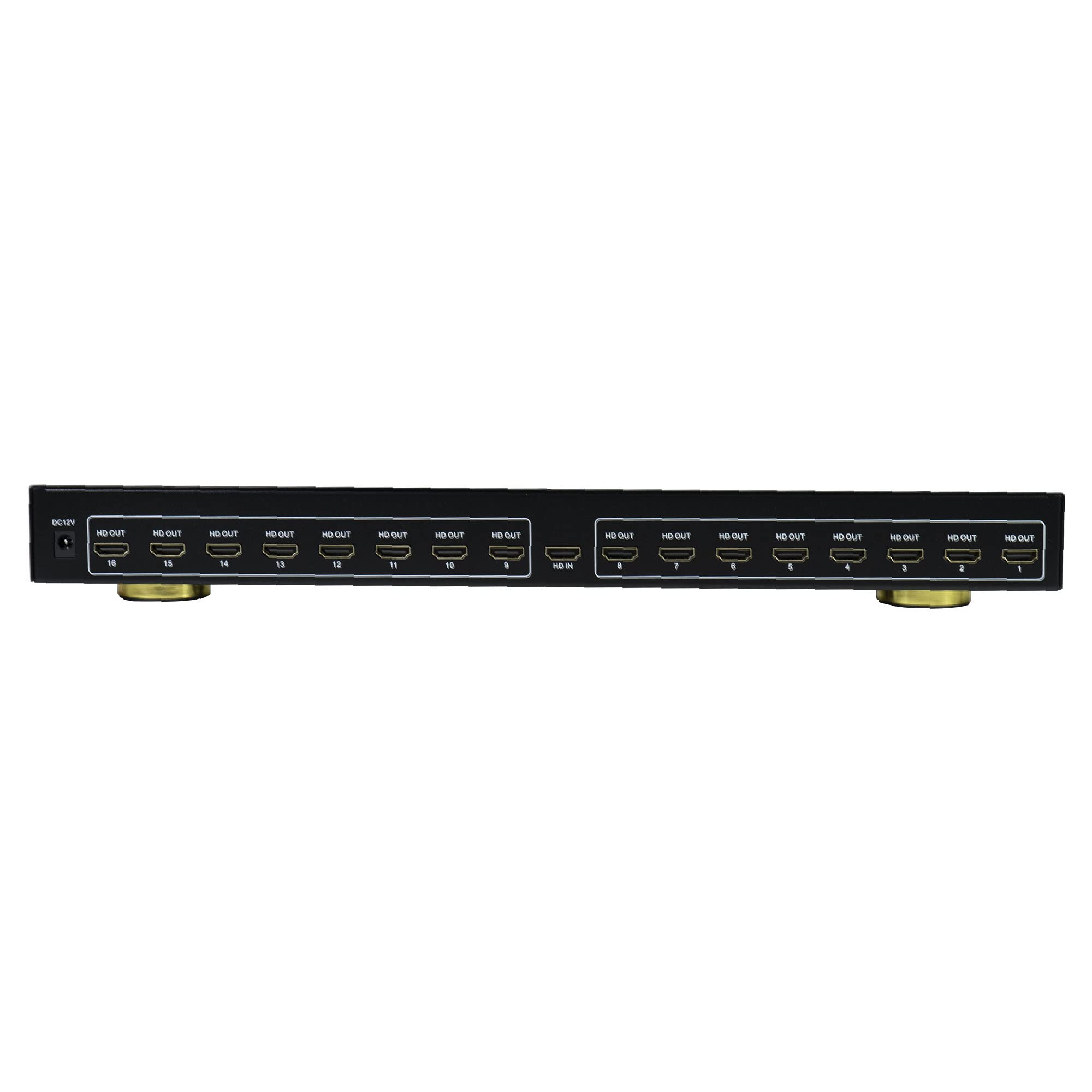

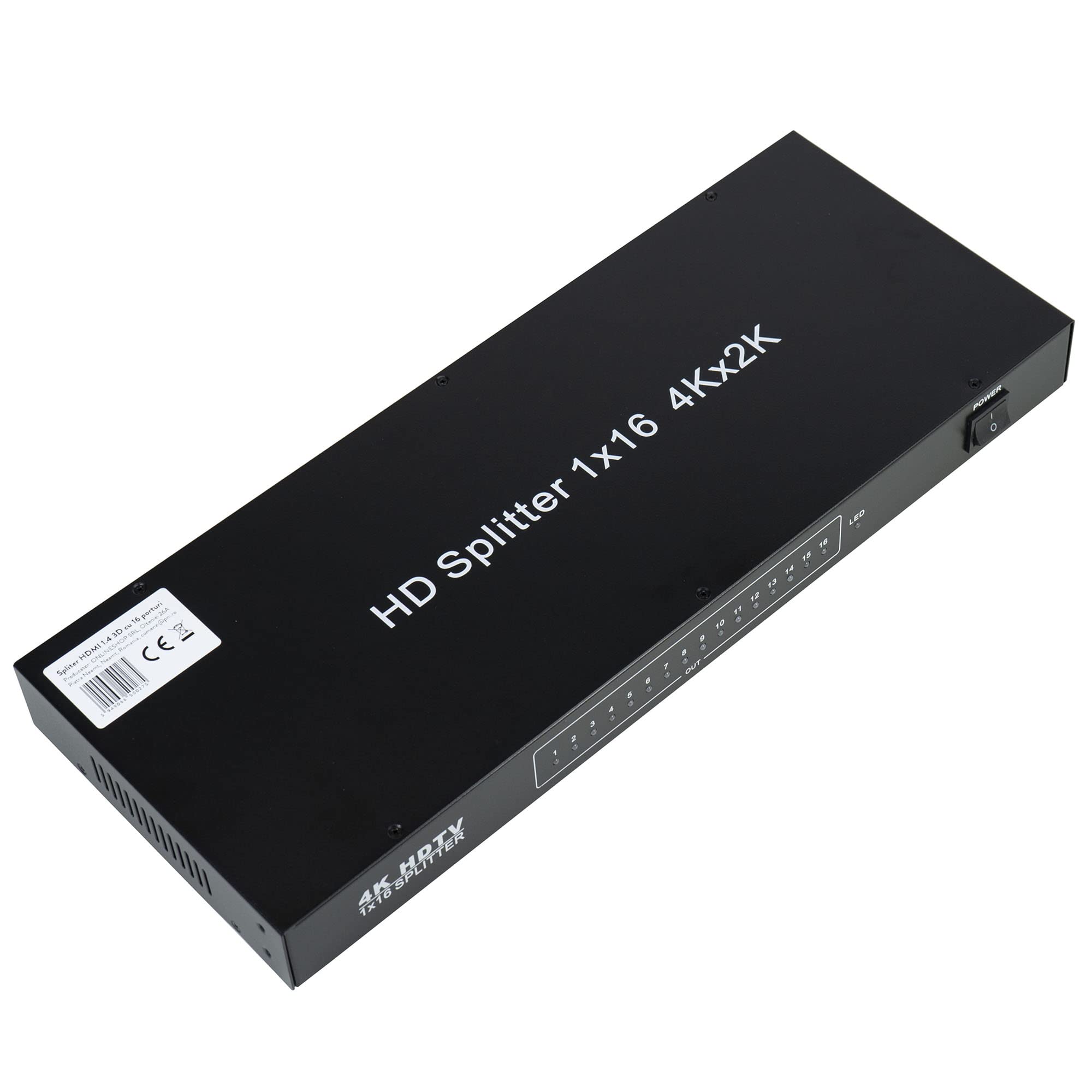

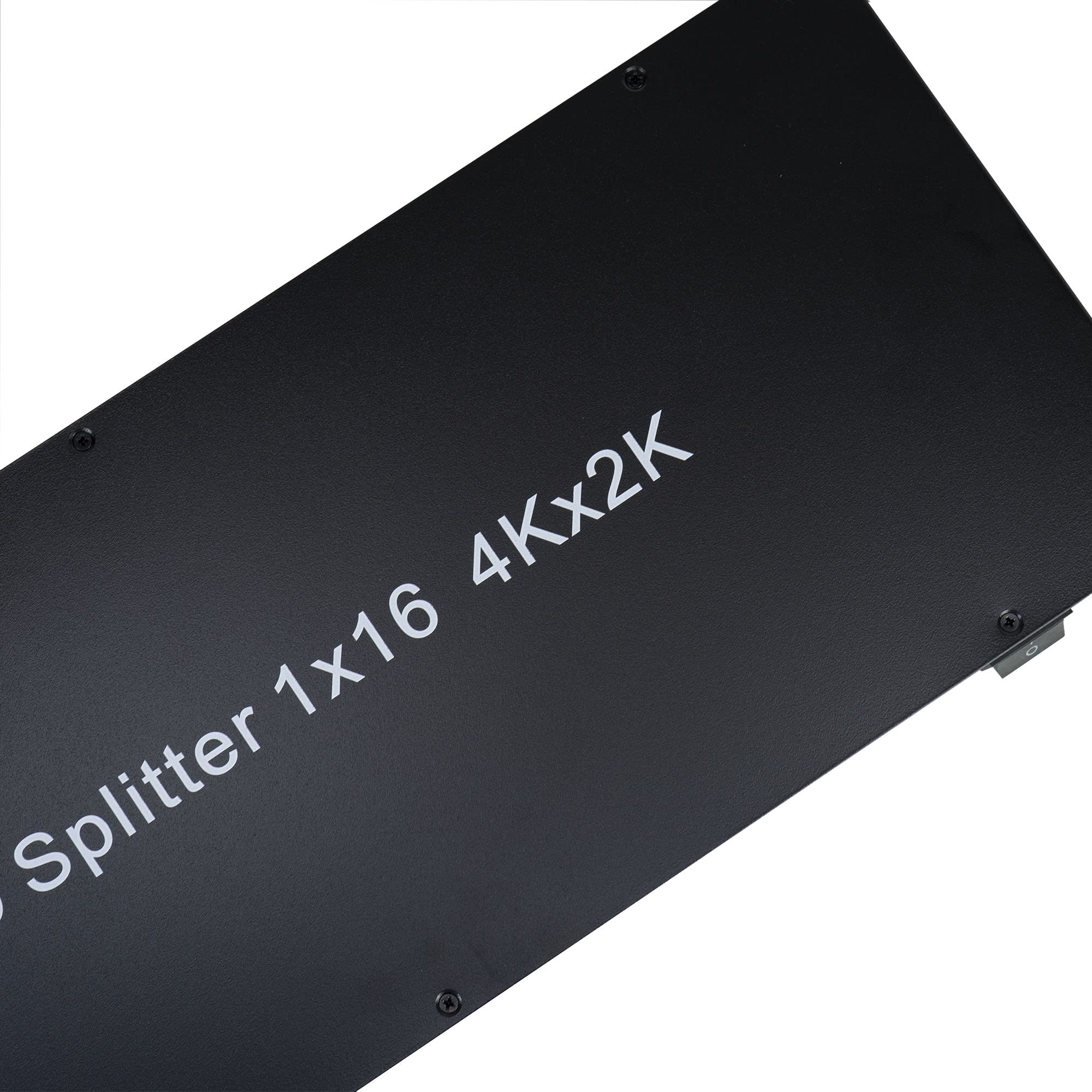

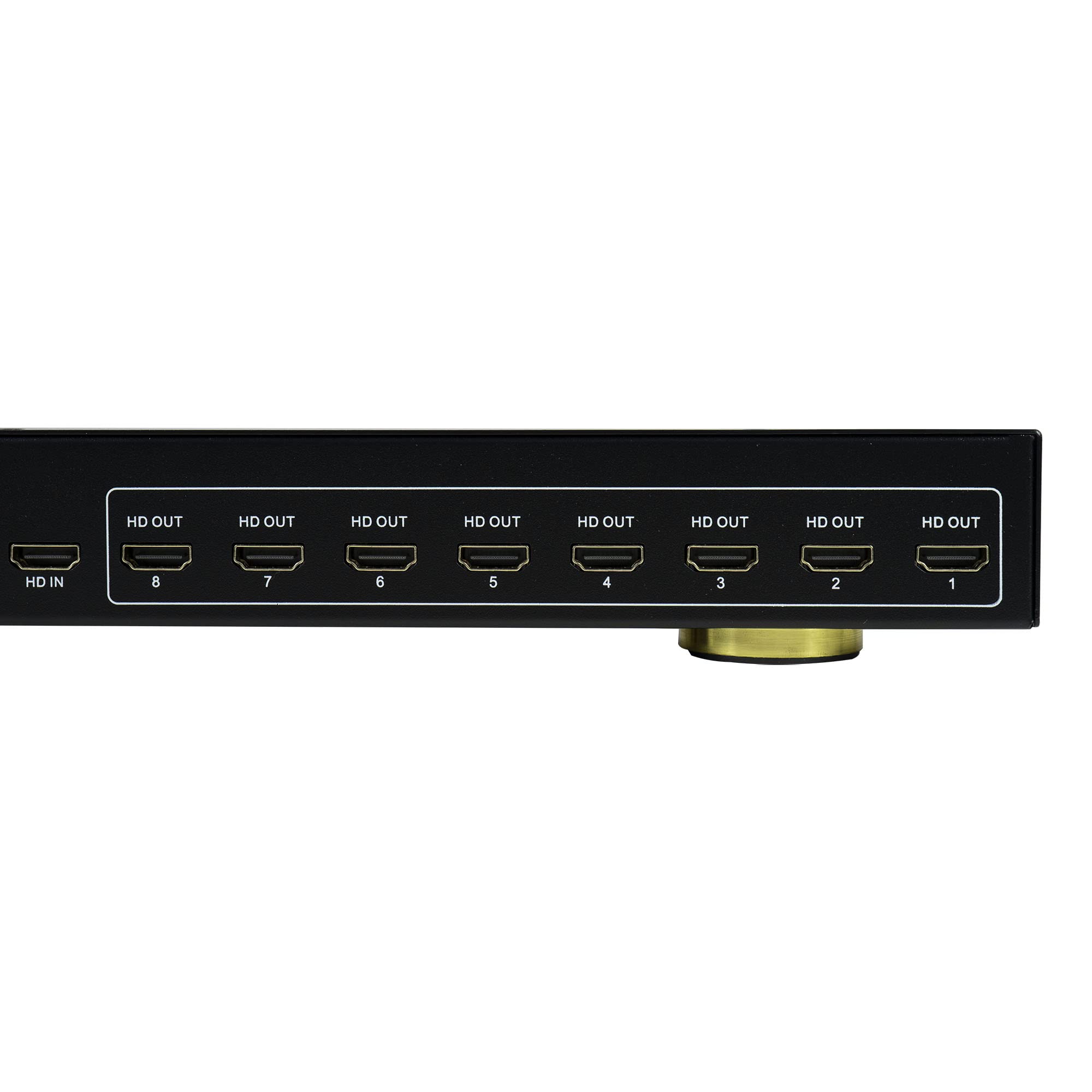

PNI HDMI splitter 1.3 3D, 1x16 16 HDMI ports 1080P

• Easy to use: installation in seconds, no settings required
• Supports 12bit / channel colors; Supports HDCP 1.4
• Supports uncompressed audio formats (such as LPCM7.1)
• Supports compressed audio formats (such as DTS, Dolby Digital)

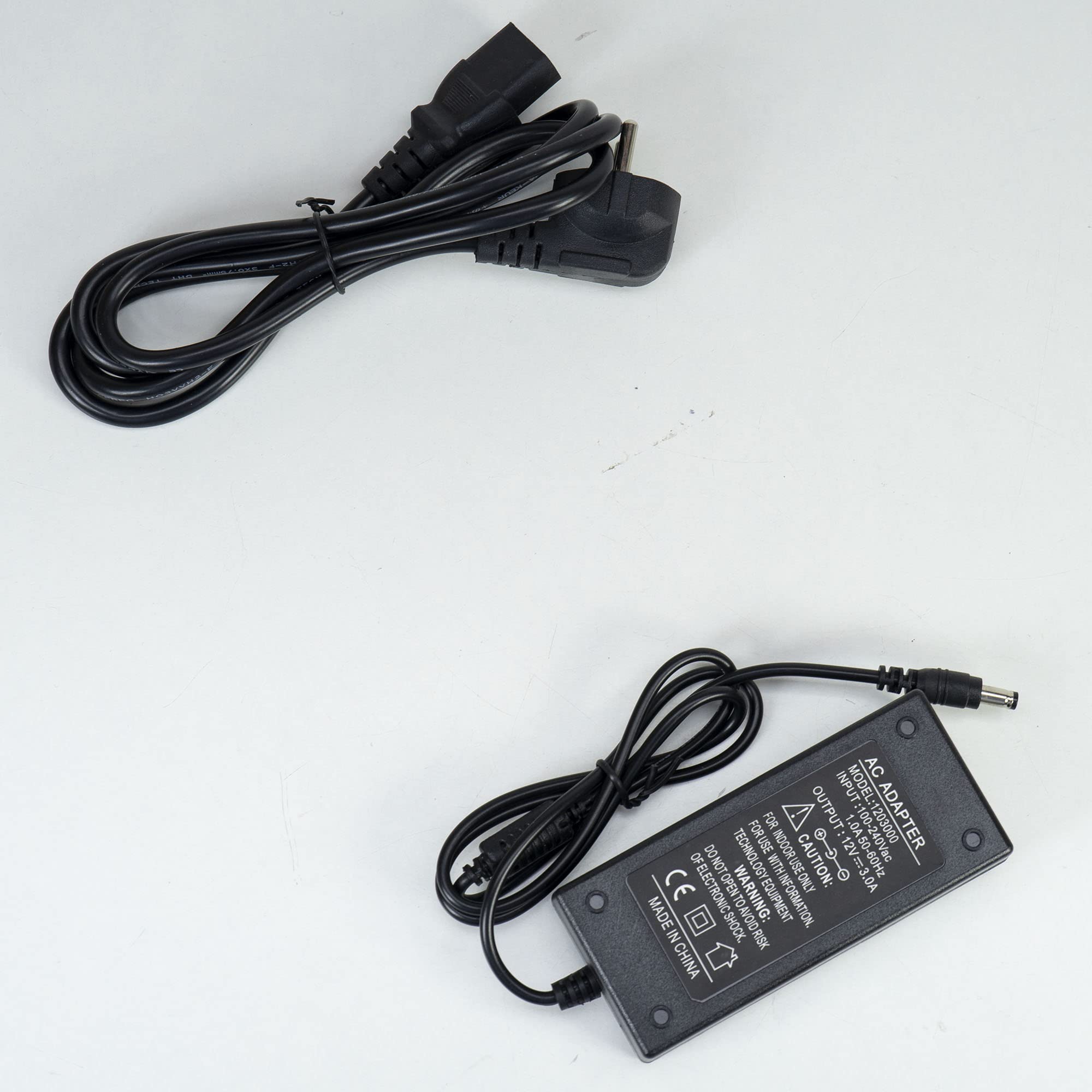

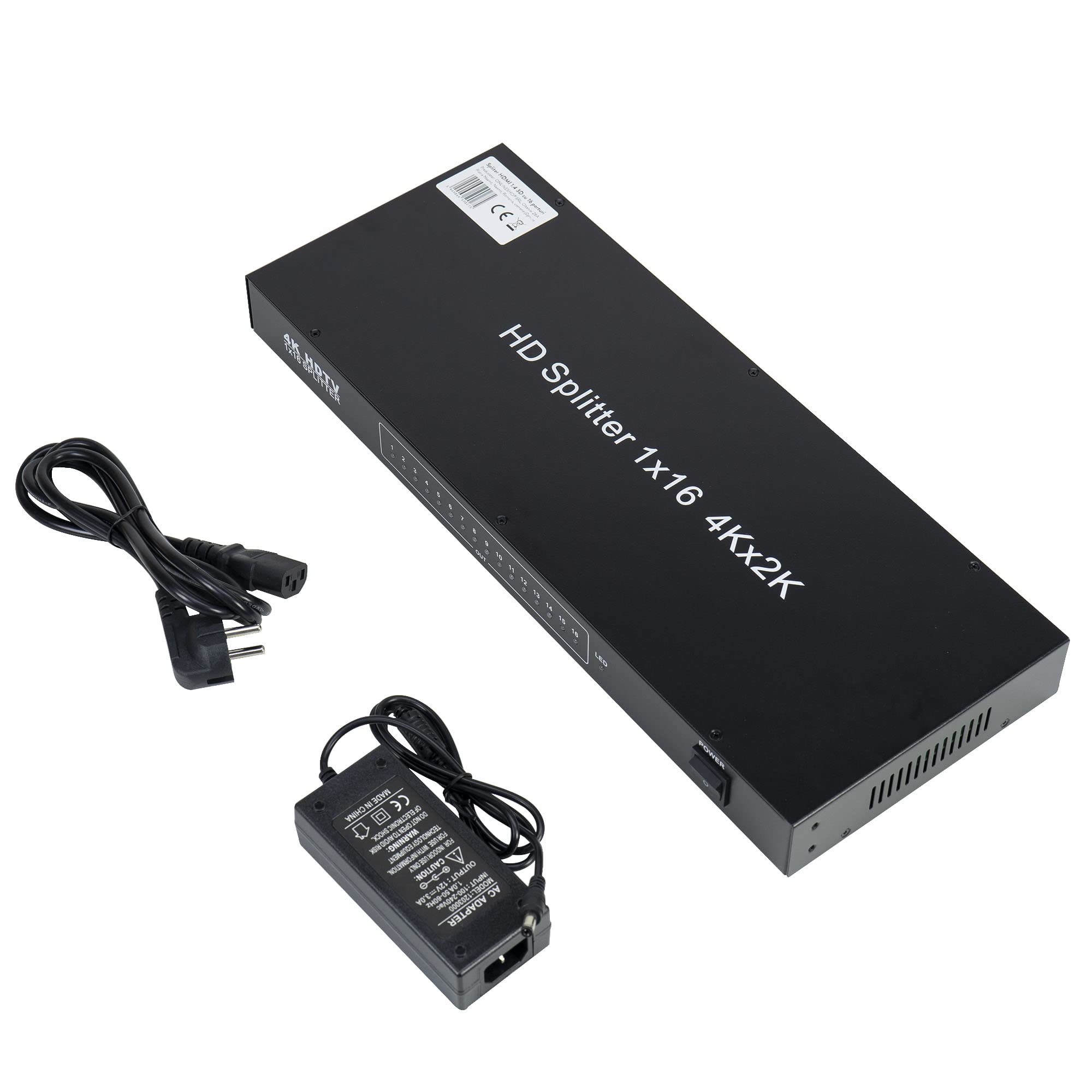

• Included components: HDMI splitter, 230V power adapter

Description Product identification Product code PNI-16HDMIHK Characteristics 1 port HDMI input 16 port HDMI outputs Supported HDMI resolutions 480i / p, 576i / p, 720i / p, 1080i / p and 4Kx2K @ 25 / 30Hz Maximum bandwidth Up to 340Mhz Maximum transfer speed Up to 10.2 Gbps 30, 36 bit image color format DTS-HD / Dolby-trueHD / LPCM7.1 / DTS / Dolby-AC3 / DSD audio formats TMDS signal input / output 0.5 ~ 1.0V PP Signal input / output DDC 5V PP (TTL) PS4 input signal cable length maximum 15m ； BLUE DVD maximum 15m Output signal cable length max. 20 meters Supply voltage 12 Vdc Working temperature -15 ° C ~ + 40 ° C Operating humidity 10 - 80% RH (no condensation) Dimensions (L x W x H) 465 x 250 x 45 mm Weight 2.5 Kg The package contains splitter Power User manual
