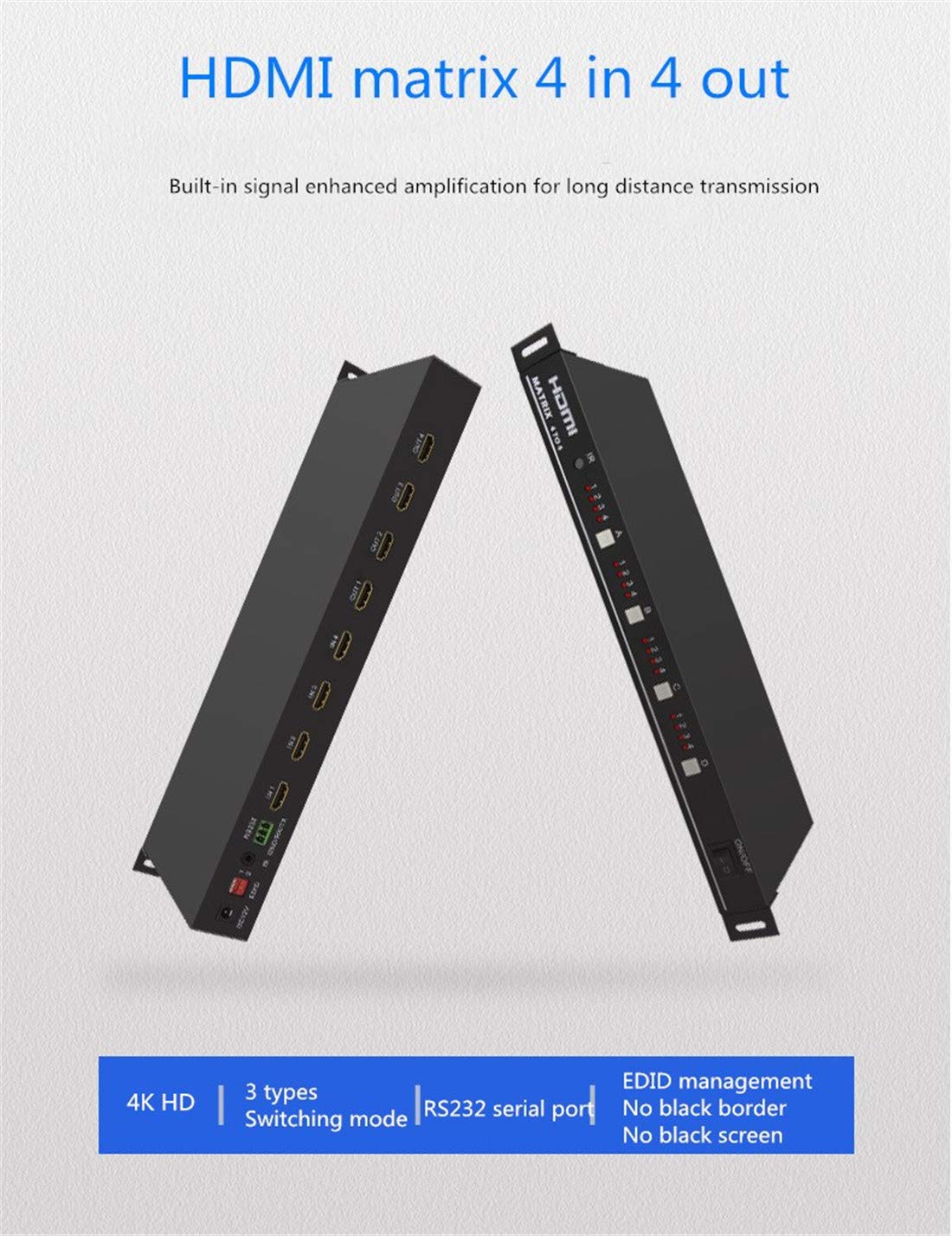

HDMI matrix switcher, 4 in 4 out 4K HD digital HDMI matrix switcher 4X4 HDMI bracket type distributor RS232 control

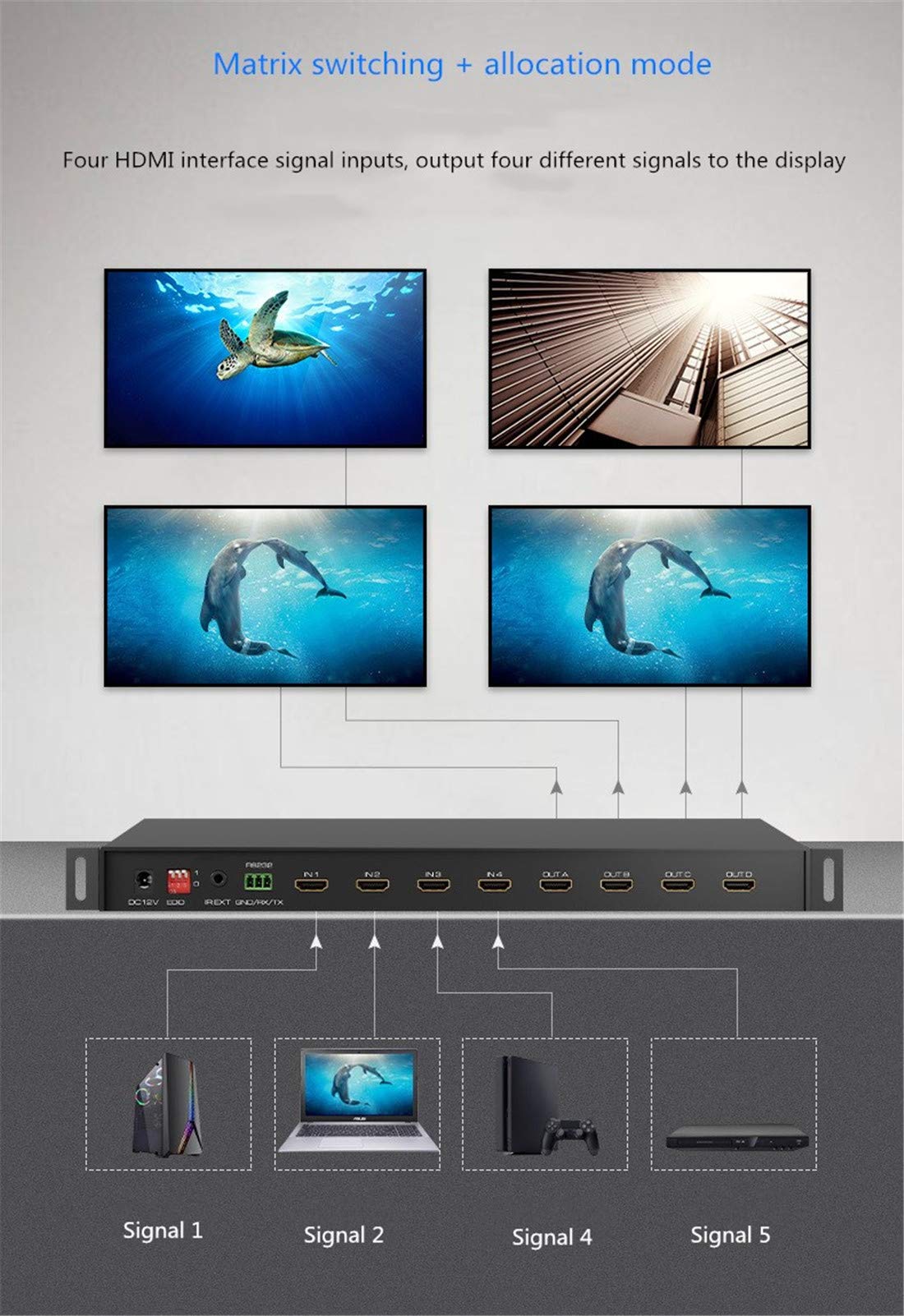

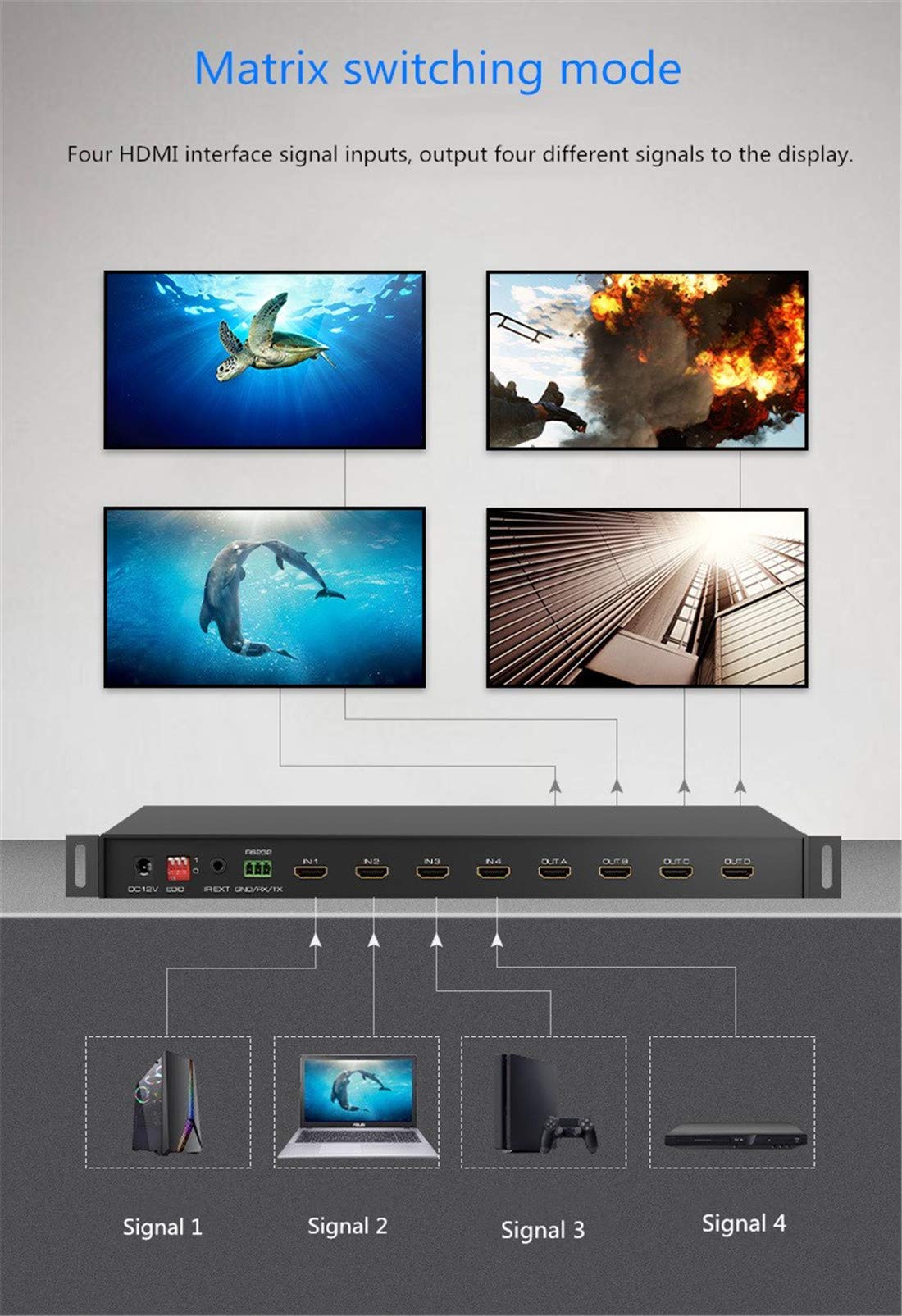

• 1. HDMI4x4 true matrix, arbitrarily route 4 signals to 4 display terminals.

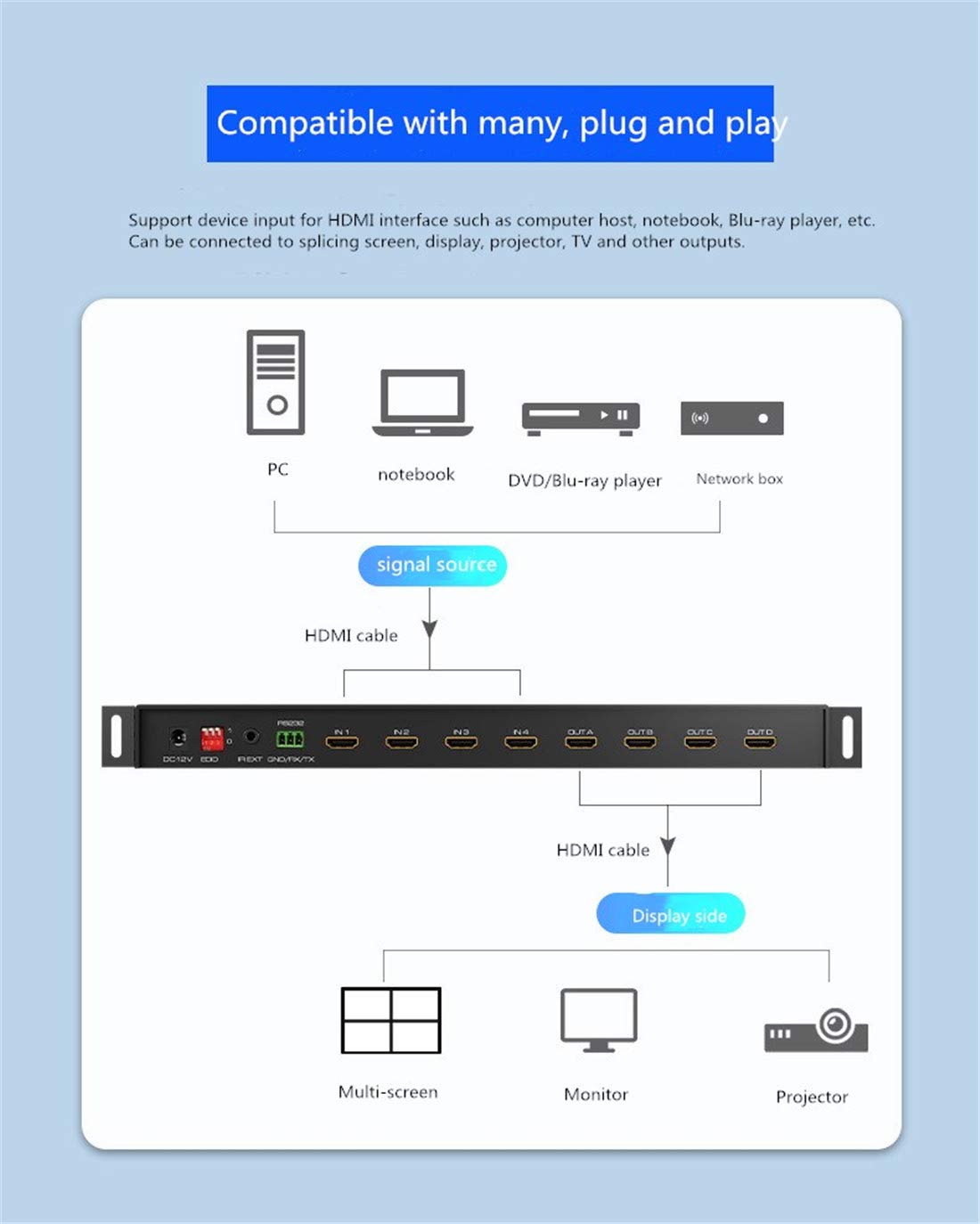

• 2. Plug and play, convenient, efficient, high quality guarantee, suitable for many occasions, simple and flexible use greatly saves engineering costs, such as splicing engineering, monitoring system, venue display.
• 3. Support video input: 24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i/3D/4K2K30HZ. Support video output: 24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i/3D/4K2K30HZ
• 4. Support HDMI1.4; Compatible with HDCP 1.4 protocol. Support EDID management system.
• 5. Support audio format: DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD.

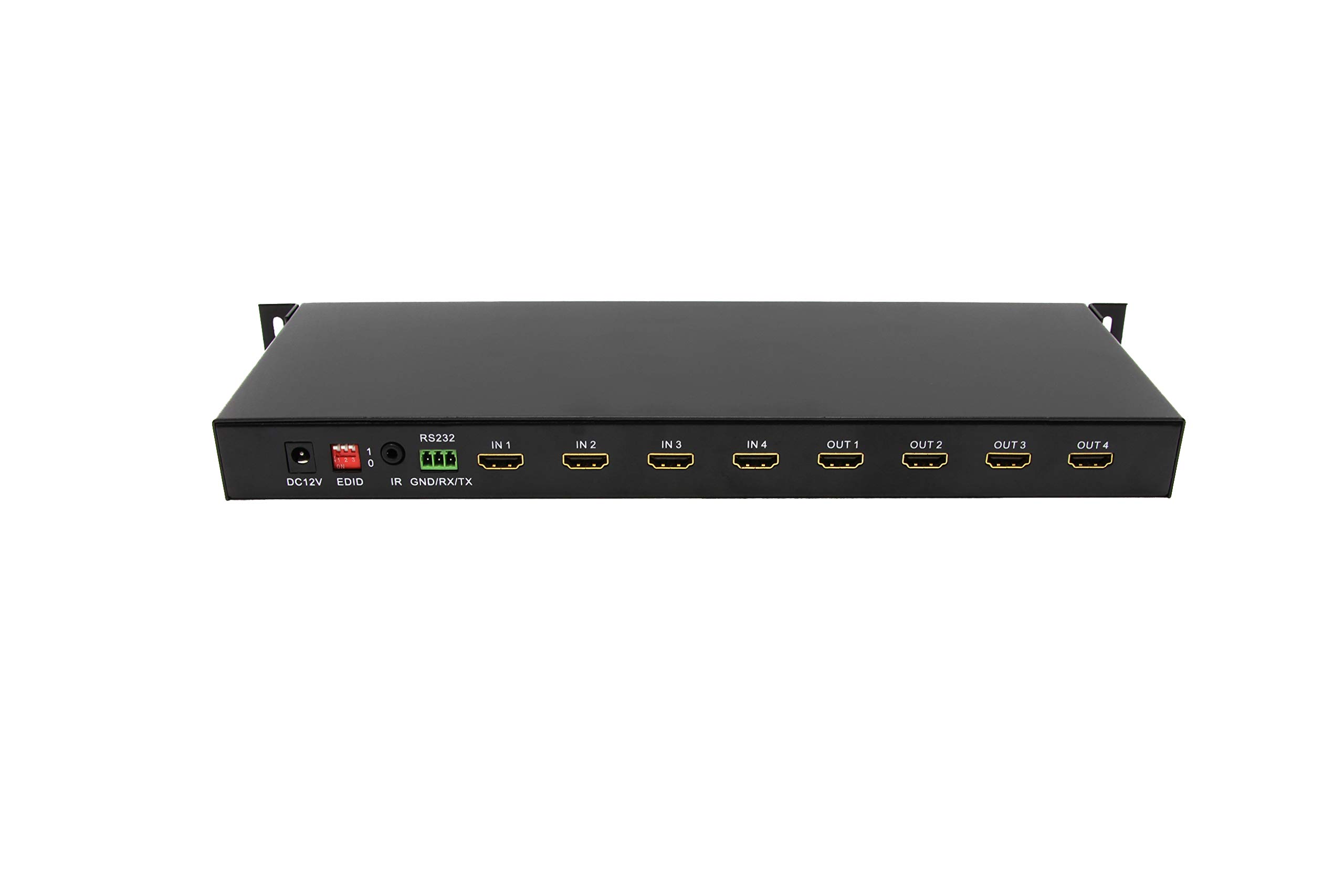

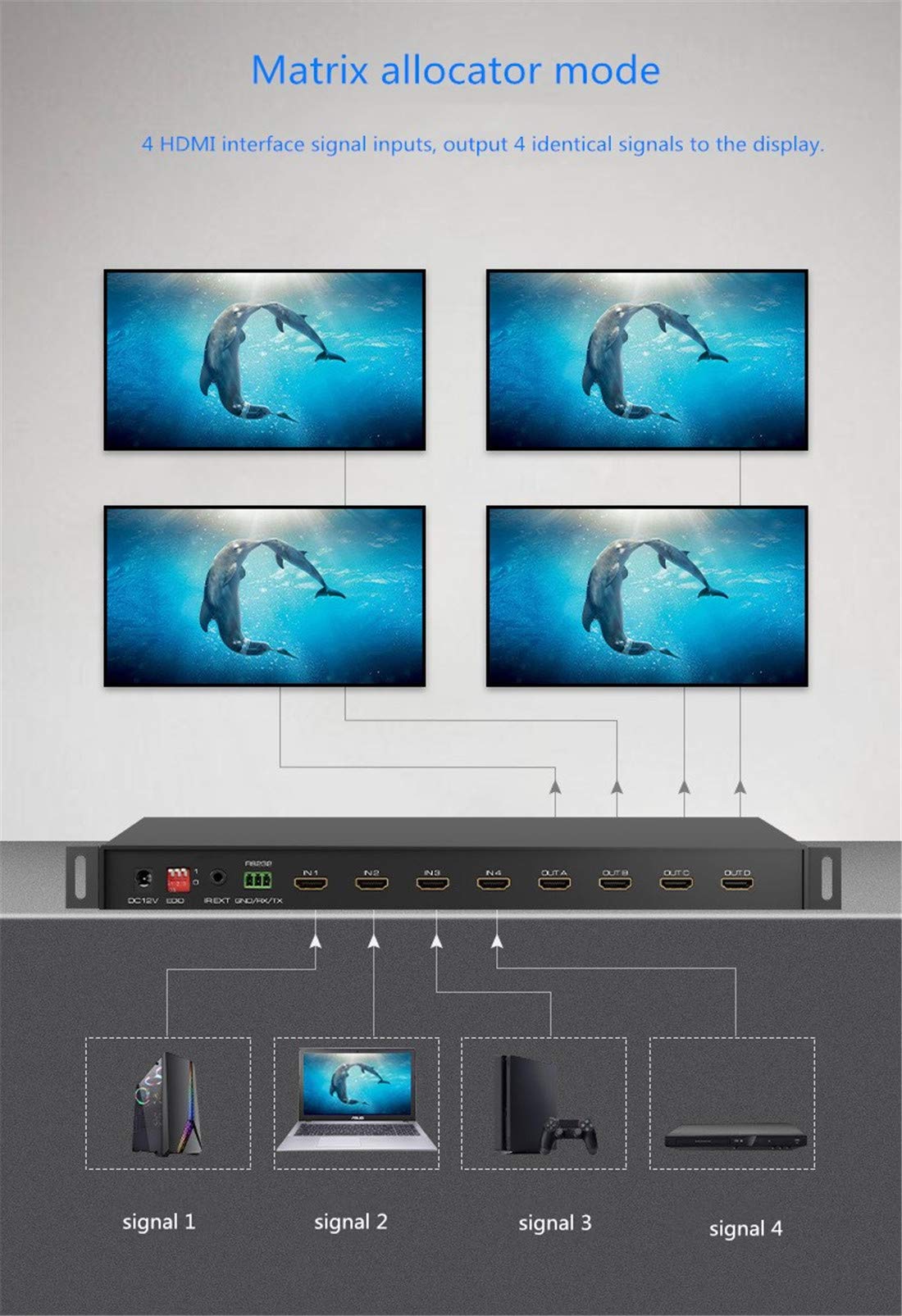

Thanks for purchasing our product. Please be sure to read this instruction manual carefully before using our product. Introduction MX44H4 is an 4-by-4 HDMI matrix. It allows any of the four Input Channels (HDMI) to be routed to any of the four Output Channels (HDMI), no matter the source is HDCP or not. Users can choose several different ways to control the matrix: by using Button, RS232, and supplied remote control. MX44H4 internal EDID library features default EDID configurations, in addition to native EDID data for any output/display. MX44H4 offers solutions for digital entertainment center, HDTV retail and show site, HDTV, STB, DVD and projector factory, noise, space and security concerns, data center control, information distribution, conference room presentation, school and corporate training environments. *Features *Allows up to four HDMI audio/video devices to be independently switched to four HDMI monitors, HDTV’s, or projectors. *The four output channels could show the same or different source simultaneously no matter the source is HDCP or not. *Reading and saving EDID function from displays. *Support high definition resolutions, including: 4K2K@30Hz,1080p, 3D, 1080i, 720p and other standard video formats. *Each port support both HDMI and DVI inputs. *With extra infrared extension receiver. *Three switching modes: panel buttons, local IR, RS232. *HDMI 1.4 supported. *Channel switching time within two seconds. Package List ①1x Main unit 4x4 Matrix ②1x IR Remote controller. ③1x12V/DC Power Supply. ④1xIR Extended receiving cable ⑤1xRS232 cable ⑥1x User manual *NOTE: CD-ROM including Operating instructions and PC control software.
