HDMI Matrix 4 in 2 Out 4K 60Hz 4:4:4 HDR D-o-l-b-y Vision Atmos SPDIF 5.1CH Breakout 3.5mm Stereo HDCP2.2- PC Console 16 EDID HDMI Scaler 4K 1080P Sync, HDCP2.2 HDMI2.0 Matrix 4x2 IR Remote,MX42PRO

• 4x2 HDMI Matrix 4K HDR with SPDIF TOSLINK---4K HDMI Matrix 4x2 is designed to switch between four HDMI sources to two displays. It is able to distribute any source to any display. The two output signals can be different or the same. Two output play 4K and 1080P Simultaneously, with Extra SPDIF Optical 5.1CH Audio.---pls ensure HDMI Source, TV, Receiver/Soundbar support them both. For set up way,pls check DESCRIPTION. ---Support 4K HDMI down-scale to 1080P.
• KEY USAGE --- 1. Connect 1080p HDMI display to matrix OUT 1(A), connect 4K display to matrix OUT 2(B), matrix EDID copy OUT 2(B) prior. 2. HDMI OUT 1(A) Down-scale 4K to 1080p only, NOT down-scale 4K HDR D-o-l-b-y Vision (4K60Hz 4:2:2) ---Suggest less than 15mtr qualified HDMI 2.0 cable. --- IR remote and panel control. -NOT extend screen, only COPY.
• AUDIO VIDEO --- 4 input to 2 output HDMI Matrix Switch supports HDCP2.2 HDMI2.0 4K 60Hz 4:4:4 18Gbps 8bit HDR D-o-l-b-y Vision. VRR.HDMI audio supports D-o-l-b-y Digital 7.1CH, D-o-l-b-y Atmos,DTS:X. De-embed SPDIF Optical 5.1CH follows up HDMI OUT 2(B), no need TV connection. NO CEC.NO Extender

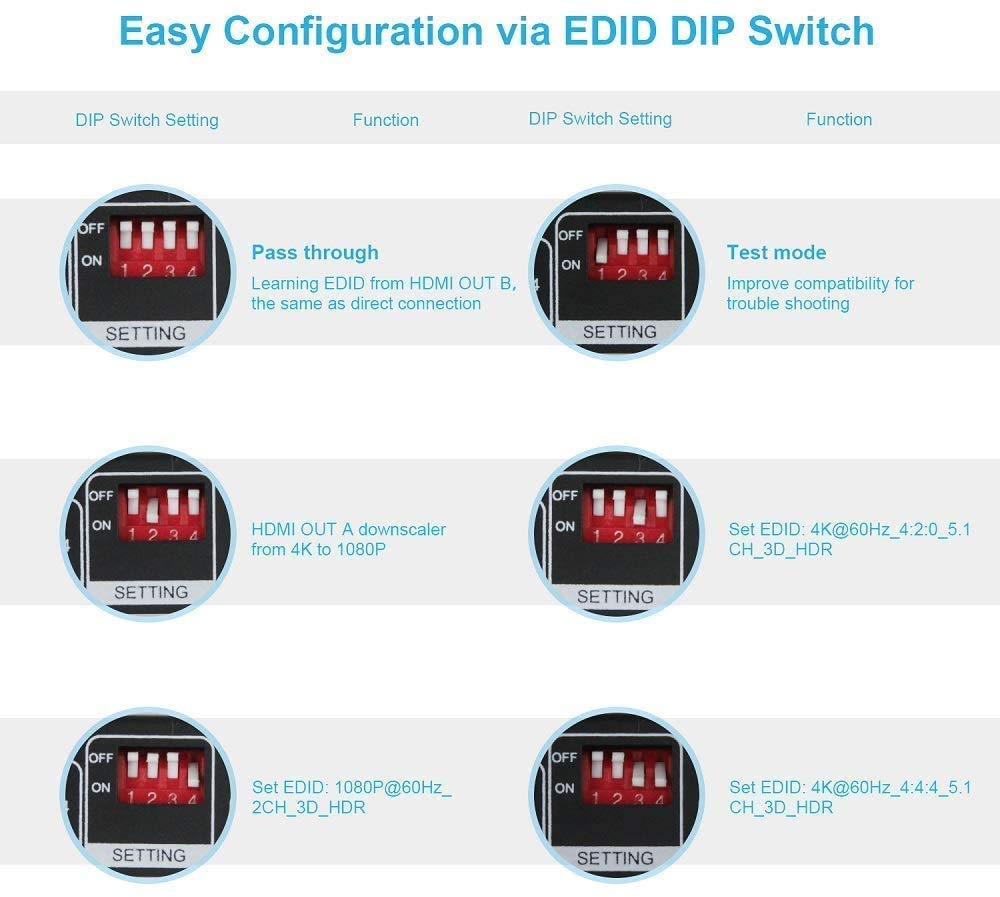

• ATTENTION PLS --- Pls read EDID DIP Switch picture carefully, it's a simple device, just needs to be hooked up correctly. --- Based on Return Research, the most of buyers who returned it, due to wrong operation or don` t use HDMI 2.0 standard cable. Pls read Bullet Points, Description, Installation Instruction (set EDID/ upgrade firmware) on product page carefully.

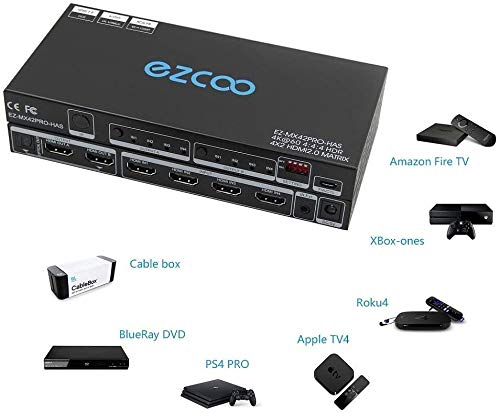

• HIGH COMPATIBILITY --- HDMI four input two output switcher matrix supports HDMI 2.0 HDCP 2.2 devices, Elgato 4K60 MK 2,G-Sync,Nvidia Shield,Xfinity box, Game Video Capture,Apple TV,Amazon Fire TV,PS4 Pro,X BoX series,Comcast,OSSC etc. --- Plug and Play; 1~3 sec Fast Input Switching. No signal delay/ lag. For competitive KVM HDMI Switch, check asin B082D7YJH6

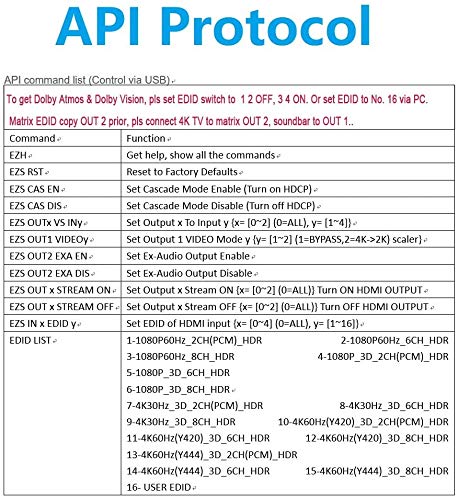

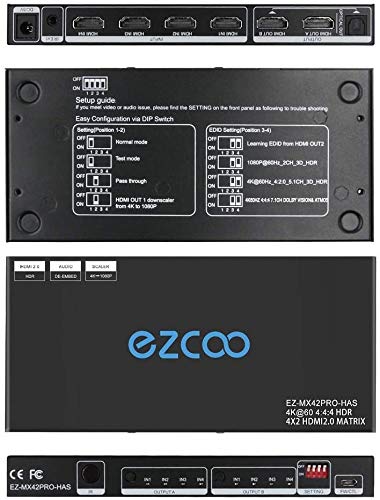

INRO 4K HDMI Matrix Switch 4x2 distributes four HDMI sources to two HDMI displays reliably, supports HDMI2.0 4K@60Hz 4:4:4 18Gbps 8bit HDR D-o-l-b-y Vision, VRR, firmware upgrade via micro-USB port. HDMI OUT 1(A) can down-scale 4K to 1080P, 4K & 1080P TV can work together. Extra SPDIF Optical 5.1CH audio breakout offer high-end audio without TV connection. 1. Set EDID via pannel DIP Switch or PC, supports 4K HDR TV video and 7.1CH Soundbar audio simultaneously. Also simplify matrix operation step. 2. Supports 4K HDR TV and 1080p Capture Card work in sync. 3. To get both of D-o-l-b-y Atmos and D-o-l-b-y Vision in sync, pls set EDID No.16 via PC, ensure TV, Receiver support them. If any using issue, please upgrade firmware, refer to Installation Instruction on product page. 4. Set HDMI Down Scaler via DIP easily. 5. DIP 1 control HDCP, DIP 2 control Scaler. DIP 3, 4 control EDID. .SPEC. HDMI Video: HDMI 2.0,HDCP 2.2,4K 60Hz 4:4:4 8bit 18Gbps HDR D-o-l-b-y Vision, 4K 60Hz 4:2:2 10bit HDR10,HDR D-o-l-b-y Vision, 4K 2K/1080p/1080i,1440P 120Hz,24bit/30bit,36bit deep color HDMI Audio: D-o-l-b-y Digital 7.1CH Audio,D-o-l-b-y Atmos,D-o-l-b-y TrueHD,DTS:X,DTS-HD Master,LPCM 2.1/5.1/7.1CH HDMI Cable: HDMI 2.0 standard cable, <5m AWG26 Firmware: Upgradeable Matrix Switcher 4 IN 2 OUT, refer to Installation Instruction on product page. Power Adapter: Input AC 100V-240V/ 50Hz,60Hz; Output DC 5V/2A To get stable HQ picture, pls use less than 5mtr qualified HDMI 2.0 cable. Threaded power adapter to prevent power loss; Low Heat. Solid build quality. Based on research, the most of buyers who returned it, due to get incorrect way to use matrix or don` t use HDMI2.0 standard cable. High compliance with Soundbar, High End Twitch Streamer or Videogame. IR remote code is in Logitech Harmony system. NOT UP SCALER. NOT AUTO SWITCH. NO CEC.NO KVM
