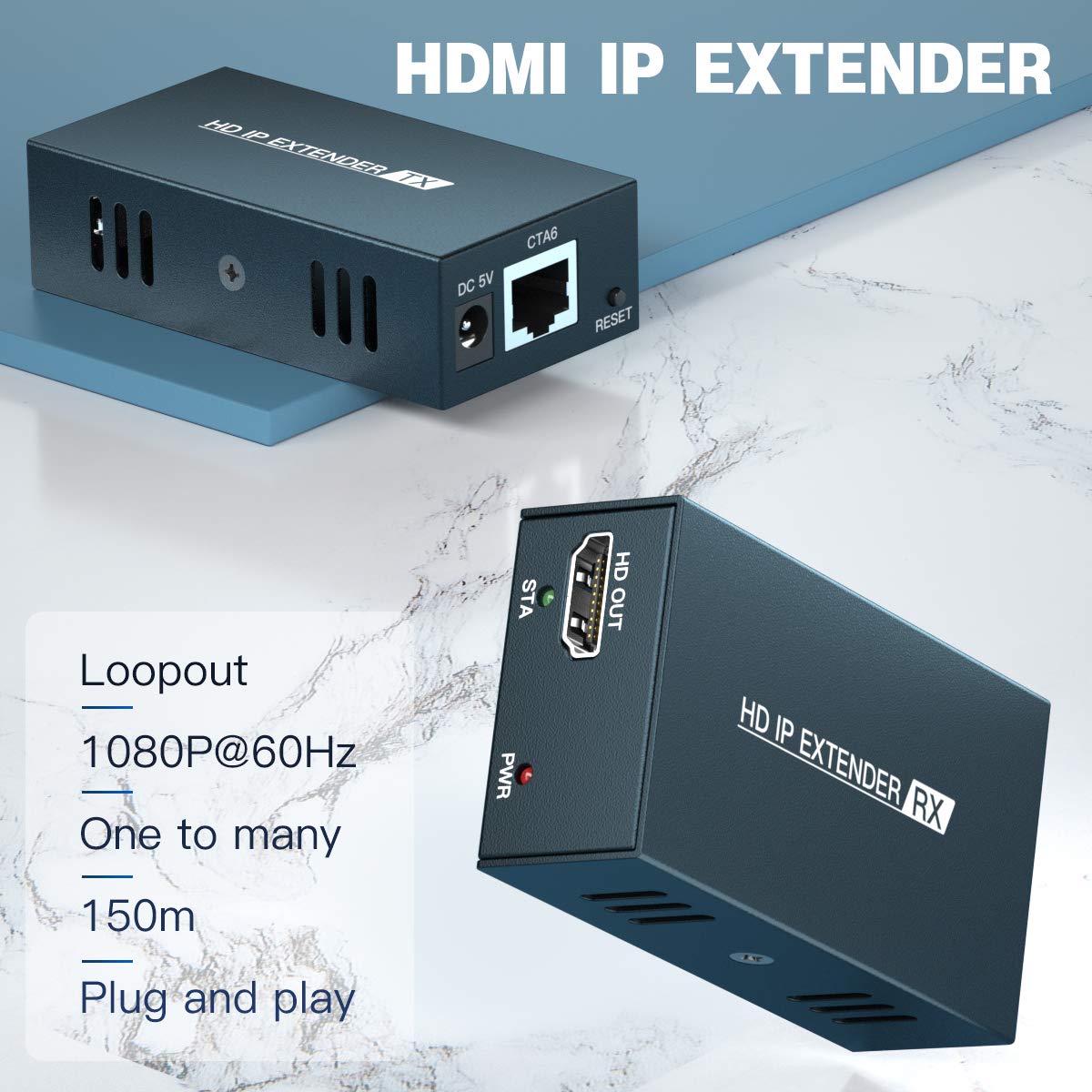

HDMI Extender Receiver One-to-Many Over IP/TCP 500ft/150m, Over Cat5e/6/7, Transmission Over The Ethernet Switch, Full HD 1080P@60Hz Video with Loopout.

• 【1 to Many Transmission】The device can send one-to-one signals through a single transmitter + receiver, or send one-to-many signals through an Ethernet switch, and can be expanded to 256 receivers at most.

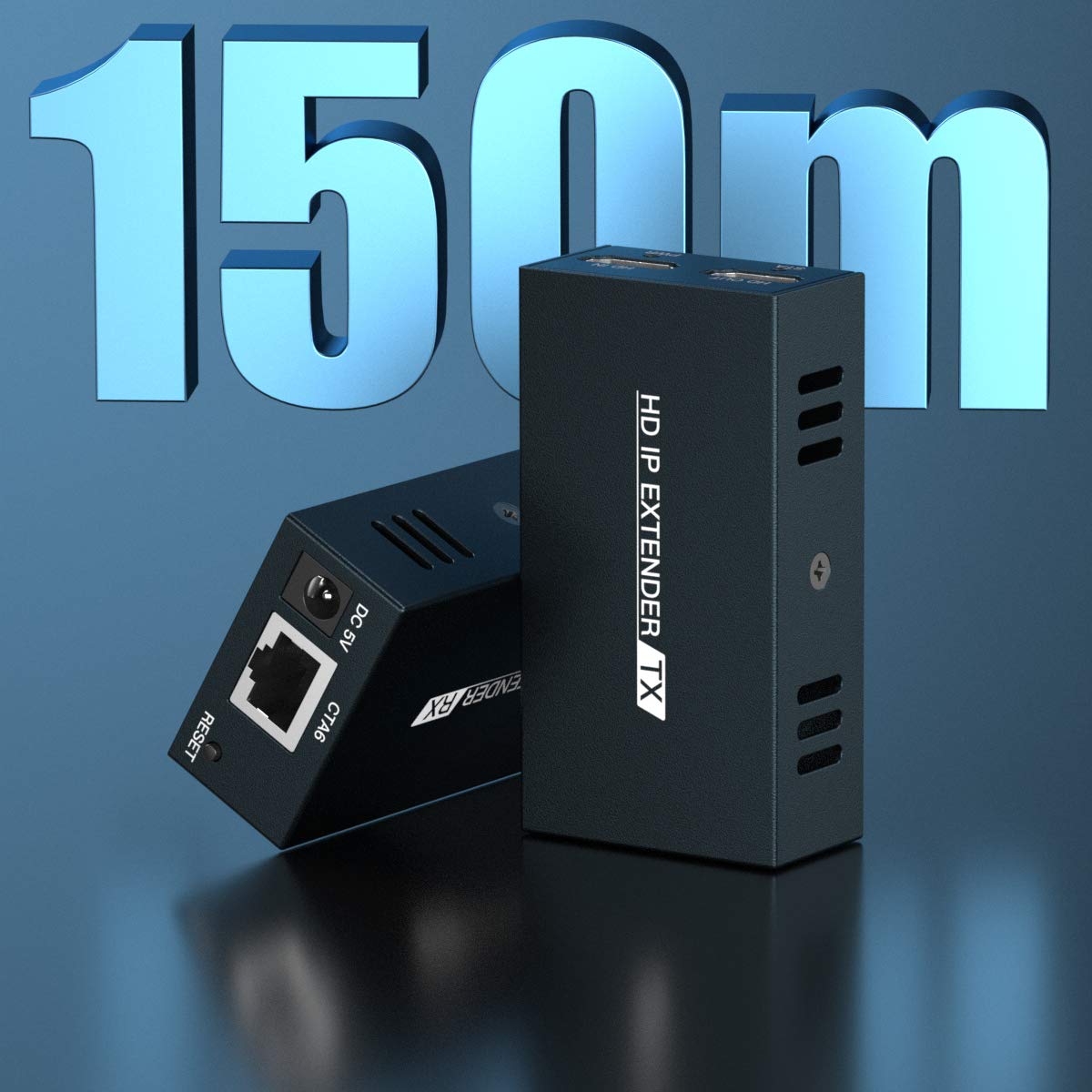

• 【150m IP HDMI Extender】Long-distance transmission of audio and high-definition video signals through network cables, the transmission distance can reach 150m/500ft.
• 【HD 1080P@60Hz】 Maximum supported resolution 1920X1080P@60Hz, backward compatible, Give you more choices.Allows you to enjoy a high-definition visual experience at a long distance.

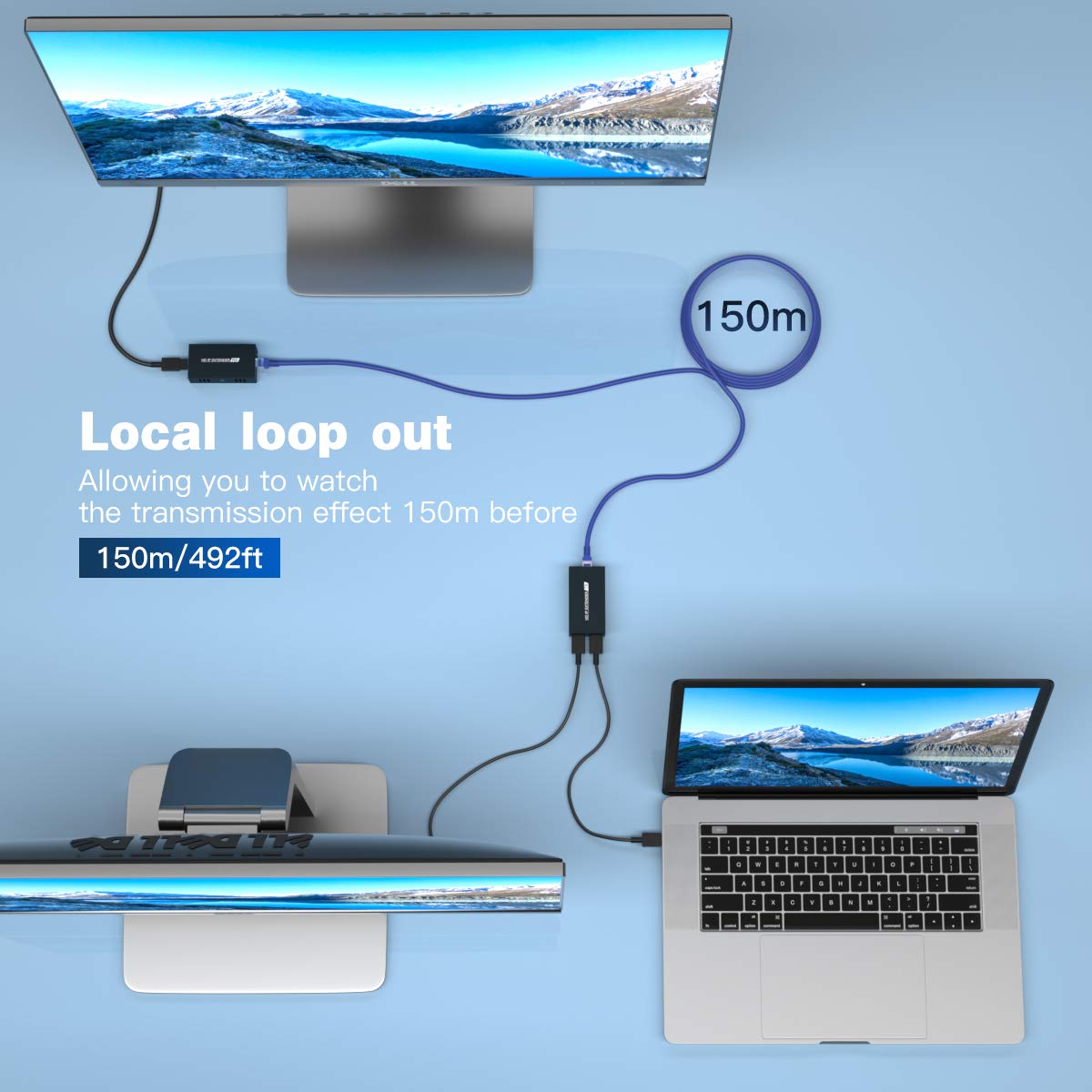

• 【Local Loop Out】The HDMI output port on the transmitter can be connected to a local display for monitoring.
• 【Support IP/TCP】Connect to your independent Ethernet Switch/Router and split to multiple TVs. If the IP conflicts, contact us please and we will solve the problem for you.

HDMI IP Extender The HDMI extender extends HDMI signals through an Ethernet cable. Unlike ordinary HDMI extenders, this device can be transmitted through an Ethernet switch, so only one transmitter can extend up to 253 receivers. The expander also has a local loop-out function, which allows you to locally monitor signals that are expanded outside of 150m. The HDMI interface can be effective for TV boxes, computer screens, projectors, and cameras. Standards: HDMI 1.3; HDCP 1.2 Compressed format: H.264 Maximum pixel clock: 165MHz Maximum data rate : 6.75Gbps Resolution Max: 1920X1080p@60Hz Connector: HDMI-A Impedance: 100Ω Ethernet Interface: RJ45 Transmission distance: CAT6---150M， Other Power supply The power adapter: DC 5V/1A Power dissipation MAX : 2.5W Temperature Operating: -5℃ ~ +70℃ Humidity Operating: 5% ~ 90% Dimension: 81*45*23mm The warranty: 1 year free warranty Notes: 1. When inserting the power adapter on the transmitter side, it takes about 10 seconds for the HDMI port on the receiver side to display a picture, which is a normal phenomenon. 2. To ensure your signal transmission is stable, please use a high-quality cable for connection.
