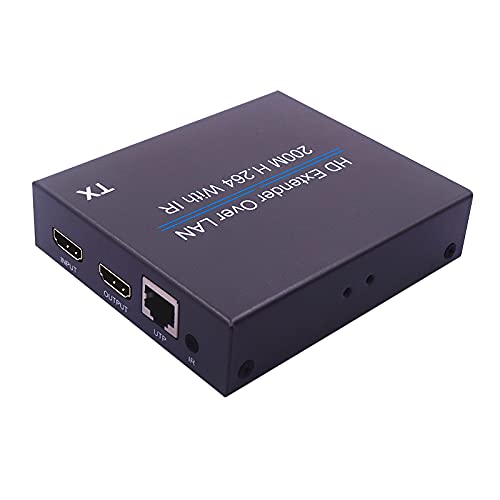

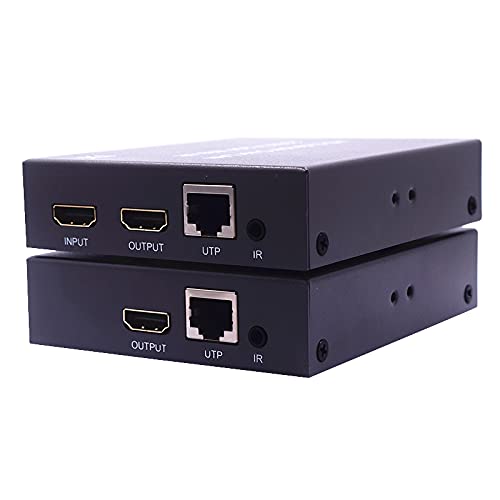

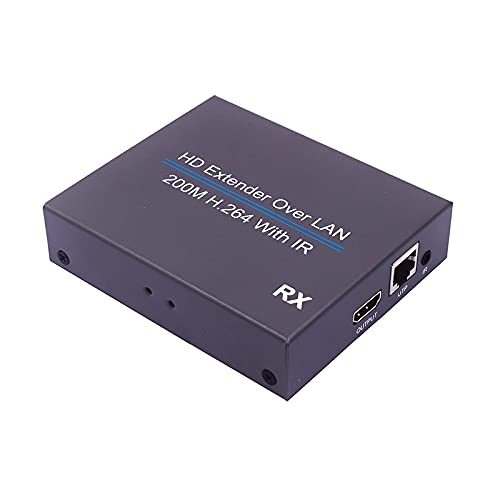

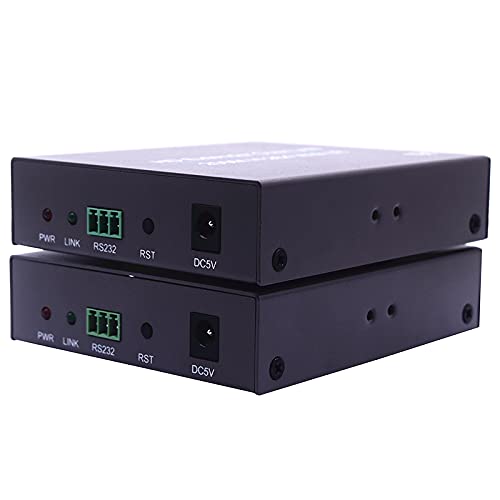

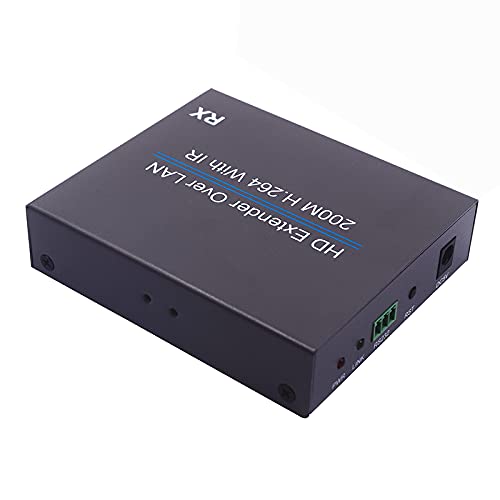

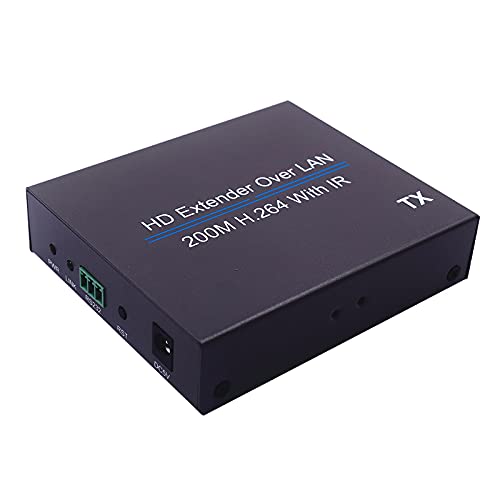

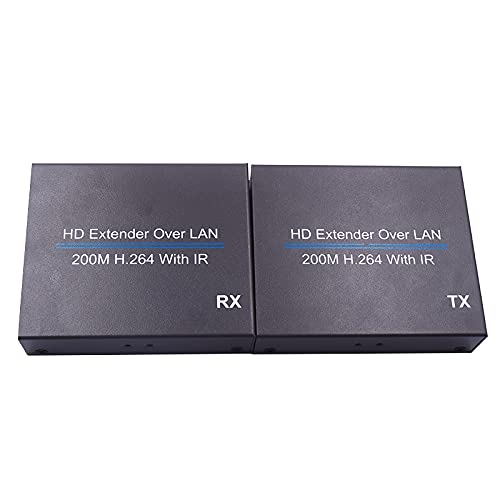

HDMI 200M Network Cable Extender,UTP CAT5e/6 Rj45 LAN Network HDMI Transmitter And Receiver IR With HDMI Loop out H.264 HDMI Single Network Cable Extender

• 1：HDMI-compatible1.3, HDCP 1.1 and DVI1.1 compliant.
• 2：Support:480i.480p,576i,576p,720p@50/60hz,1080i@50/60hz,1080P@50/60hz.upport Deep Color up to 12 bits/color. Support IR re-transmitting.
• 3：Uses one CAT5E/6 cable for data/DDC transmission.
• 4：Equalizes and recovers incoming TMDS data before re-transmitting it in optimal quality regardless of the incoming signal quality.
• 5：Cable testing showed that with 1080p resolution the HDMI-compatible input source can be 20meters away.When transmitting a signal in 1080p resolution the CAT6 operating distance is 200 meters.

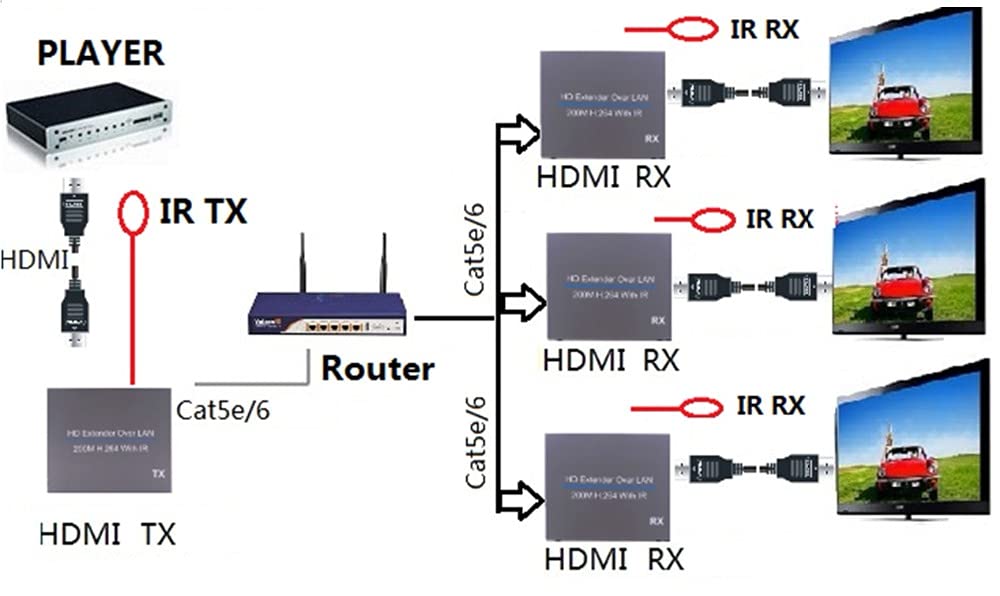

I. Introduction The HDMI Extender over ONE CAT 5E/6 is a tool for extending your HDMI signal over long distances to a compatible display. Instead of using expensive HDMI cables, your existing CAT 5E/6 cables/sockets can be utilized to perform advanced functions like transferring Deep Color (12 bits/color) video and digital audio, with a bandwidth up to 225MHz. The HDMI transmitter and receiver, over ONE CAT 5E/6 extender is your substantial HDMI extender tool. The HDMI Extender over ONE CAT 5E/6 also support IR re-transmitting, so you can control the Source which is 200 meters outside using the HDMI Extender. II. Features DC 5V power supply. HDMI 1.3, HDCP 1.1 and DVI1.1 compliant. upport:480i.480p,576i,576p,720p@50/60hz,1080i@50/60hz,1080P@50/60hz. Support Deep Color up to 12 bits/color. Support IR re-transmitting. Uses one CAT5E/6 cable for data/DDC transmission. Equalizes and recovers incoming TMDS data before re-transmitting it in optimal quality regardless of the incoming signal quality. Cable testing showed that with 1080p resolution the HDMI input source can be 20meters away. When transmitting a signal in 1080p resolution the CAT6 operating distance is 200 meters. III. Package HDMI Extender (Transmitter)：1PC HDMI Extender (Receiver )：1PC IR Transmitter：1PC IR Receiver：1PC 5V DC Power Supply adapter ：2PCS Operation Manual ：1PC IV. Specifications Frequency Bandwidth： 2.25Gbps (single link) HDMI Transmitter Input/Output Ports：1x HDMI Female port/1 x CAT6 HDMI Receiver Input/Output Ports：1 x HDMI Female port/1 x CAT6 Power Supply： DC 5V ESD Protection Human Body Model: ± 8kV (air-gap discharge) ± 4kV (contact discharge) Dimensions (mm)：90(W) X 105 (D) X 25 (H) Operating Temperature：0˚C ~ 40˚C / 32˚F ~ 104˚F Storage Temperature：-20˚C ~ 60˚C / -4˚F ~ 140˚F Relative Humidity：20~90% RH (non-condensing)
