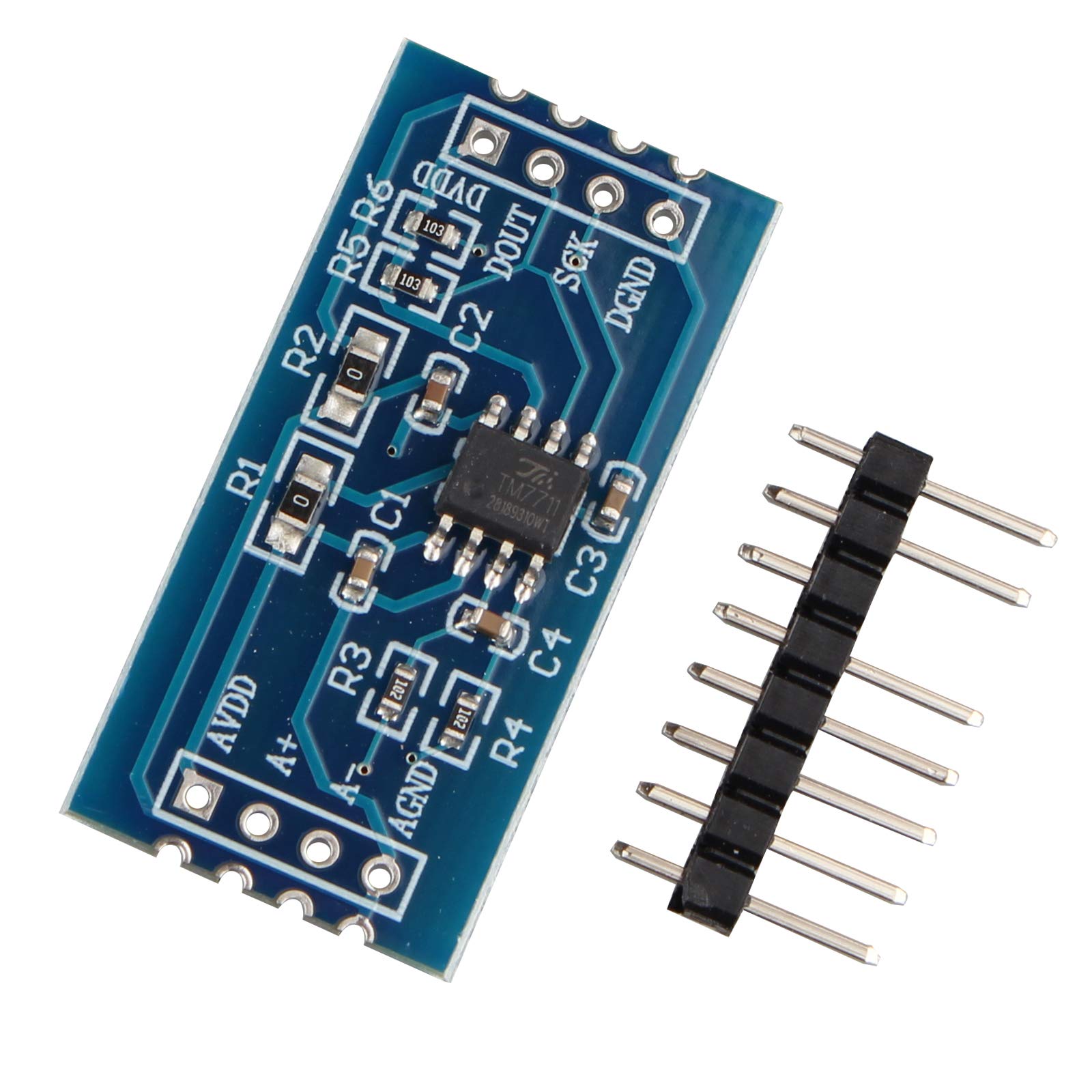

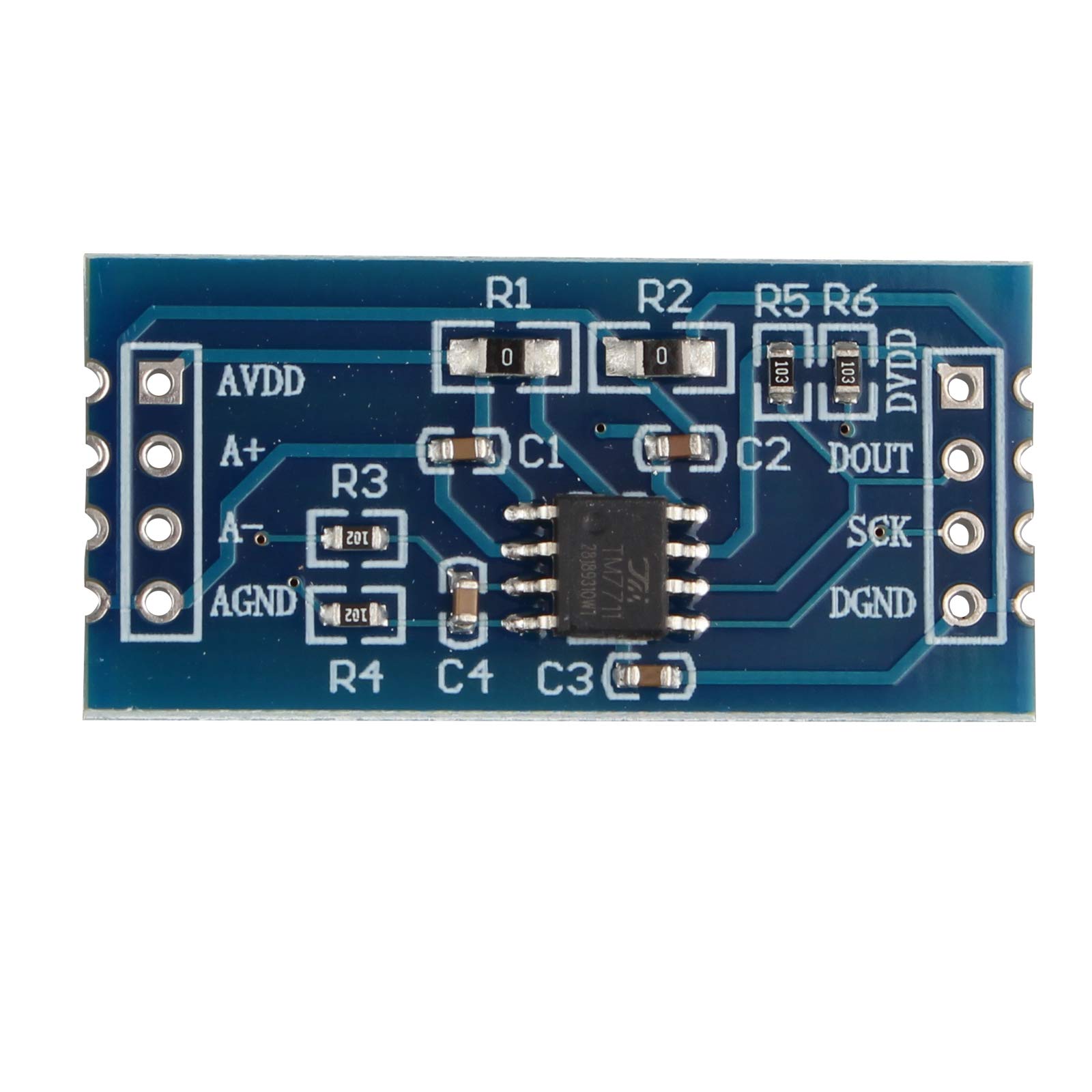

HALJIA TM7711 Module/Electronic Weighting Sensor 24 Ad Module Microcontroller HX710A High precision Pressure Sensors Designed for High Precision Electronic Scale Compatible with Software and Hardware

• The TM7711 is a single-channel analog front end for low-frequency measurements on electronic scales. The device accepts low-level input signals directly from the sensor and then produces a serial digital output.
• Single chip microcomputer weighing AD module - TM7711 compatible with HX710A chip is hardware and software; TM7711 higher performance-price ratio.
• This module uses the high-precision 24 A/D converter chip TM7711, which is designed for high-precision electronic scales and has a single analog channel input.
• The input circuit can be configured to provide bridge-bridged (eg, pressure, weighing) sensor modes, making it an ideal high-precision, low-cost sampling front-end module.
• The chip also has the advantages of high integration, fast response, strong anti-interference, etc., which can greatly reduce the overall machine cost of the electronic scale system and improve the performance and reliability of the whole system.

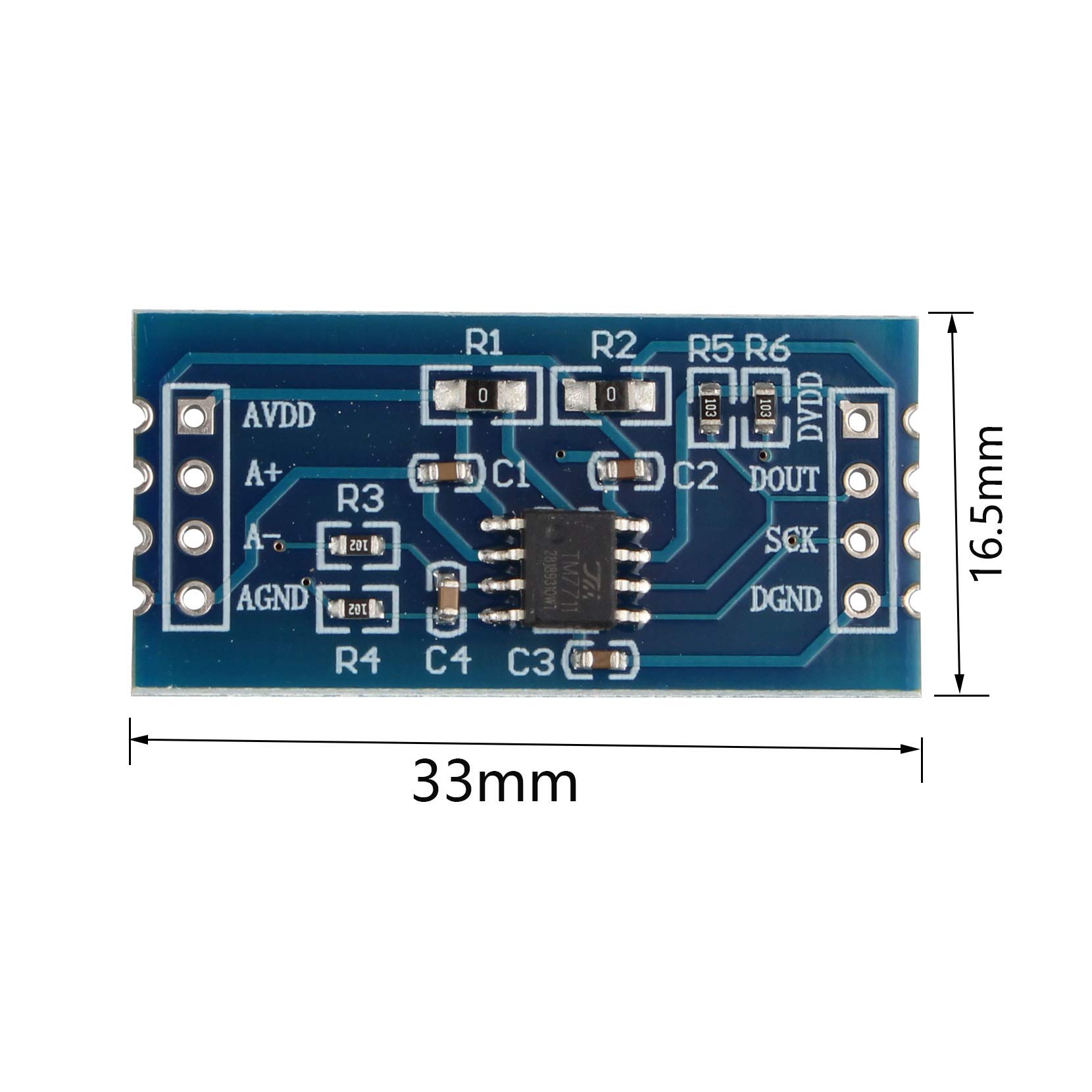

Features: Model Number:TM7711 module/electronic weighing sensor Package:DIP The TM7711 is a single-channel analog front end for low-frequency measurements on electronic scales. The device accepts low-level input signals directly from the sensor and then produces a serial digital output. Single chip microcomputer weighing AD module - TM7711 compatible with HX710A chip is hardware and software; TM7711 higher performance-price ratio. This module uses the high-precision 24 A/D converter chip TM7711, which is designed for high-precision electronic scales and has a single analog channel input. The input circuit can be configured to provide bridge-bridged (eg, pressure, weighing) sensor modes, making it an ideal high-precision, low-cost sampling front-end module. The chip also has the advantages of high integration, fast response, strong anti-interference, etc., which can greatly reduce the overall machine cost of the electronic scale system and improve the performance and reliability of the whole system. Size: 33x 16 x 5 mm Weight: 2.2g Packing List: 1 x TM7711 electronic weighing sensor module
