HALJIA TM7711 Module Electronic Weighing Sensor 24-bit AD Module Microcontroller HX710A SCM Pressure Sensor

• Model Number:TM7711 module
• This module uses 24-bit high-precision A/D converter chip TM7711, which is a single-channel analog channel input designed for high-precision electronic scales.

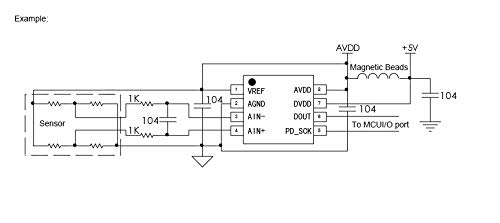

• The input circuit can be configured as a bridge-type (such as pressure, weighing) sensor mode that provides bridge pressure. It is an ideal high-precision, low-cost sampling front-end module.
• Single chip microcomputer weighing AD module-TM7711 and HX710A chip are hardware and software compatible; TM7711 is more cost-effective.
• Made of high-quality materials, durable and strong.

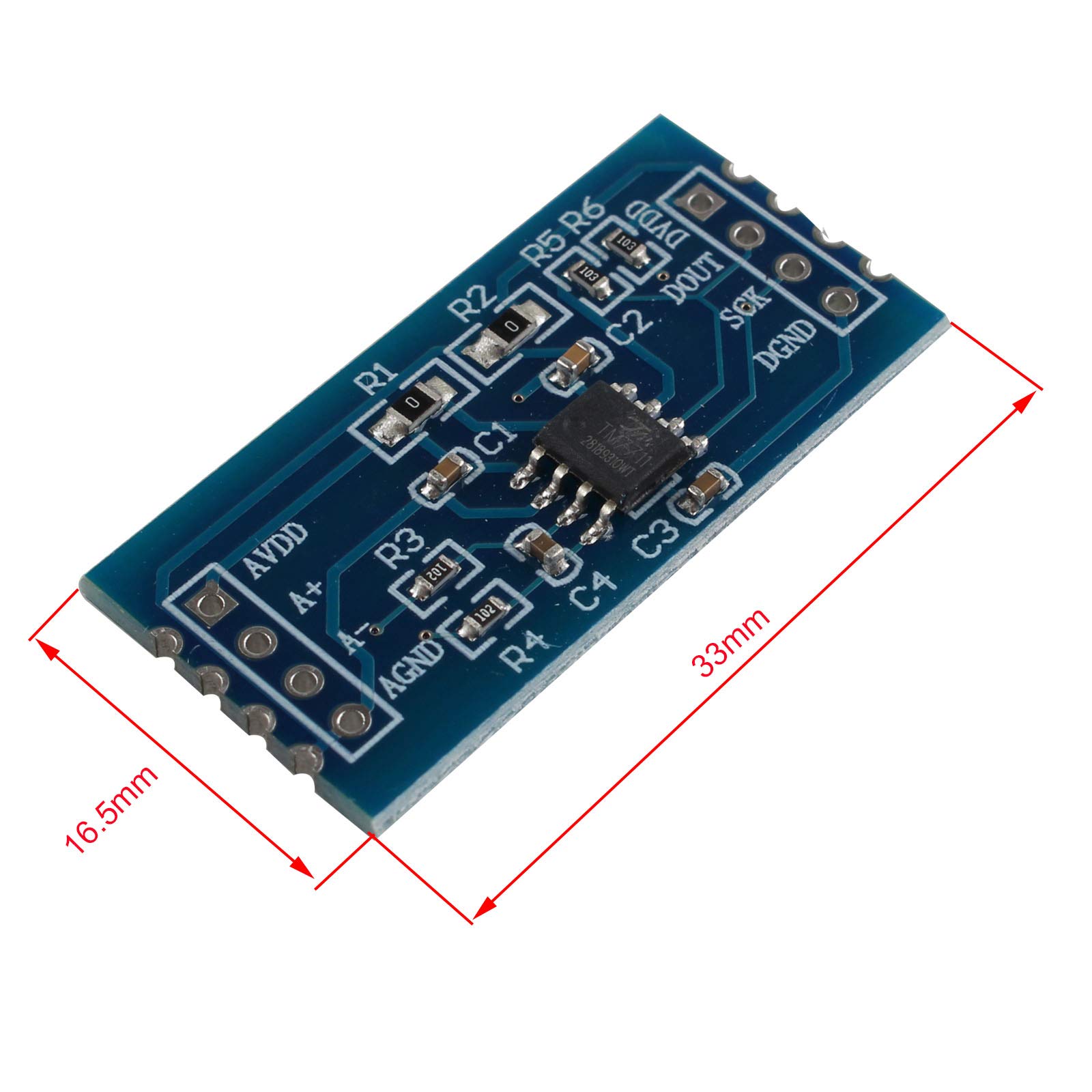

Describtion: This module uses 24-bit high-precision A/D converter chip TM7711, which is a single-channel analog channel input designed for high-precision electronic scales. The input circuit can be configured as a bridge-type (such as pressure, weighing) sensor mode that provides bridge pressure, which is an ideal high-precision, low-cost sampling front-end module. Specification： Type: Voltage Regulator Precision：24-bit Application: Electric Toy Supply Voltage: standard Dissipation Power: standard Operating Temperature: standard colour: Black + blue Material: Plastic + metal Size：33 × 16.5 × 3.2 mm Weight：2.1g Packing List: 1 × TM7711 Module
