HALJIA Portable Electronic Weight Sensor Load Cell Weighing Sensor (1KG) + HX711 Weighing Sensors Ad Module Compatible with Arduino Raspberry Pi DIY Etc

• This module uses 24 high precision A/D converter chip hx711. It is a specially designed for the high precision electronic scale design with two analog input channelthe internal integration of 128 times the programmable gain amplifier.
• The input circuit can be configured to provide a bridge type pressure bridge (such as pressureweighing sensor mode)is of high precisionlow cost is an ideal sampling front-end module.
• Four leads, easy to use,5-10V drive voltage applied, the force is directly output as a voltage change signal.
• Dimensions: 12.7mm * 12.7mm * 80mm
• Range: 1kg

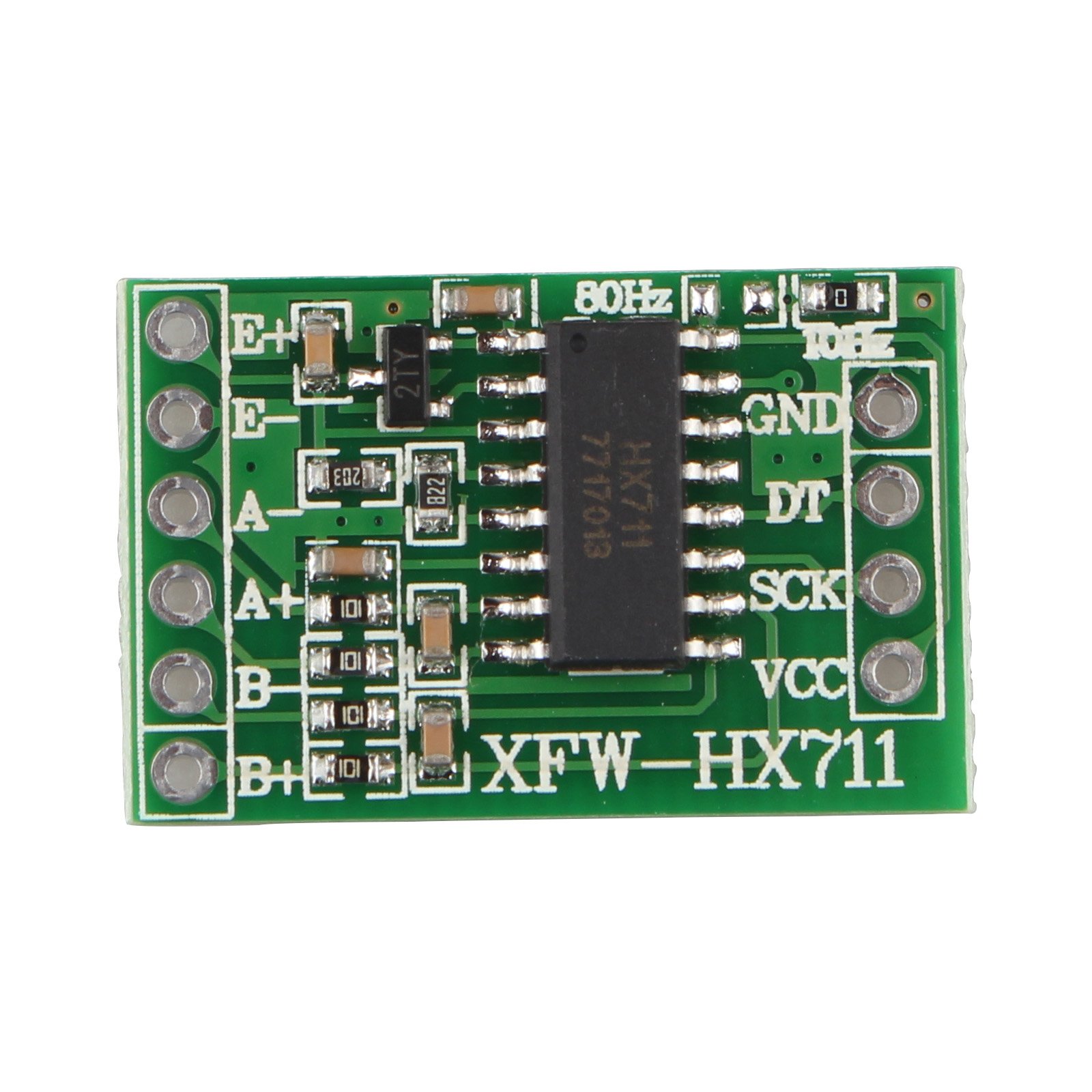

Features: Two selectable differential input channels On-chip active low noise PGA with selectable gain of 3264 and 128 On-chip power supply regulator for load-cell and ADC analog power supply On-chip oscillator requiring no external component with optional external crystal On-chip power-on-reset Simple digital control and serial interface: pin-driven controlsno programming needed Selectable 10SPS or 80SPS output data rate Simultaneous 50 and 60Hz supply rejection Current consumption including on-chip analog power supply regulator: normal operation <1.5mApower down <1uA Operation supply voltage range: 2.6 ~ 5.5V Operating Temperature Range:-20 degree ~ +85 degree Load cell size: 80 mm X 12.7 mm X 12.7 mm; Module size: 24 mm * 16 mm Connection: Red to E+ Black to E- Green to A+ White to A- Packing List: 1 X Weight Sensor 1KG 1 X HX711 24BIT Precision ADC Module
