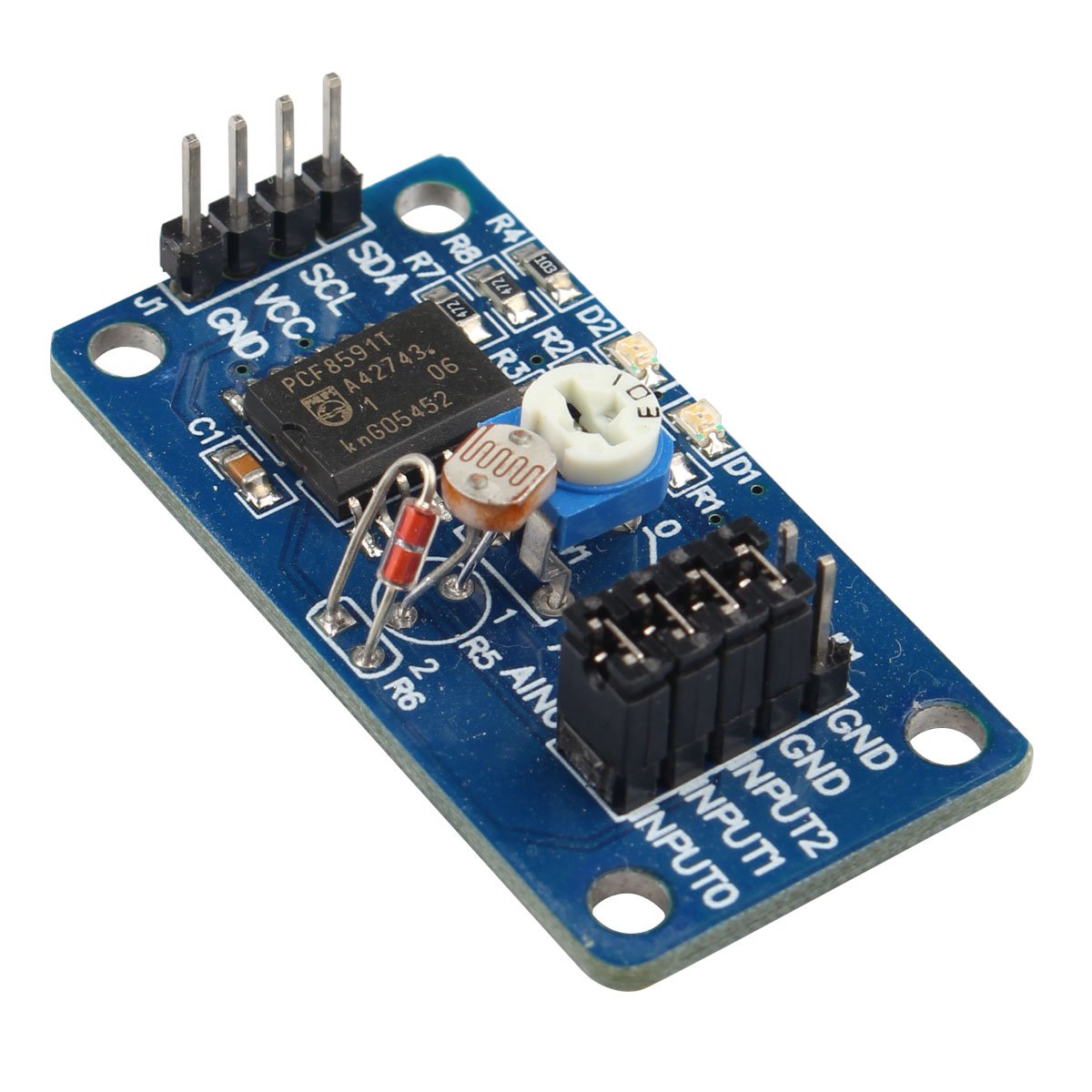

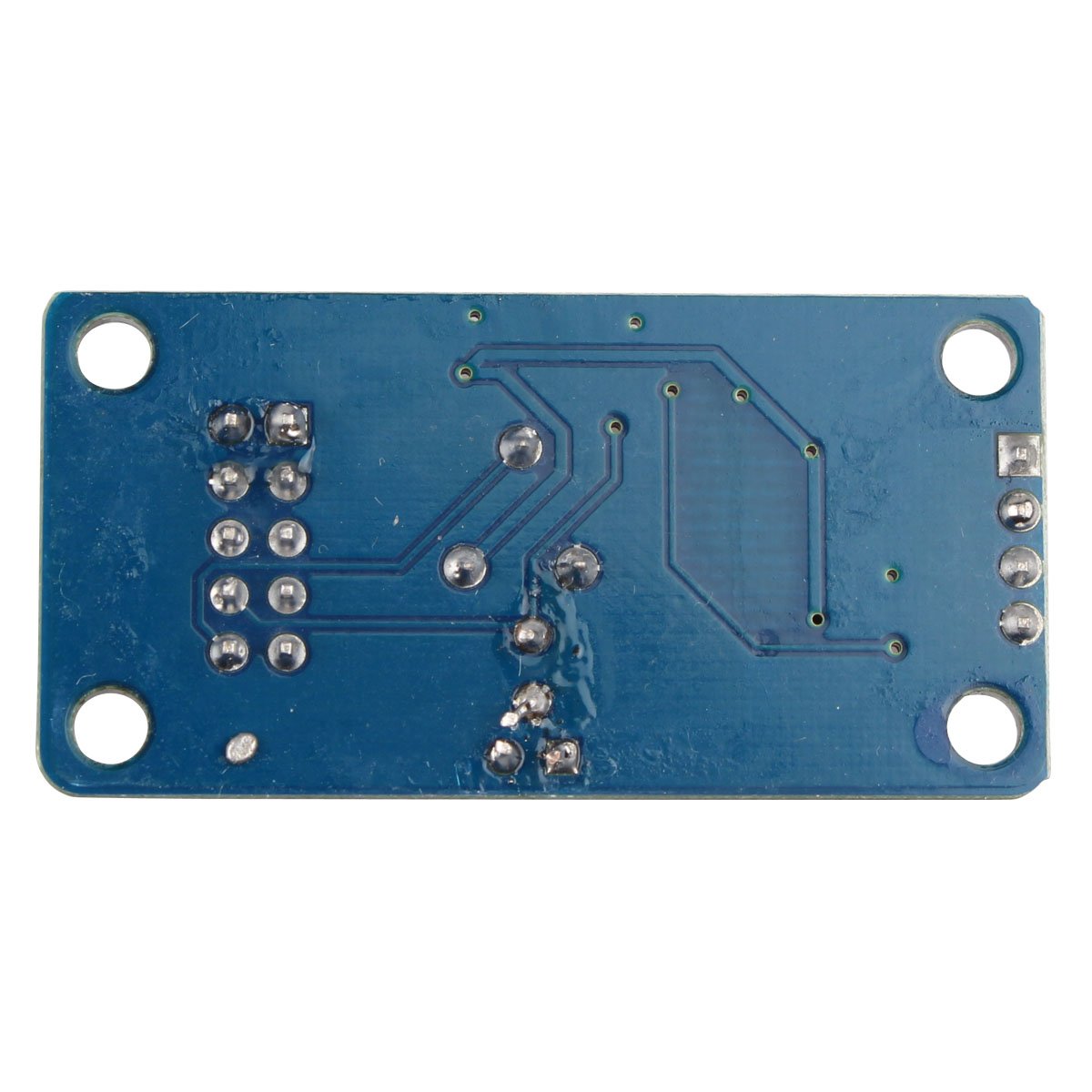

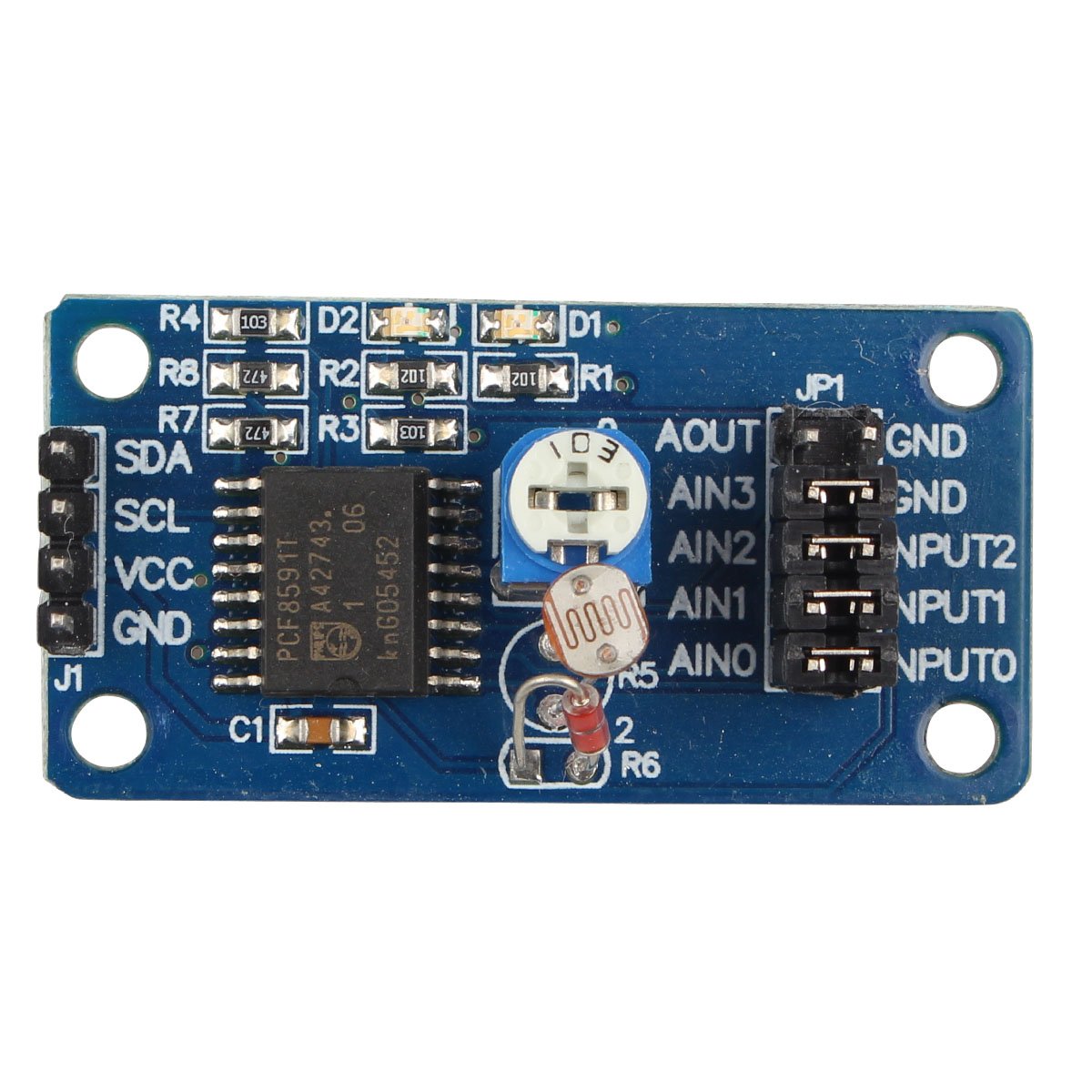

HALJIA PCF8591 AD/DA Converter Module Analog to Digital And Analog to Digital Conversion Compatible with Arduino

• The PCF8591 is a single-chip, single-supply low power 8-bit CMOS data acquisition device with four analog inputs, one analog output and a serial I2C-bus interface
• Three address pins A0, A1 and A2 are used for programming the hardware address, allowing the use of up to eight devices connected to the I2C-bus without additional hardware Address, control and data to and from the device are transferred serially via the two-line bidirectional I2C-bus
• Single power supply
• Operating supply voltage 2.5 V to 6 V

The PCF8591 is a single-chip, single-supply low power 8-bit CMOS data acquisition device with four analog inputs, one analog output and a serial I2C-bus interface Three address pins A0, A1 and A2 are used for programming the hardware address, allowing the use of up to eight devices connected to the I2C-bus without additional hardware Address, control and data to and from the device are transferred serially via the two-line bidirectional I2C-bus Single power supply Operating supply voltage 2.5 V to 6 V Low standby current Serial input/output via I2C-bus Address by 3 hardware address pins Sampling rate given by I2C-bus speed 4 analog inputs programmable as single-ended or differential inputs Auto-incremented channel selection Analog voltage range from VSS to VDD On-chip track and hold circuit 8-bit successive approximation A/D conversion Multiplying DAC with one analog output Applications: Closed loop control systems Low power converter for remote data acquisition Battery operated equipment Acquisition of analog values in automotive, audio and TV applications Download Link： http://download.haljia.com/download/Board/PCF8591/PCF8591.rar Packing List 1 x PCF8591 AD/DA module
